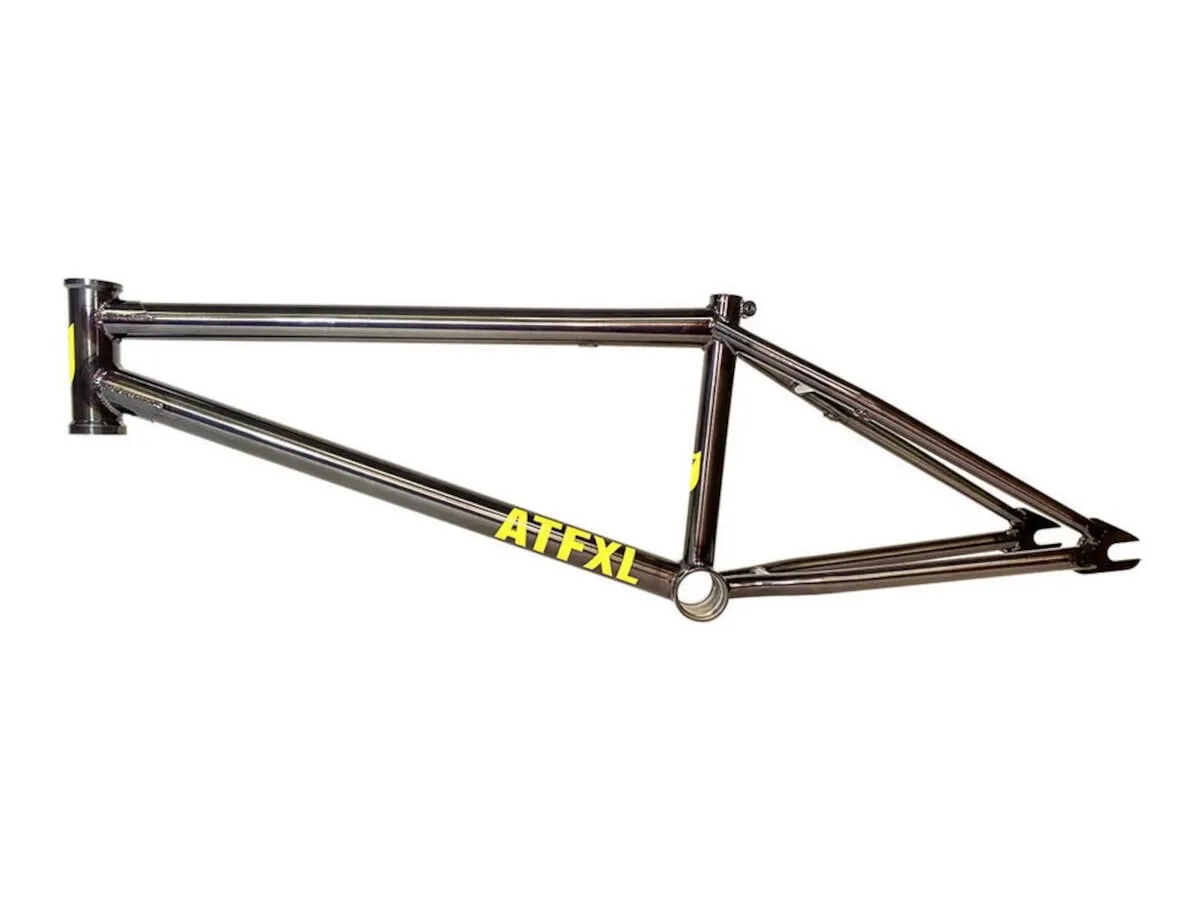

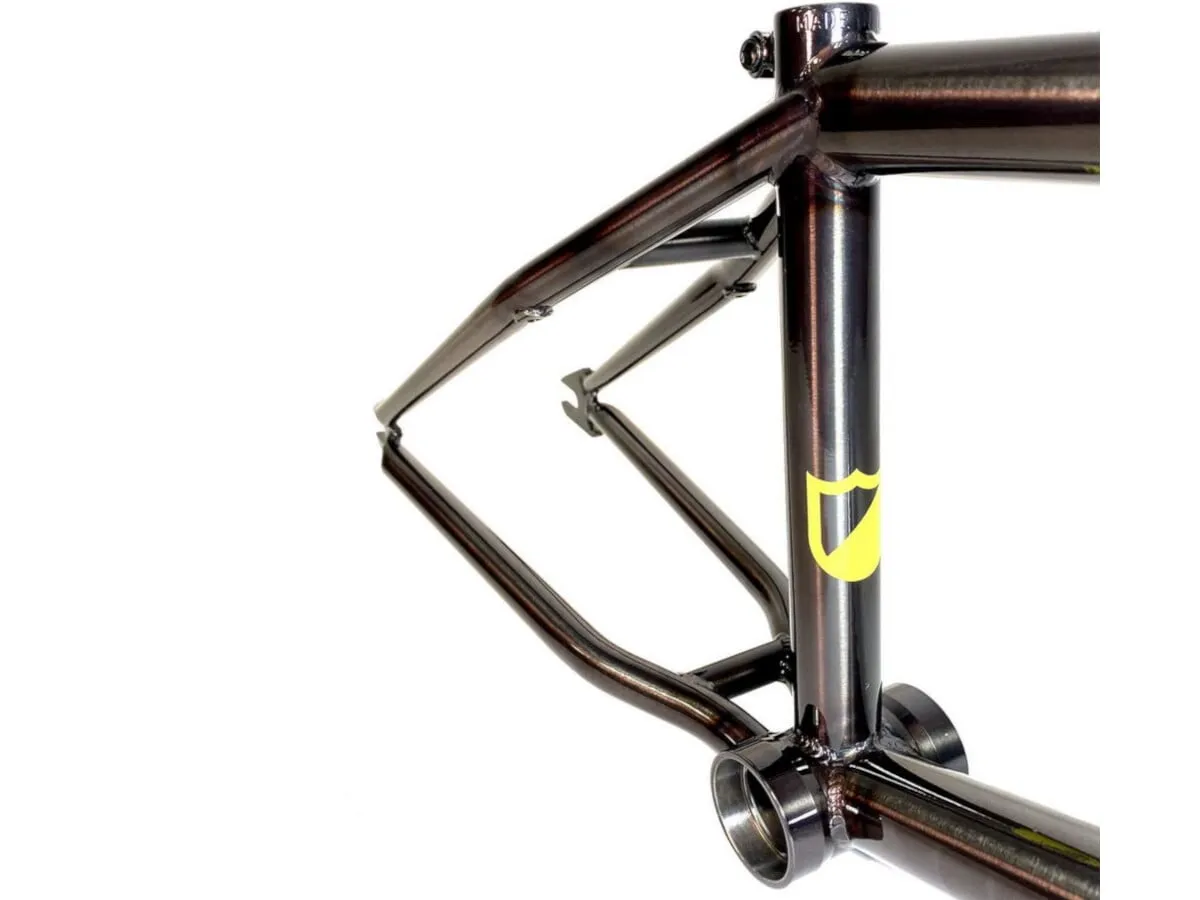

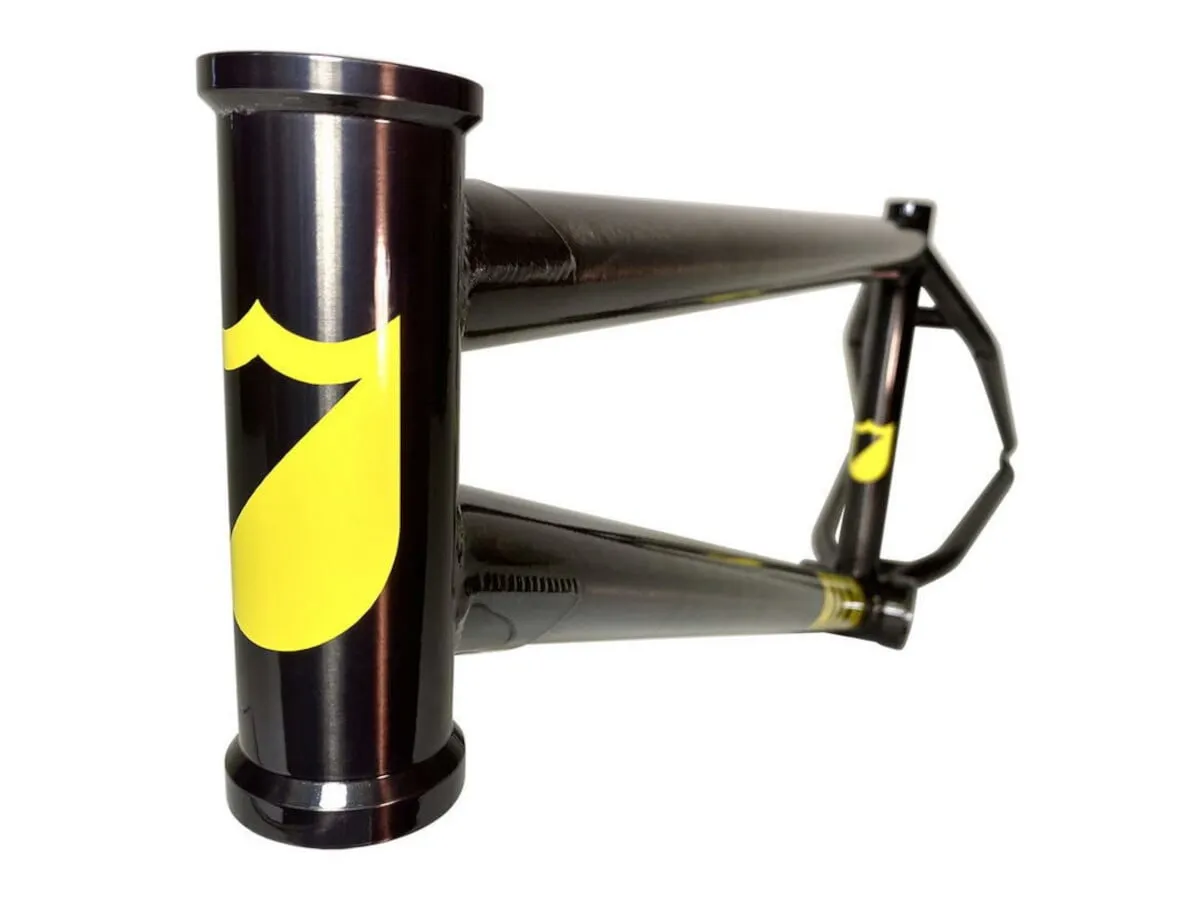

S&M Bikes "ATF" BMX Frame - XL
-
Weight : 2.19kg / 4.83lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 25857
The S&M Bikes "ATF" BMX Frame - XL takes the proven ATF frame to the next level. With a 5" head tube, 9" standover and top tube lengths up to 22", it is perfect for taller people. The perfect mix of responsiveness and stability is ready for any terrain.
Facts: S&M Bikes "ATF" BMX Frame - XL
- Geometry:
Top Tube Length (TT): 21.0"
Chainstay Length (CS): 13.4" (34.04cm) - #94#
Head Tube Length: #104#
Head Tube Angle (HA): 75°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.7" (29.72cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Heat treated, 5mm thick, 14mm slots
- Chain Tensioners: without
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: No
