Speedco "Velox Evo Junior" BMX Race Frame + Fork Set

1,781.95 EUR

Taxfree excl. shipping

Color | Top Tube Length

Please Select
- - purple/black | 18.5"
  - black | 18.5"
  - black/red | 18.5"

Straight to the checkout with PayPal: delivery address and payment come from there. The amount (incl. shipping) is only reserved and charged only when you order. Vouchers & discount codes can then be redeemed in the checkout.

pick up in our shop?

Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.

Weight : 1.72kg / 3.79lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Packaging Unit: 1 Set
Product ID (PID): 42568
Product safety

Found an error? Report it. 5 EUR voucher if confirmed.

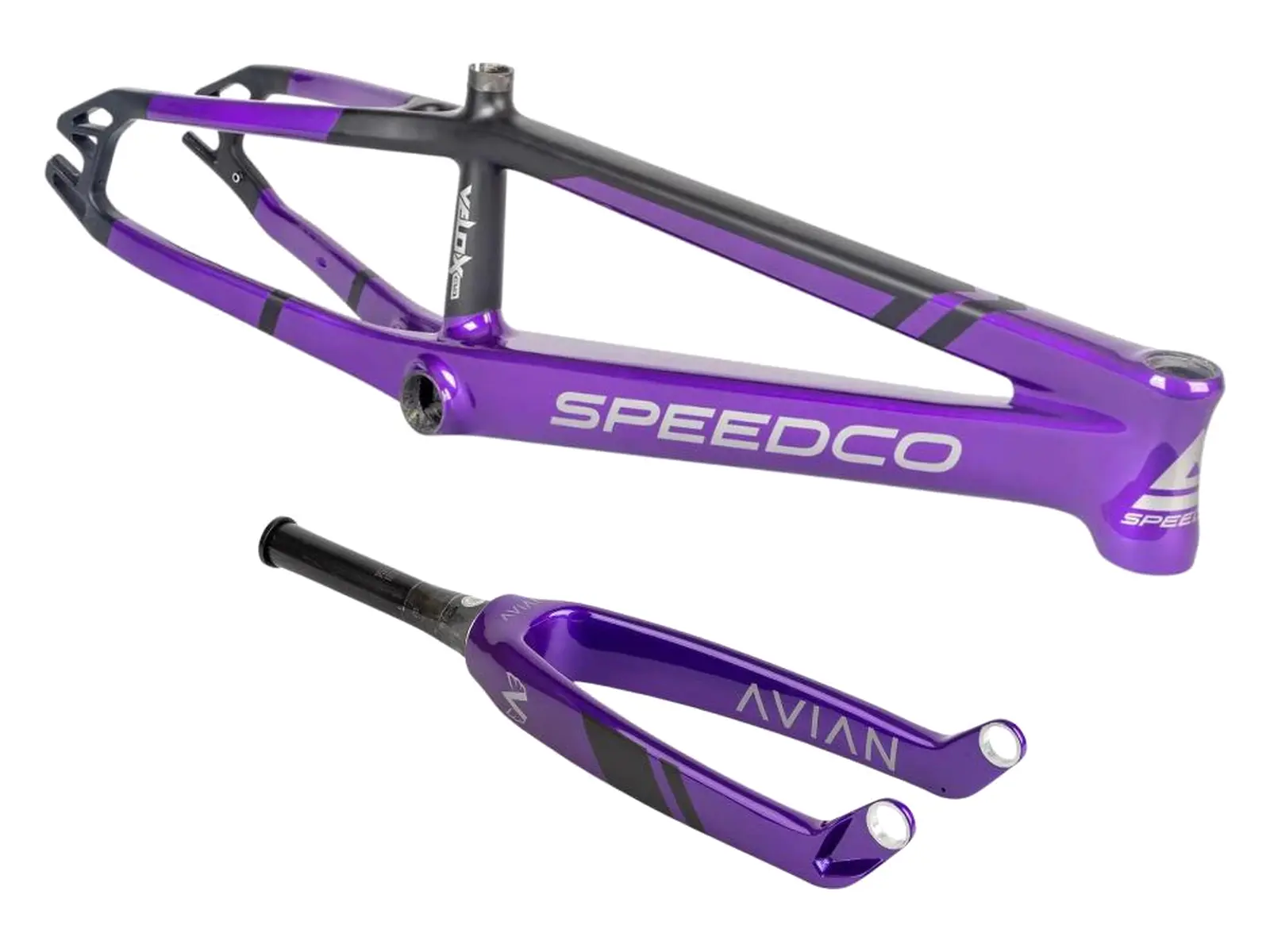

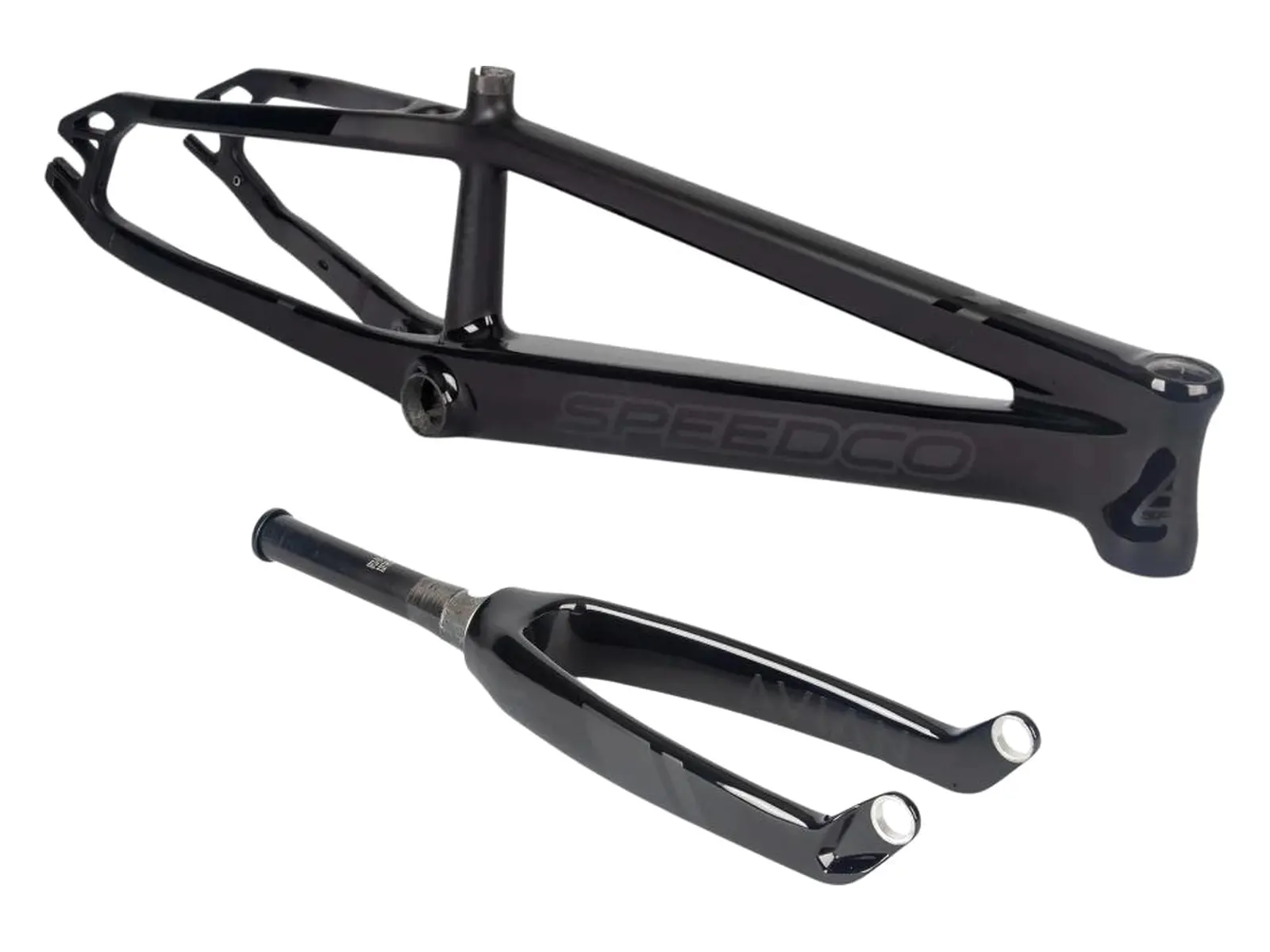

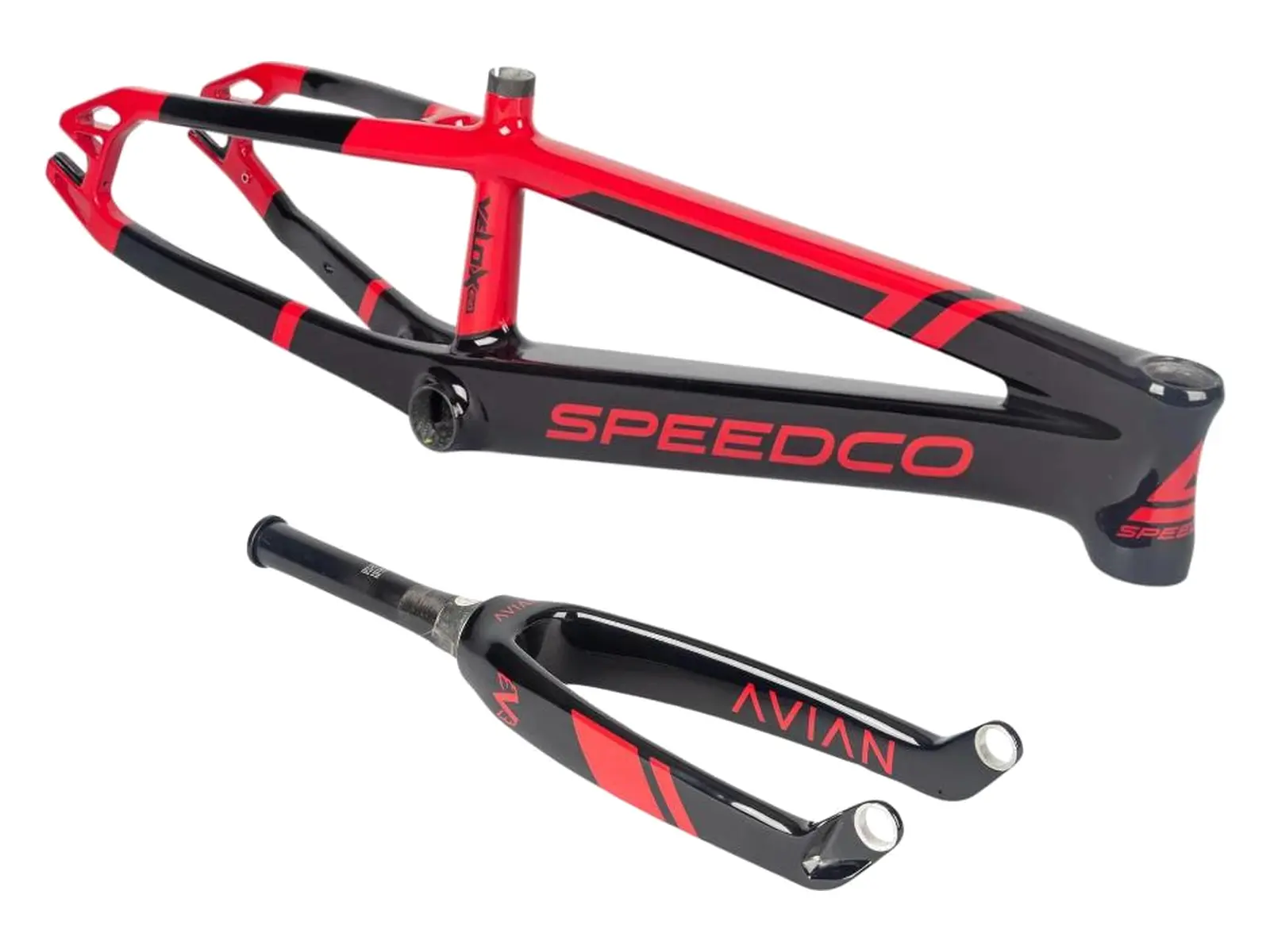

The Speedco "Velox Evo Junior" BMX Race Frame + Fork Set combines the Speedco "Velox Evo" carbon frame with an Avian carbon fork. The Velox Evo was designed for UCI World Cup level competition; its tube shapes are borrowed from the fastest bikes of the professional road peloton to keep the drag low at maximum speed. It was tested and raced throughout the 2023 season by Rico Bearman, winner of the overall U23 World Cup classification.

The down tube connects through the bottom bracket shell directly into the chainstays, creating a reinforced power center for more response out of the gate and through corners. The brake mount is flat mount for 140mm rotors (120mm rotors do not fit), with fully internal brake hose routing. The asymmetrical chainstays carry the integrated chain tensioner, and the raised upper stay eliminates chain slap with big chainrings. The rear end takes 10mm, 15mm or 20mm axles (axle not included).

Facts: Speedco "Velox Evo Junior" BMX Race Frame + Fork Set

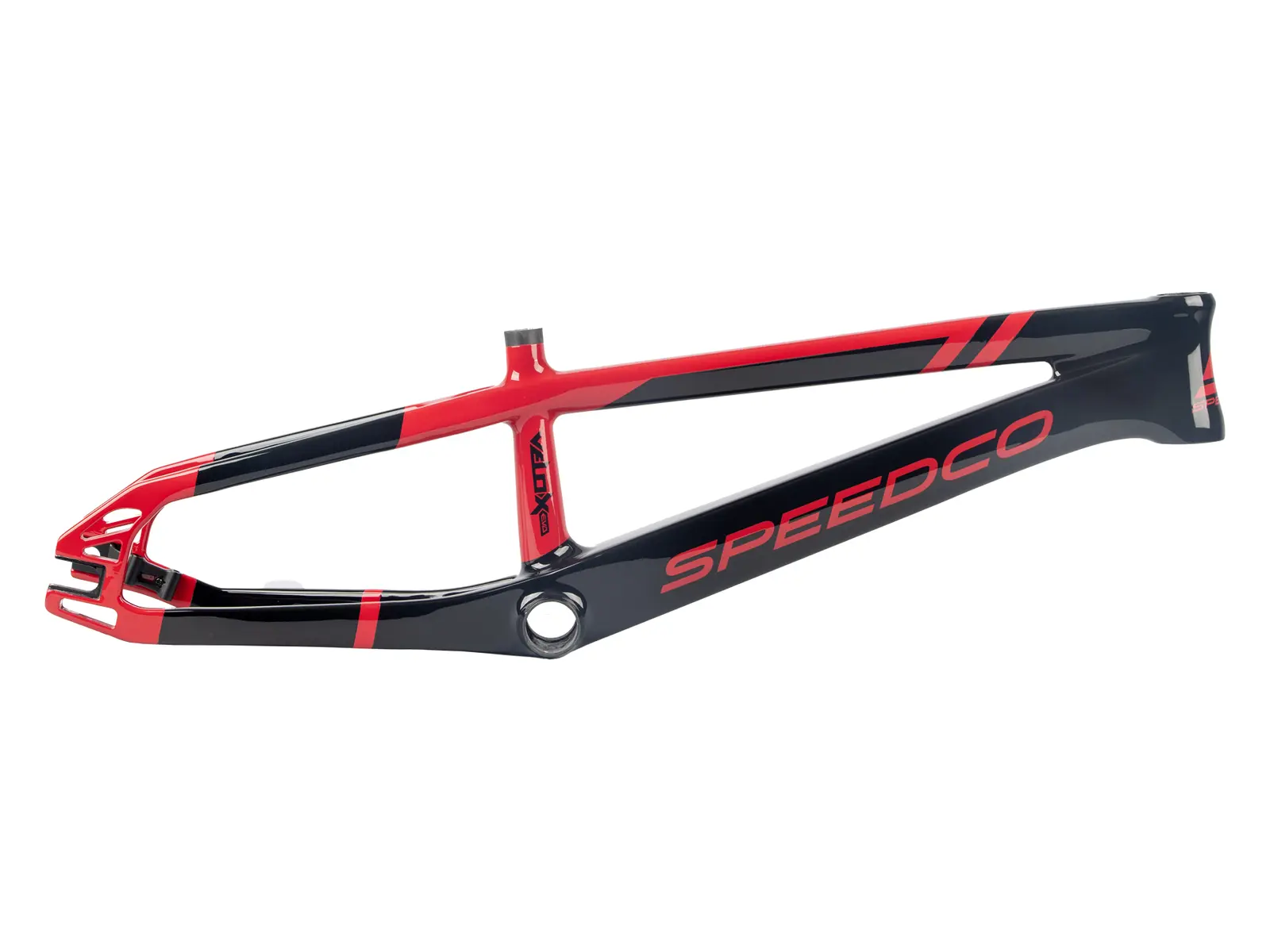

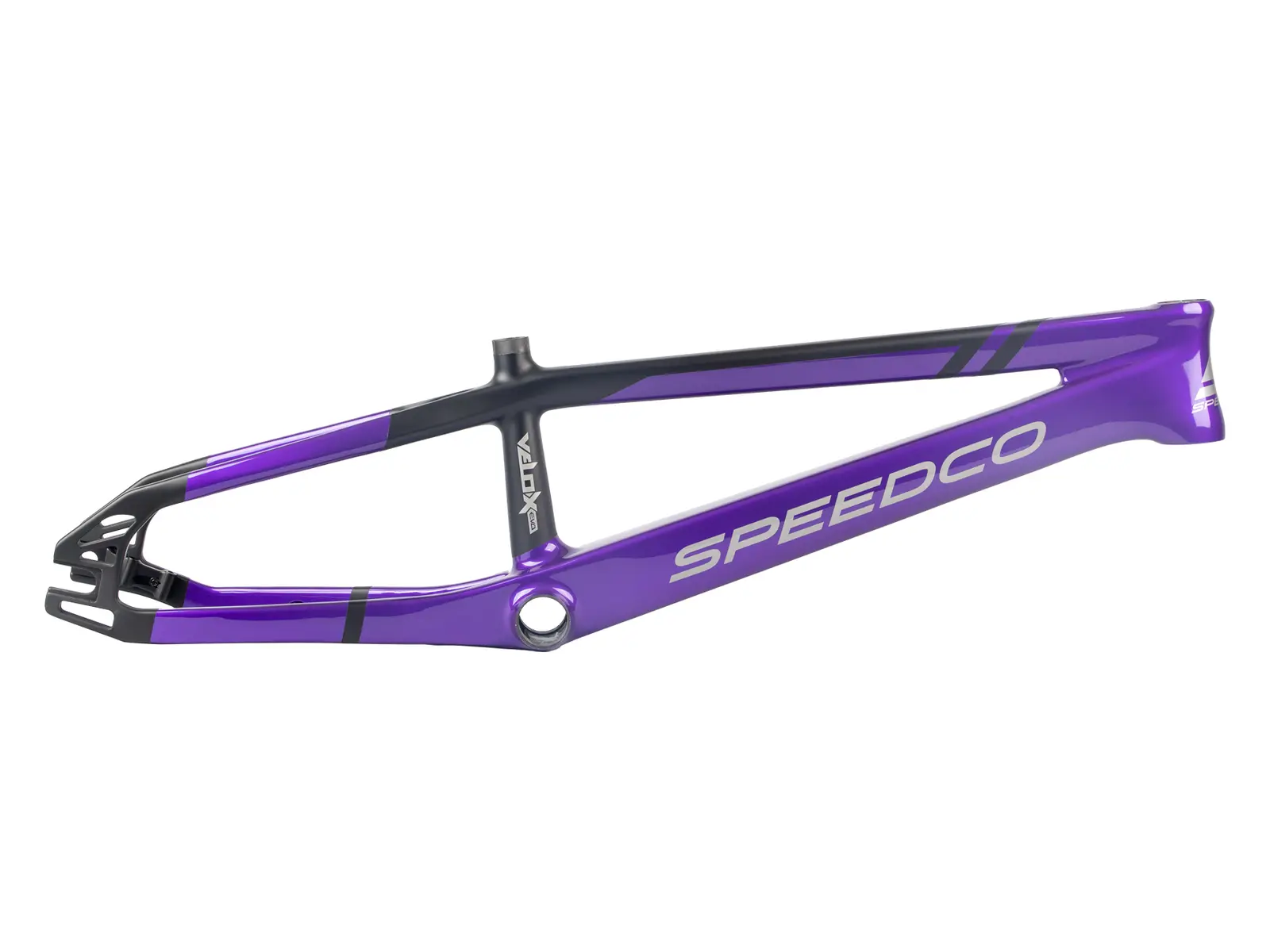

Frame: Speedco "Velox Evo Junior" BMX Race Frame
Wheel size: 20"
Race size: Junior
Material: 100% Torayca carbon
Geometry:
- Top Tube (TT): 18.5"
- Chainstay (CS): 13.5"
- Head Tube Angle (HA): 73°
- Seat Tube Angle (SA): 70°
- Bottom Bracket Height: 10.6"
Head tube: 1-1/8"
Bottom bracket: Euro BSA
Dropouts: for 10mm, 15mm or 20mm axles (axle not included)
Chain tensioner: integrated in the chainstay
Brake mount: flat mount hydraulic disc only, 140mm rotor only
Cable routing: internal
Seat post diameter: 22.2mm
Frame weight: 1200g

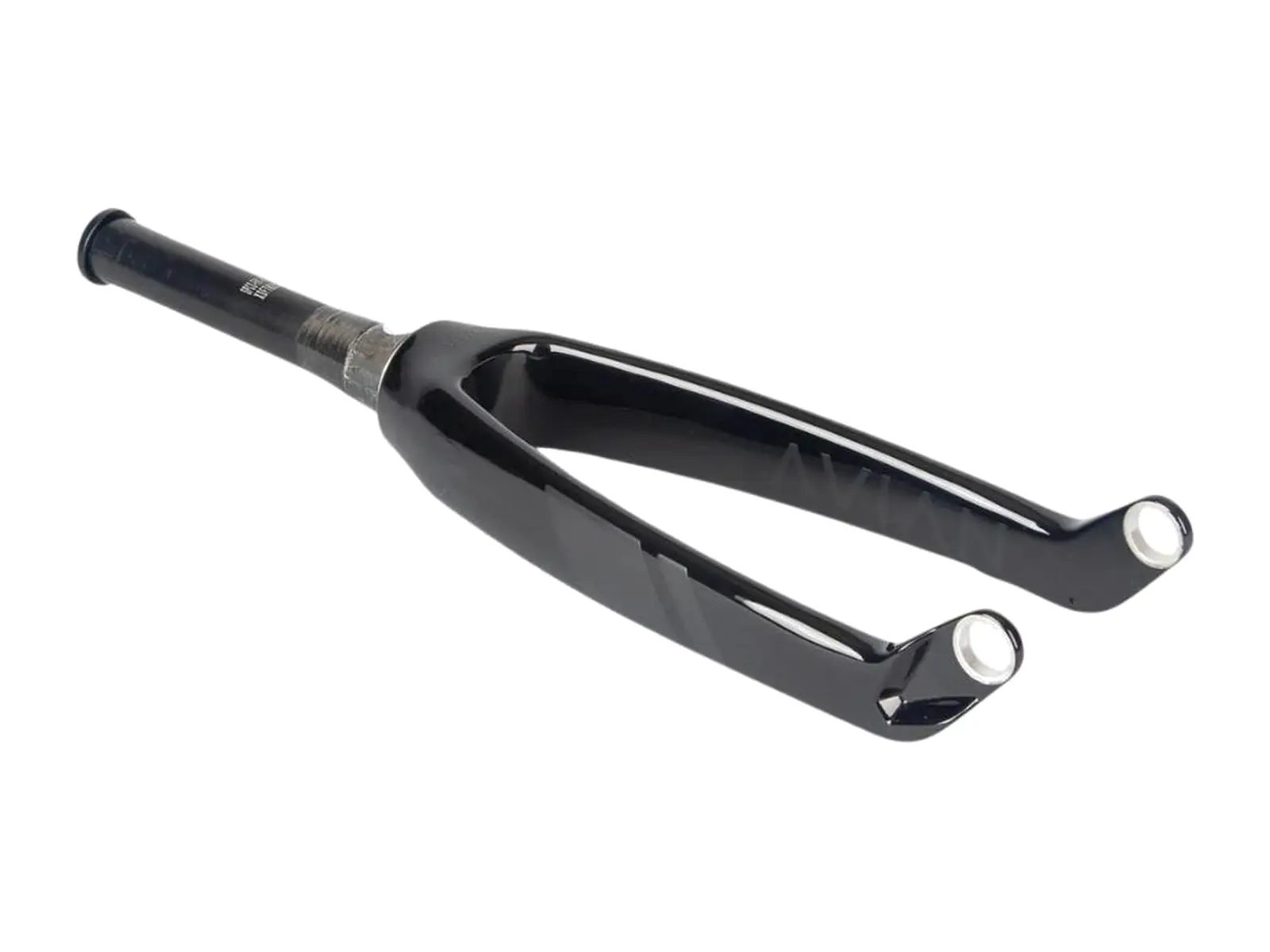

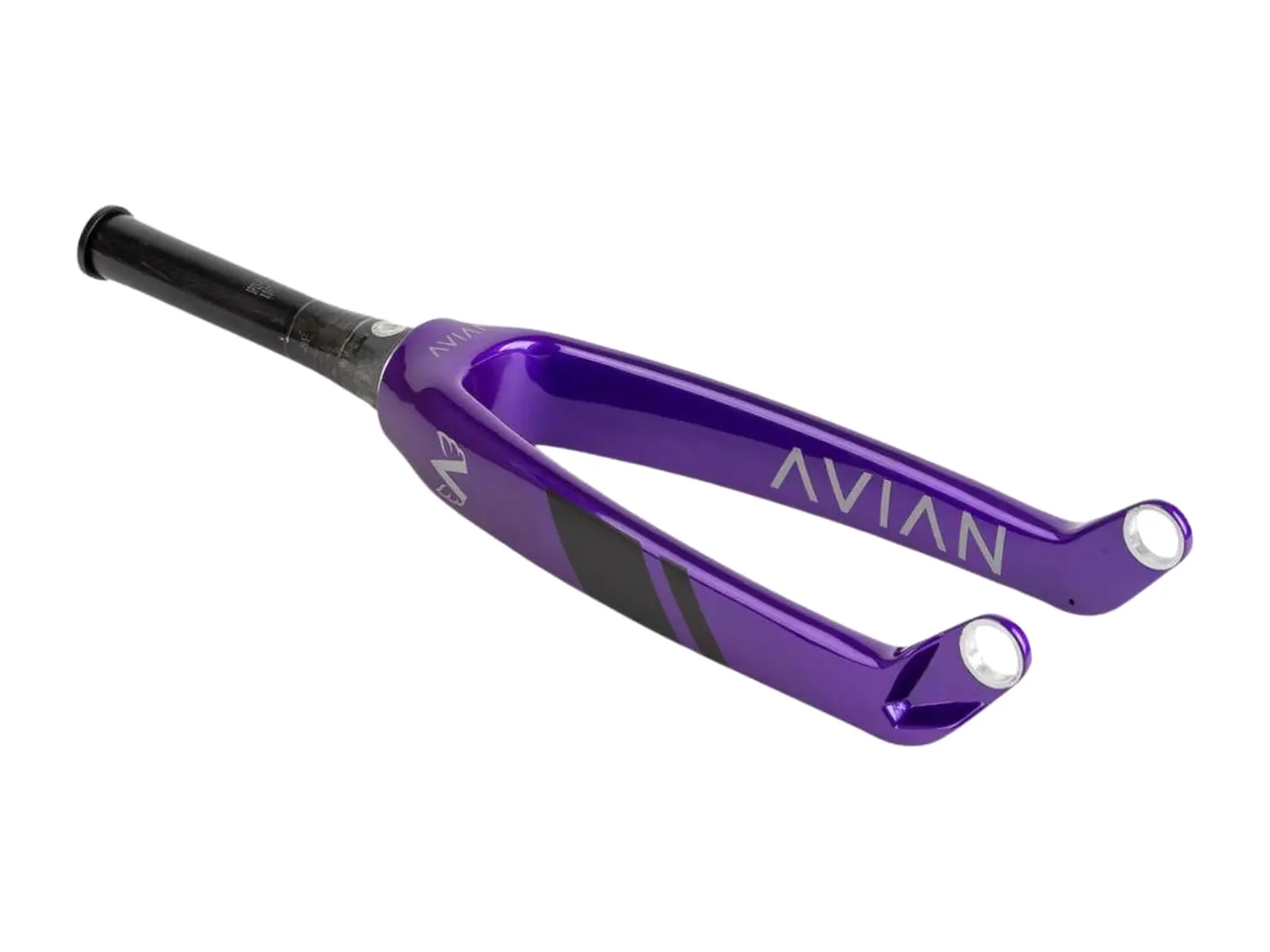

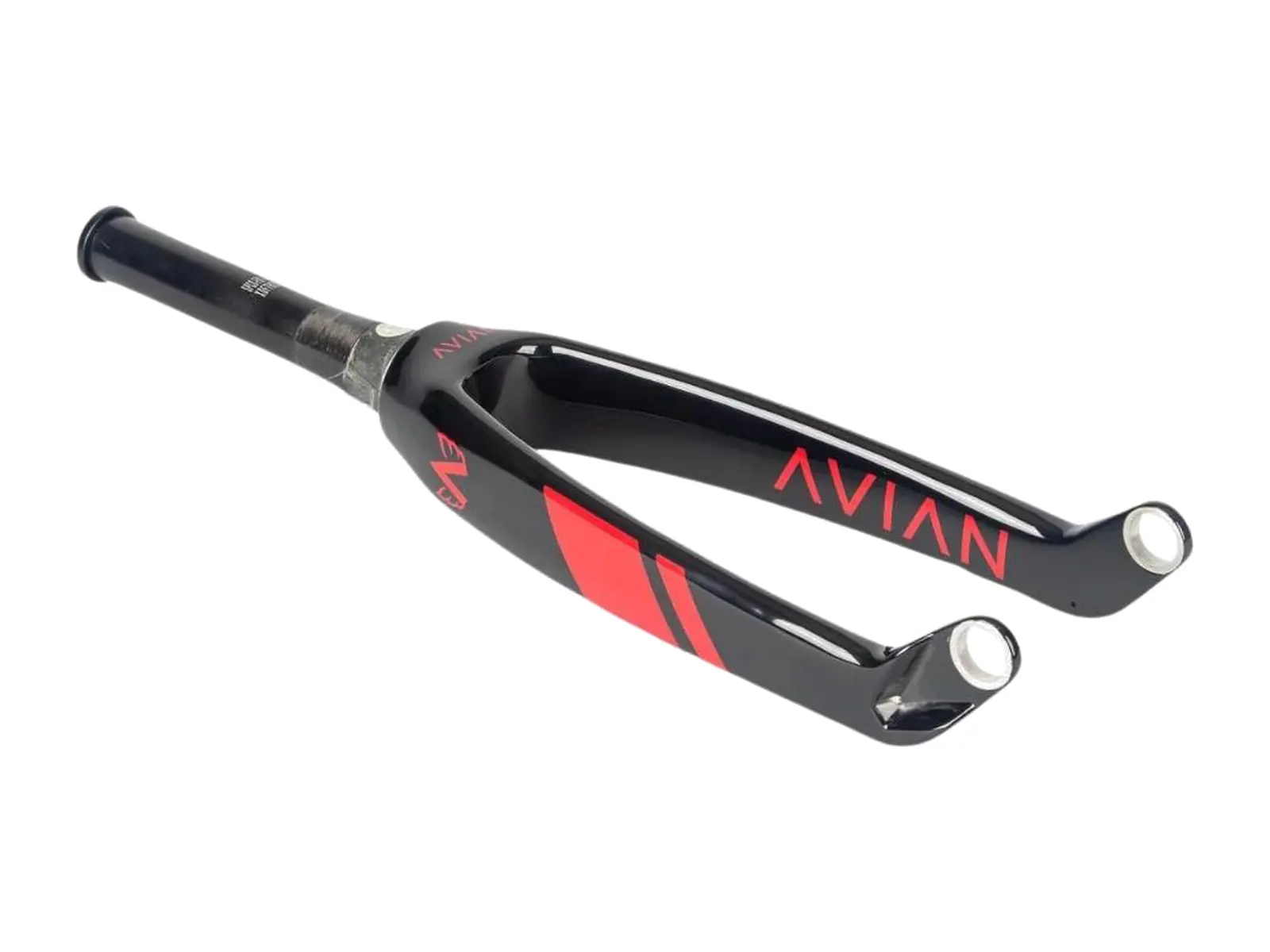

Fork: Avian carbon BMX Race fork
Material: carbon
Fork weight: 523g
Axle: 10mm
Content: 1 frame, 1 fork
