Speedco "Velox Evo Pro" BMX Race Frame + Fork Set
- Weight : 1.86kg / 4.10lbs
- Packaging Unit: 1 Set
- Product ID (PID): 42571
- Product safety
Weight
Source: BMX Glossary
Printed: 11/23/2026

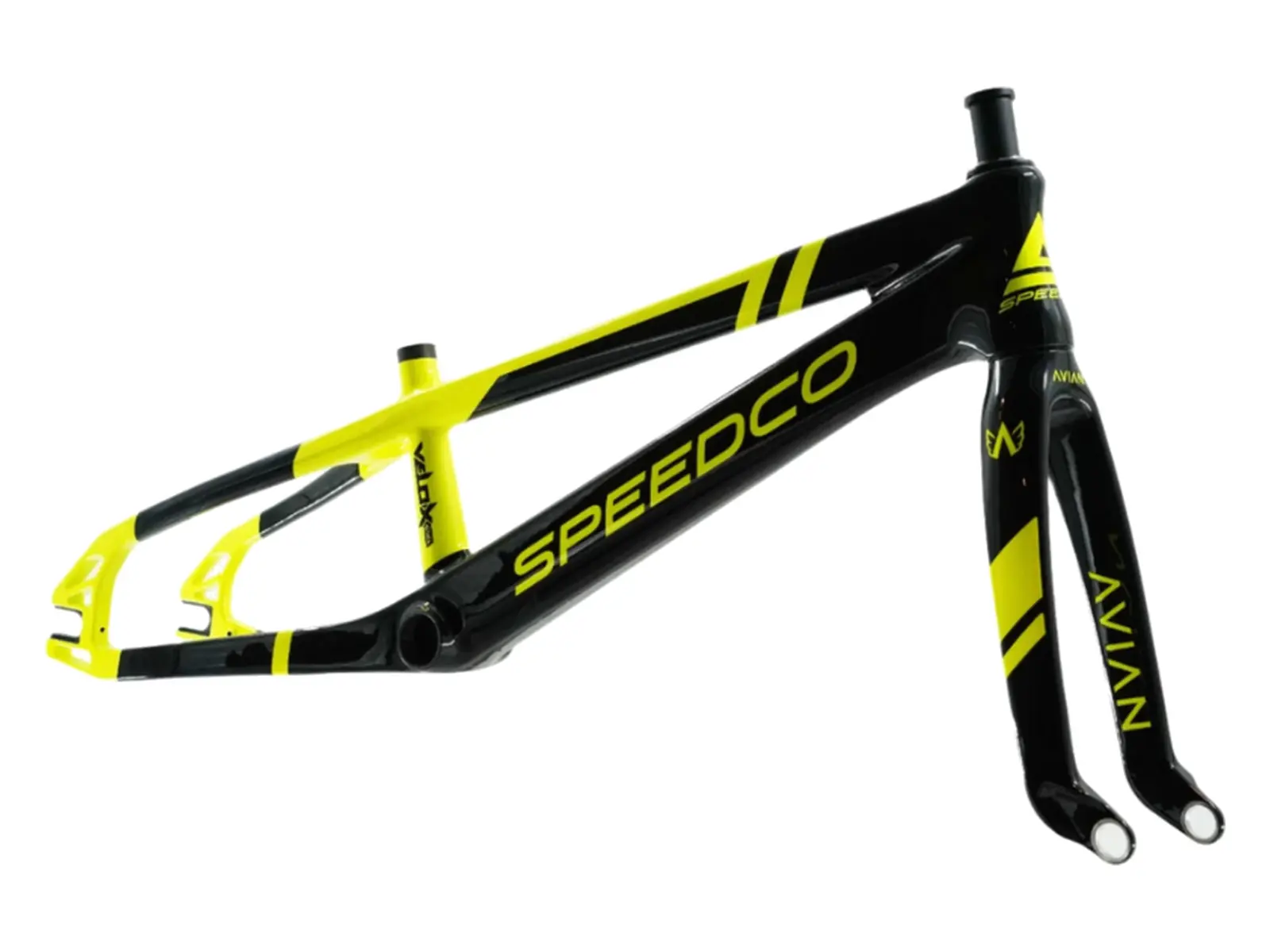

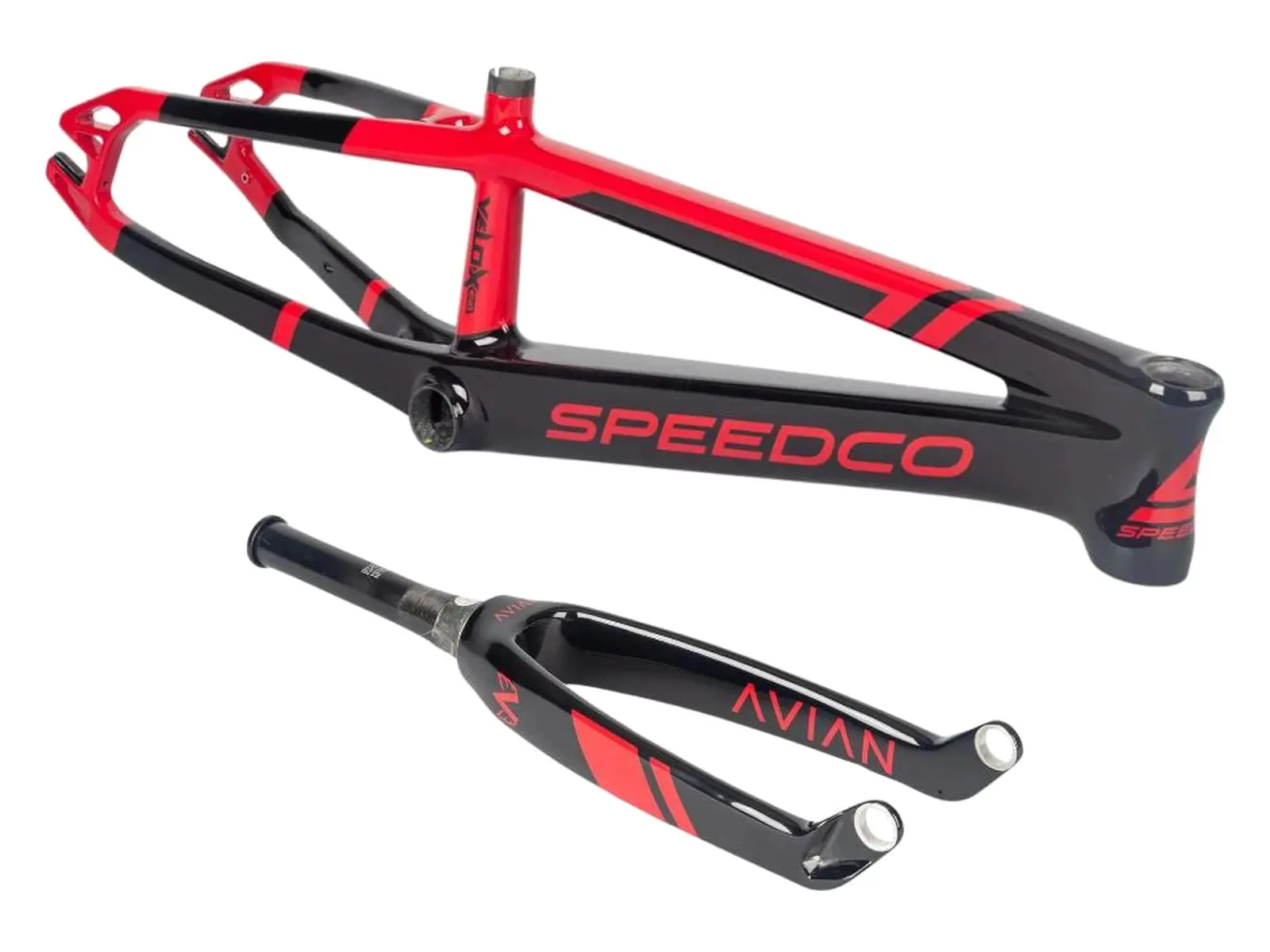

The Speedco "Velox Evo Pro" BMX Race Frame + Fork Set combines the Speedco "Velox Evo" carbon frame with an Avian carbon fork. The Velox Evo was designed for UCI World Cup level competition; its tube shapes are borrowed from the fastest bikes of the professional road peloton to keep the drag low at maximum speed. It was tested and raced throughout the 2023 season by Rico Bearman, winner of the overall U23 World Cup classification.
The down tube connects through the bottom bracket shell directly into the chainstays, creating a reinforced power center for more response out of the gate and through corners. The brake mount is flat mount for 140mm rotors (120mm rotors do not fit), with fully internal brake hose routing. The asymmetrical chainstays carry the integrated chain tensioner, and the raised upper stay eliminates chain slap with big chainrings. The rear end takes 10mm, 15mm or 20mm axles (axle not included).
Facts: Speedco "Velox Evo Pro" BMX Race Frame + Fork Set

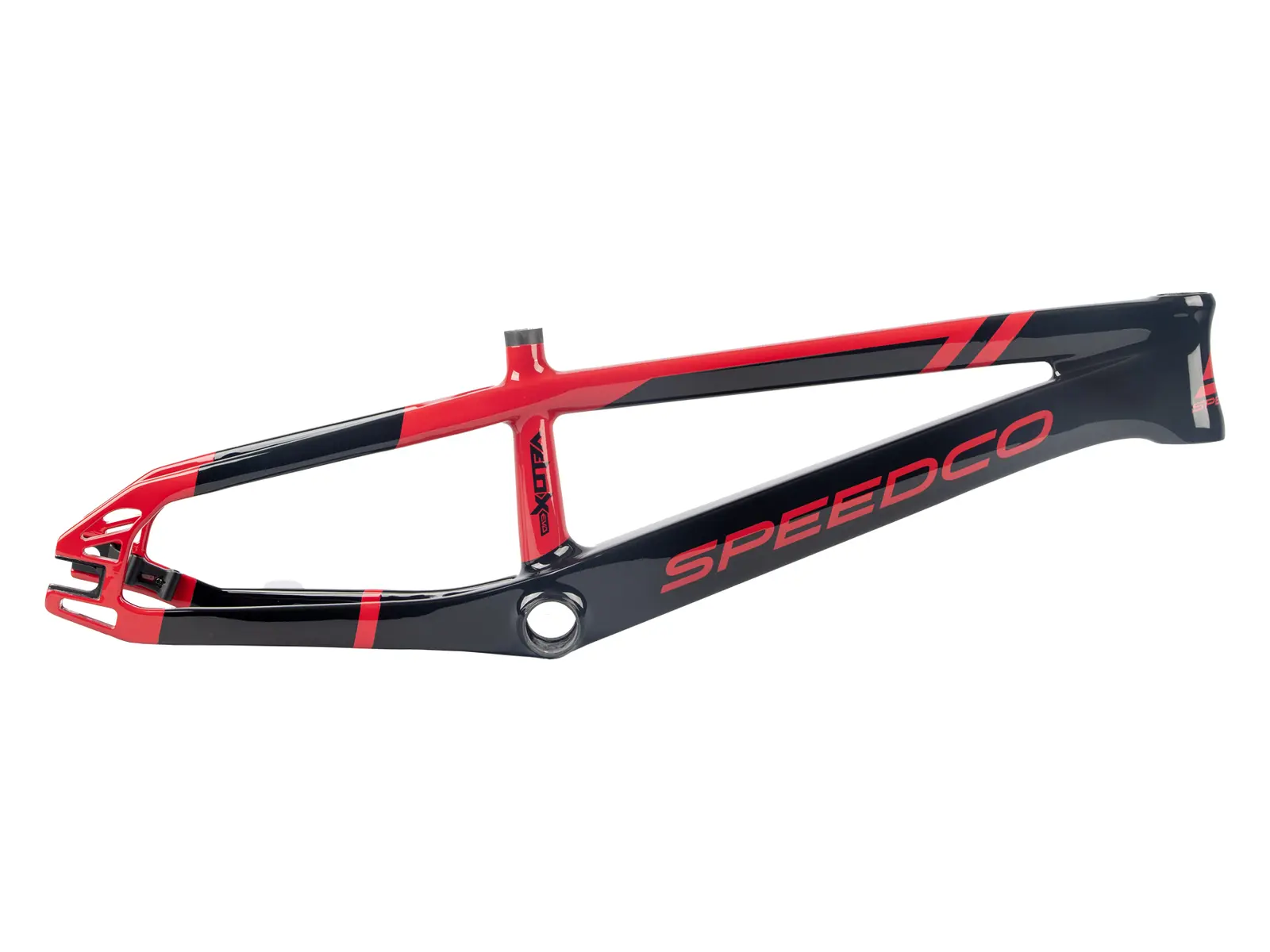

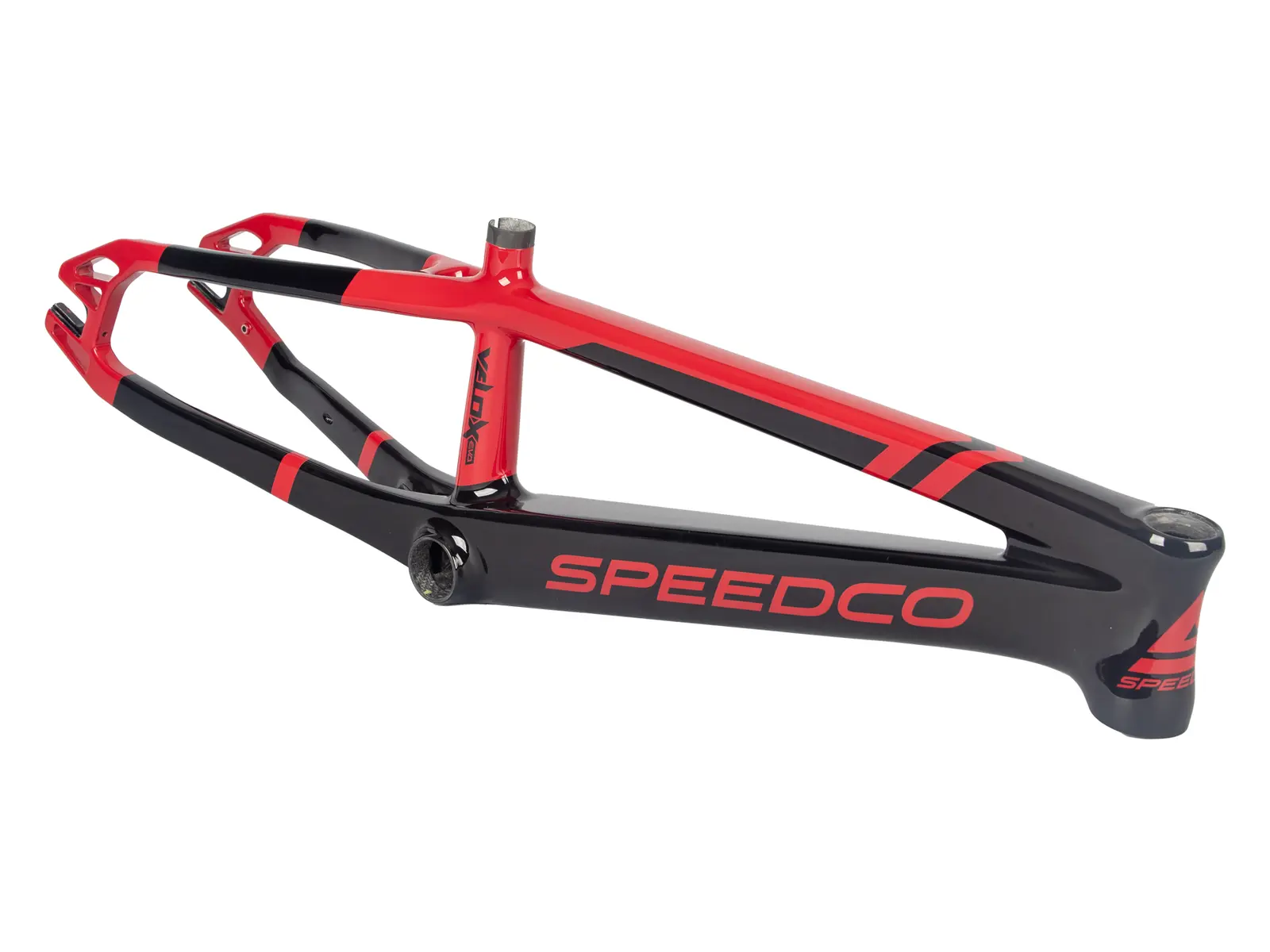

- Frame: Speedco "Velox Evo Pro" BMX Race Frame
- Wheel size: 20"
- Race size: Pro
- Material: 100% Torayca carbon
- Geometry:
- Top Tube (TT): 20.5"
- Chainstay (CS): 15"
- Head Tube Angle (HA): 74°
- Seat Tube Angle (SA): 72°
- Bottom Bracket Height: 11.5" - Head tube: Tapered 1-1/8" - 1.5"
- Bottom bracket: BB86
- Dropouts: for 10mm, 15mm or 20mm axles (axle not included)
- Chain tensioner: integrated in the chainstay
- Brake mount: flat mount hydraulic disc only, 140mm rotor only
- Cable routing: internal
- Seat post diameter: 27.2mm
- Frame weight: 1340g

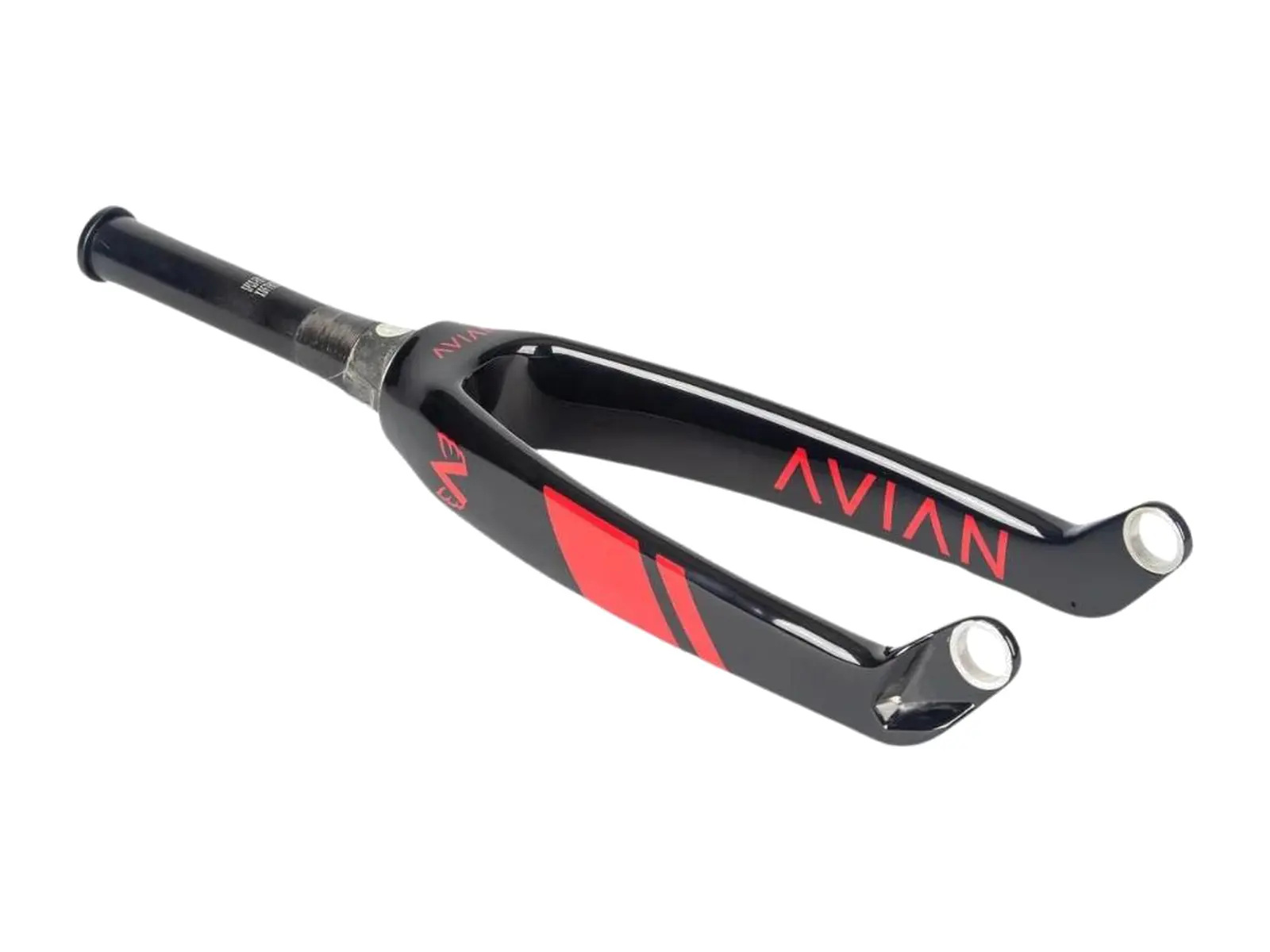

- Fork: Avian carbon BMX Race fork
- Material: carbon
- Content: 1 frame, 1 fork
