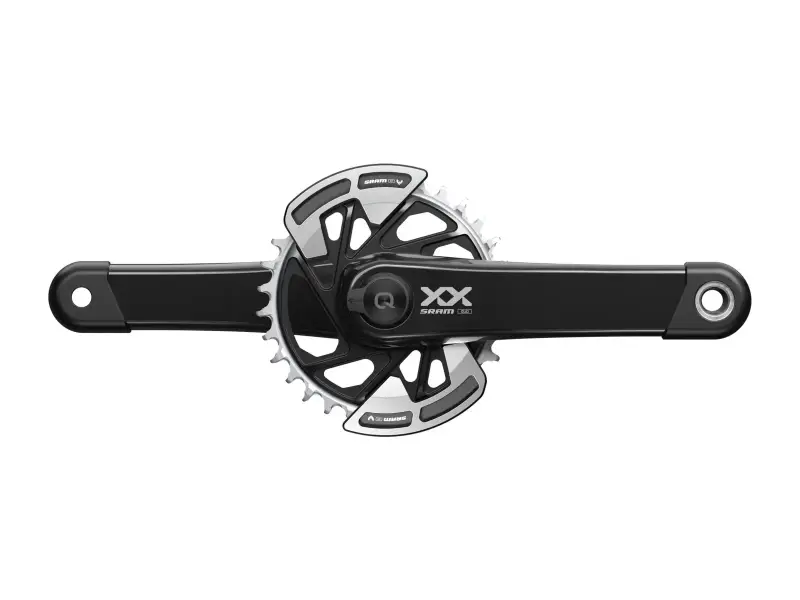

SRAM "XX Eagle T-Type AXS Power Meter" MTB Crankset
- Weight : 1kg / 2.20lbs
- Packaging Unit: 1 Set
- Product ID (PID): 42766
- Product safety
Weight
Source: BMX Glossary
Printed: 11/22/2026
The SRAM "XX Eagle T-Type AXS Power Meter" MTB Crankset uses the carbon crank arm of XX Eagle Transmission and builds Quarq power measurement out of sight into the DUB spindle as DUB-PWR. It measures on the left and calculates total wattage from it, whatever chainring is fitted. Over 400 hours of runtime on an AAA battery, waterproof to IPX7.
Supplied with a 32T direct mount chainring, without a bottom bracket. 174 mm Q-factor, 55 mm chainline.
Facts: SRAM "XX Eagle T-Type AXS Power Meter" MTB Crankset
- Material Crank Arms: carbon
- Crank-Type: 2-piece
- Crank Arm Length: 165mm, 170mm or 175mm
- Spindle Diameter: 28.99mm (DUB)
- Spindle-Type: DUB
- Version: DUB Wide / 174 mm Q-factor / 55 mm chainline
- Chainring Mount: Direct Mount (SRAM 8-Loch)
- Chainring: 32T direct mount, T-Type tooth profile, 3 mm offset
- Power Meter: Quarq DUB-PWR in the spindle, left side measurement
- Scope of Delivery: 1 crankset with chainring and power meter, without bottom bracket
- Extras:
- 12-speed SRAM Eagle Transmission (T-Type), AXS
- accuracy +/- 3 %
- over 400 hours battery life, user replaceable AAA lithium battery
- waterproof to IPX7 (1 metre, 30 minutes)
- compatible with RockShox Flight Attendant
- for 32 to 36T chainrings, works with chainring bashguards
- weight 750 g (manufacturer)
- model FC-XX-P-D1
