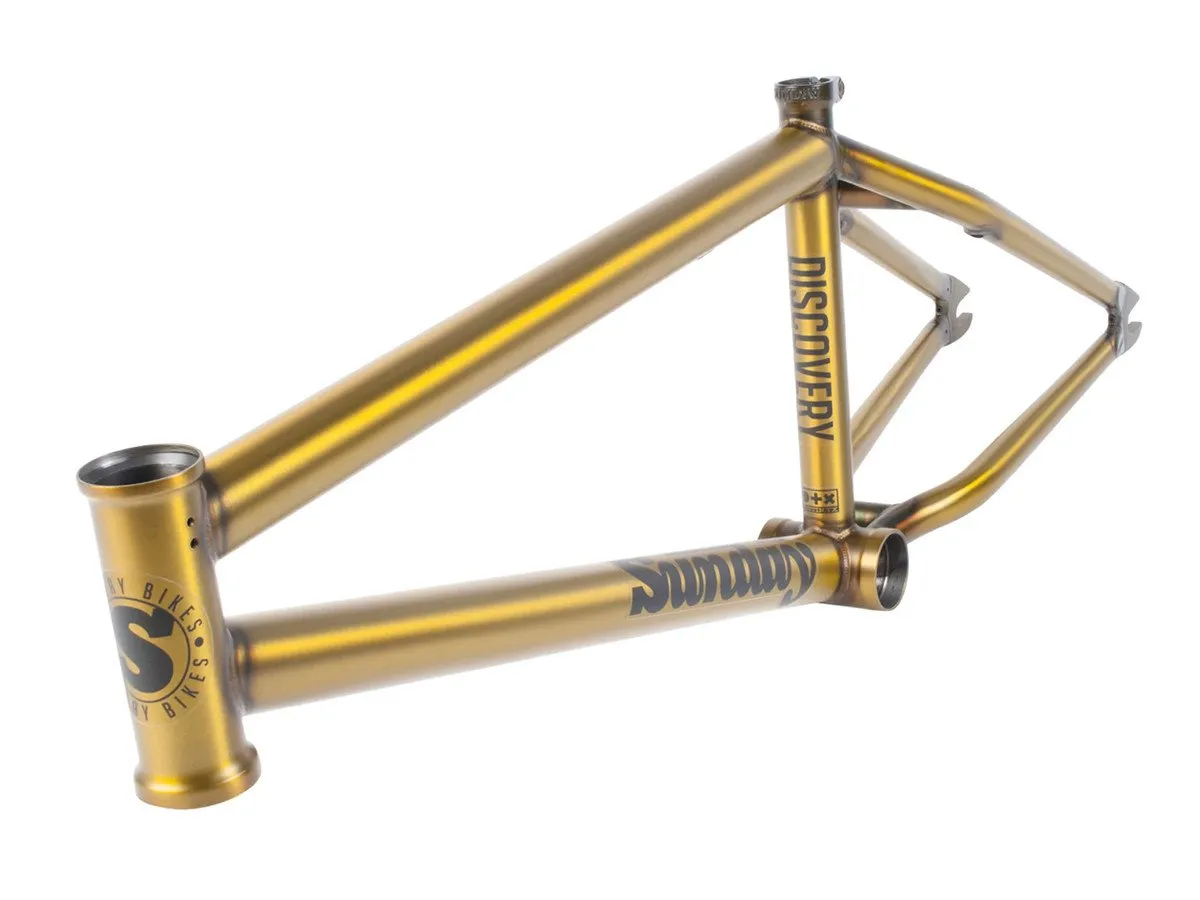

Sunday Bikes "Discovery" 2019 BMX Frame
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 2.27kg / 5.00lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 15809
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The
Sunday Bikes "Discovery" 2019 BMX Frame
is the sunday team frame and got tested by the team riders.
The
Sunday Bikes "Discovery" 2019 BMX Frame
features short chainstays, a tall bottom bracket, a long head tube and small hollow dropouts with integrated chain tensioners.
Facts: Sunday Bikes "Discovery" 2019 BMX Frame
- Wheel Size: 20"

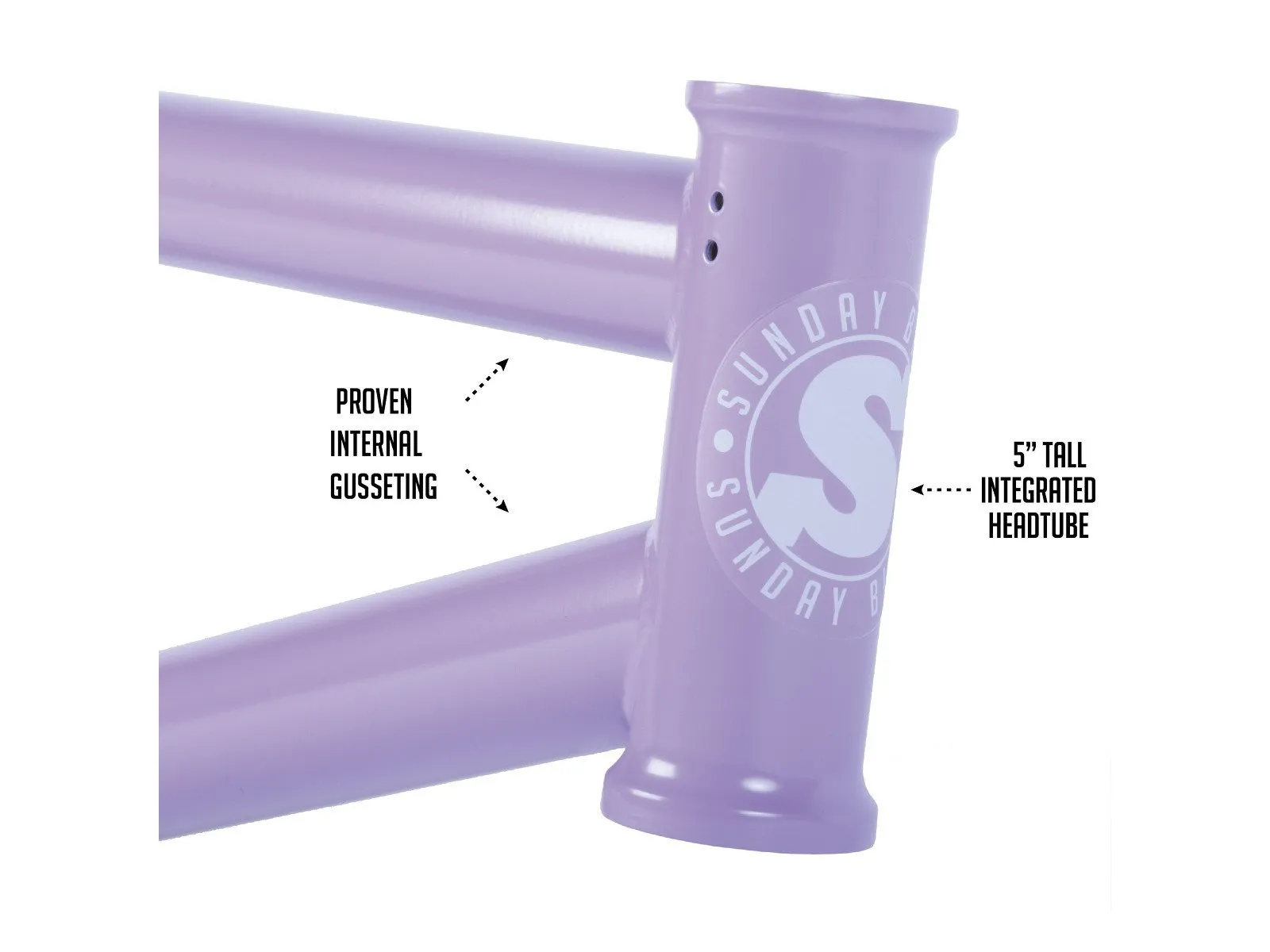

- Material: 100% 4130 CrMo, double butted tubes, top and down tubes with proven internal gusseting, tapered chainstays, integrated headset, removable brake hardware, Mid BB
- Geometry:
- Top Tube (TT): 21.0"
- Chain Stay (CS): 13.25-13.5"
- Head Tube Angle (HA): 75°
- Seat Tube Angle (SA): 71°
- BB Height: 11.8"

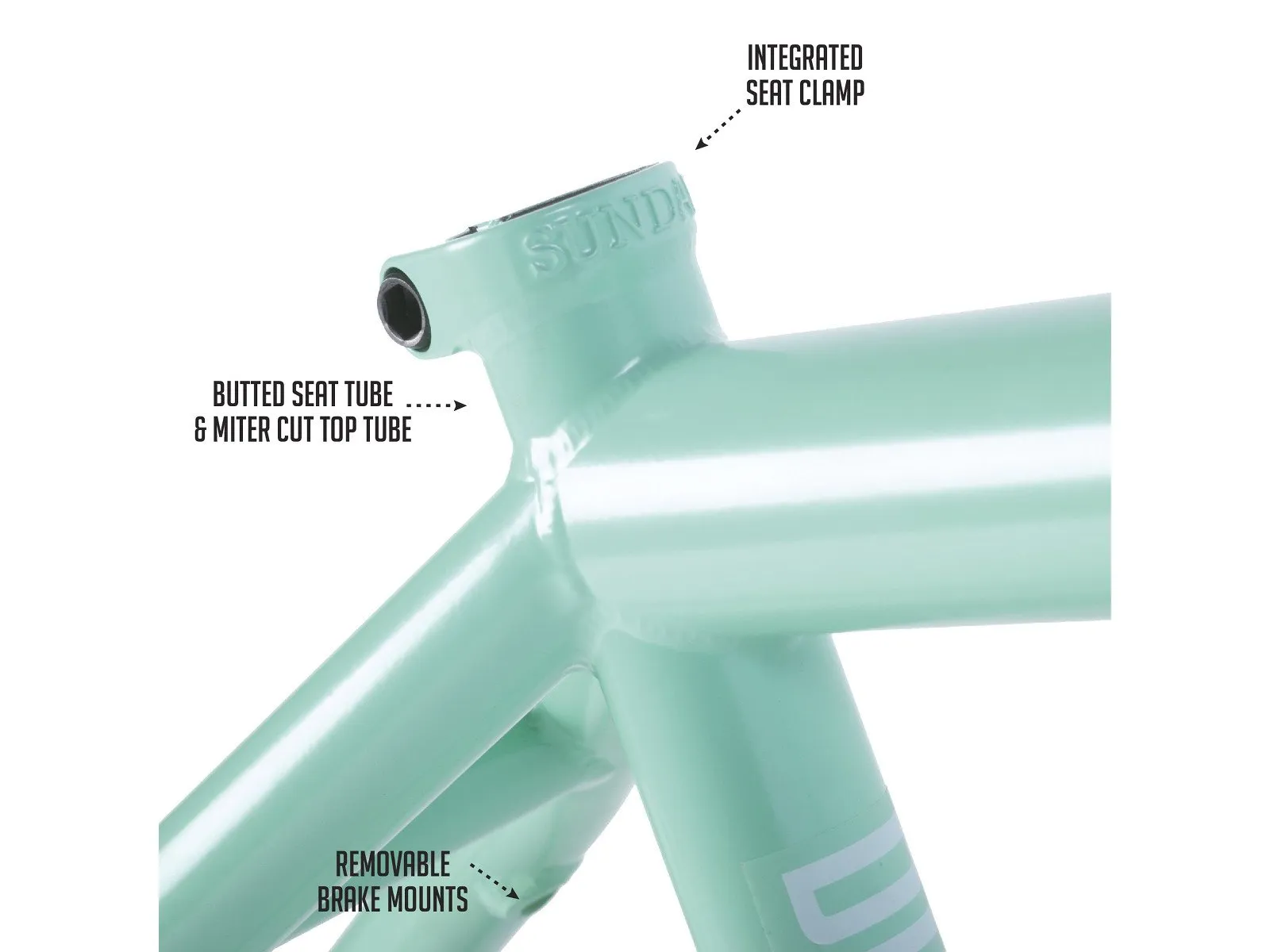

- Standover Height (SO): 9" - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm

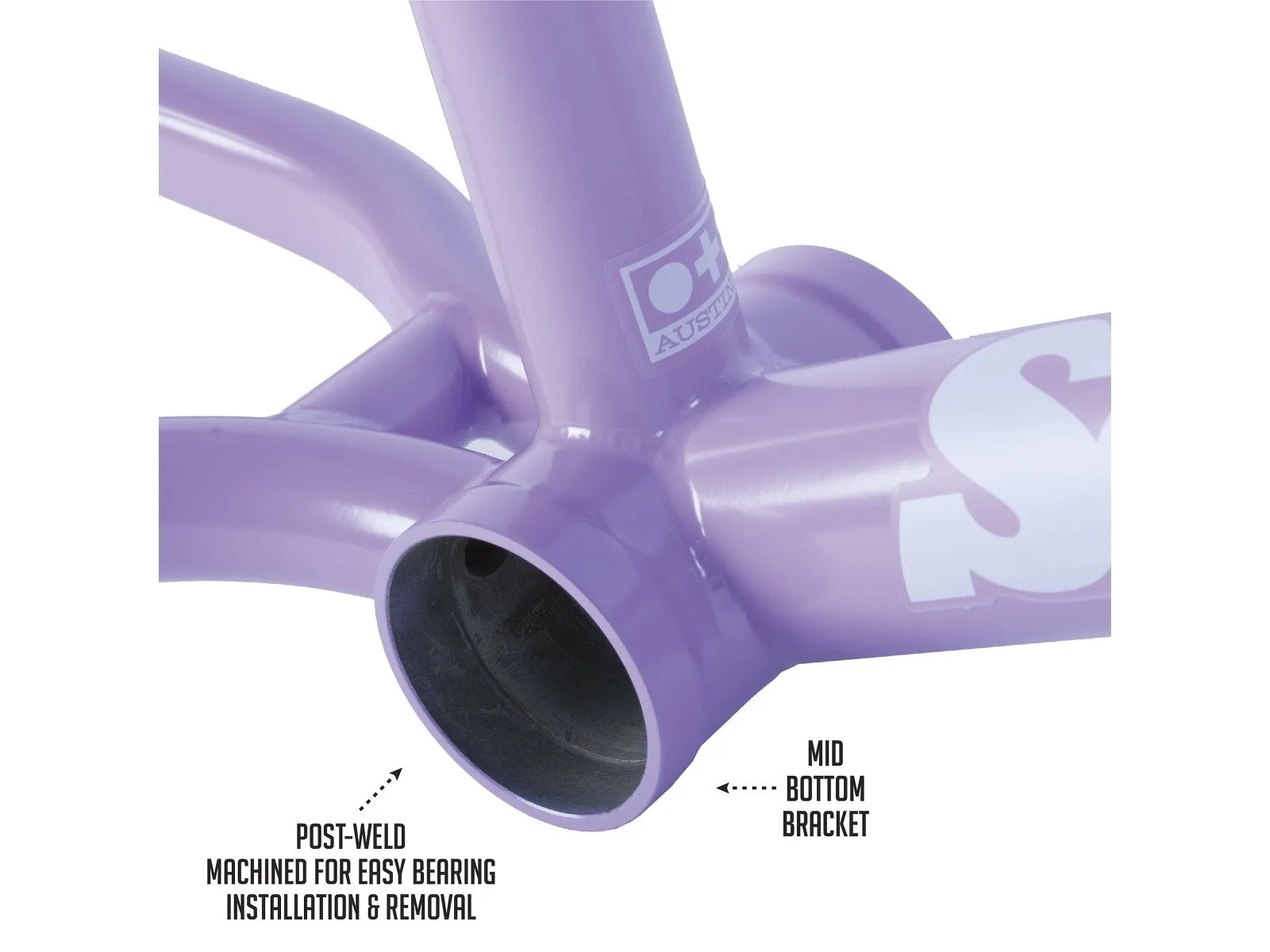

- Bottom Bracket: Mid BB, heat treated, CNC machined

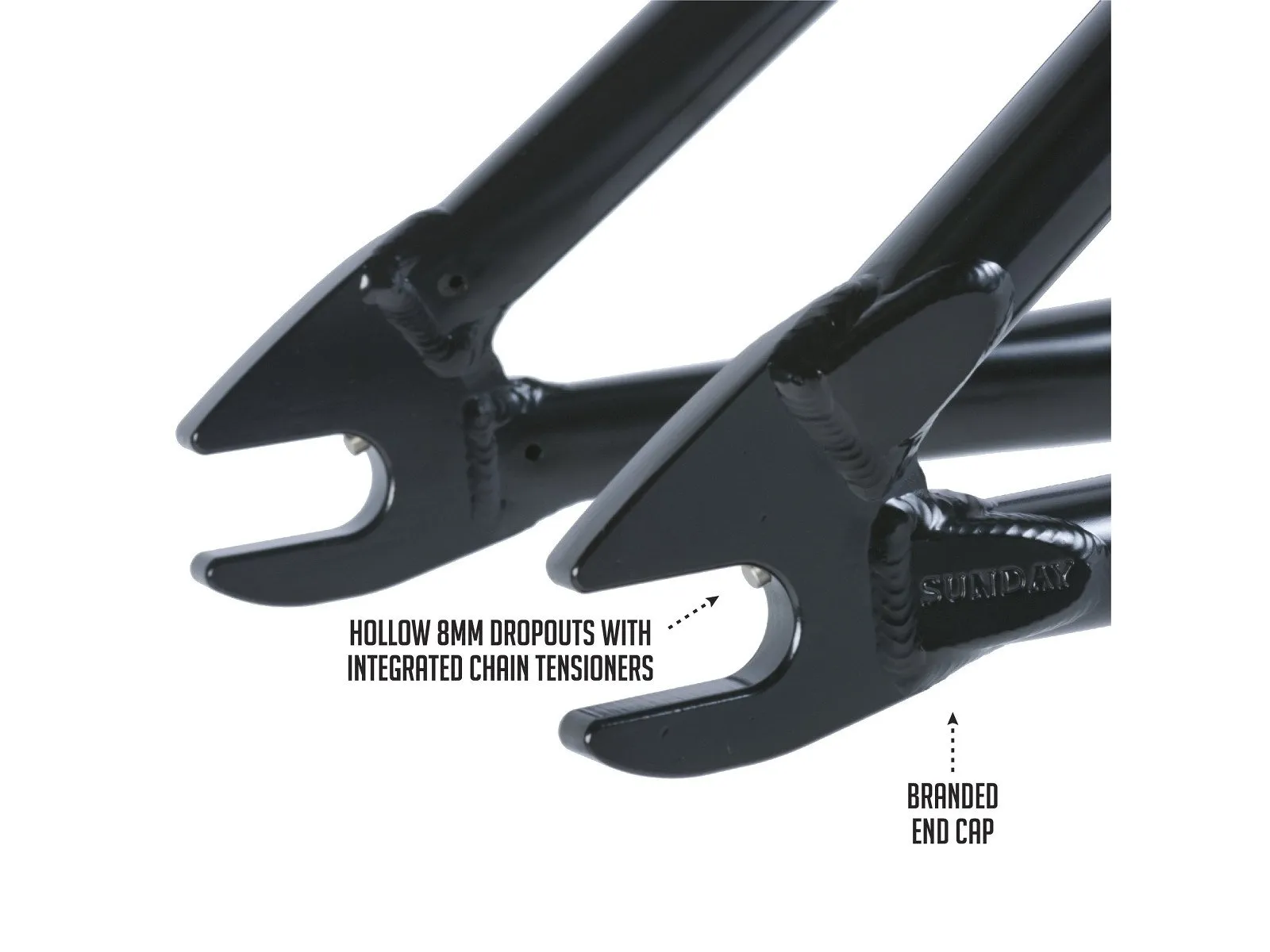

- Dropouts: 14mm slots, hollow 8mm wide dropouts
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: removable, M8, included with delivery
- Extras: Sunday team BMX frame, Modern allround BMX frame, Wide rear end for fat 2.4" tires
