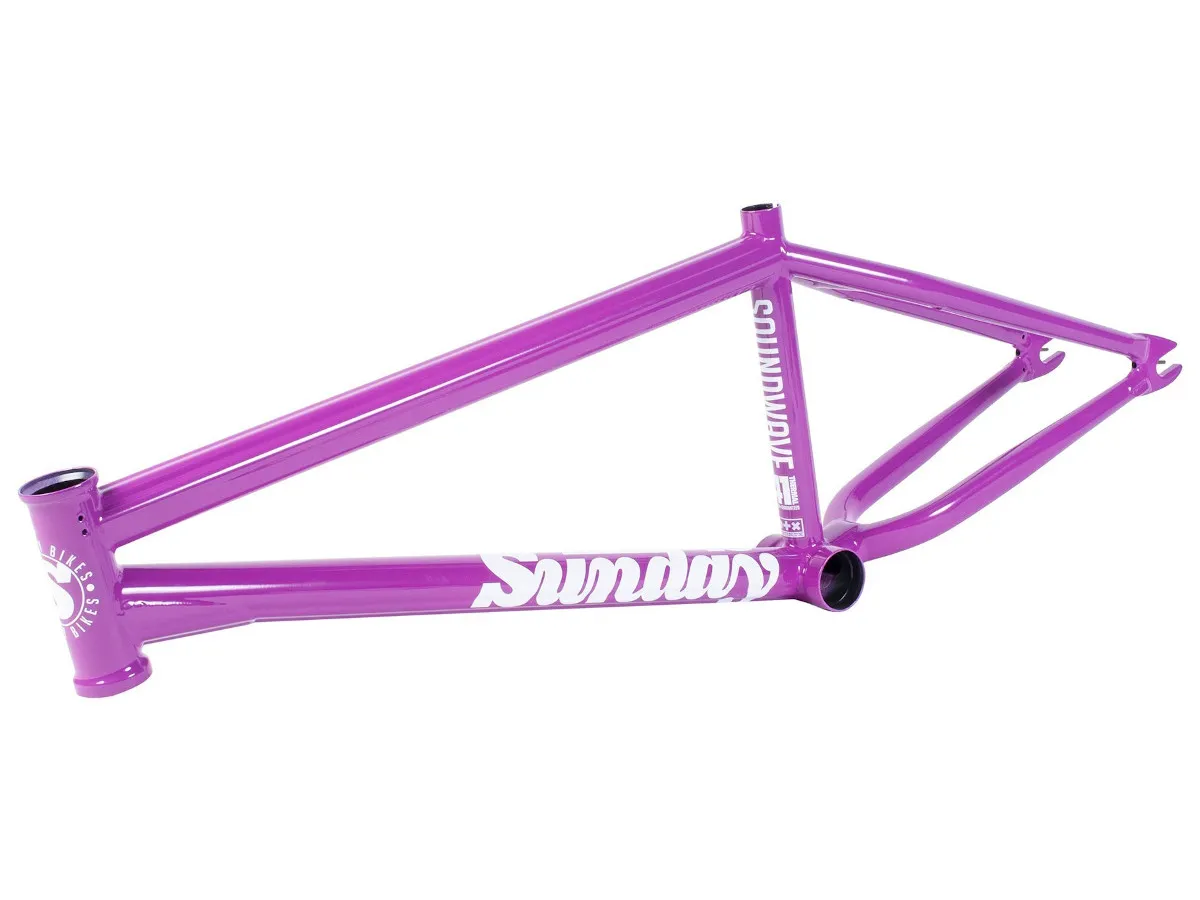

Sunday Bikes "Soundwave V3" 2020 BMX Frame

438.95 EUR

[incl. 16% VAT excl. shipping]
Color | Brake Mounts | Toptube
  • Please Select
pick up in our shop?
Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.
Shop Stuttgart: Please select a product option!
Shop Berlin: Please select a product option!
  • Weight (in kg): 2.22
  • Weight (in lbs): 4.89
  • Packaging Unit: 1 Piece
  • Product ID (PID): 17901

The Sunday Bikes "Soundwave V3" 2020 BMX Frame is already a classic and available since 2007 and has since continuously developed and refined. The 3rd version of the Sunday Bikes "Soundwave V3" 2020 BMX Frame, is the most advanced frame design that Sunday offers. Loaded with features like proven hollow dropouts, integrated chain tensioners, Wave down tube and top tube, cable channel guide, angled removable brake mounts, "Director" style wishbone, post-weld machining of the BB & HT, and full 41-Thermal post weld heat-treating throughout.

Facts: Sunday Bikes "Soundwave V3" 2020 BMX Frame

  • Wheel Size: 20"
  • Material: 100% 4130 CrMo, 41 Thermal heat treating, down tube gussets, Wave top and down tube, butted tubes, tapered chainstays, integrated headset
  • Geometry:
    Top Tube (TT): 20.75", 21.0" or 21.25" (selectable as an option)
    Chain Stay (CS): 13.2" - 13.5"
    Head Tube Angle (HA): 75°
    Seat Tube Angle (SA): 71°
    BB Height: 11.5"
    Standover Height(SO): 9"
  • Seat Clamp: without
  • Seat Post Diameter: 25.4mm
  • Bottom Bracket: Mid BB
  • Dropouts: hollow 8mm thick dropouts, 14mm slots
  • Chain Tensioners: integrated
  • Brake Type: U-Brake
  • Brakemounts: removable, M8, included with delivery
  • Extras: wide rear end for fat 2.4" tires, Wave top and down tube
  • Model Year: 2020
