United Bikes "Pro Model" BMX Frame - Dark Grey (Marius Dietsche)
-
Weight : 2.27kg / 5.00lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 35769
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

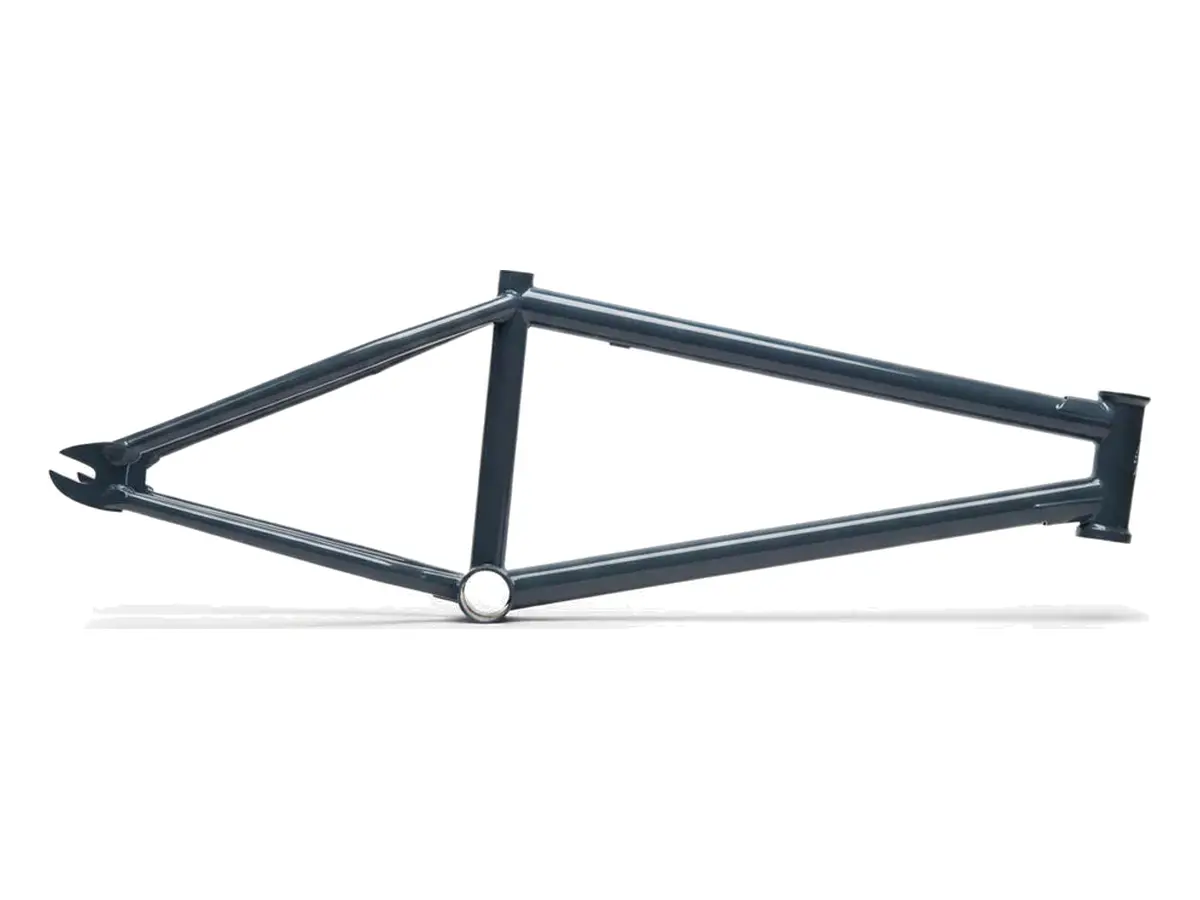

The United Bikes "Pro Model" BMX Frame - Dark Grey (Marius Dietsche) is Marius Dietsche's signature frame. It is built from seamless 4130 CrMo Sanko tubing from Japan, tapered throughout to balance strength, durability and weight. Built for Marius and the way he rides, the frame is made for the biggest setups and delivers the stability, strength and responsiveness needed when every move counts. 75.5° head tube angle, 12.75" to 13.25" chainstay, designed around 25T sprockets.
Facts: United Bikes "Pro Model" BMX Frame - Dark Grey (Marius Dietsche)
- Wheel Size: 20"
- Material: 4130 CrMo, seamless Sanko tubing (Japan), tapered throughout, integrated headset
- Geometry:
- Top Tube Length (TT): 21.2" or 21.4"
- Chainstay Length (CS): 12.75" (32.39cm) - 13.25" (33.65cm)
- Head Tube Length: 5" (12.7cm)
- Head Tube Angle (HA): 75.5°
- Bottom Bracket Height: 11.7" (29.72cm)
- Standover Height (SO): 9.5" (24.13cm) - Bottom Bracket: Mid BB

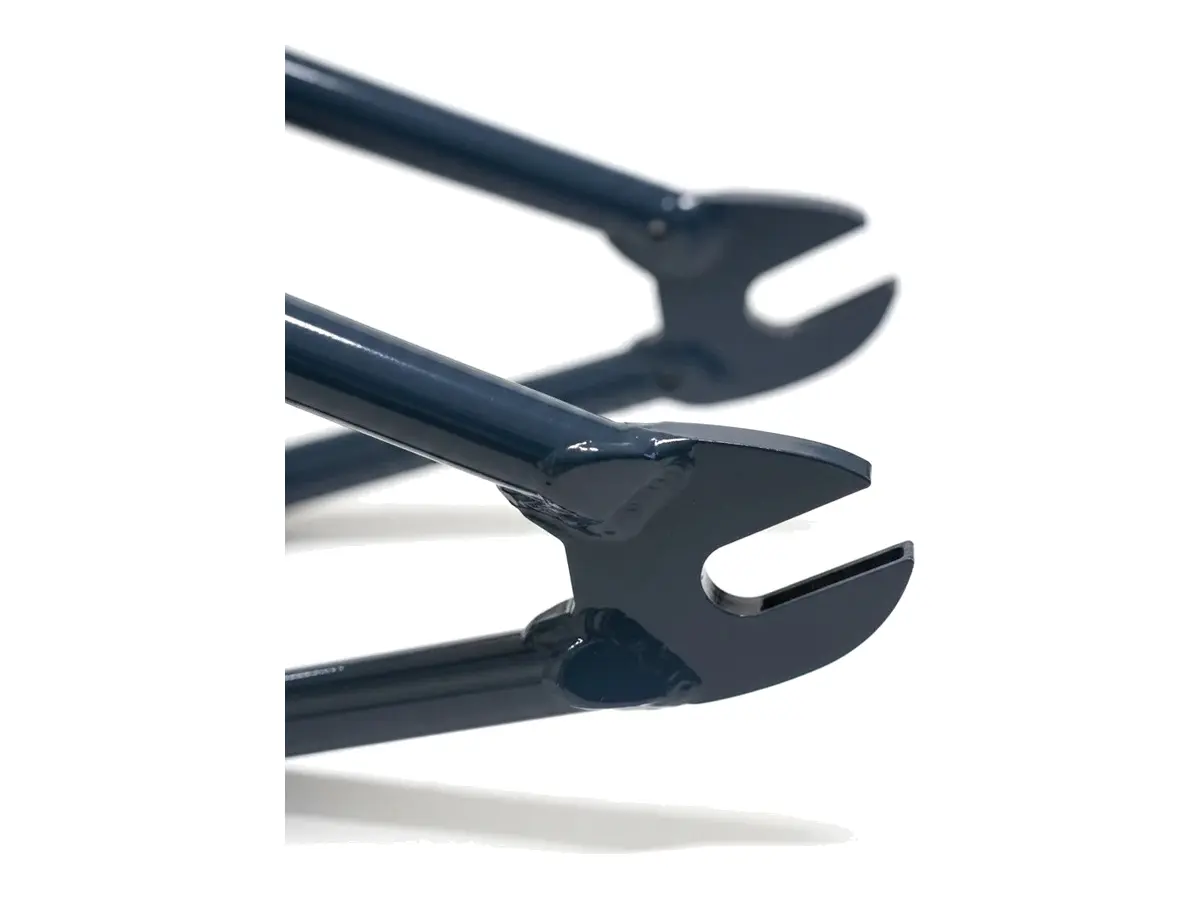

- Dropouts: 14mm slots
- Chain Tensioners: without
- Brake Type: U-Brake
- Brakemounts: with (screwable)
- Brakemounts included with delivery: No (sold separately)
- Gyro compatible: No
- Features: Marius Dietsche signature frame, designed around 25T sprockets
- Model Year: 2026
