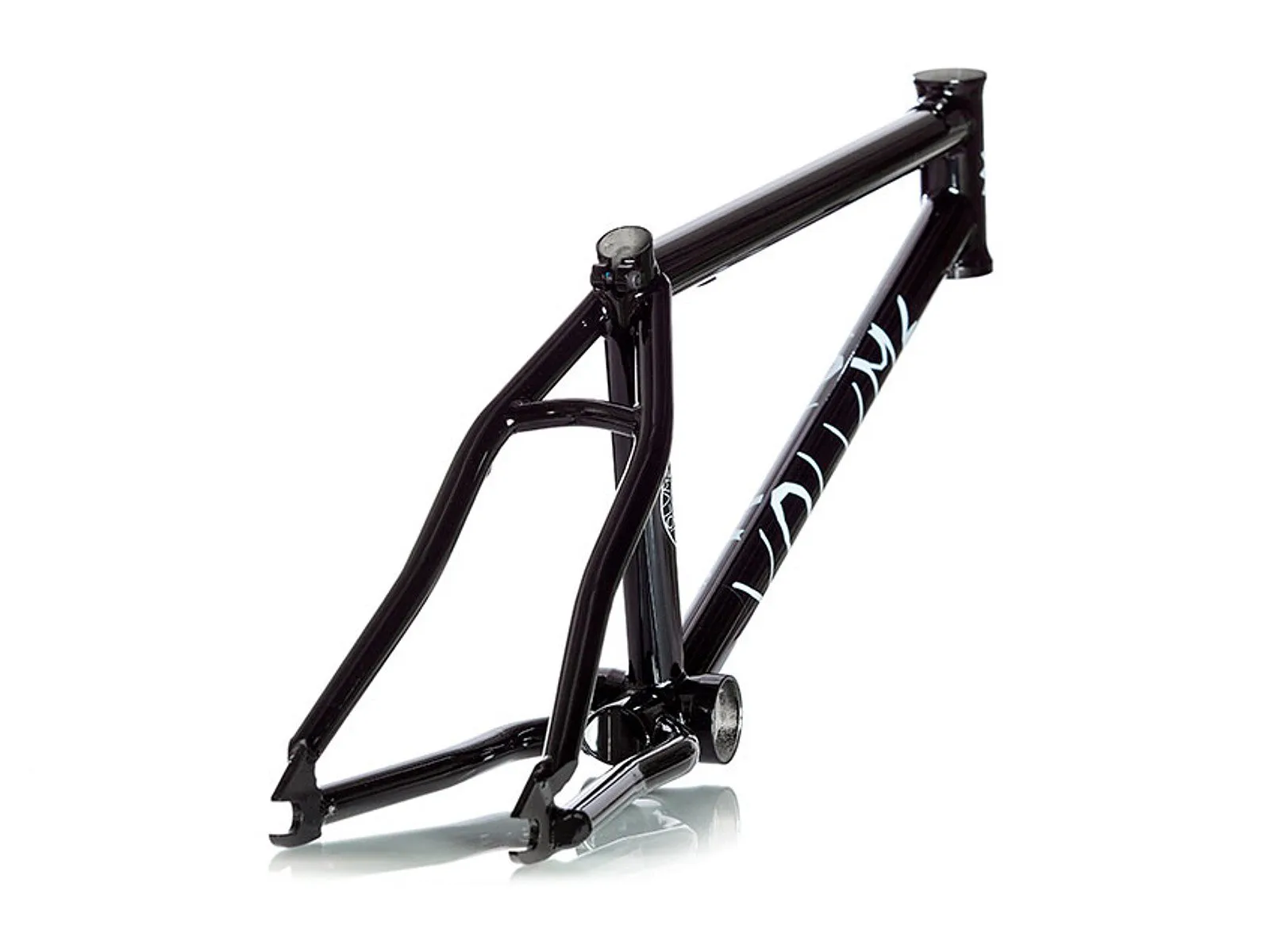

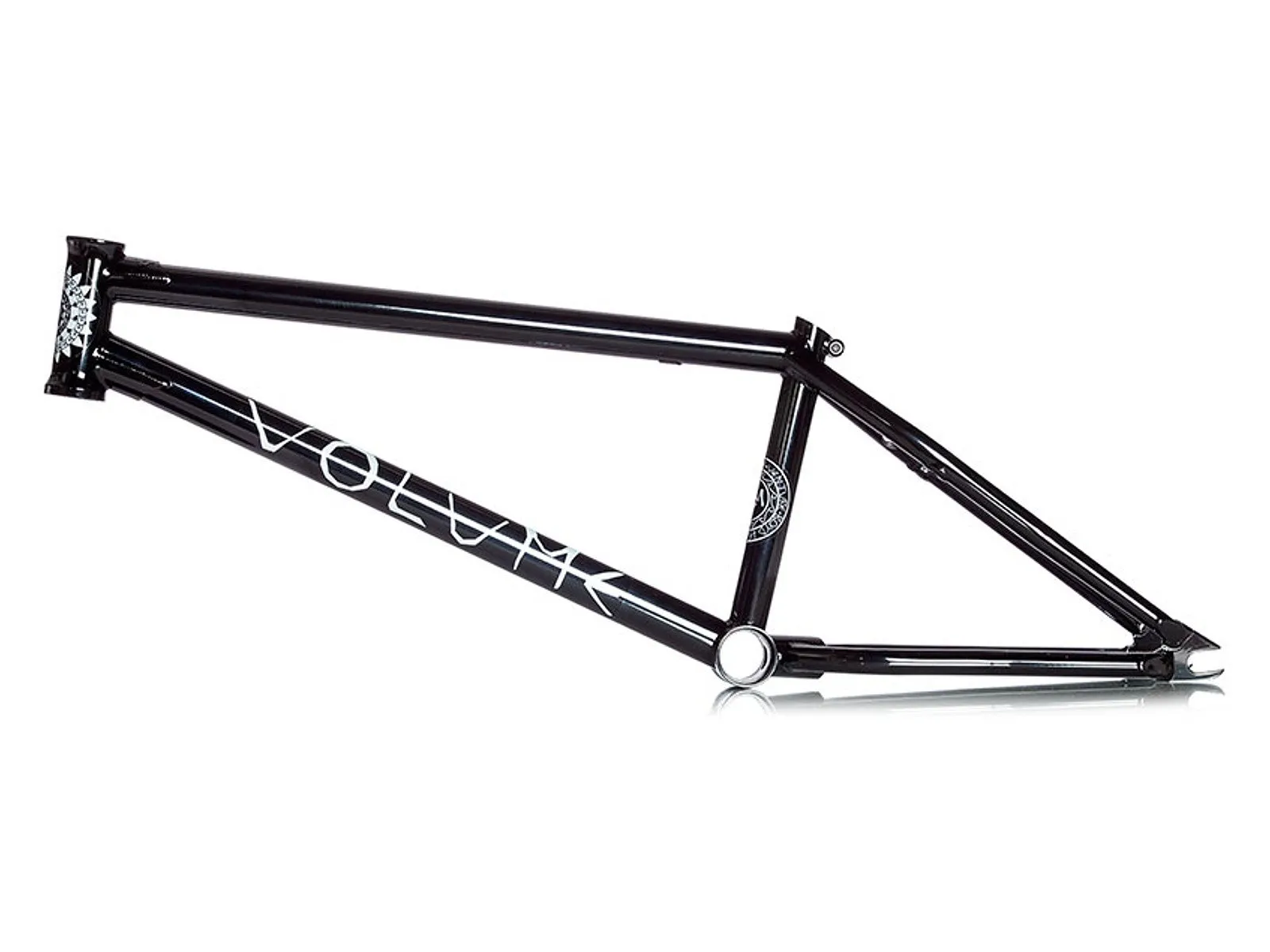

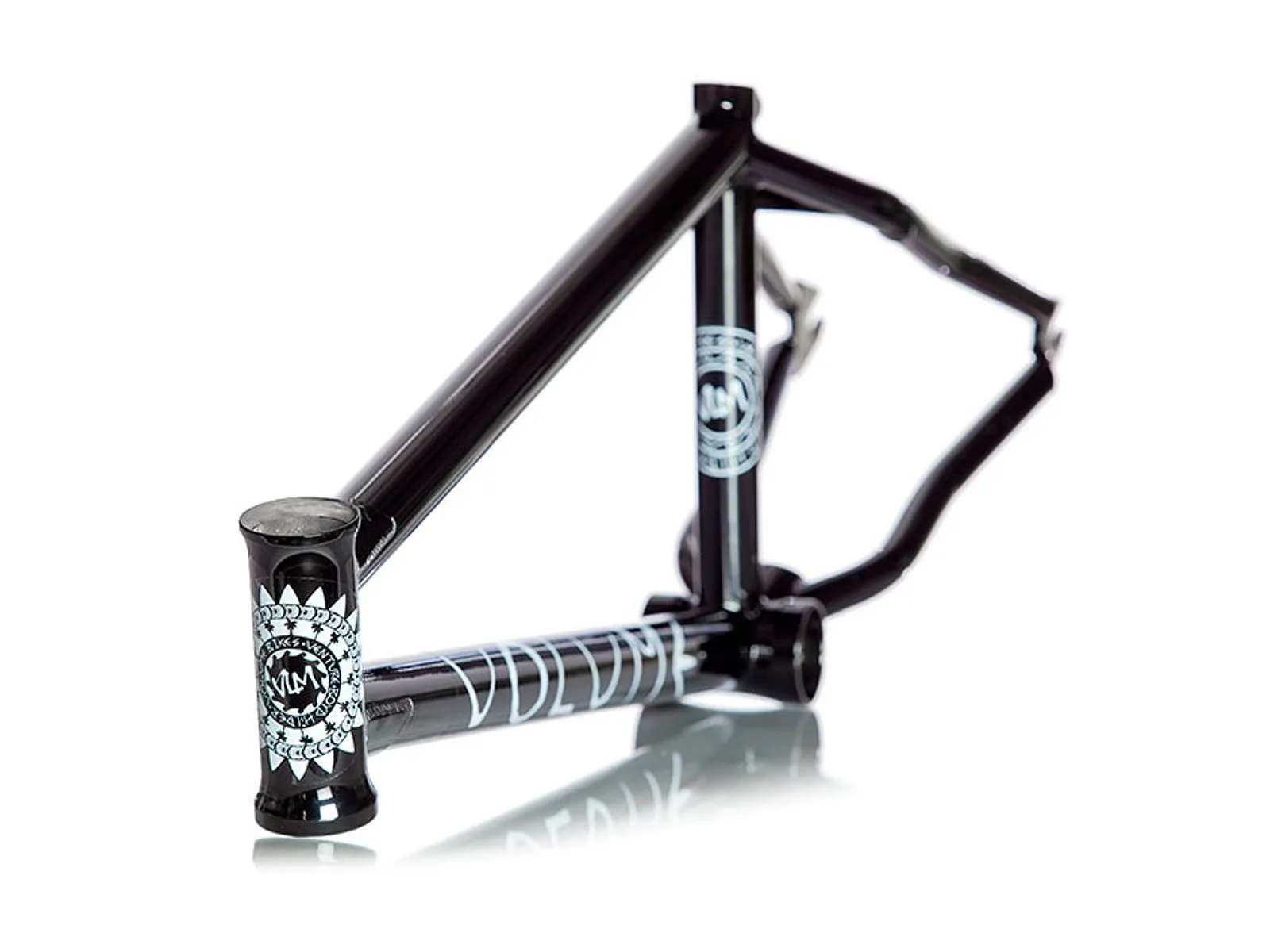

Volume Bikes "Boyd Hilder Venture" 2019 BMX Frame

419.95 EUR

[incl. 16% VAT excl. shipping]
Color | Brake Mounts | Toptube
  • Please Select
Qty.
pick up in our shop?
Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.
Shop Stuttgart: Please select a product option!
Shop Berlin: Please select a product option!
  • Weight (in kg): 2.2
  • Weight (in lbs): 4.85
  • Packaging Unit: 1 Piece
  • Product ID (PID): 16048

Boyd Hilder’s all new signature frame, the Volume Bikes "Boyd Hilder Venture" 2019 BMX Frame has been in the works for over a year and has been tested thoroughly by Boyd himself. Completely different rear triangle look than any other frame volume bikes has ever done. 13" slammed chainstay (13.25" center to center), removable brake mounts, 9" stand over, welded 4mm thick dropouts, and 75.5º head tube. Full heat treated 4130 CrMo with double butted front triangle. Oval downtube for extra strength and with top and bottom gussets.

Facts: Volume Bikes "Boyd Hilder Venture" 2019 BMX Frame

  • Wheel Size: 20"
  • Material: 100% heat treated 4130 CrMo, top tube and down tube gussets, oval downtube, butted tubes, tappered chainstays, integrated headseat, integrated seatclamp, removable brake hardware, Mid BB
  • Geometry:
    Top Tube (TT): 21.0" or 21.25" (selectable as an option)
    Chain Stay (CS): 13" - 13.5"
    Head Tube Angle (HA): 75.5°
    Seat Tube Angle (SA): 71°
    BB Height: 11.7"
    Standover Height (SO): 9"
  • Seat Clamp: integrated
  • Seat Post Diameter: 25.4mm
  • Bottom Bracket: Mid BB
  • Dropouts: heat treated, 4mm thick, 14mm slots
  • Chain Tensioners: integrated
  • Brakemounts: removable, M8, not included with delivery
  • Extras: Boyd Hilder Signatur frame, wide rear end for fat 2.4" tires
  • Model Year: 2019
