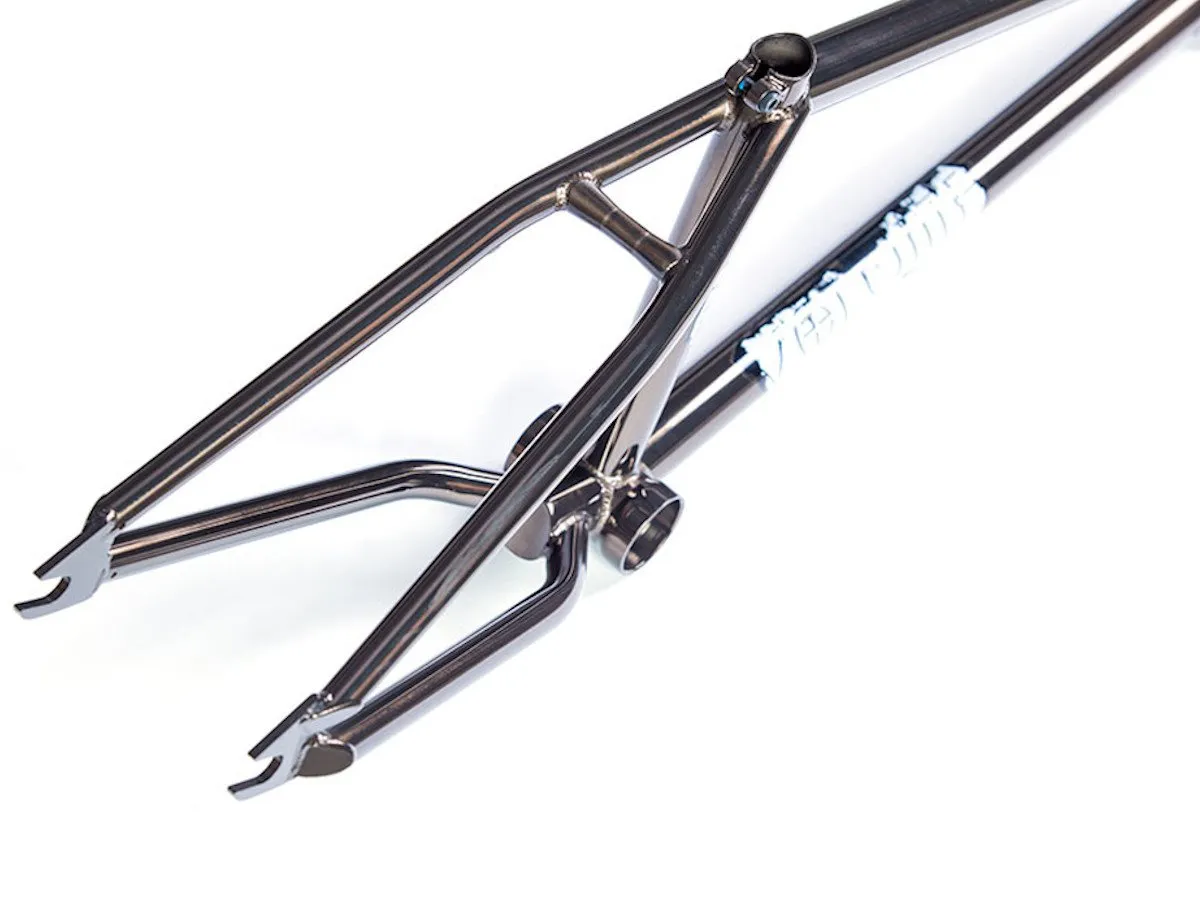

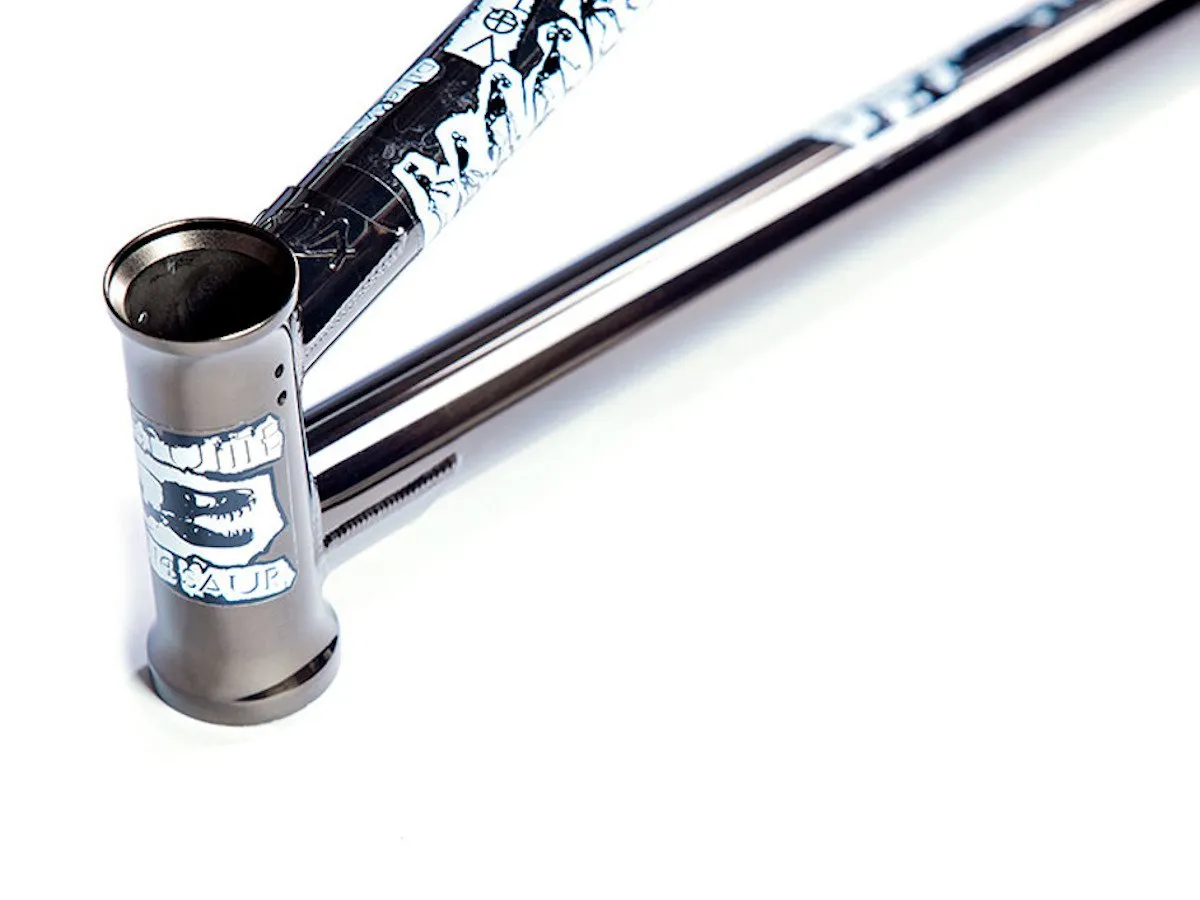

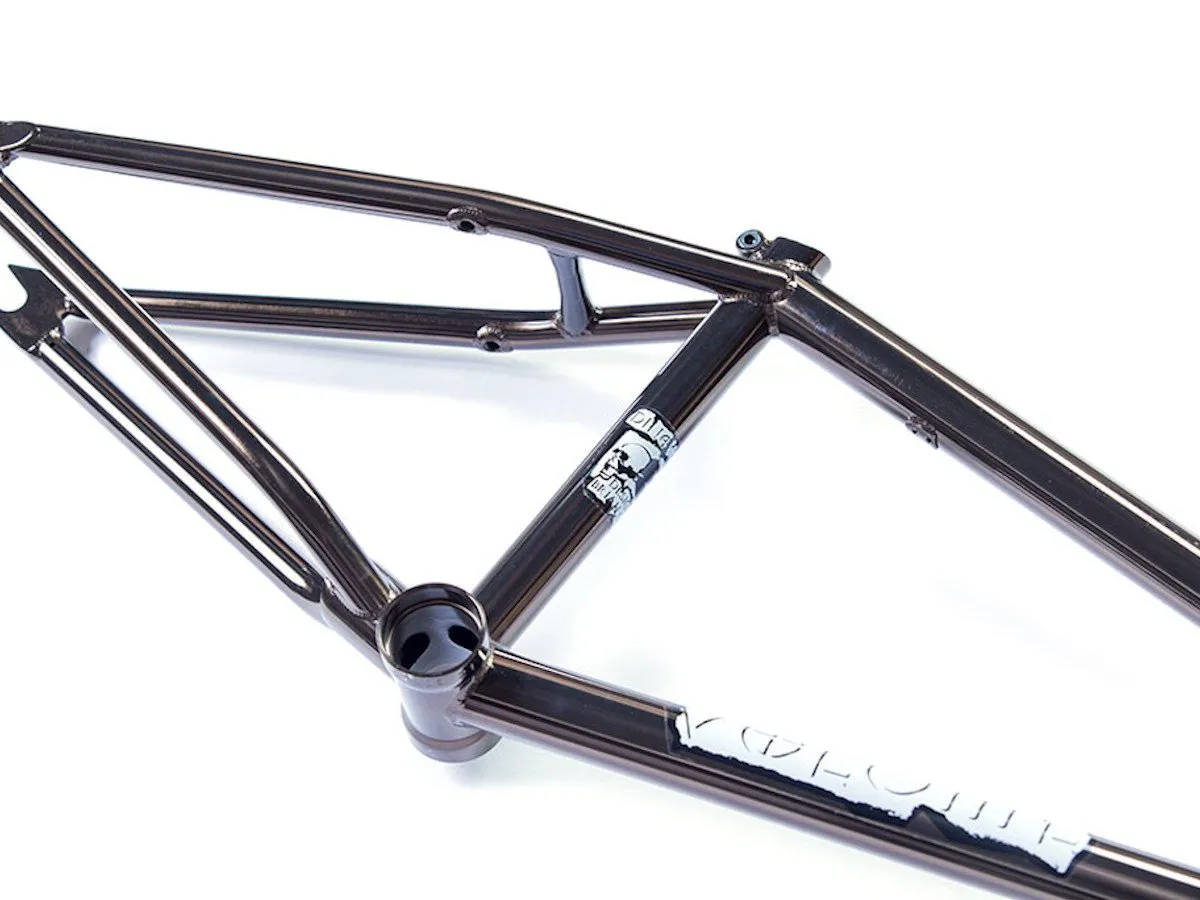

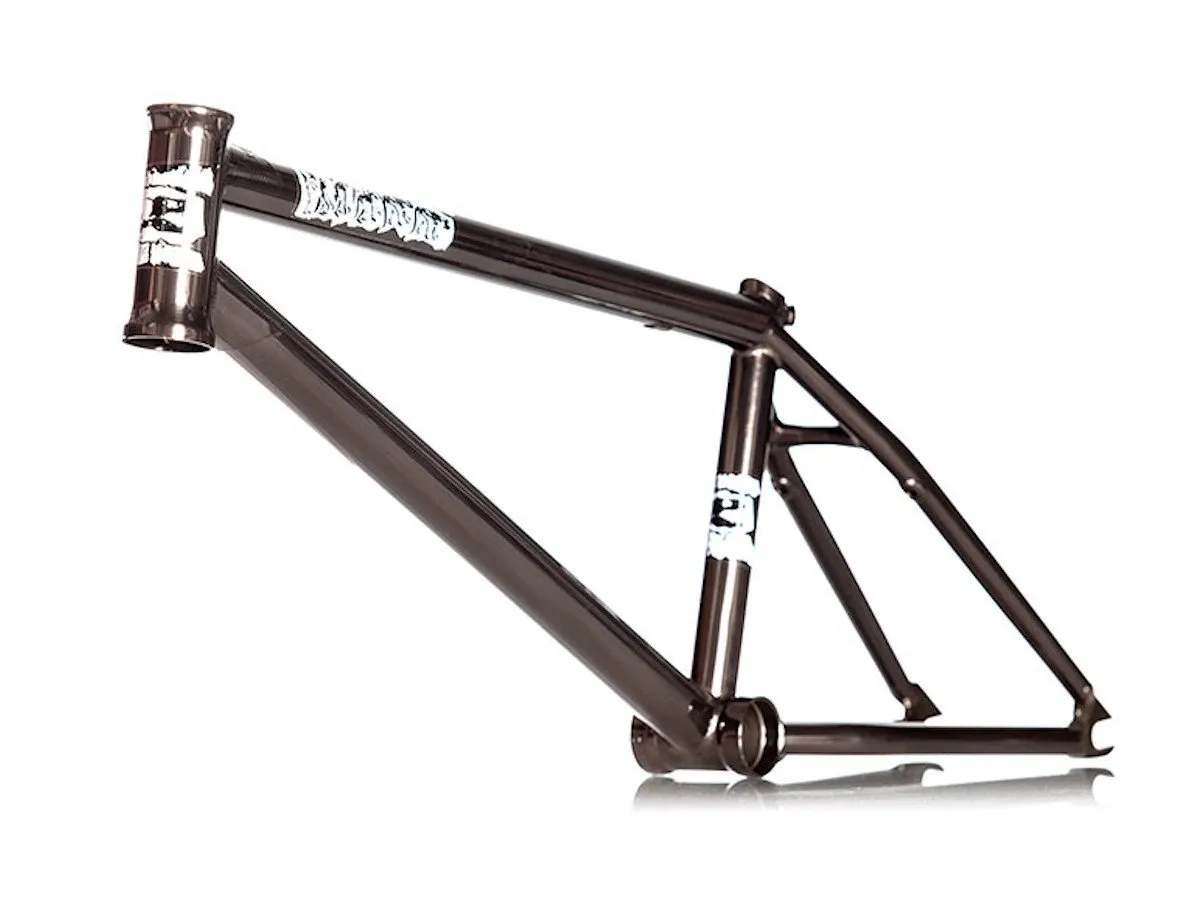

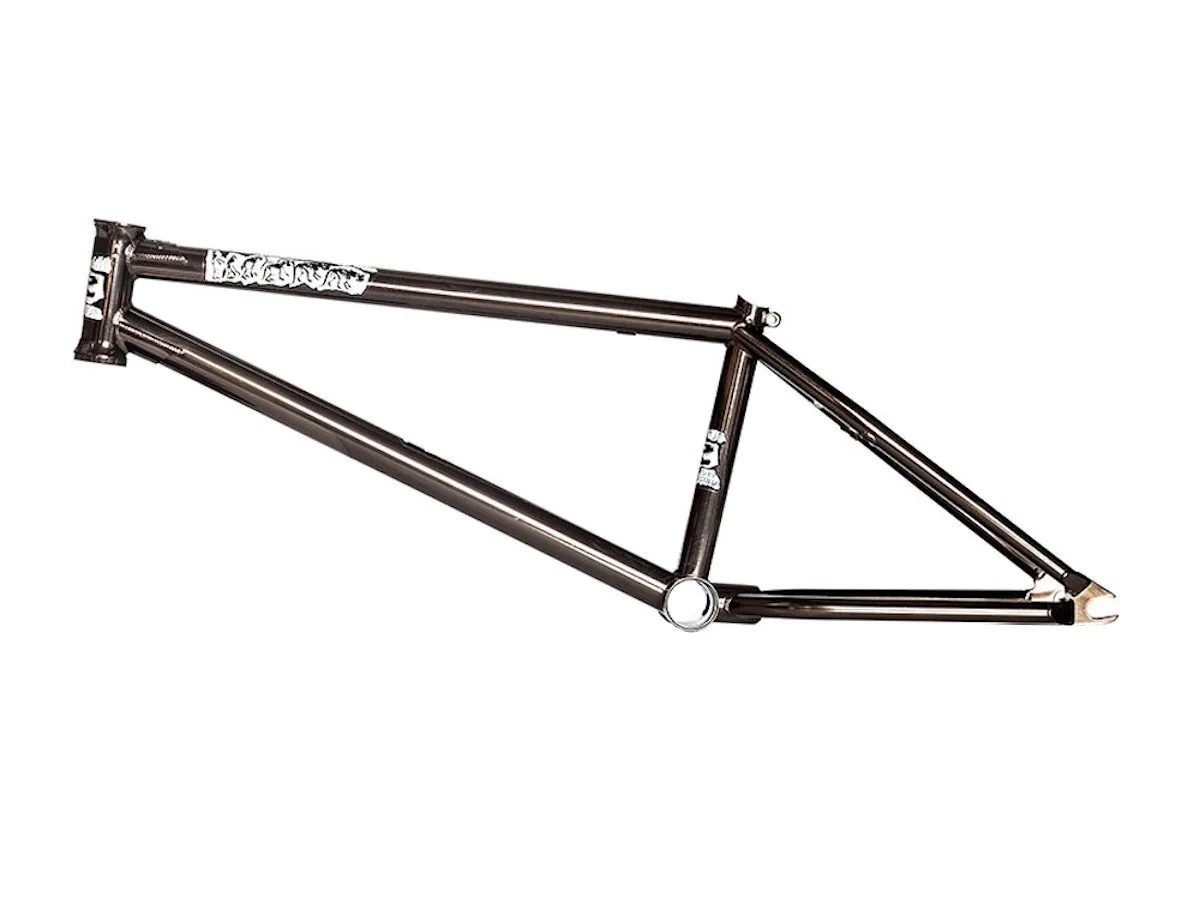

Volume Bikes "Brian Castillo Dinosaur" 2020 BMX Frame

467.95 EUR

[incl. 16% VAT excl. shipping]
Color | Brake Mounts | Toptube
  • Please Select
Qty.
pick up in our shop?
Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.
Shop Stuttgart: Please select a product option!
Shop Berlin: Please select a product option!
  • Weight (in kg): 2.04
  • Weight (in lbs): 4.5
  • Packaging Unit: 1 Piece
  • Product ID (PID): 17695

The Volume Bikes "Brian Castillo Dinosaur" 2020 BMX Frame is the signature frame of BMX legend Brian Castillo and is a remake of his signature frame from 2001. The Volume Bikes "Brian Castillo Dinosaur" 2020 BMX Frame is made of high quality 100% heat treated 4130 CrMo. The frame comes with a Midschool flare including a wishbone on the frame but with a modern geometry with a 13" (slammed) rear end a frame height of 9.25".

Facts: Volume Bikes "Brian Castillo Dinosaur" 2020 BMX Frame

  • Wheel Size: 20"
  • Material: 100% heat treated 4130 CrMo, top tube and down tube gussets, butted tubes, tappered chainstays, integrated headset, integrated seatclamp, removable brake hardware, Mid BB, 5mm dropouts
  • Geometry:
    Top Tube (TT): 21.0"
    Chain Stay (CS): 13" - 13.25"
    Head Tube Angle (HA): 75°
    Seat Tube Angle (SA): 71°
    BB Height: 11.7"
    Standover Height (SO): 9.25"
  • Seat Clamp: integrated
  • Seat Post Diameter: 25.4mm
  • Bottom Bracket: Mid BB
  • Dropouts: heat treated, 5mm thick, 14mm slots
  • Chain Tensioners: without
  • Brakemounts: removable, M8, not included with delivery
  • Extras: Brian Castillo Signature frame, wide rear end for fat 2.4" tires,
  • Remake of his signature frame from 2001
  • Model Year: 2020
