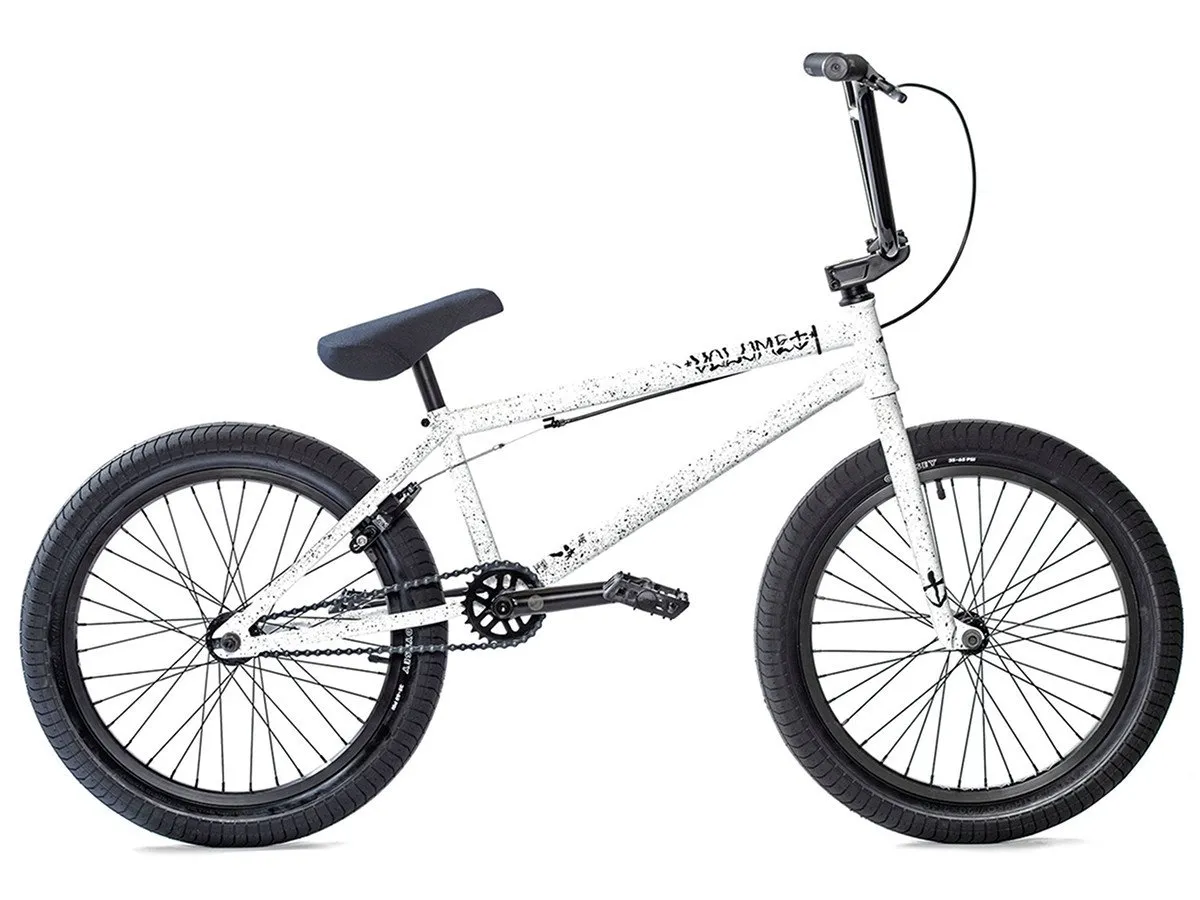

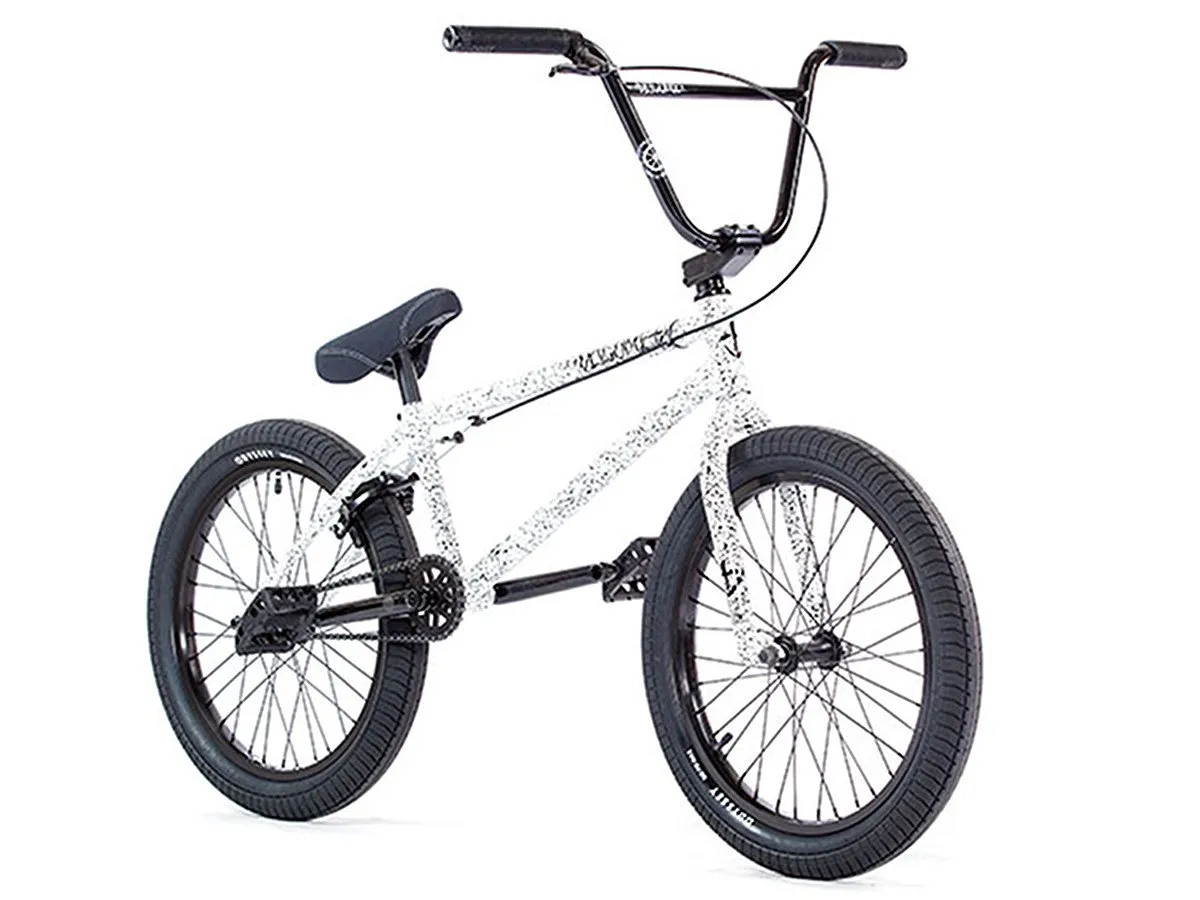

Volume Bikes "Broc Raiford" 2018 BMX Bike - White/Black Drops - Freecoaster
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 10.98kg / 24.21lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 13977
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
This
Volume Bikes "Broc Raiford" 2018 BMX Bike - White/Black Drops - Freecoaster
is a high quality mid class BMX complete bike with Freecoaster hub and was developed in collaboration with Volume Pro team rider Broc Raiford. Frame, fork and handlebar are made of high quality 100% 4130 CrMo. The geometry of this BMX bike was acquired by Broc Raiford's currently used BMX bike and offers you with a 9.25" inch high frame with a top tube length of 21" inches and a 13.5" long rear together with a fork with 28mm short offset and a 9" inch high handlebar the basis for a top modern and agile BMX street complete bike. A 3-pc. crank made of 100% 4130 CrMo, a completely sealed front hub as freecoaster hub with stable 14mm CrMo hollow axle and double walled rims offers you a stable and durable drive unit. Furthermore this
Volume Bikes "Broc Raiford" 2018 BMX Bike - White/Black Drops - Freecoaster
provides you with quality and top current after market parts as a complete
Odyssey "Springfield" braking equipment,
a modern
Volume "Broc signature" Tripod seat,
a set of 2.4" inch wide
Odyssey "Path PRO" tires,
Odyssey "Twisted" plastic pedals
and a high
Volume "Staple V2" topload stem
which makes this a modern and high quality equipped upper midd class BMX street complete bike.
Facts: Volume Bikes "Broc Raiford" 2018 BMX Bike - White/Black Drops - Freecoaster
- Wheel Size: 20"
- BMX Frame:
- 100% 4130 CrMo, downtube with gusset, integrated head set, integrated seat clamp, removable U-brake sockets and cable mounts, Mid BB
- Top Tube (TT): 21.0"
- Chain Stay (CS): 13.5"
- Head Tube (HA): 75°
- Seattube (SA): 71°
- BB-High (BB): 11.7"
- Standover (SO): 9.25" - BMX Fork: Volume, 100% 4130 CrMo, 1-pc. steerer, aluminum topbolt, 28mm offset
- BMX Bar:
- Volume, 100% 4130 CrMo, 2-pc.
- Height: 9"
- Width: 28.5"
- Backsweep: 12"
- Upsweep: 1° - Grips: Odyssey "Broc Raiford" Grips, flangeless, PVC barends

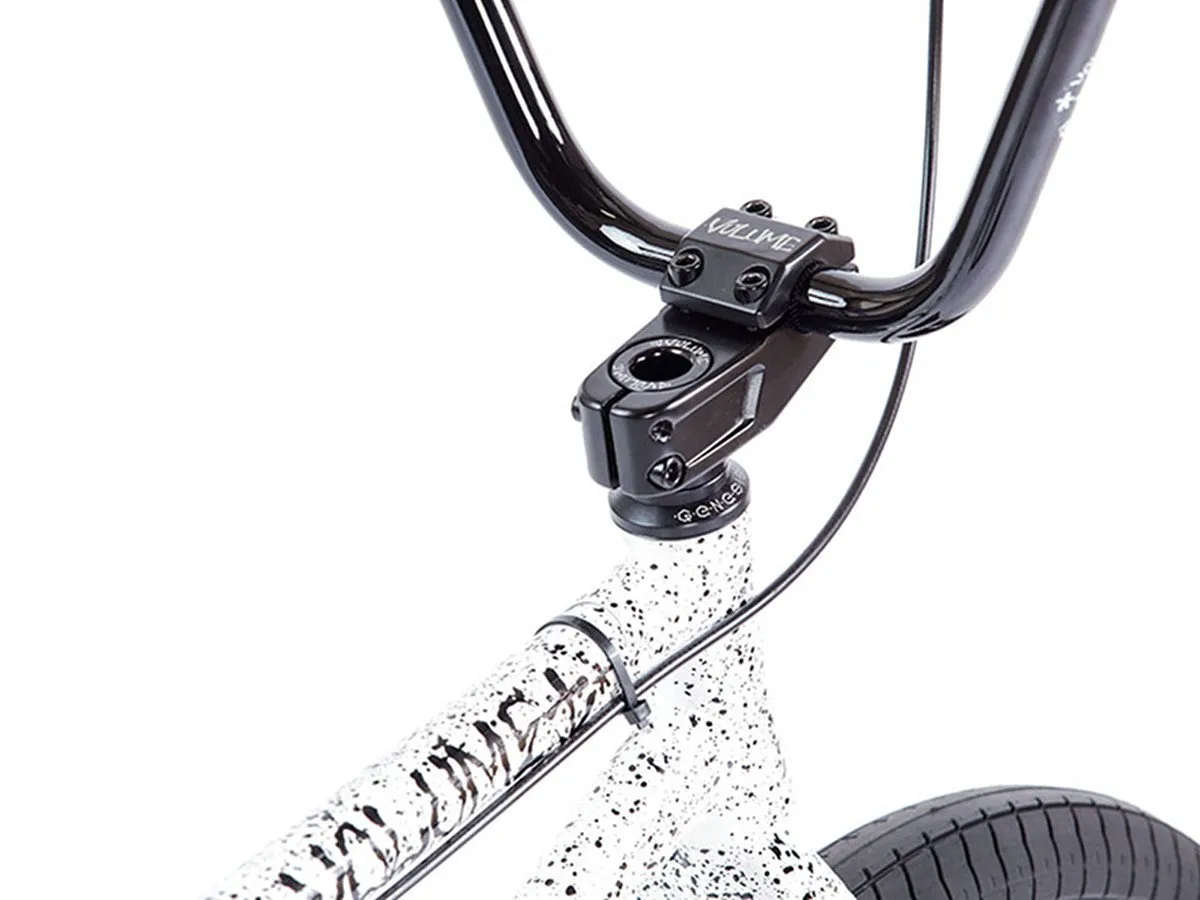

- Stem: Volume "Staple V2", topload, forged 6061 aluminum, 53mm Offset
- Headset: Genesis, integrated headset, sealed bearing
- Gyro: -

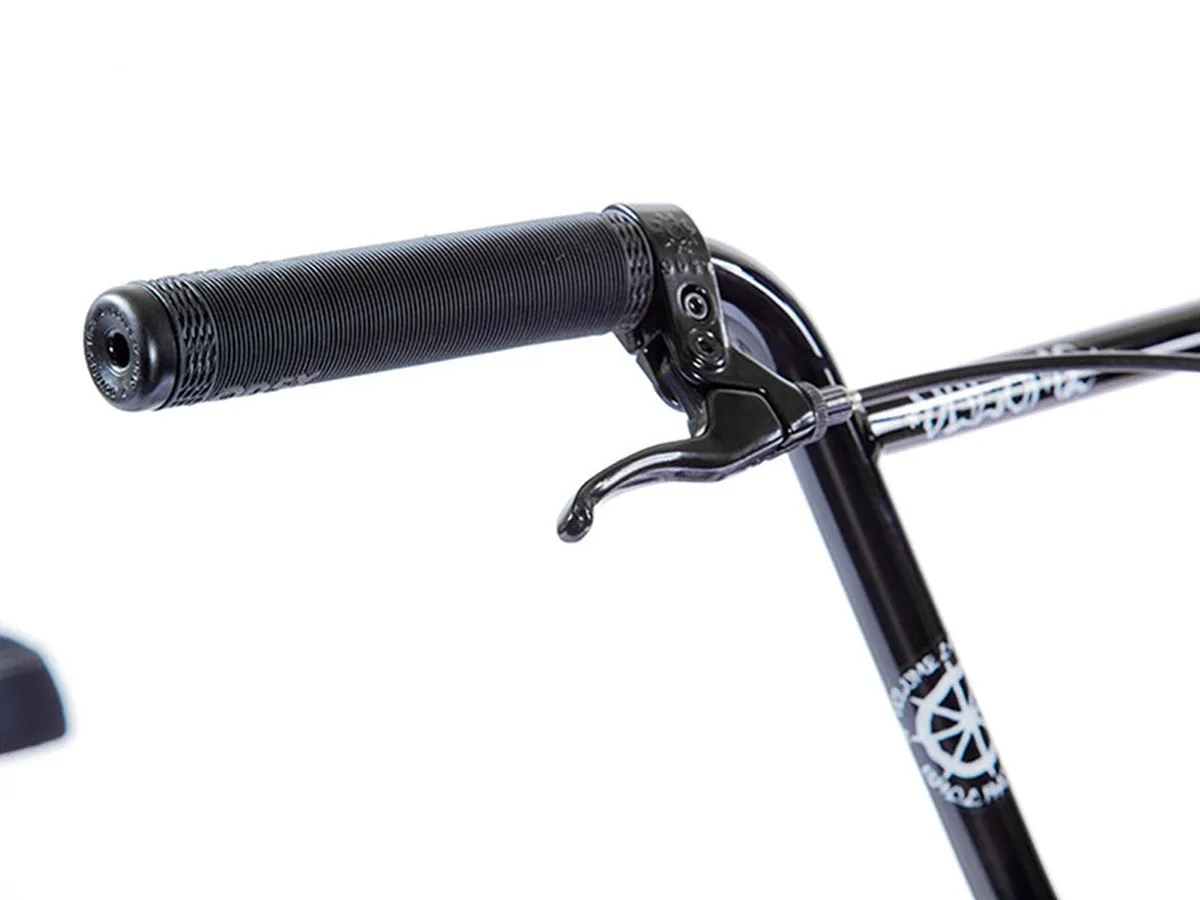

- Brake Lever: Odyssey "Springfield", aluminum, hinged, 2-finger
- Brake Cable: Odyssey "Quik-Slic"
- Brake: Odyssey "Springfield", U-brake, aluminum, with bridge cable

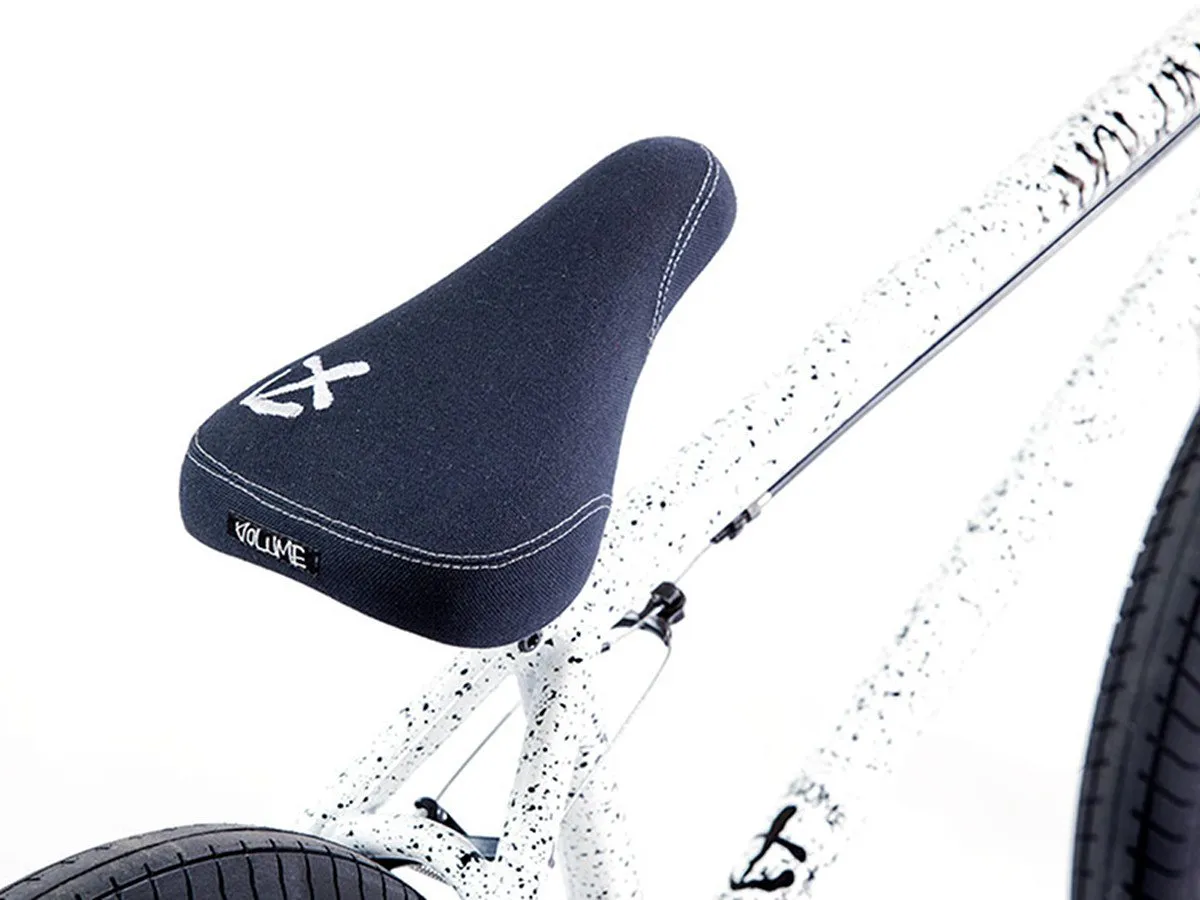

- Seat: Volume "Broc Signature Nautical", Tripod, mid padded
- Seat Post: Volume, Tripod, aluminum
- Seat Clamp: Integrated
- Pedals: Odyssey "Twisted" PC
- Chain: KMC "Z410"
- Sprocket: 6061 aluminum, 25T

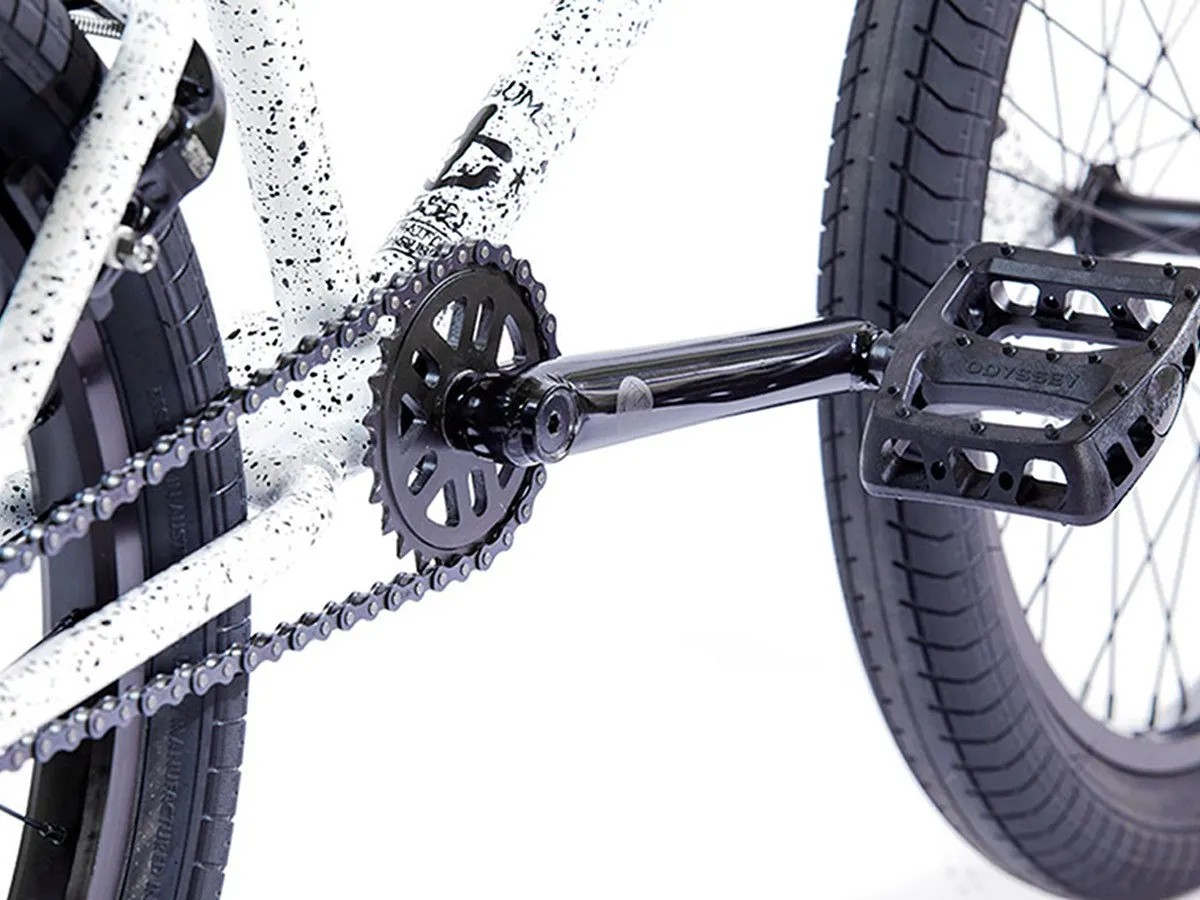

- Crank: Genesis "Octagon", 4130 CrMo, 3-pc., 48 spline, 175mm, 19mm
- Bottom Bracket: Mid BB, sealed bearing

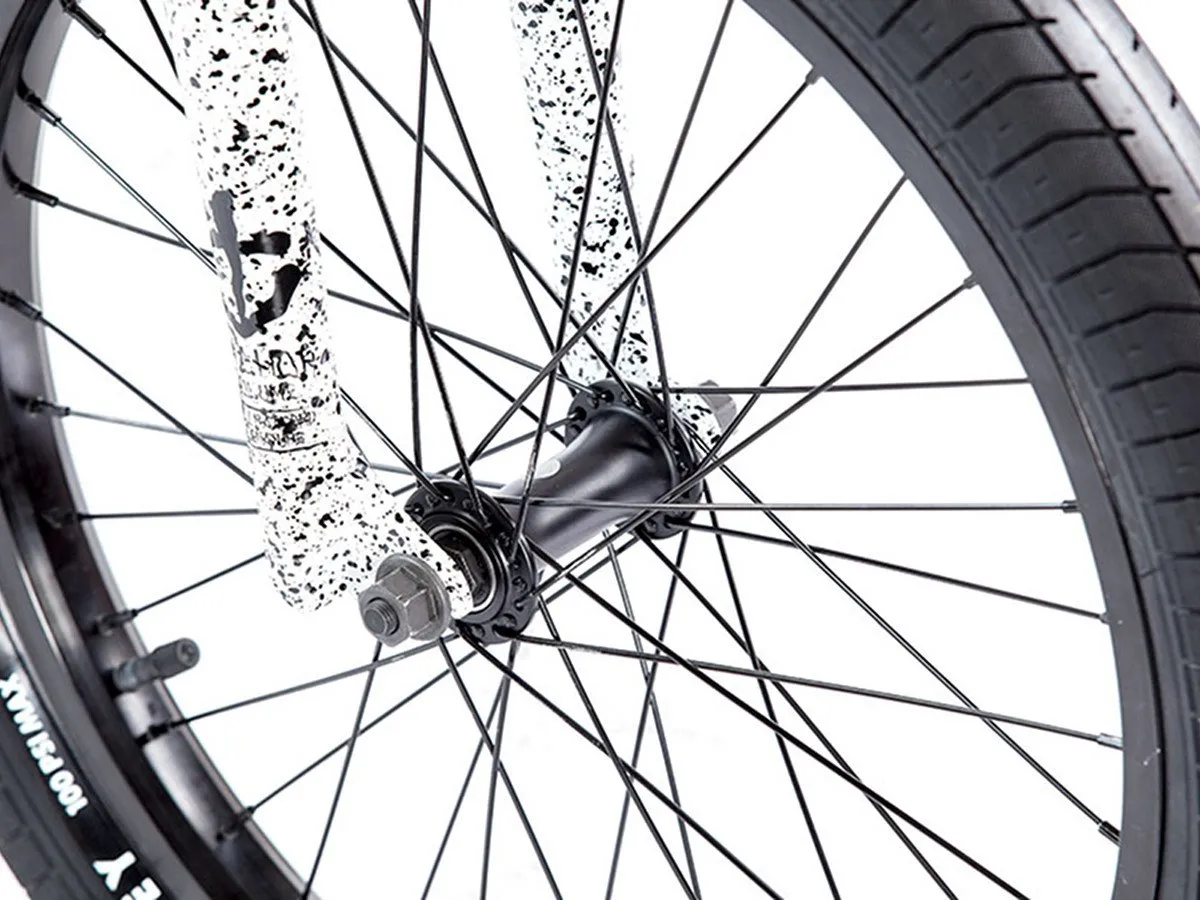

- Hub (front): Genesis "Turbine", aluminum, low flange, sealed bearing, 10mm (3/8") male CrMo axle, 36H

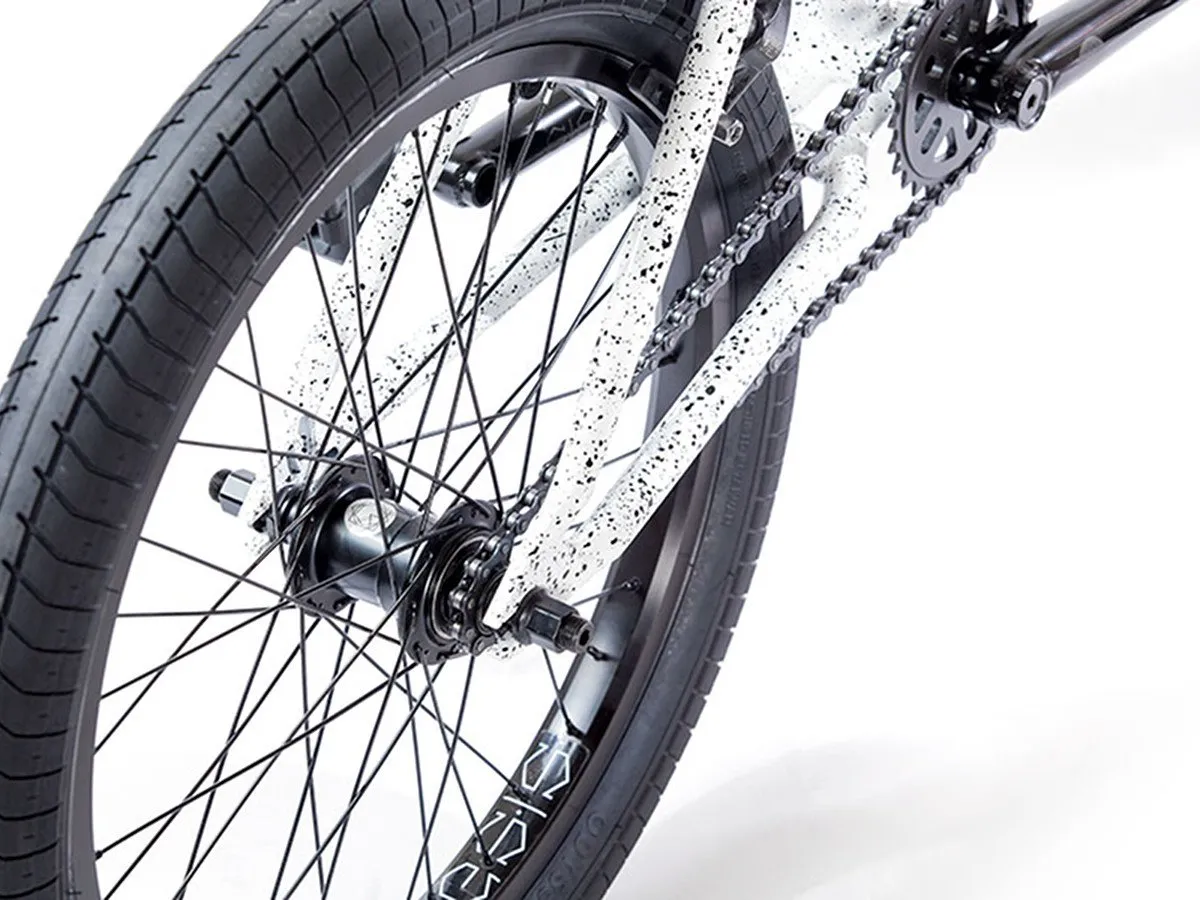

- Hub (rear): Genesis "Turbine" Freecoaster hub, sealed bearing, 14mm CrMo male hollow axle, 36H, 9T, sealed bearing
- Rim (front): Genesis "Turbine", aluminum, double wall, 36H
- Rim (rear): Genesis "Turbine", aluminum, double wall, 36H

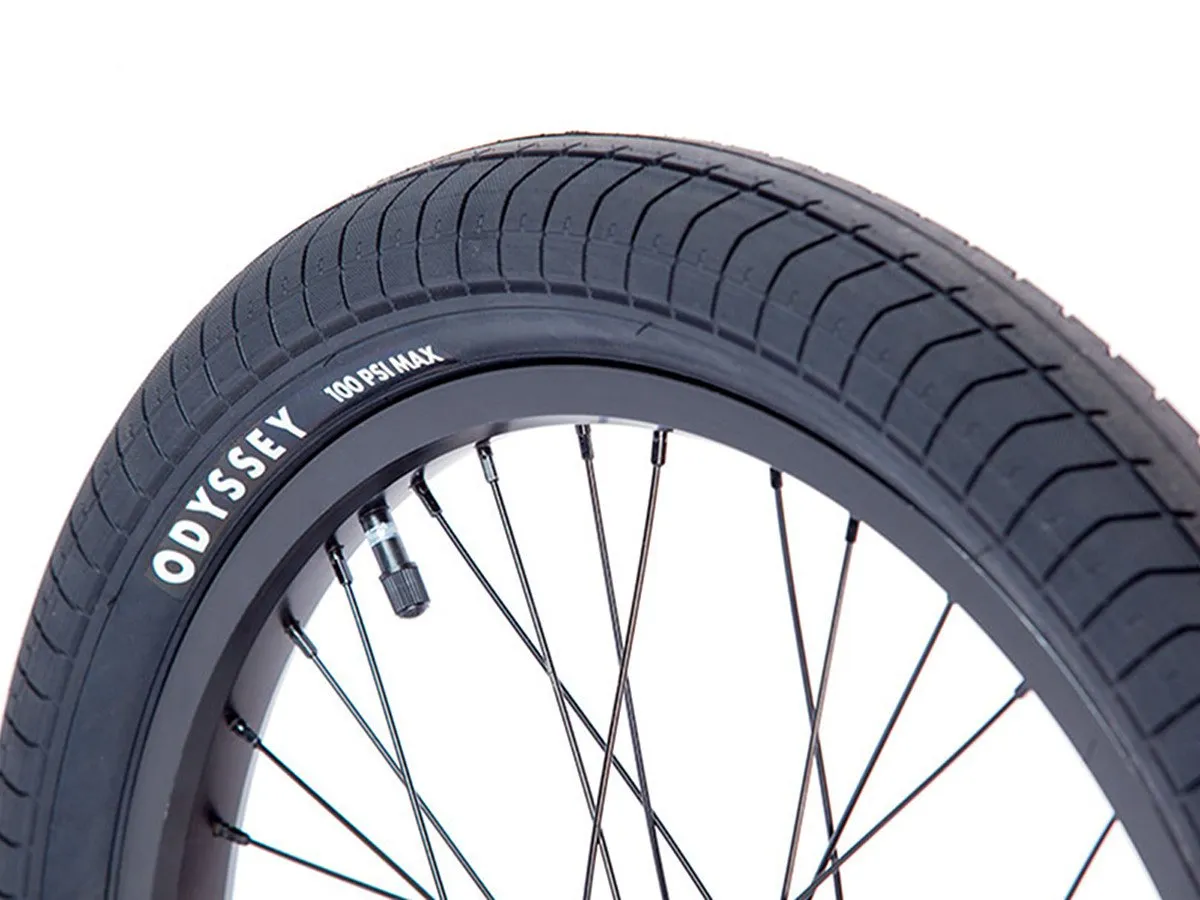

- Tire (front): Odyssey "Path PRO" BMX tire (100 PSI), 20" x 2.4"
- Tire (rear): Odyssey "Path PRO" BMX tire (100 PSI), 20" x 2.4"
- Pegs: -
- Extra: Broc Raiford Signature BMX bike
