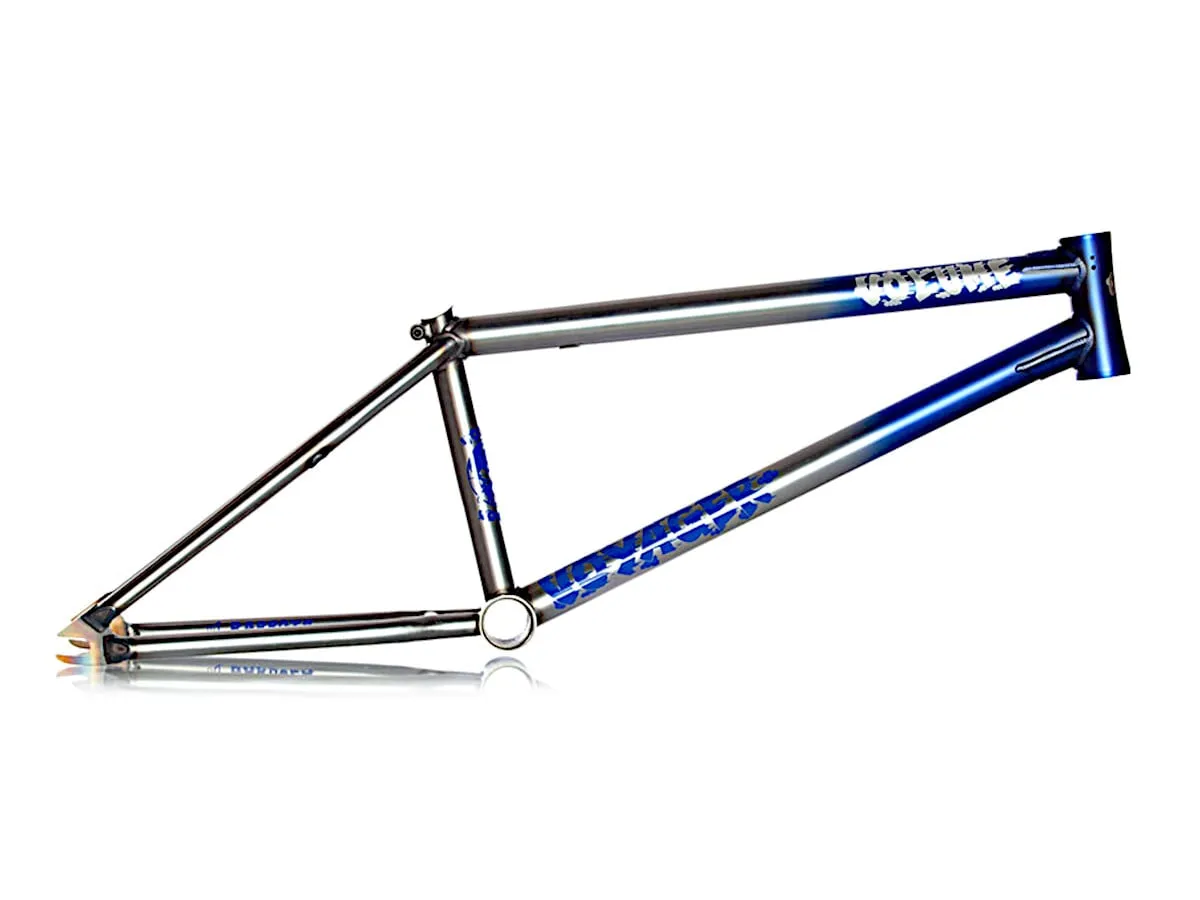

Volume Bikes "Voyager V2" BMX Frame - Trans Blue Fade Raw (Jarren Barboza)
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 2.3kg / 5.07lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 22695
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The
Volume Bikes "Voyager V2" BMX Frame - Trans Blue Fade Raw (Jarren Barboza)
features specs that Volume team riders have been asking for like a steeper 75.25º head tube, shorter 12.5” slammed chainstay (12.75” center to center) and a higher 9.25” seat tube height.
The
Volume Bikes "Voyager V2" BMX Frame - Trans Blue Fade Raw (Jarren Barboza)
features double butted 4130 heat treated chromoly tubing, hour glass head tube, and small/ clean 6mm thick laser cut and welded dropouts with all new built in chain tensioner. Added top and bottom gussets for strength, removable brake mounts, and S chainstays for bigger tire clearance.
Facts: Volume Bikes "Voyager V2" BMX Frame - Trans Blue Fade Raw (Jarren Barboza)
- Wheel Size: 20"
- Material: 100% heat treated 4130 CrMo, top tube and down tube gussets, buttet tubes, tappered chainstays, integrated headseat, integrated seatclamp, removable brake hardware, Mid BB
- Geometry:
- Top Tube Length (TT): 20.75"
- Chainstay Length (CS): 12.5" (31.75cm) - 12.8" (32.51cm)
- Head Tube Angle (HA): 75.25°
- Seat Tube Angle (SA): 71°
- Bottom Bracket Height: 11.7" (29.72cm)
- Standover Height (SO): 9.25" (23.49cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: heat treated, 6mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Jarren Barboza Signature frame, wide rear end for fat 2.4" tires
- Model Year: 2021
