wethepeople "Havoc 22" BMX Bike - 22 Inch - Black
-
Weight : 12.27kg / 27.05lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 28844
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

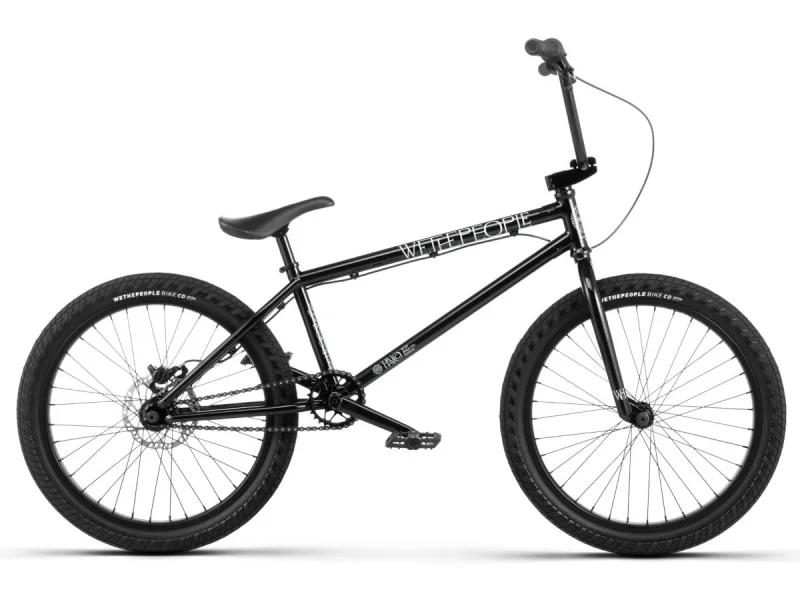

wethepeople "Havoc 22" BMX Bike - 22 Inch - Black
was designed for modern trail and dirt riding and is based on the geometry of the popular "Chaos Machine" aftermarket BMX frame.
The
wethepeople "Havoc 22" BMX Bike - 22 Inch - Black
is equipped with a hydraulic disc brake and a complete Eclat aftermarket parts package.
Facts: wethepeople "Havoc 22" BMX Bike - 22 Inch - Black
- Wheel Size: 22"
- Wheele Size: 22"
- BMX Frame:
- wethepeople "Havoc 22" frame, 100% 4130 CrMo, dis brake mount
- Top Tube (TT): 22.25"
- Chain Stay (CS): 14.35" (14"-14.75")
- Head Tube (HA): 74.25°
- Seat Tube (SA): 71°
- BB Height: 12.25"
- Stand Over Height: 9.75" - BMX Fork: wethepeople "Havoc 22", Sanko CrMo, 1-1/8" CNC machined 1-piece steerer tube, 32mm reach
- BMX Bar:
- wethepeople "Havoc 20", 100% 4130 CrMo
- Height: 9"
- Width: 29.25"
- Backsweep: 11°
- Upsweep: 2.5°
- Clamping Diameter: 22.2mm - Grips: Salt "EX" Grips
- Stem: eclat "Metra" Topload, 51mm reach
- Headset: eclat "Wave 6" 1-1/8" integrated headset, sealed bearing
- Gyro: -
- Gyro compatible: No
- Brake Lever: Magura "MT4", hydraulic
- Brake (rear): Magura "MT4" Hydraulic Disc Brake, 140mm
- Seat: eclat "Exile" Pivotal, slim padded
- Seat Post: Salt "AM", Pivotal, aluminum, 200mm, 25.4mm
- Seat Clamp: eclat "Pure", aluminum
- Pedals: eclat "Contra", plastic
- Chain: wethepeople "Supply", 1/8", 510H
- Sprocket: eclat "Exile" CNC, 7075-T6 aluminum, 28T
- Crank: Saltplus "Ultra" 3-piece, 4130 CrMo, tubular, 170mm, 8 spline 19mm spindle
- Bottom Bracket: Salt, Mid BB, 19mm, sealed bearing
- Hub (front): eclat "Exile", female axle with 10mm (3/8") bolts, sealed bearing, 36H
- Hub (rear): eclat "Exile Disc", female axle with 10mm (3/8") bolts, sealed bearing, 36H, 9T RHD
- Rim (front): wethepeople "Logic", sleeved double wall, 36H
- Rim (rear): wethepeople "Logic", sleeved double wall, 36H
- Tire (front): wethepeople "Overbite" 22" BMX tire, 22" x 2.3"
- Tire (rear): wethepeople "Overbite" 22" BMX tire, 22" x 2.3"
