Burgtec MTB Thru Axle - Rear 173.7mm Santa Cruz
-
Weight : 0.06kg / 0.13lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 40897
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

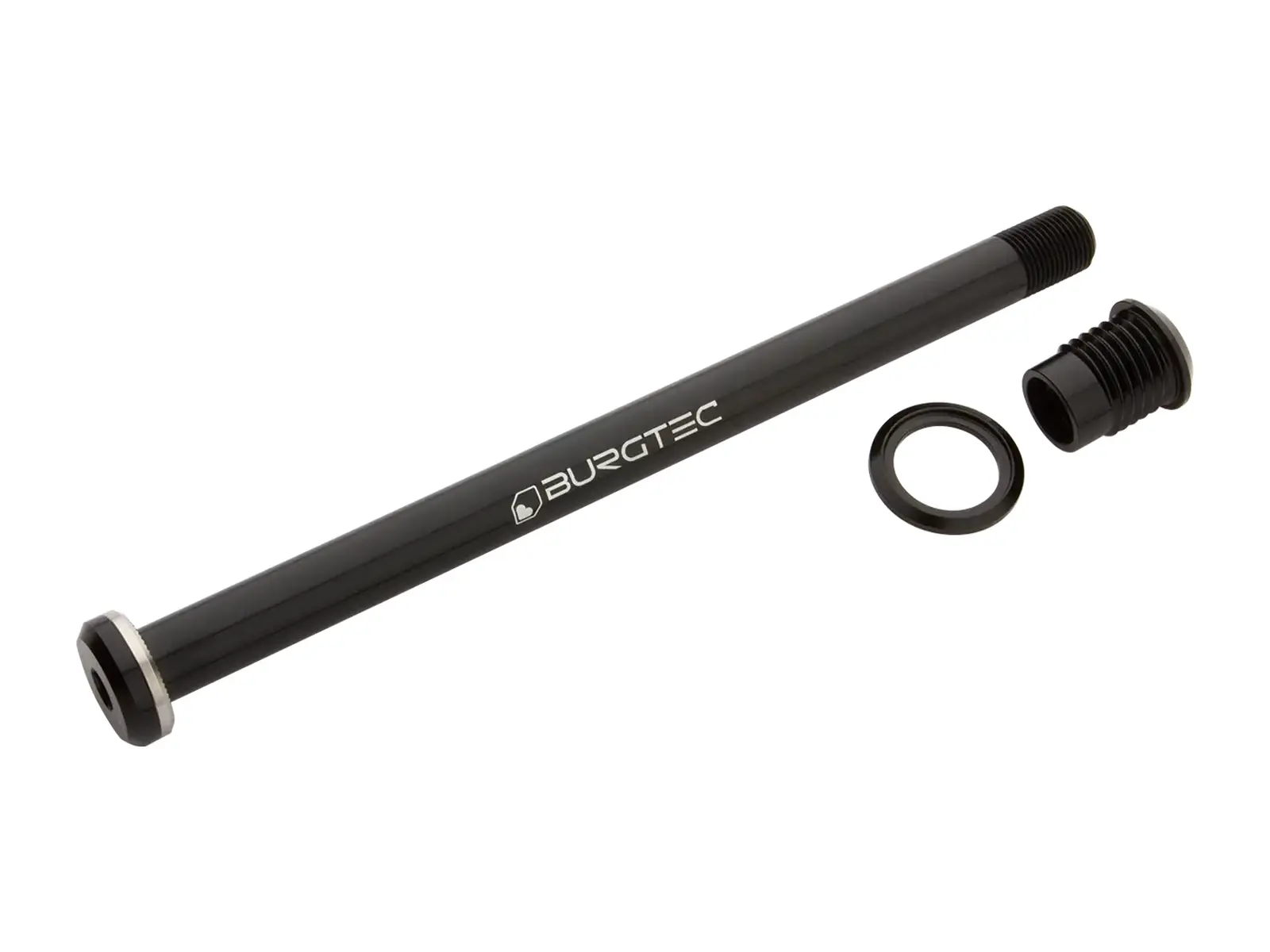

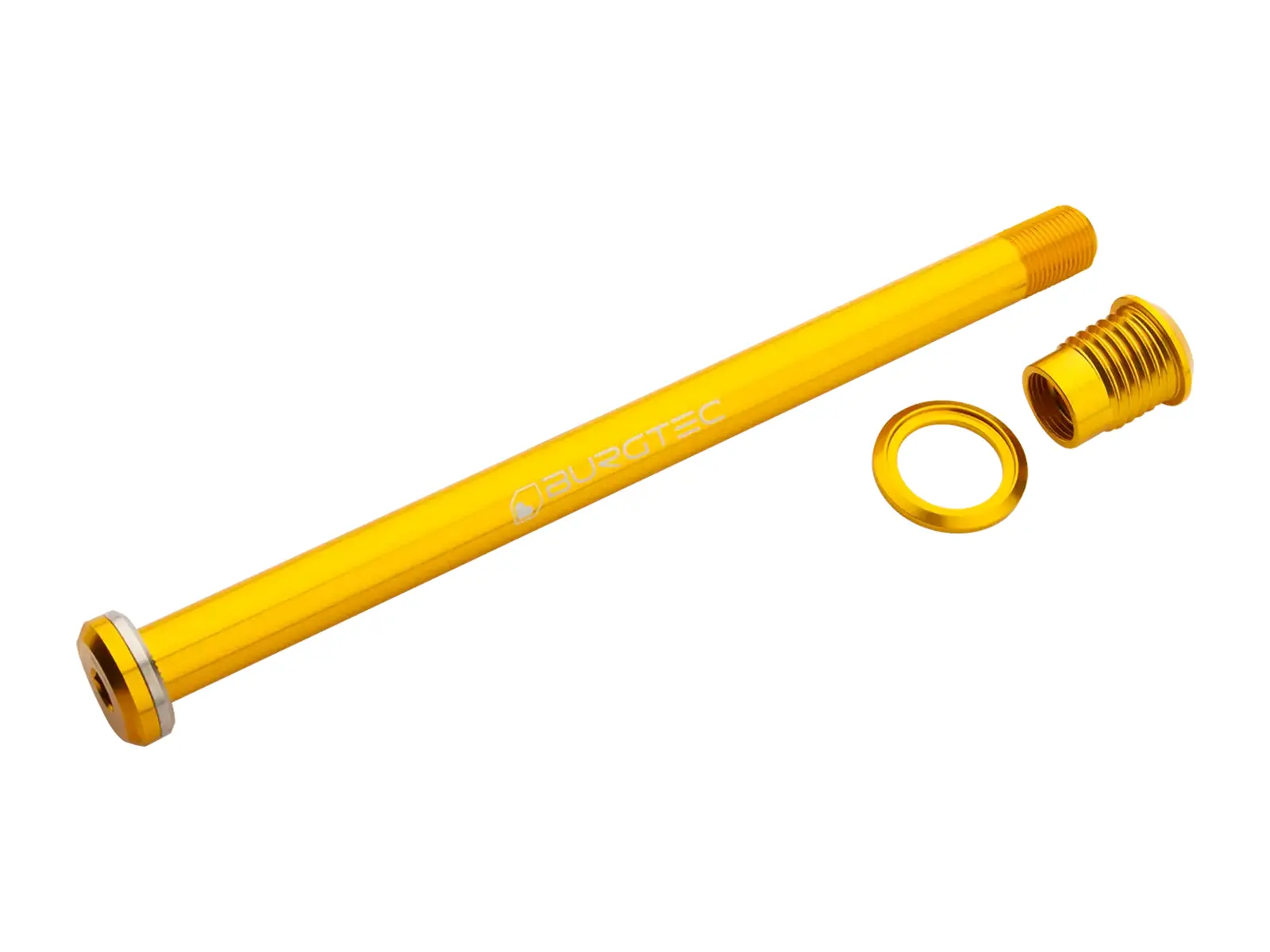

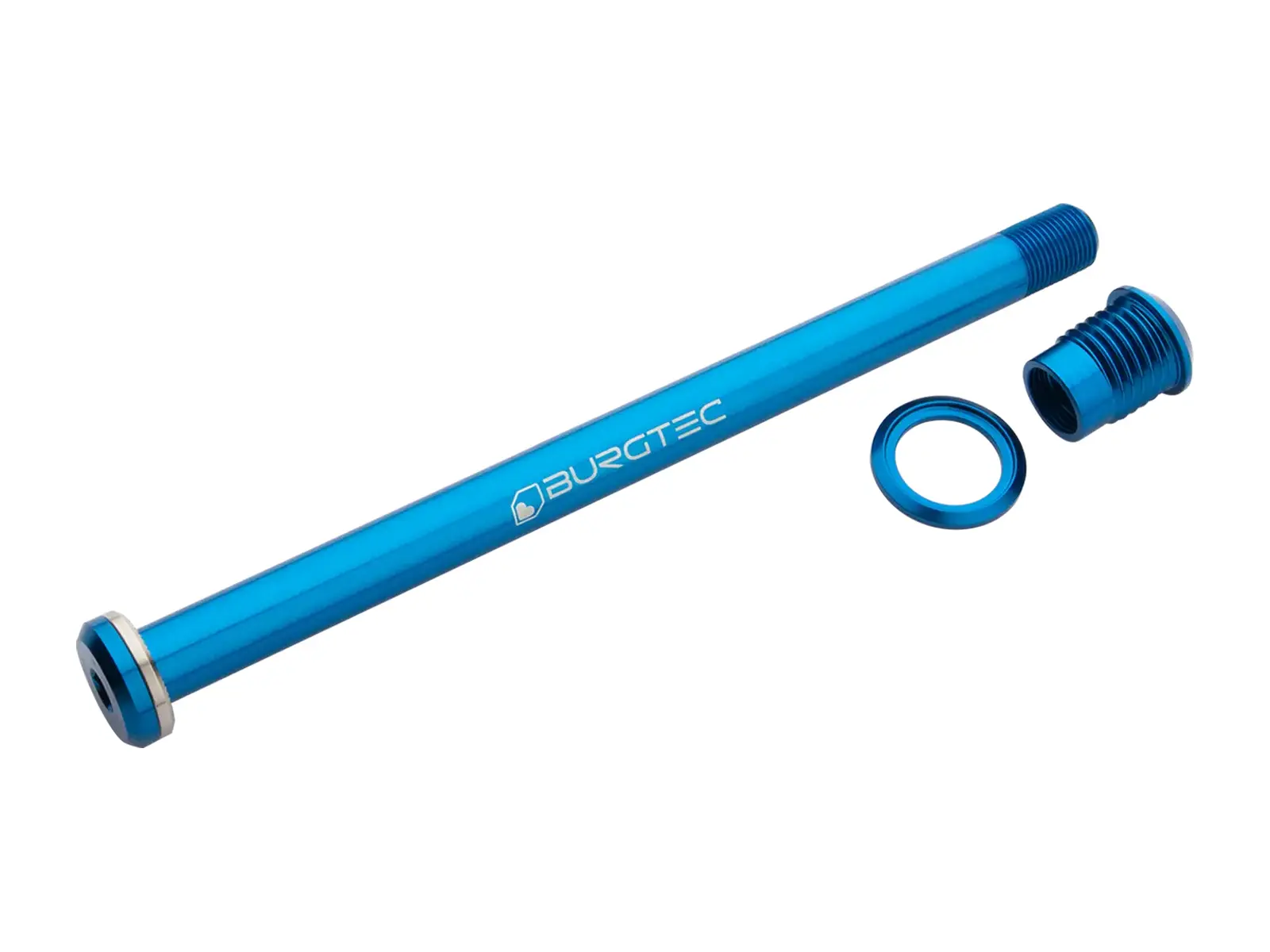

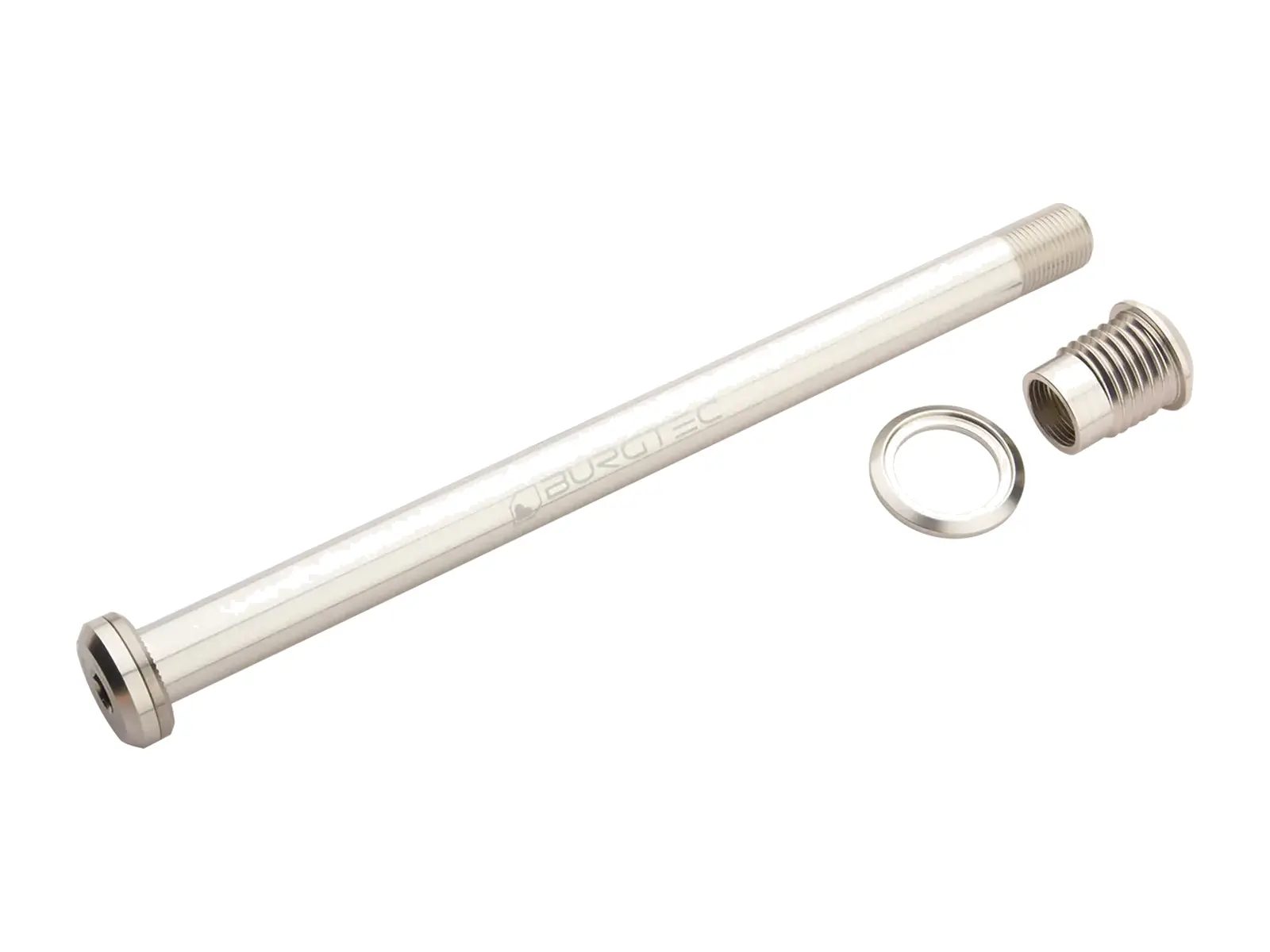

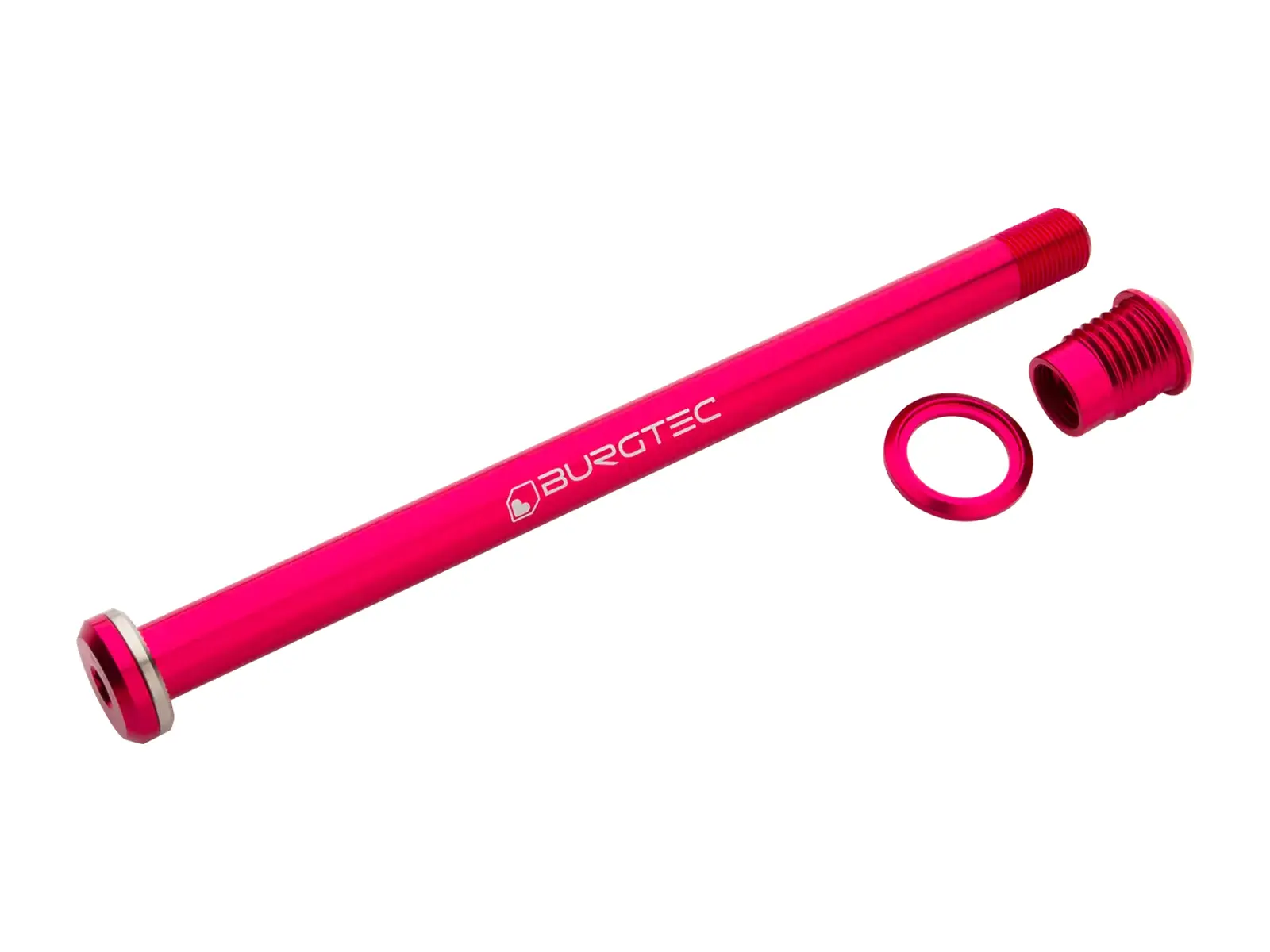

The Burgtec MTB Thru Axle - Rear 173.7mm Santa Cruz is a leverless thru axle machined from 7075 aluminium to the dimensions of the original axle. It tightens with a 6 mm Allen key, so it works with a torque wrench and there is no lever to take up space or snag on obstacles. A second 6 mm Allen fitting on the drive side lets you get the axle out if the one on the other side gets rounded. Available in 8 Burgtec colours to match Burgtec stems, caps and hangers.
Facts: Burgtec MTB Thru Axle - Rear 173.7mm Santa Cruz
- Contains: 1 x axle, 1 x hanger bolt, 1 x hanger bolt washer, 2 x stickers
- Material: aluminium (7075)
- Diameter: 12mm
- Hub Spacing: 12 x 148 mm
- Length: 173.7mm
- Thread Pitch: M12 x 1.0 mm
- Tool Interface: 6 mm Allen key, second 6 mm fitting on the drive side
- Fits to: Santa Cruz 5010 (V4-V5), Blur (V4), Bronson (V4-V5), Bullit (V3-V4), Chameleon (V8), Heckler (V9), Heckler SL (V1), Highball (V3.1), Hightower (V2 2022 only, V3-V4), Megatower (V2), Nomad (V5-V7), Tallboy (V4 2022 only, V5-V6), Vala (V1), plus the Juliana equivalents, and Trek E-Caliber (2021 on), Fetch+ (2026), Roscoe (2022), Supercaliber (2022)
- Extras:
- made to the dimensions of the original axle
- replaces original part Santa Cruz HWQASM00S2155S, QR1961, 08-22209, 08-22210; Trek W600321, 411K12B18TR002
- The hanger bolt only fits the SRAM UDH hanger, not the Santa Cruz alloy hanger; the axle itself works with both.
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
