e*thirteen "Helix Race" MTB Chainring - SRAM 3-Bolt Direct Mount
-
Weight : 0.06kg / 0.13lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36520
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

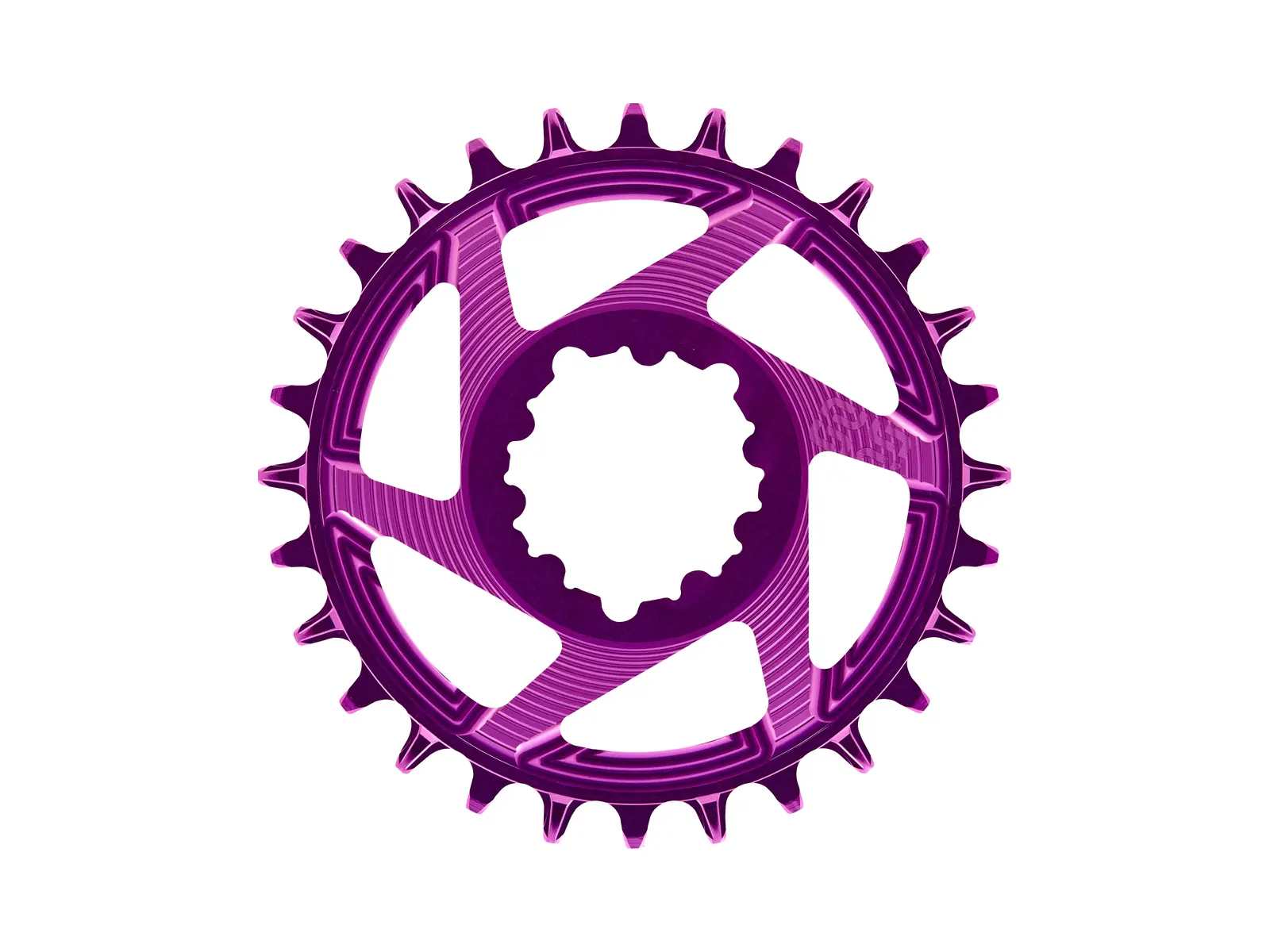

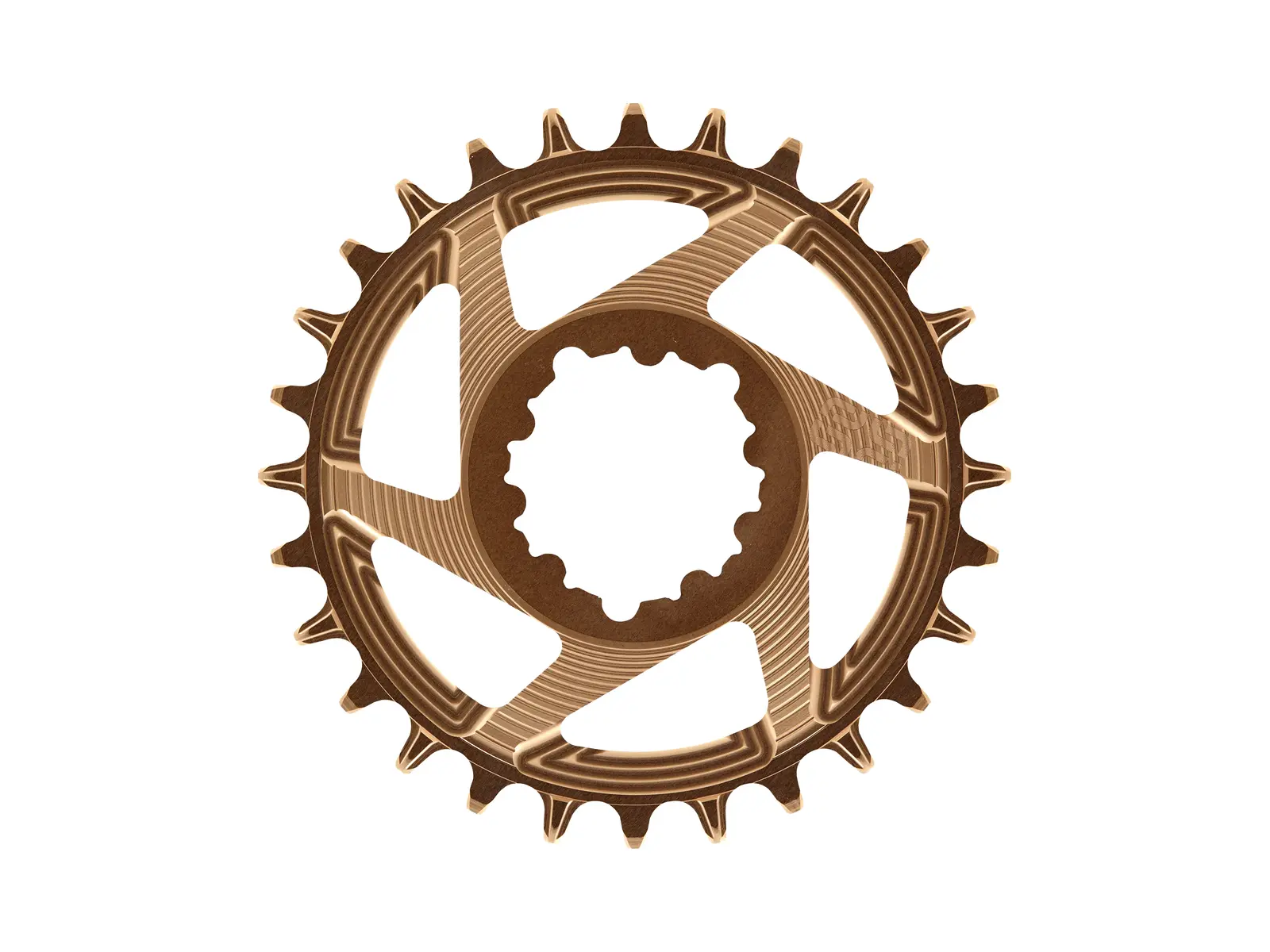

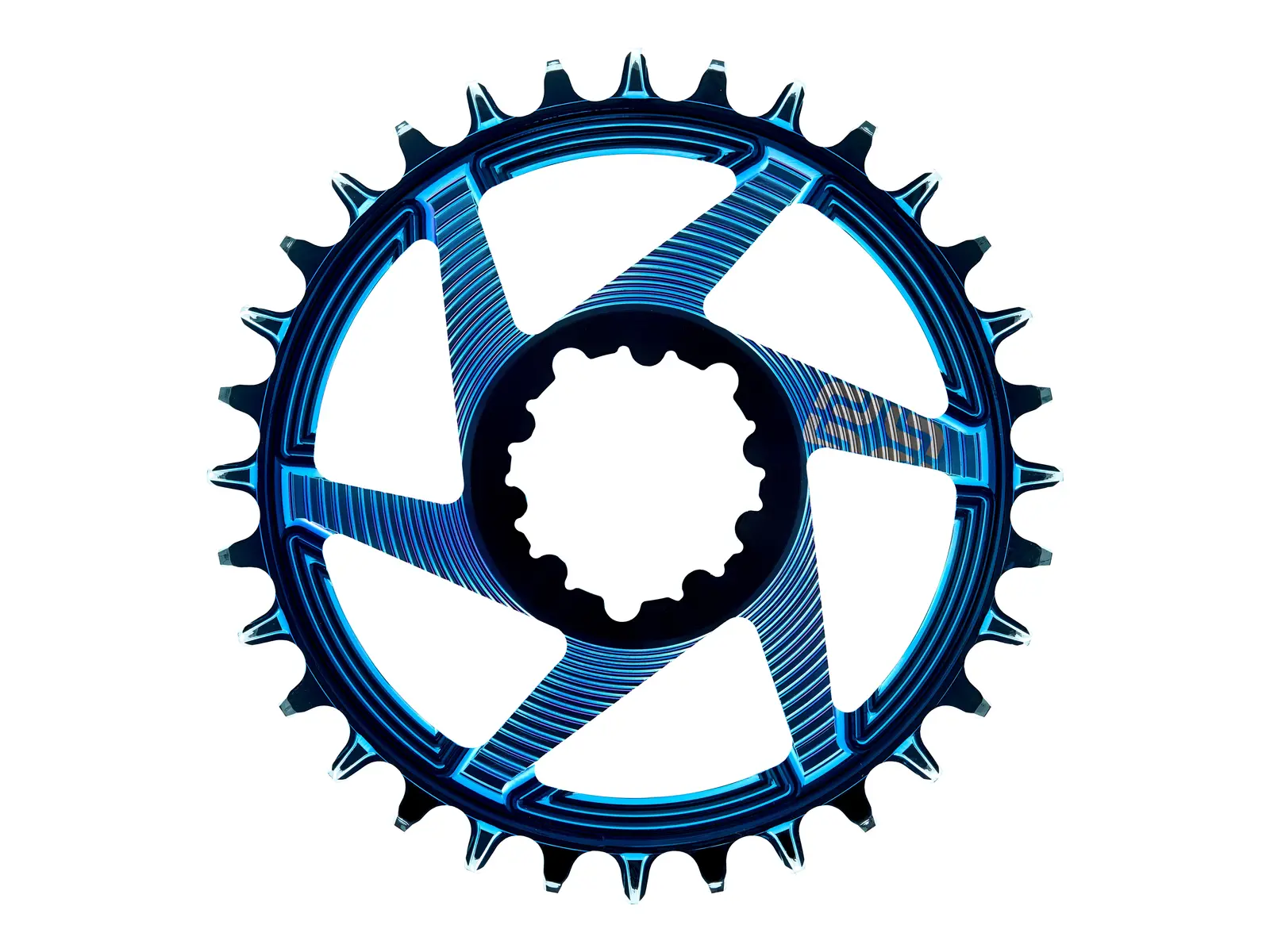

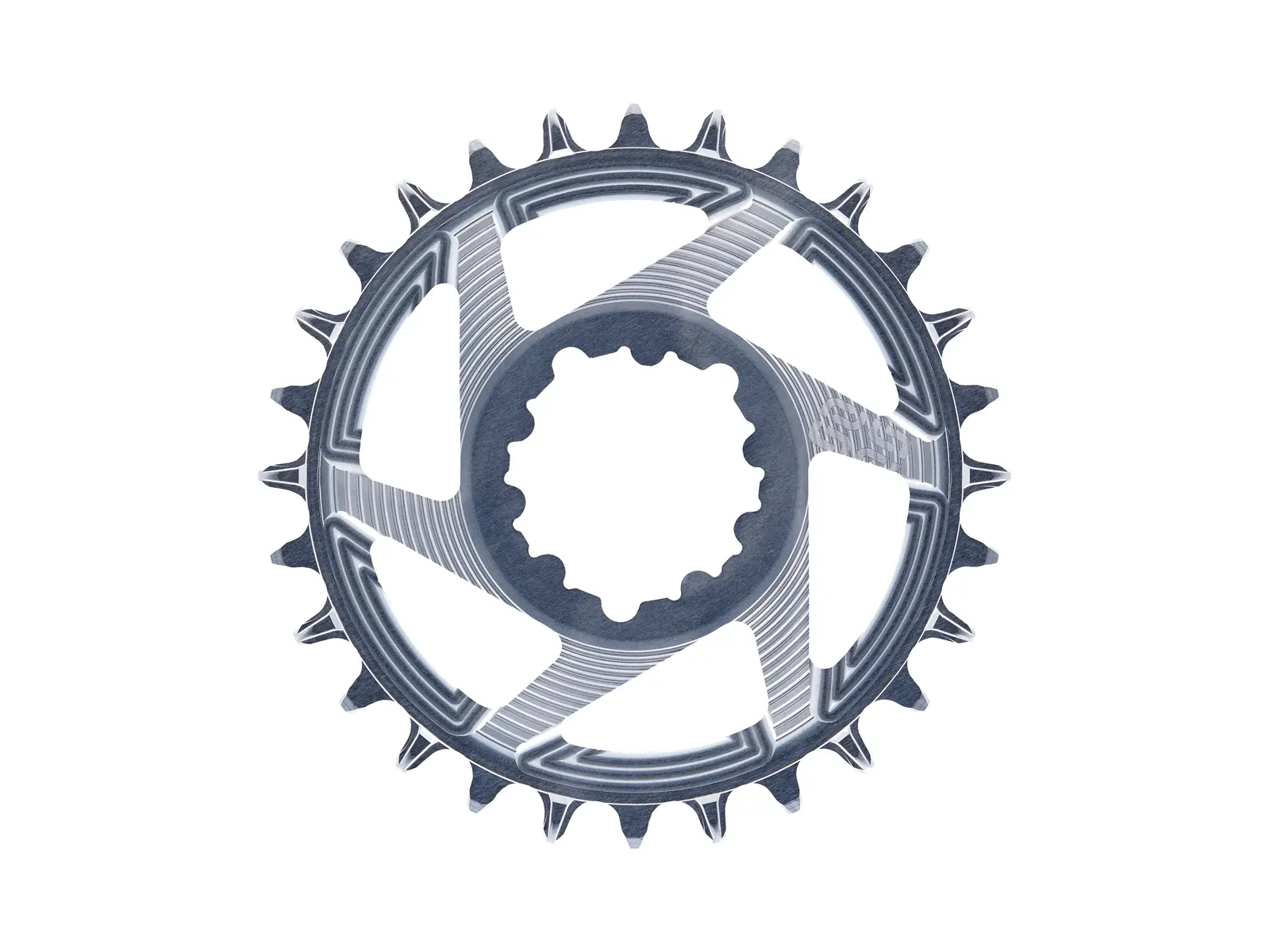

The e*thirteen "Helix Race" MTB Chainring - SRAM 3-Bolt Direct Mount brings the e*thirteen tooth profile to cranks with the SRAM 3-bolt direct mount interface. It is machined from 7075-T6 aluminium, has a 3mm offset for the Boost chainline and carries the M4 narrow-wide tooth profile, which keeps the chain without a chain guide and runs with SRAM and Shimano 11 and 12 speed chains. The colours match the e*thirteen Helix cassettes, Plus 35 stems and Quick Fill valves, Intergalactic is a PVD finish.
Facts: e*thirteen "Helix Race" MTB Chainring - SRAM 3-Bolt Direct Mount
- Style: 1x chainring, M4 narrow-wide tooth profile
- Material: 7075-T6 aluminium, CNC machined (Intergalactic with PVD finish)
- Teeth: 34T, 28T, 30T or 32T
- Chainring Mount: Direct Mount (SRAM 3-Bolt)
- Chain Compatibility: 11 and 12 speed (SRAM and Shimano)
- Contains: 1 chainring
- Extras:
- SRAM 3-bolt direct mount interface, fits all SRAM cranks with this interface and other cranks that take 3-bolt chainrings
- 3mm offset from the mounting face (Boost 52mm chainline)
- narrow-wide tooth profile keeps the chain without a chain guide
- weight per size: anodised 28T 52g, 30T 58g, 32T 62g, 34T 68g, Intergalactic 28T 58g, 30T 64g, 32T 68g, 34T 74g
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
