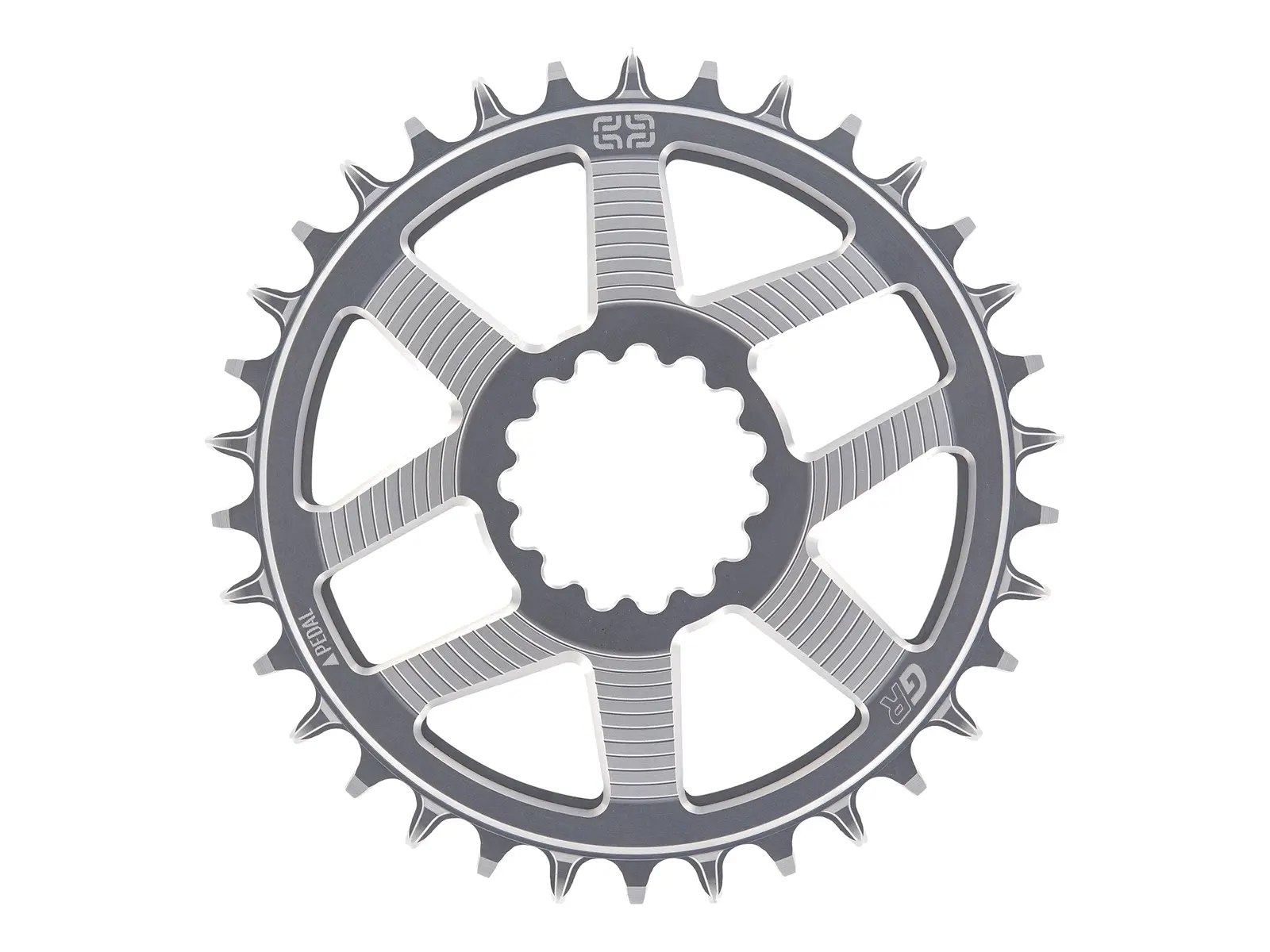

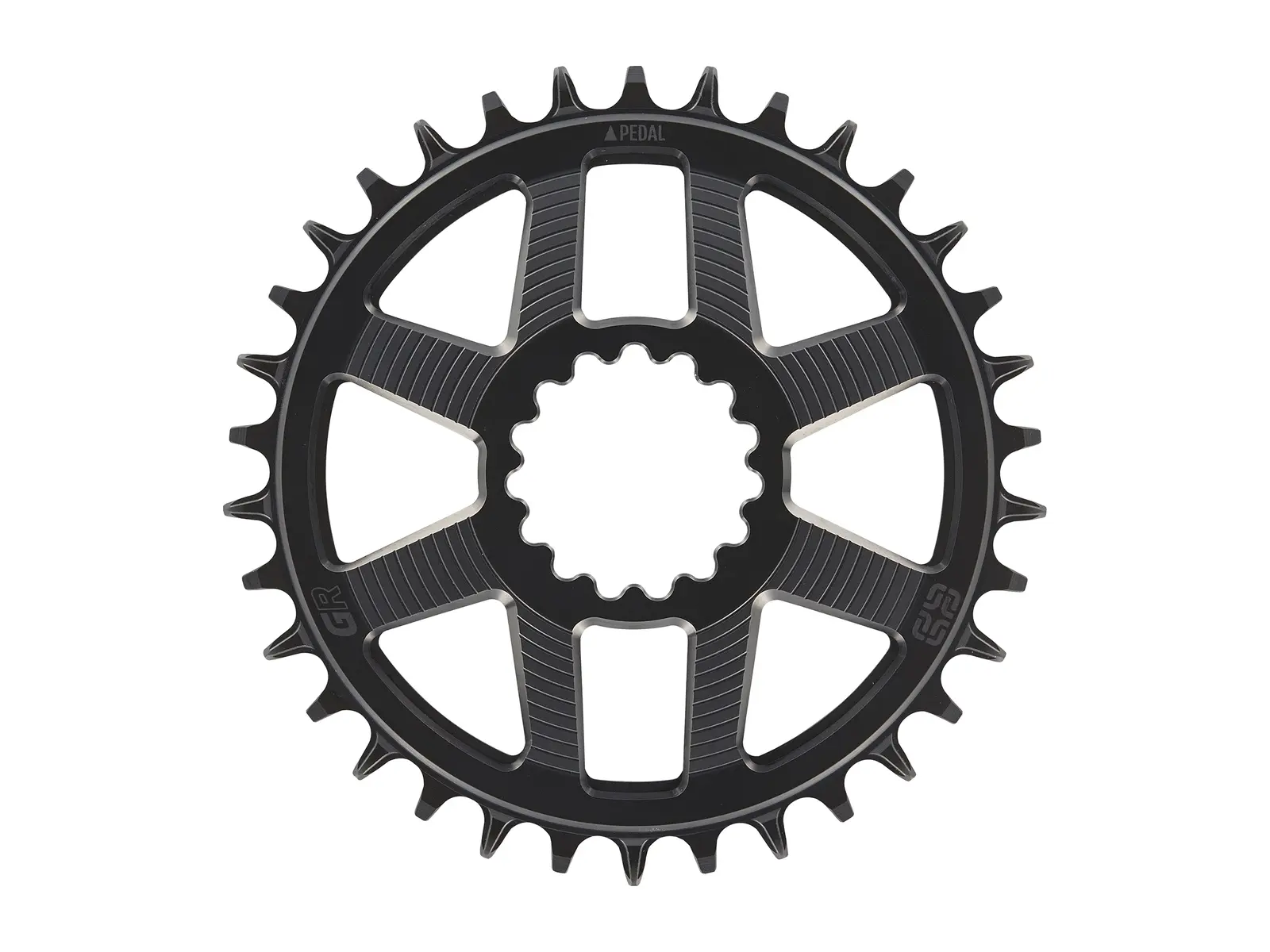

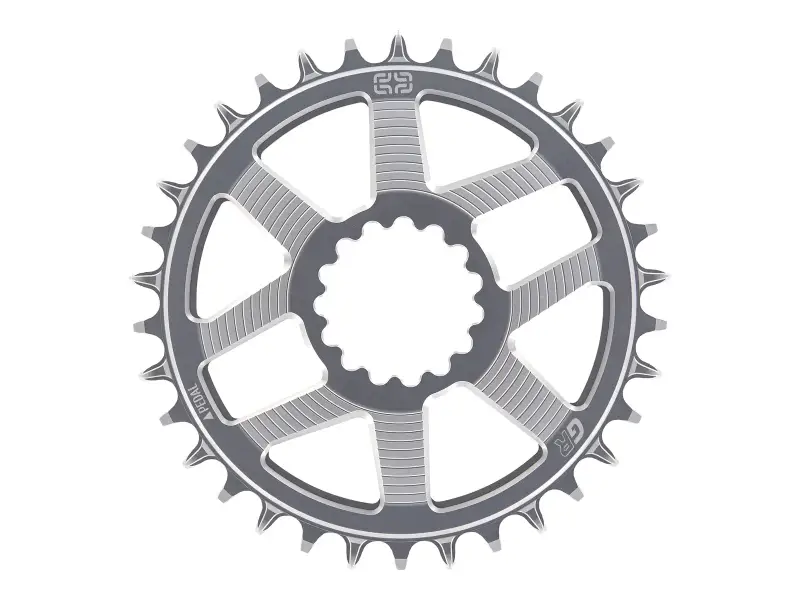

e*thirteen "Helix Race GR" MTB Chainring - Direct Mount

65.95 EUR

Color | Teeth

Please Select
- - silver | 34T
  - silver | 36T
  - black | 34T
  - black | 36T

Straight to the checkout with PayPal. The amount (incl. shipping) is only reserved and charged only when you order. Vouchers & discount codes can then be redeemed in the checkout.

pick up in our shop?

Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.

Weight : 0.08kg / 0.18lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Packaging Unit: 1 Piece
Product ID (PID): 36521
Product safety

Found an error? Report it. 5 EUR voucher if confirmed.

The e*thirteen "Helix Race GR" MTB Chainring - Direct Mount is the gravity chainring for the Helix Race GR crank with the 83mm spindle. Its 7mm offset gives a 56.5mm chainline on that crank, which suits most downhill and freeride frames. The ring is forged from 7075-T6 aluminium and then CNC machined, sits on the Quick Connect interface and carries the M4 narrow-wide tooth profile for SRAM and Shimano 11 and 12 speed chains, T-Type included. The 73mm version of the GR crank takes the standard Helix Race chainring instead.

Facts: e*thirteen "Helix Race GR" MTB Chainring - Direct Mount

Style: 1x chainring, M4 narrow-wide tooth profile, gravity
Material: 7075-T6 aluminium, forged and CNC machined
Teeth: 34T or 36T
Chainring Mount: Direct Mount (e*thirteen)
Chain Compatibility: 11 and 12 speed (SRAM and Shimano, T-Type included)
Contains: 1 chainring
Extras:
- e*thirteen Quick Connect direct mount interface, only for the Helix Race GR crank with the 83mm spindle
- 7mm offset, 56.5mm chainline on the 83mm crank
- narrow-wide tooth profile keeps the chain without a chain guide
- weight per size: 34T 74g, 36T 79g
