e*thirteen "Helix Race" MTB Chainring - Direct Mount
-
Weight : 0.05kg / 0.11lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36519
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

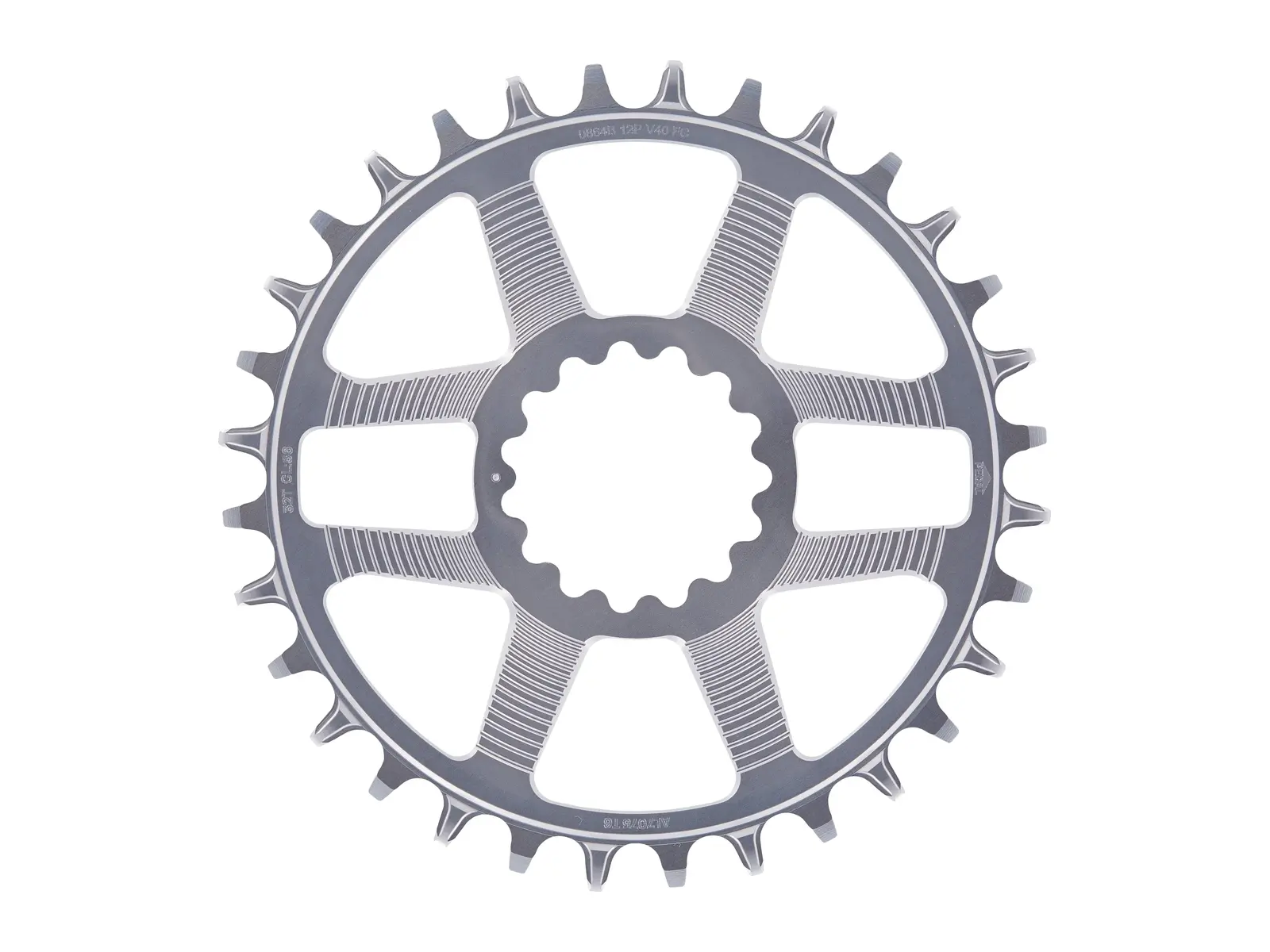

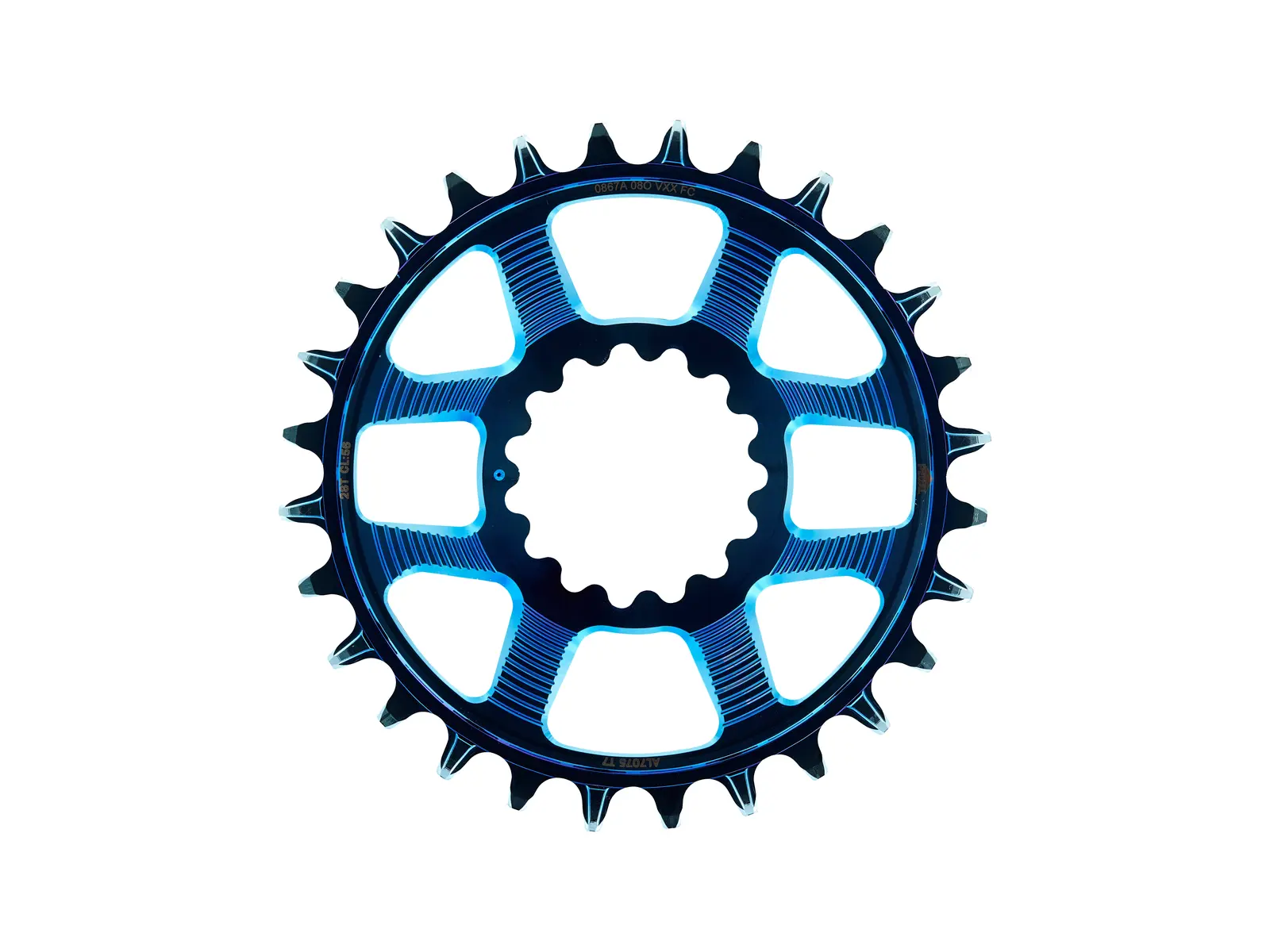

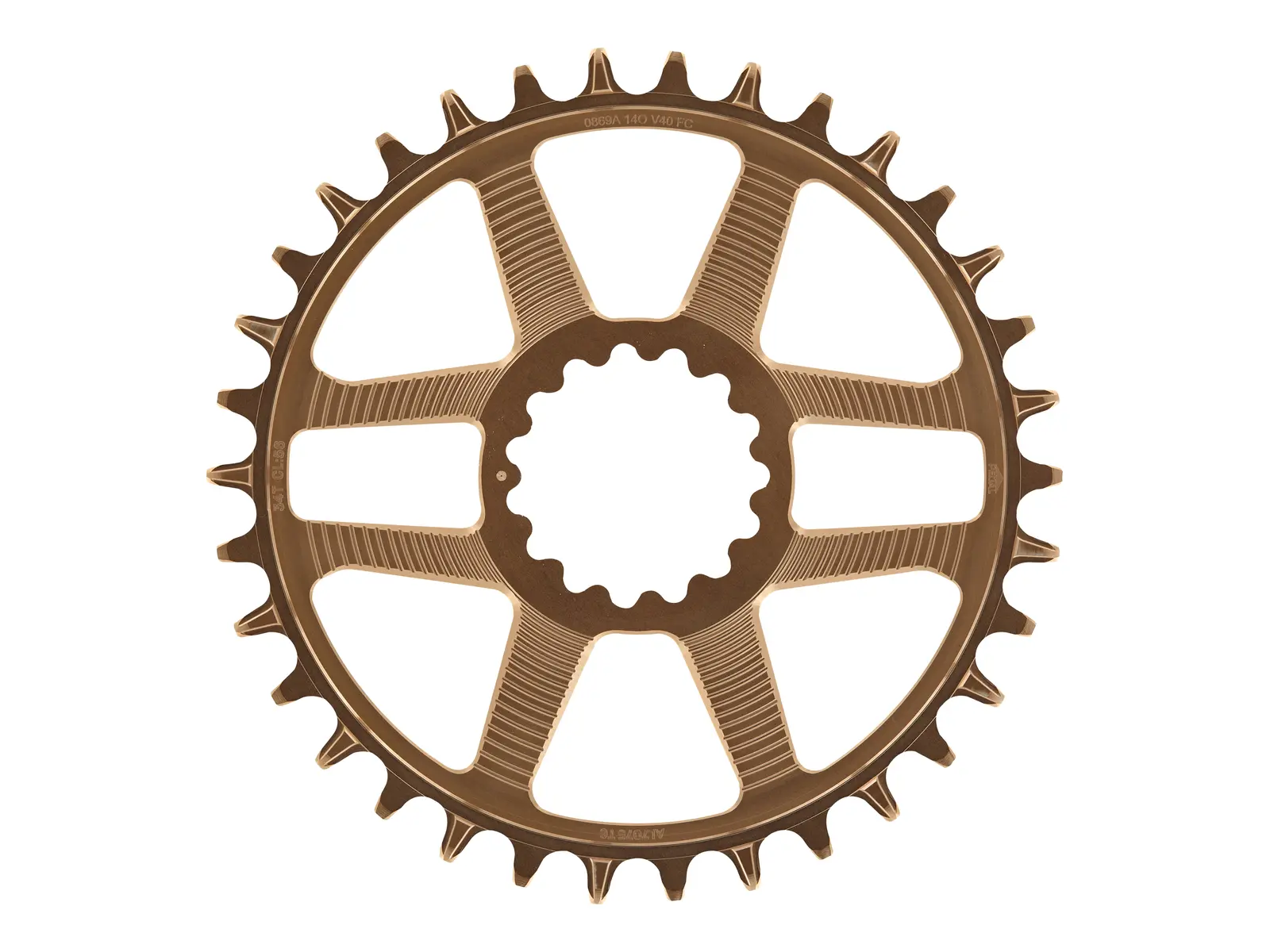

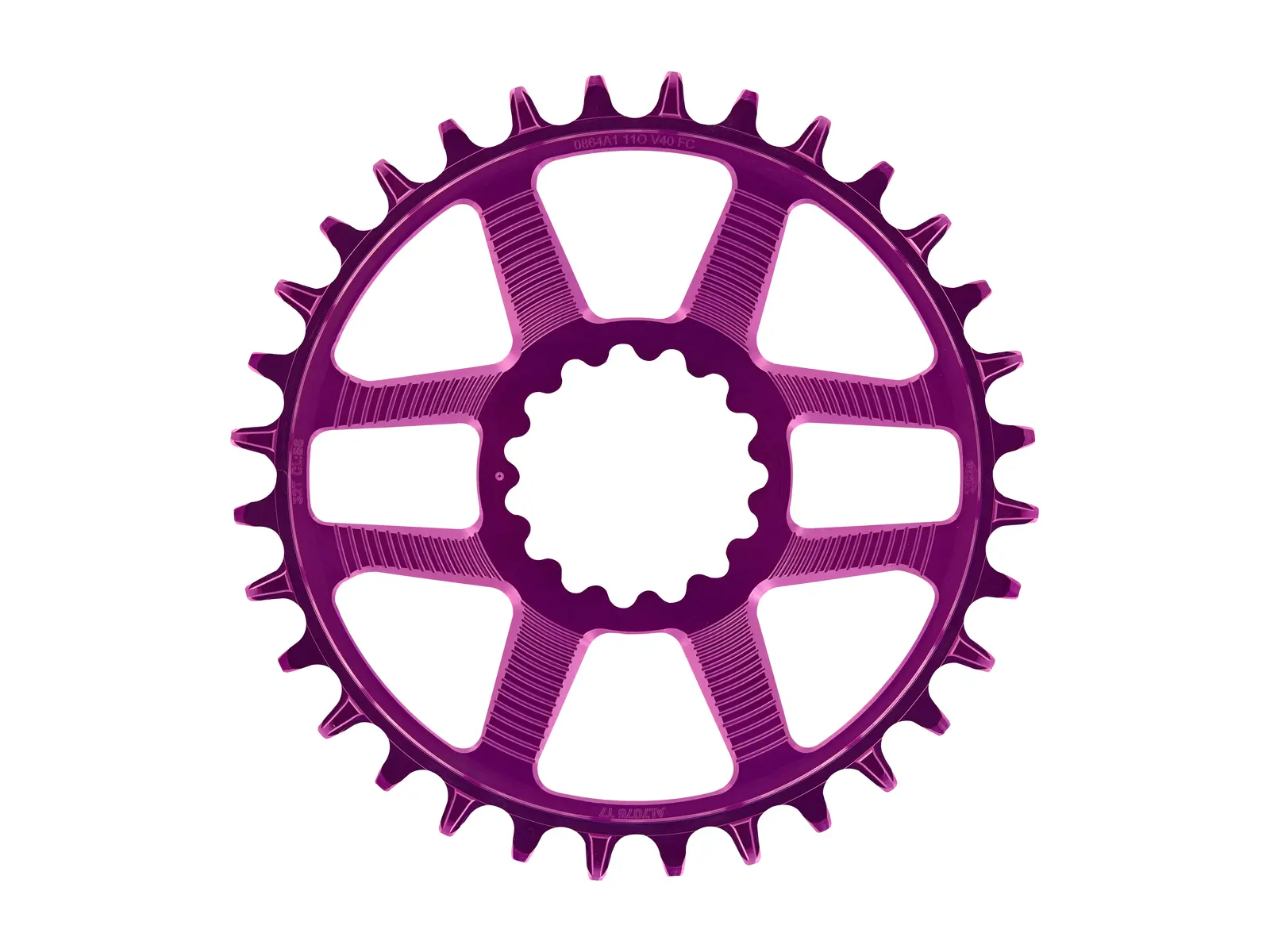

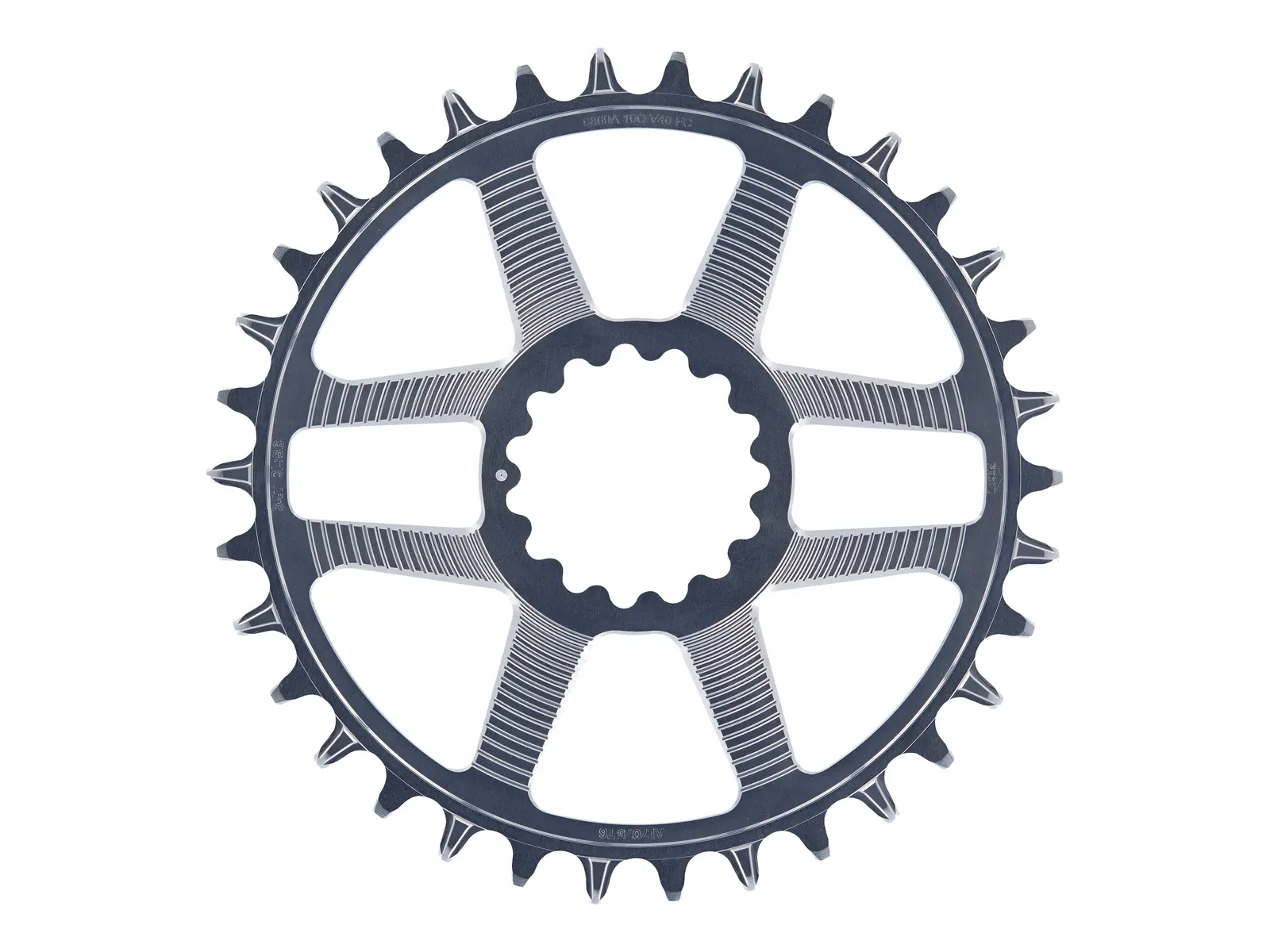

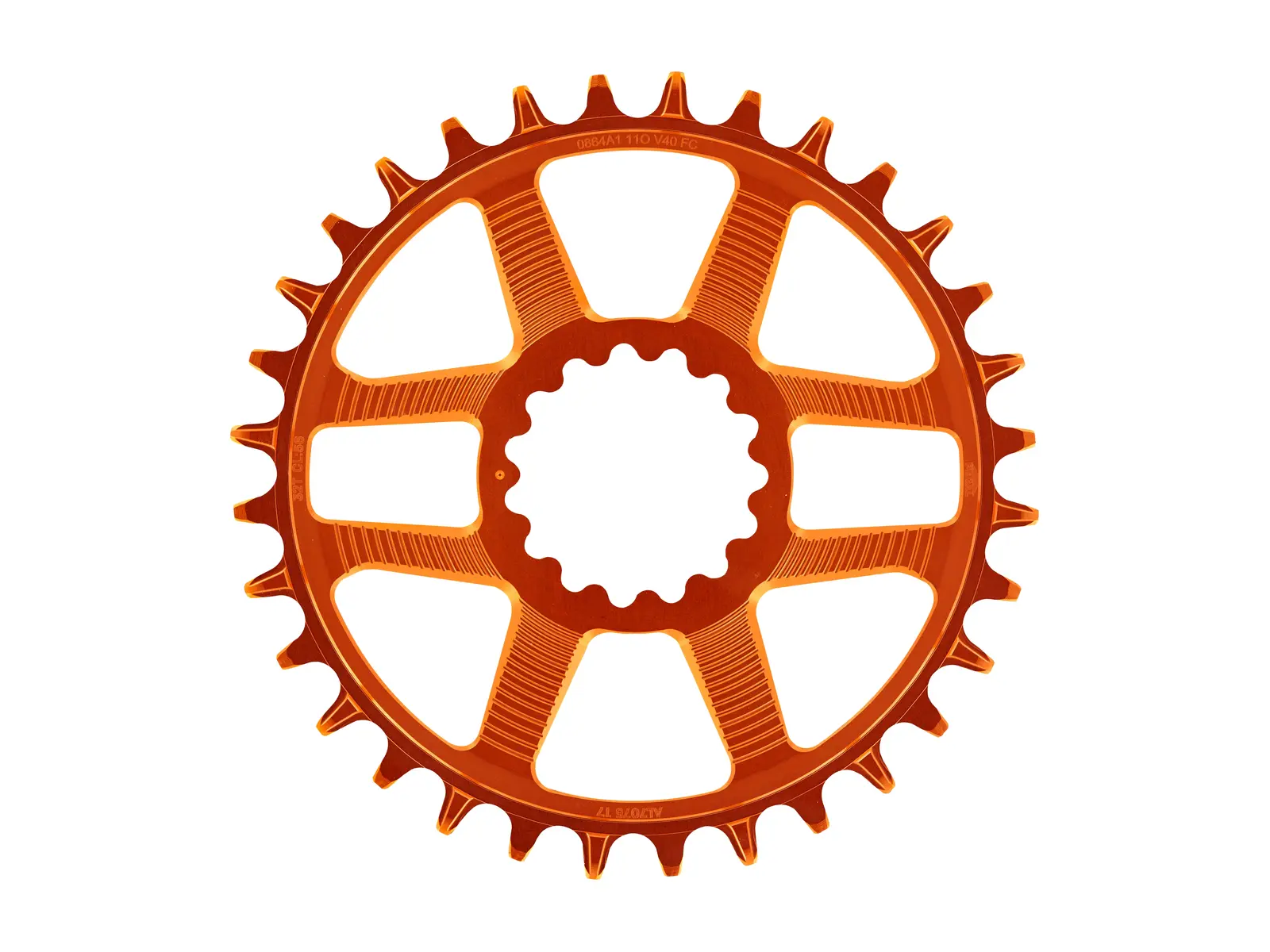

The e*thirteen "Helix Race" MTB Chainring - Direct Mount is the direct mount chainring for the e*thirteen Helix, Helix Race, TRS, LG1 and XCX cranks with the Quick Connect interface. It is machined from 7075-T6 aluminium and carries the M4 narrow-wide tooth profile, which keeps the chain without a chain guide and runs with SRAM and Shimano 11 and 12 speed chains. As a flip-flop ring it gives a 52mm (Boost) or 56mm (Super Boost) chainline depending on which way round it is fitted. The colours match the Helix cassettes and cranks, Intergalactic is a PVD finish.
Facts: e*thirteen "Helix Race" MTB Chainring - Direct Mount
- Style: 1x chainring, M4 narrow-wide tooth profile, flip-flop
- Material: 7075-T6 aluminium, CNC machined (Intergalactic with PVD finish)
- Teeth: 34T, 28T, 30T or 32T
- Chainring Mount: Direct Mount (e*thirteen)
- Chain Compatibility: 11 and 12 speed (SRAM and Shimano)
- Contains: 1 chainring
- Extras:
- e*thirteen Quick Connect direct mount interface, fits Helix, Helix Race, TRS, LG1 and XCX cranks (spacers required on some cranks)
- flip-flop: 52mm (Boost) or 56mm (Super Boost) chainline
- narrow-wide tooth profile keeps the chain without a chain guide
- weight per size: 28T 48g, 30T 50g, 32T 52g, 34T 54g
- the 73mm Helix Race GR crank takes this ring, the 83mm version needs the Helix Race GR chainring
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
