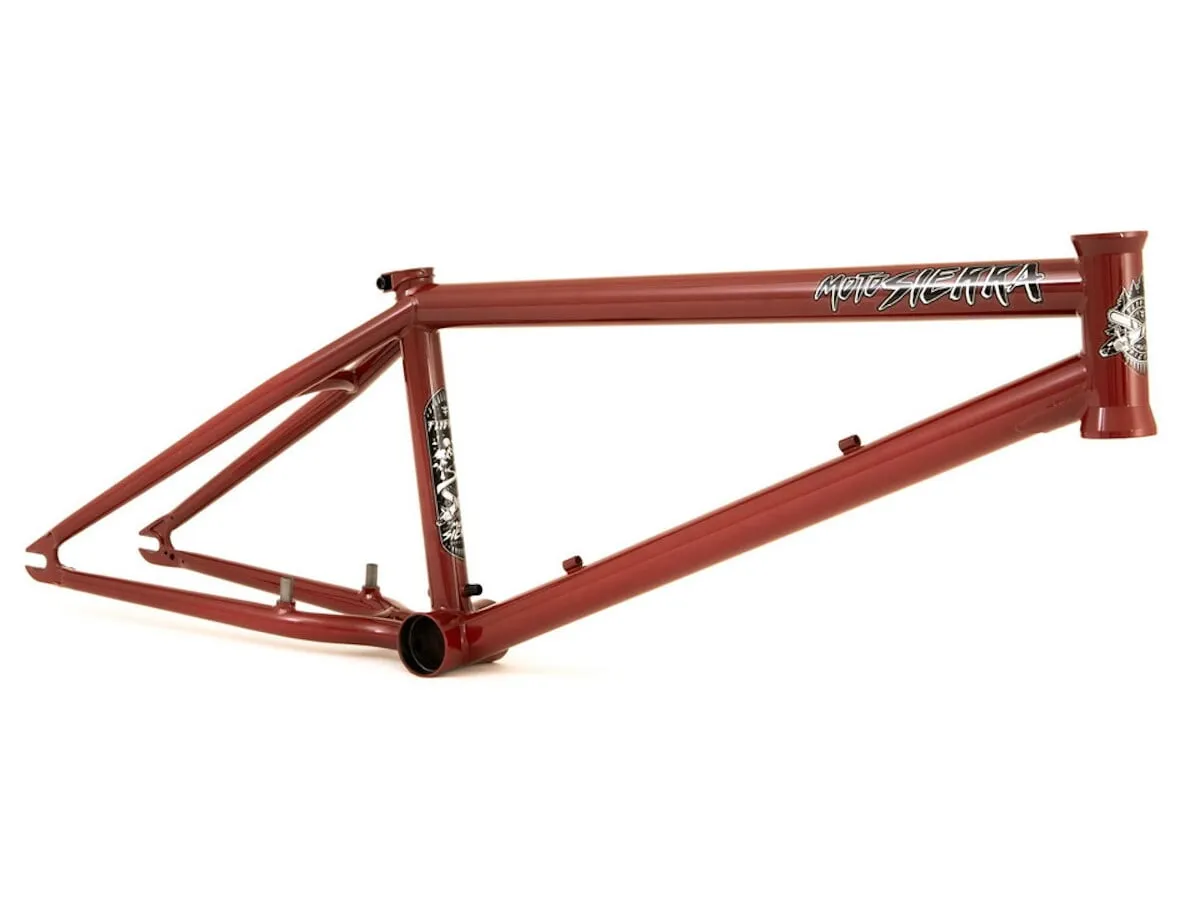

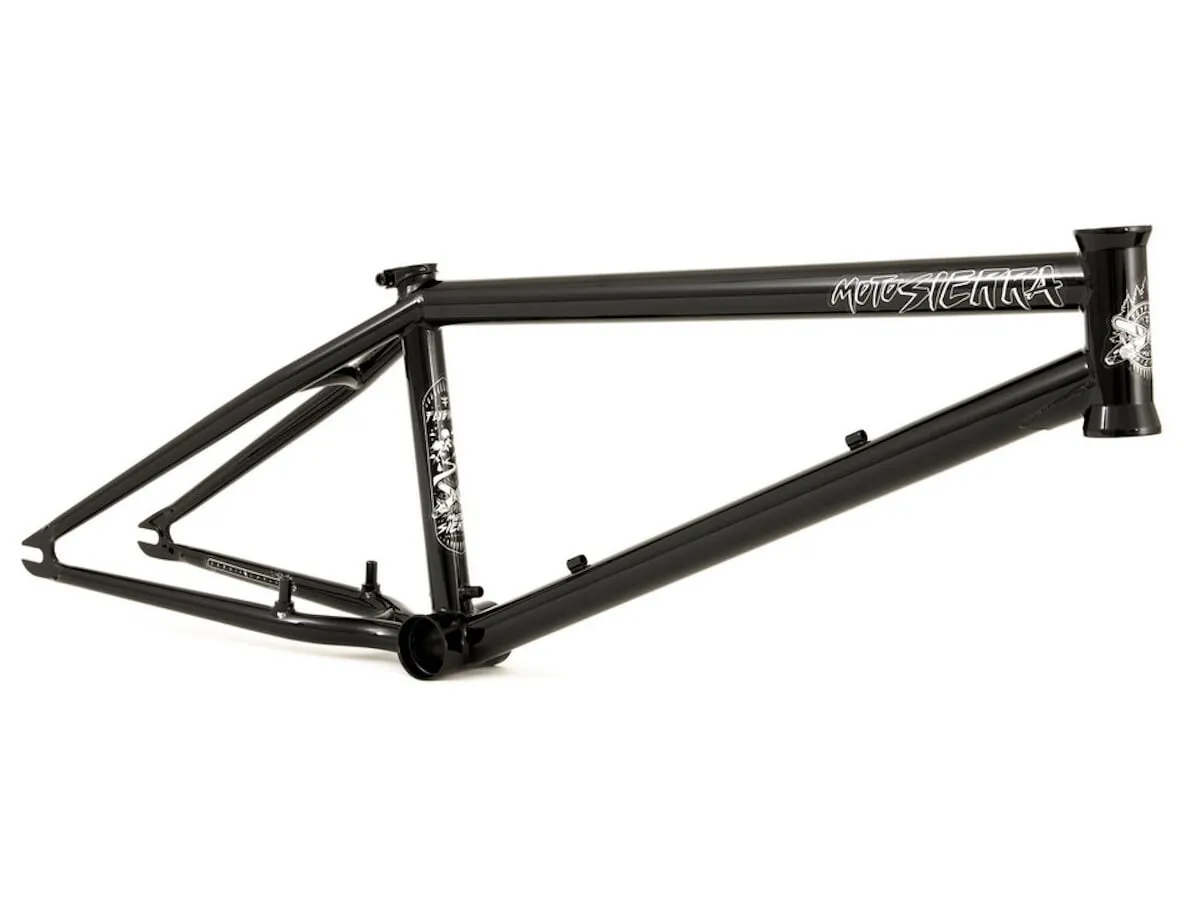

Flybikes "Motosierra" BMX Frame
- Weight (in kg): 2.2
- Weight (in lbs): 4.85
- Packaging Unit: 1 Piece
- Product ID (PID): 24652
Of the Flybikes "Motosierra" BMX Frame is the revised signature frame from Sergio Layos and comes in the current version with a few modifications such as upper and lower tube Gussets, EBS brake system on the chainstays, 74° headtube angle and lower 11.5" bottom bracket height. The Flybikes "Motosierra" BMX Frame is made by 100% 4130 CrMo and is made for professional use.
Facts: Flybikes "Motosierra" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, down tube gusset, integrated headset, investment cast saddle strive bridge
- Geometry:
Top Tube Length (TT): 21.0", 21.4" or 21.8"
Chainstay Length (CS): 14" (35.56cm) - 14.4" (36.58cm)
Head Tube Length: #104#
Head Tube Angle (HA): 74°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.5" (29.21cm)
Standover Height (SO): 9.25" (23.49cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 10mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (welded)
- Brakemounts included with delivery: Yes | No
- Gyro compatible: Yes | No
- Features: Sergio Layos Signature frame, wide rear end for fat 2.4" tires
- Model Year: 2023
