Haro Bikes "CK V3" BMX Frame
-
Weight : 2.4kg / 5.29lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 28003
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

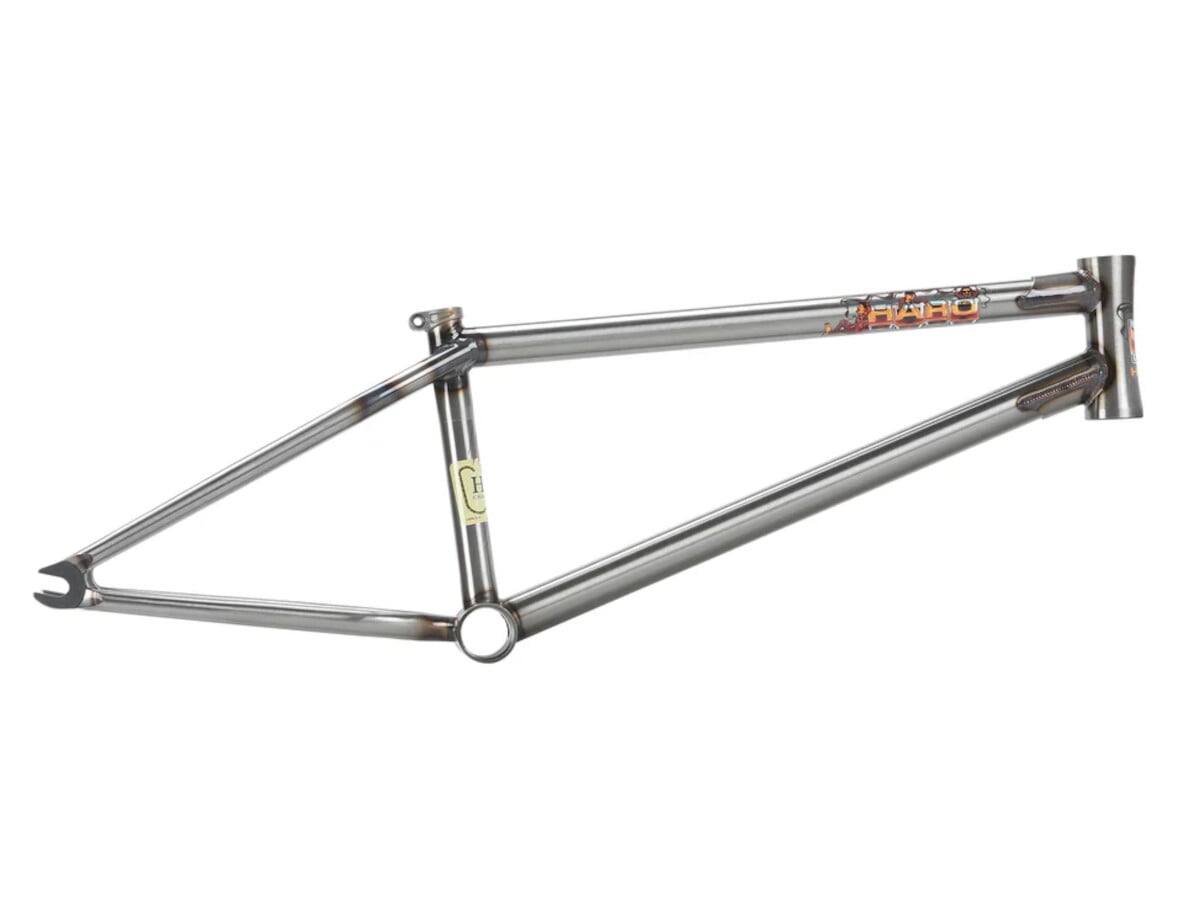

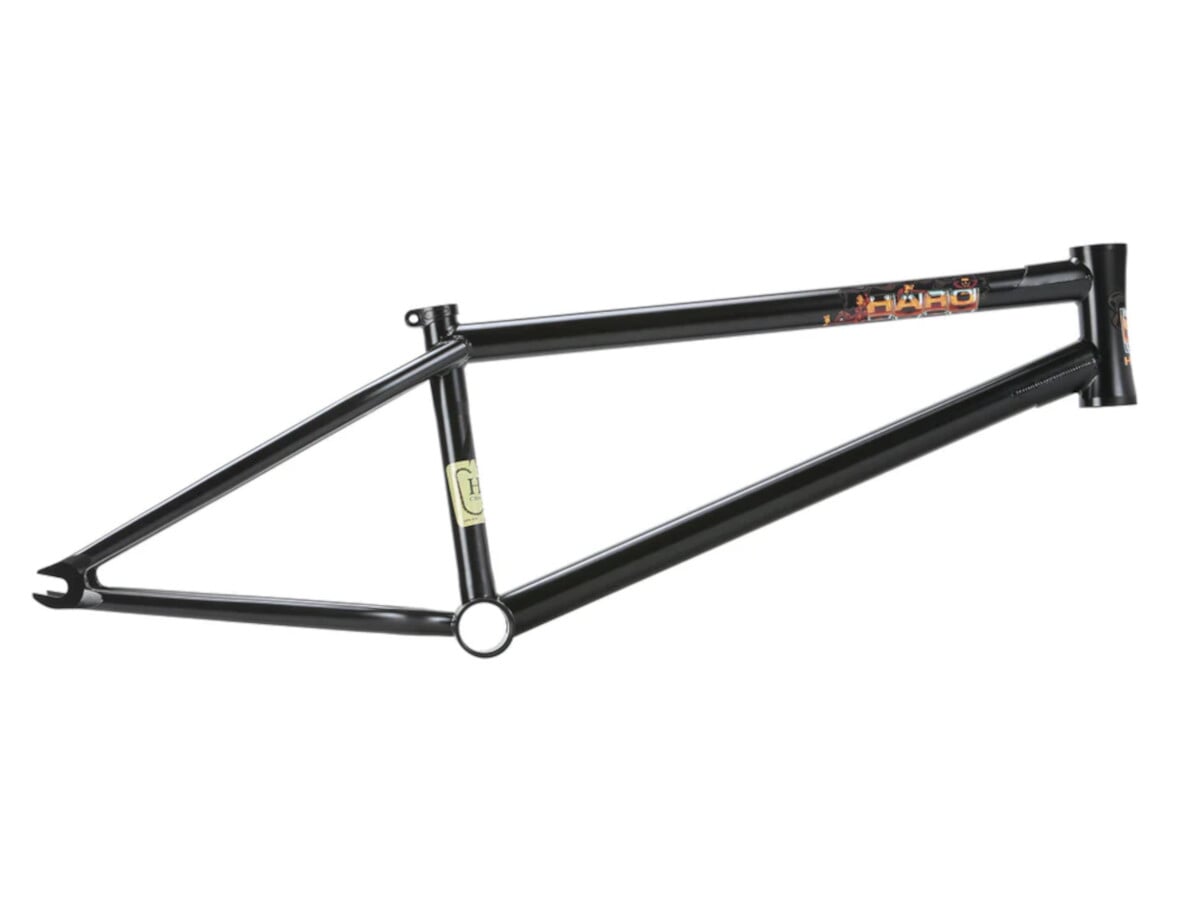

The Haro Bikes "CK V3" BMX Frame is the ultimate choice for riders looking for the highest performance. Developed in collaboration with renowned BMX pro Chad Kerley, this frame combines outstanding geometry, stability and agility.
Facts: Haro Bikes "CK V3" BMX Frame
- Wheel Size: 20"

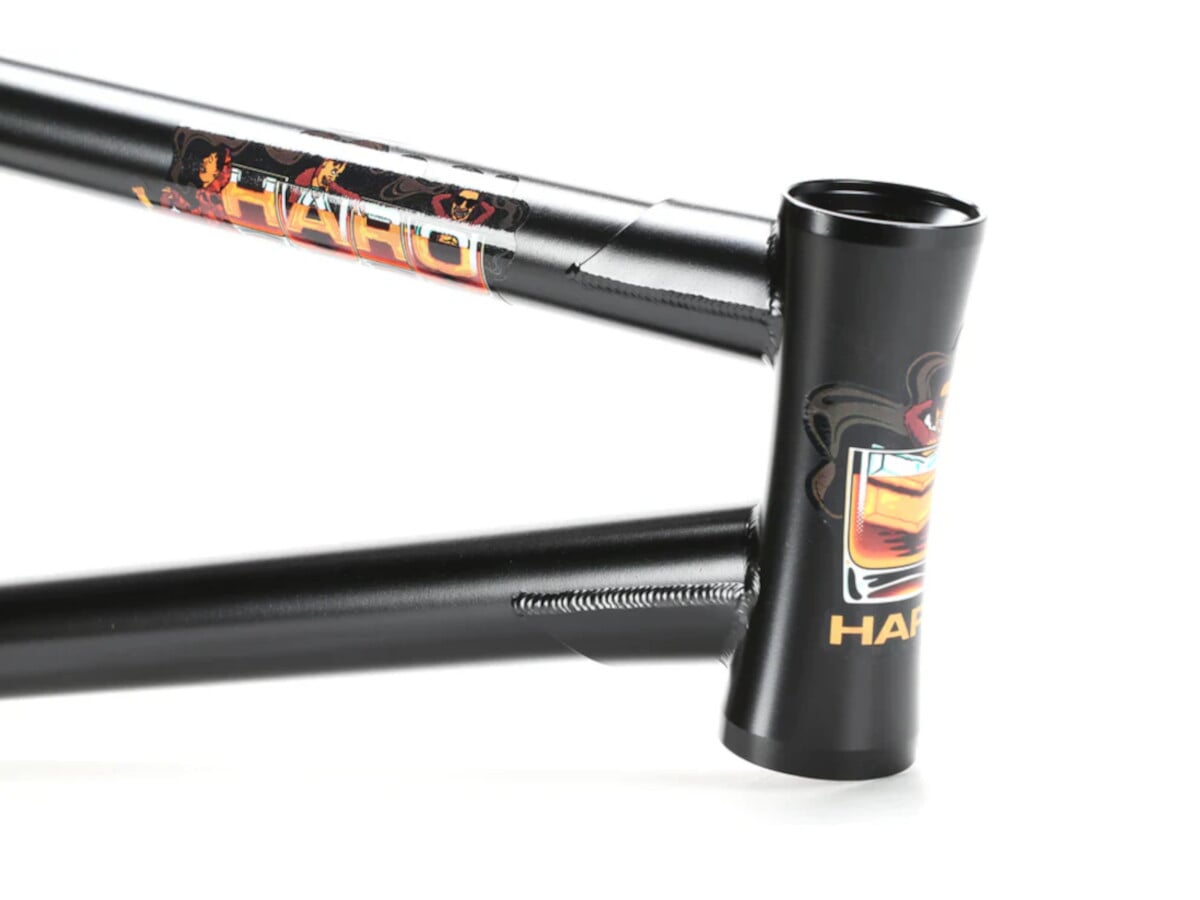

- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
- Geometry:
- Top Tube Length (TT): 20.5" or 21.0"
- Chainstay Length (CS): 12.7" (32.26cm)
- Head Tube Angle (HA): 75.5°
- Seat Tube Angle (SA): 71°
- Bottom Bracket Height: 11.5" (29.21cm)

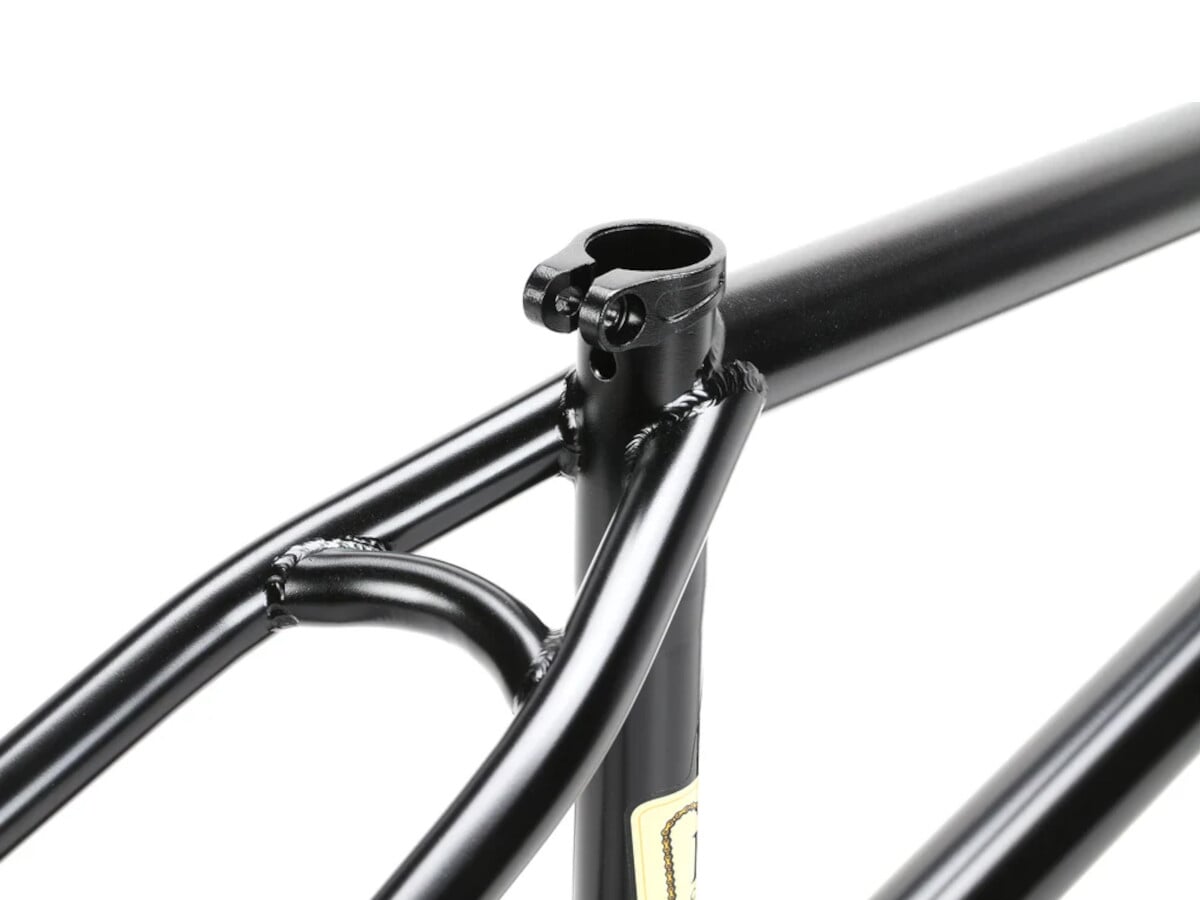

- Standover Height (SO): 8.6" (21.84cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm

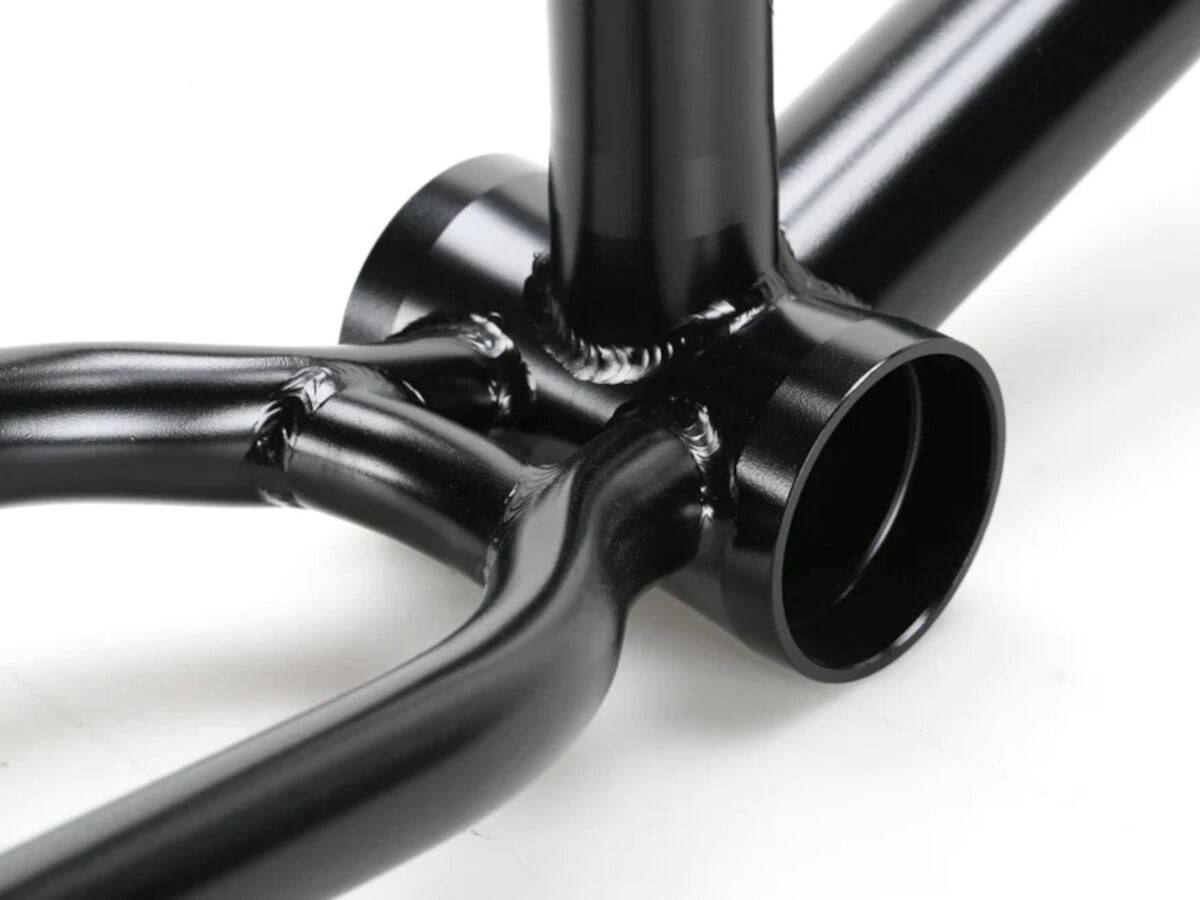

- Bottom Bracket: Mid BB
- Dropouts: 6mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: without (brakeless)
- Brakemounts: without
- Features: Chad Kerley Signature frame, wide rear end for fat 2.4" tires
