Hope Stainless Steel MTB Bottom Bracket - Pressfit BB86/BB92 24mm
- Weight : 0.12kg / 0.26lbs
- Packaging Unit: 1 Set
- Product ID (PID): 40857
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/hope-stainless-steel-mtb-bottom-bracket-pressfit-bb86bb92-24mm-p-40857
Printed: 11/10/2026
Printed: 11/10/2026

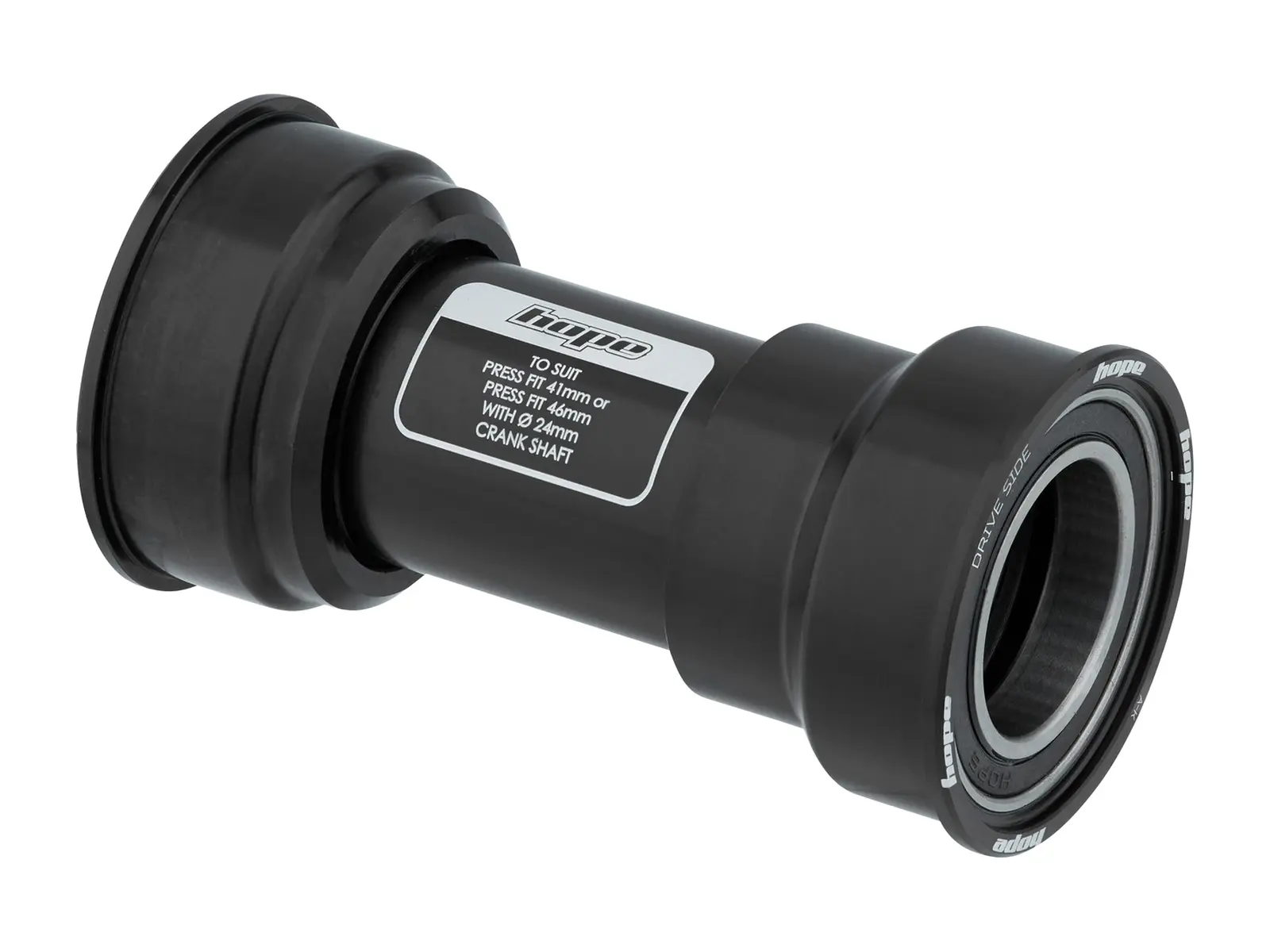

The Hope Stainless Steel MTB Bottom Bracket - Pressfit BB86/BB92 24mm is the press fit bottom bracket from Hope for cranks with a 24 mm spindle: 7075-T6 aluminium cups with sealed stainless steel cartridge bearings, joined by an aluminium sleeve for a secure fit without play. Two O-rings seal it, the bearings can be replaced. Installation requires a dedicated Hope bottom bracket tool.
Facts: Hope Stainless Steel MTB Bottom Bracket - Pressfit BB86/BB92 24mm
- Material: cups 7075-T6 aluminium, sleeve aluminium
- Style: Press Fit BB86 / BB92 (41 mm shell diameter)
- Axle Diameter: 24mm
- Shell Width: 86.5 mm (overall width 91 mm), 89.5 and 92 mm (overall width 96.5 mm)
- Bearings: sealed stainless steel cartridge bearings, replaceable
- Distance Tube: aluminium sleeve

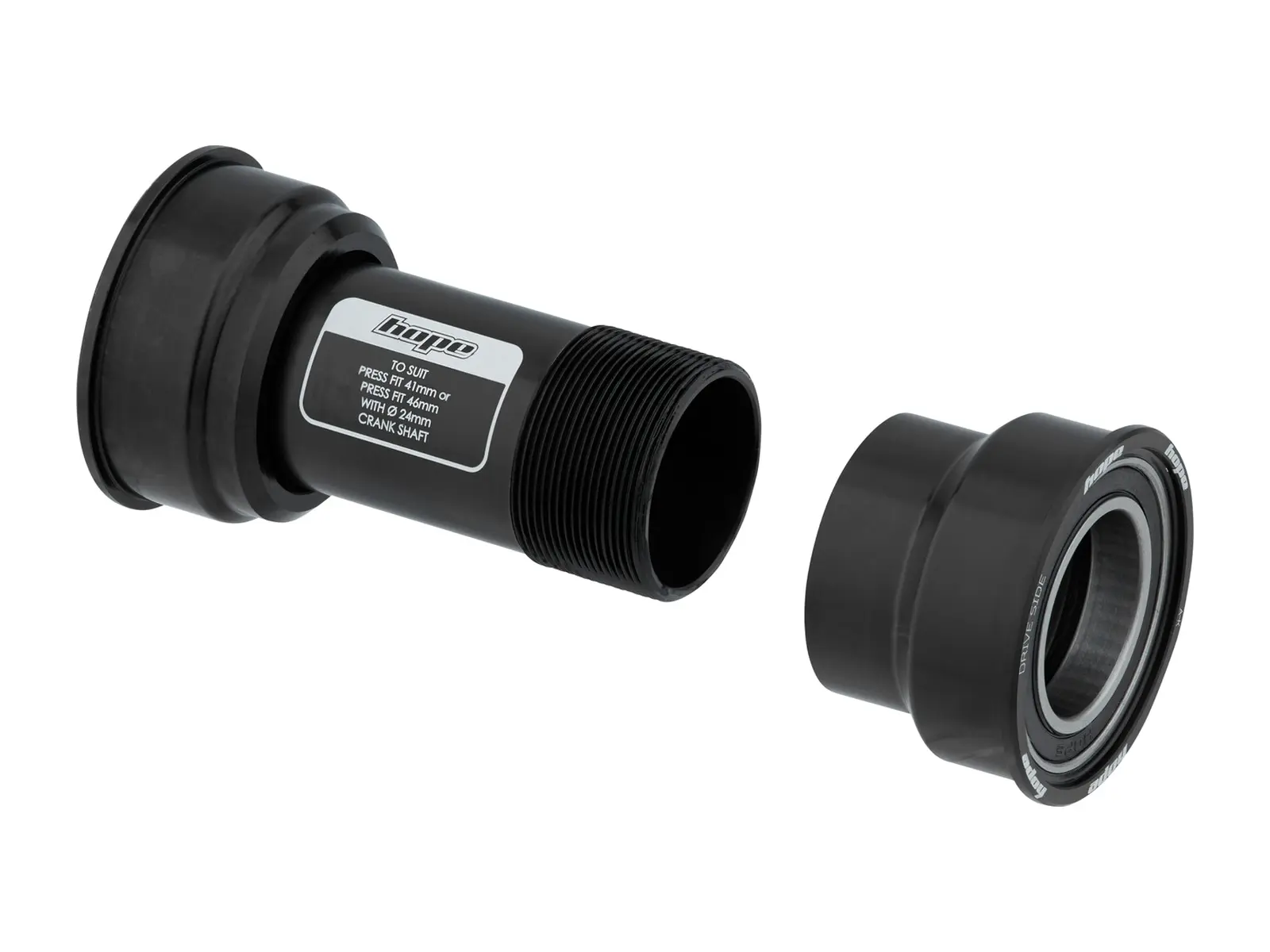

- Scope of Delivery: right and left cup incl. stainless steel bearings, 1 sleeve
- Extras:
- double O-ring seal
- installation only with the Hope bottom bracket tool
