Elevn Technologies "Euro BSA Ceramic" BMX Race Bottom Bracket - 24mm
- Weight : 0.11kg / 0.24lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45462
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/elevn-technologies-euro-bsa-ceramic-bmx-race-bottom-bracket-24mm-p-45462
Printed: 10/29/2026
Printed: 10/29/2026

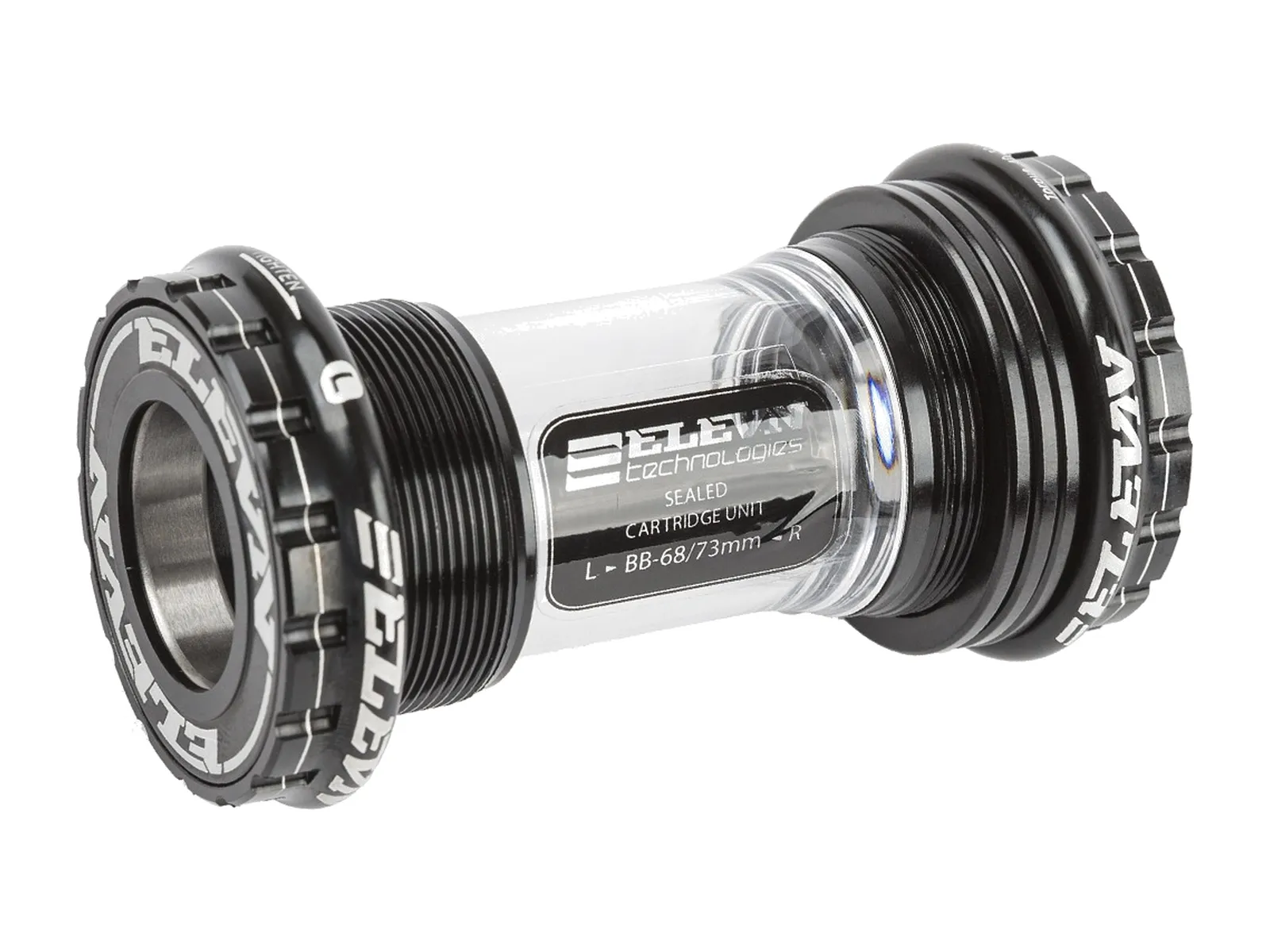

The Elevn Technologies "Euro BSA Ceramic" BMX Race Bottom Bracket - 24mm is the version of the Elevn Euro BSA bottom bracket with sealed ceramic bearings, for low friction, direct power transfer and a long service life. It is an outboard bearing bottom bracket for frames with a Euro BSA/BSC shell (internal thread) and cranks with a 24mm spindle. The cups are CNC machined and anodized 6061-T6 aluminum and support the bearings well.
It fits 68mm and 73mm wide shells, three spacers are included.
Facts: Elevn Technologies "Euro BSA Ceramic" BMX Race Bottom Bracket - 24mm
- Style: BSA (Euro BSA/BSC, internal thread), outboard bearings
- Axle Diameter: 24mm
- Bearings: 2 x sealed ceramic bearings
- Spacers: 3 included
- Extras:
- cups: 6061-T6 aluminum, CNC machined and anodized
- thread 1.37" x 24 TPI (BSA/BSC)
- for 68mm and 73mm shell width
- shell diameter 34.5mm
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
