Insight "Euro BSA" BMX Race Bottom Bracket - 24mm
- Weight : 0.1kg / 0.22lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45500
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/insight-euro-bsa-bmx-race-bottom-bracket-24mm-p-45500
Printed: 10/29/2026
Printed: 10/29/2026

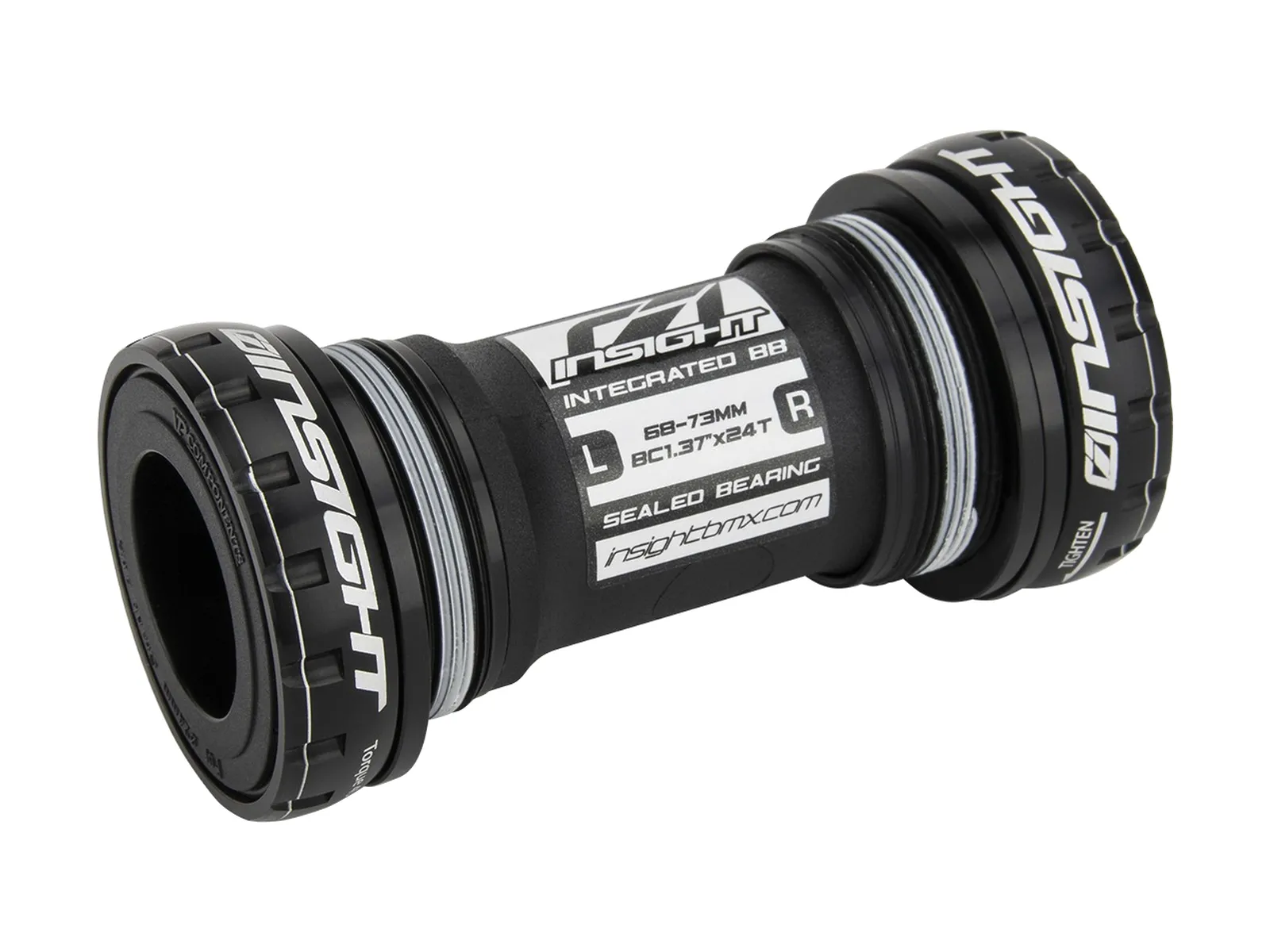

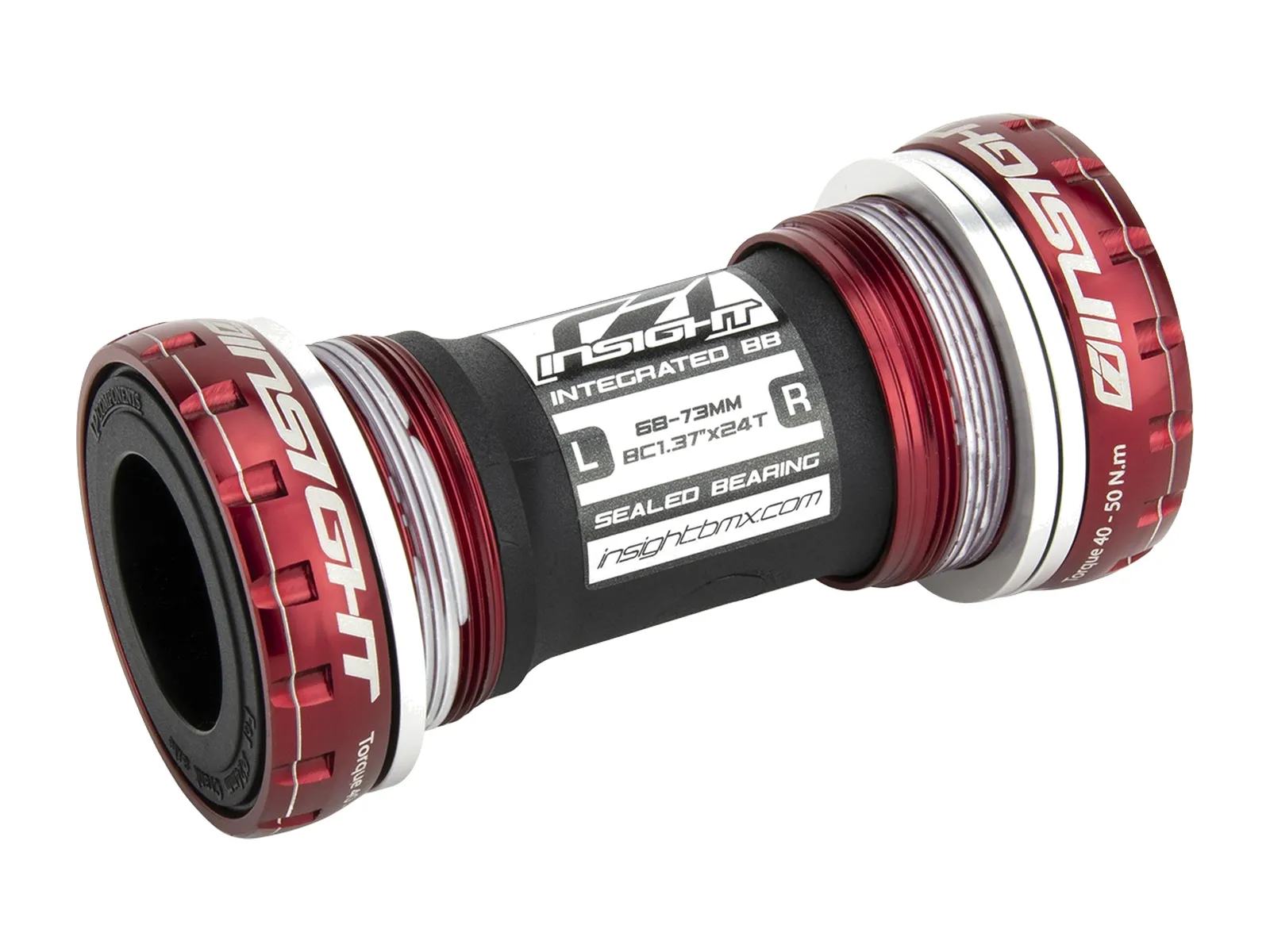

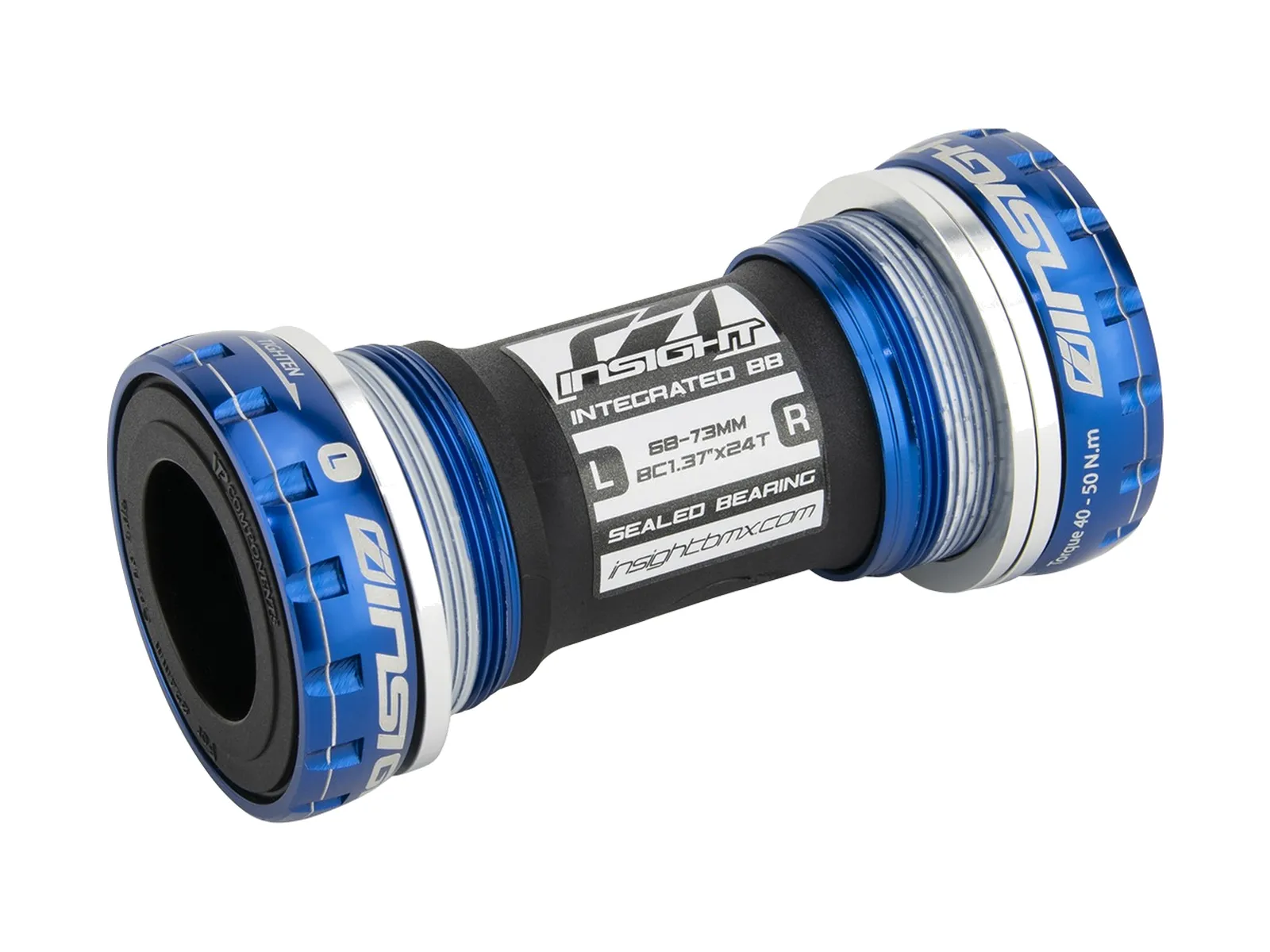

The Insight "Euro BSA" BMX Race Bottom Bracket - 24mm is an external bottom bracket for frames with Euro BSA thread and cranks with a 24mm spindle. The cups are forged from 6061-T6 aluminium, CNC machined and anodized, and hold large sealed industrial bearings that spin smoothly for a long time.
It fits 68mm and 73mm wide bottom bracket shells, three spacers are included. At 98g it is a light bottom bracket for racing.
Facts: Insight "Euro BSA" BMX Race Bottom Bracket - 24mm
- Style: BSA (Euro BSA, external cups)
- Thread: BSA 1.37" x 24 T
- Shell width: 68mm / 73mm
- Axle Diameter: 24mm
- Bearings: 2 x sealed bearings (industrial bearings)
- Material: cups 6061-T6 aluminium, forged, CNC machined and anodized
- Contains: 2 cups with bearings, 3 spacers
- Extras: weight 98g
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
