Insight "Press Fit" BMX Race Bottom Bracket - 24mm
- Weight : 0.08kg / 0.18lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45519
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/insight-press-fit-bmx-race-bottom-bracket-24mm-p-45519
Printed: 10/29/2026
Printed: 10/29/2026

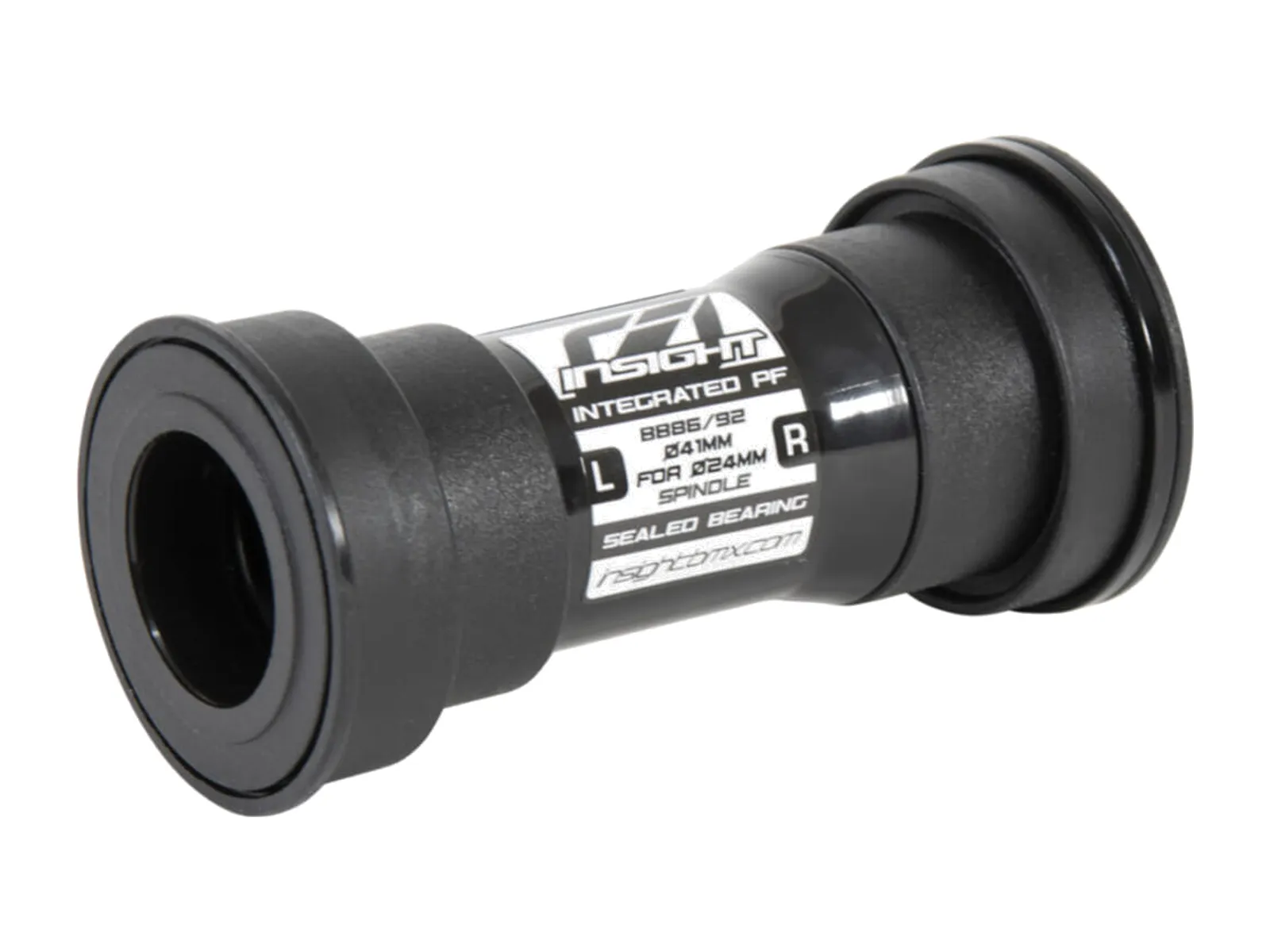

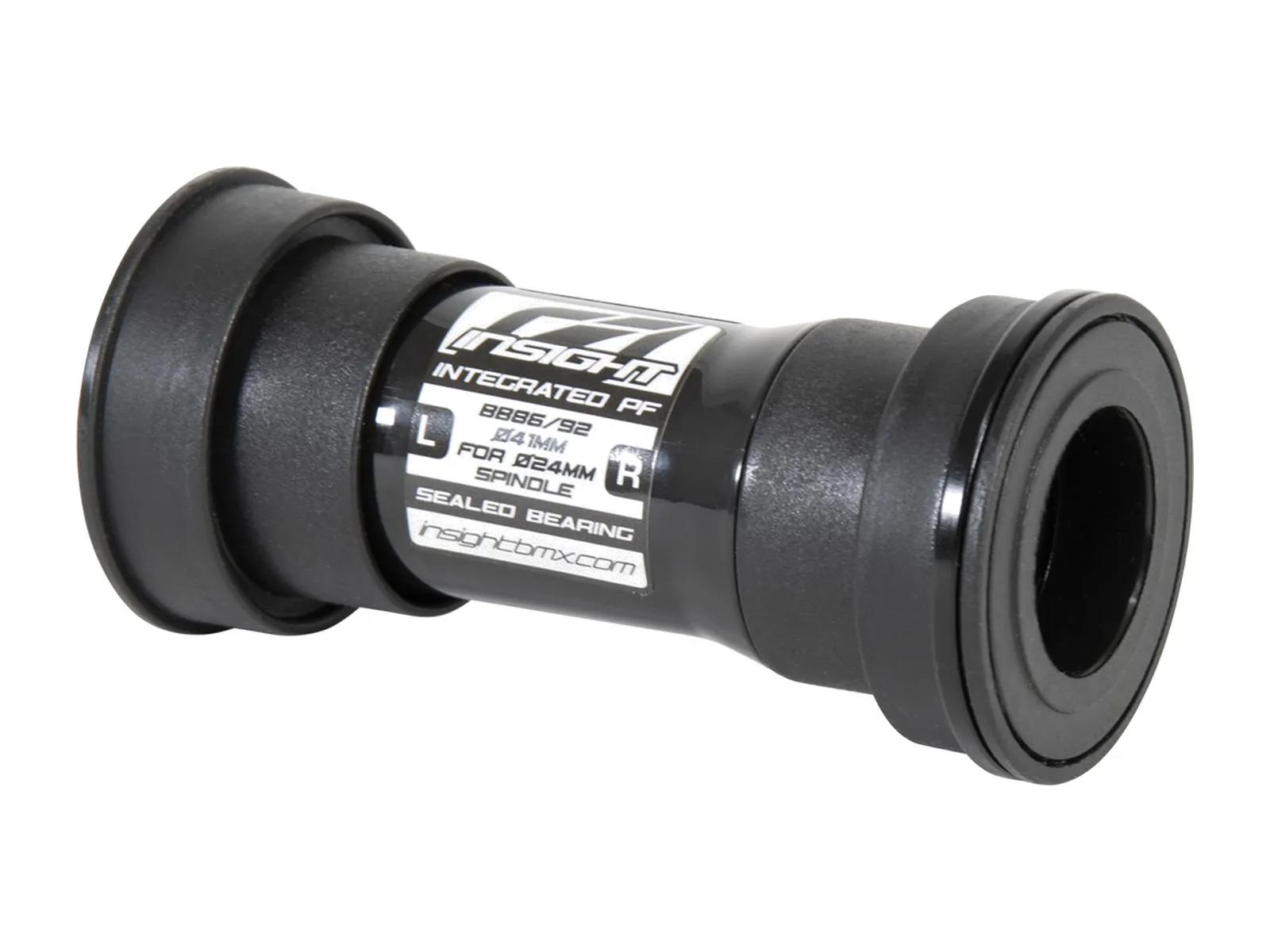

The Insight "Press Fit" BMX Race Bottom Bracket - 24mm is a press fit bottom bracket for frames with a BB86 shell and cranks with a 24mm spindle. The cups are made from a light and tough composite, and hold sealed cartridge bearings that spin smoothly without play.
It fits 86mm and 92mm wide shells, one spacer is included. At 78g it is a very light bottom bracket.
Facts: Insight "Press Fit" BMX Race Bottom Bracket - 24mm
- Style: BB86 pressfit (86/92mm)
- Outside diameter: 41mm
- Axle Diameter: 24mm
- Bearings: 2 x sealed bearings
- Material: composite (plastic) cups, nylon sleeve
- Spacers: 1 included
- Extras: for frames with a press fit BB86 shell only, weight 78g
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
