M-Wave "Carousel BSA" MTB Bottom Bracket - 24mm
- Weight : 0.09kg / 0.2lbs
- Packaging Unit: 1 Set
- Product ID (PID): 44949
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/m-wave-carousel-bsa-mtb-bottom-bracket-24mm-p-44949
Printed: 10/27/2026
Printed: 10/27/2026

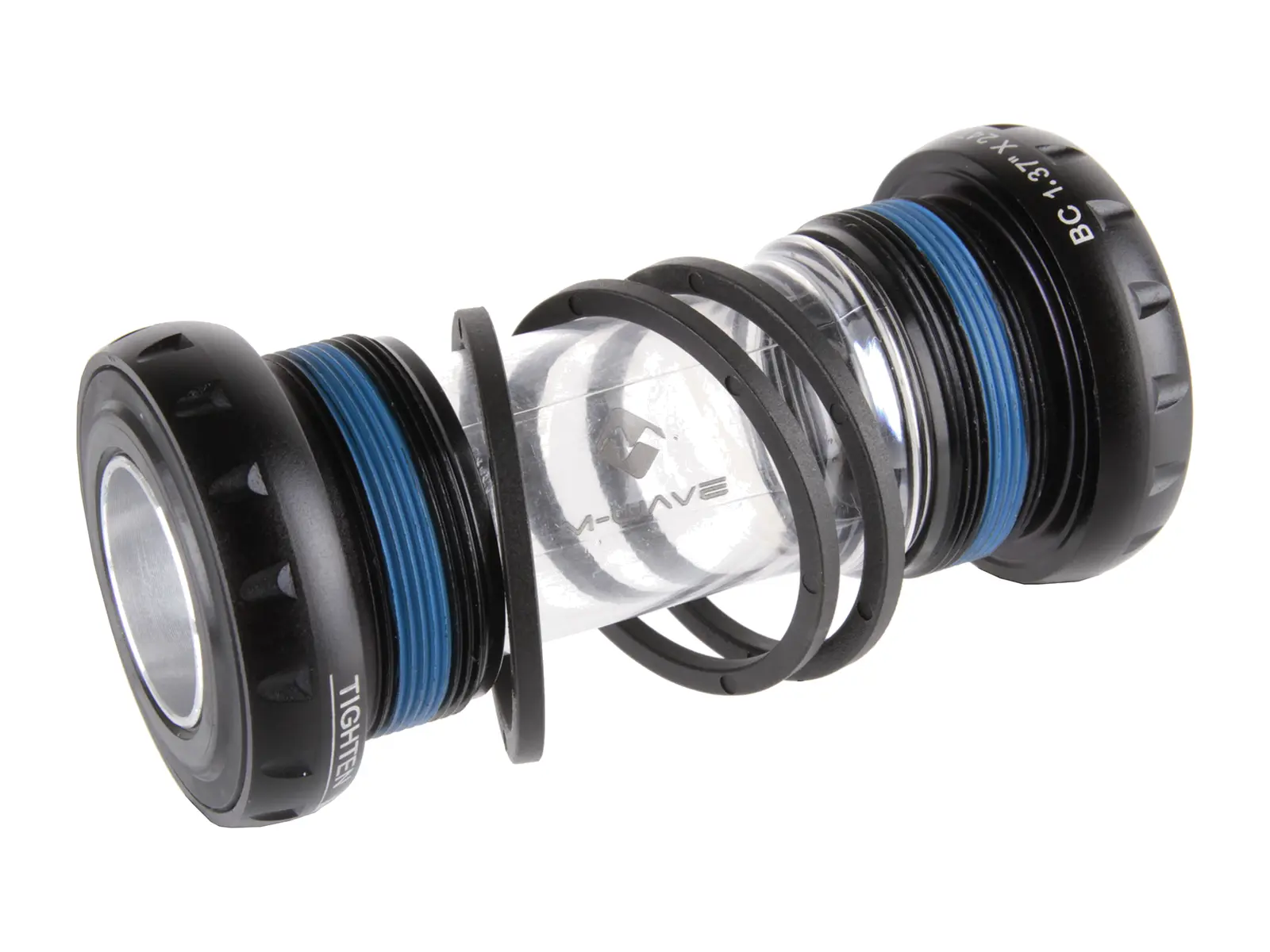

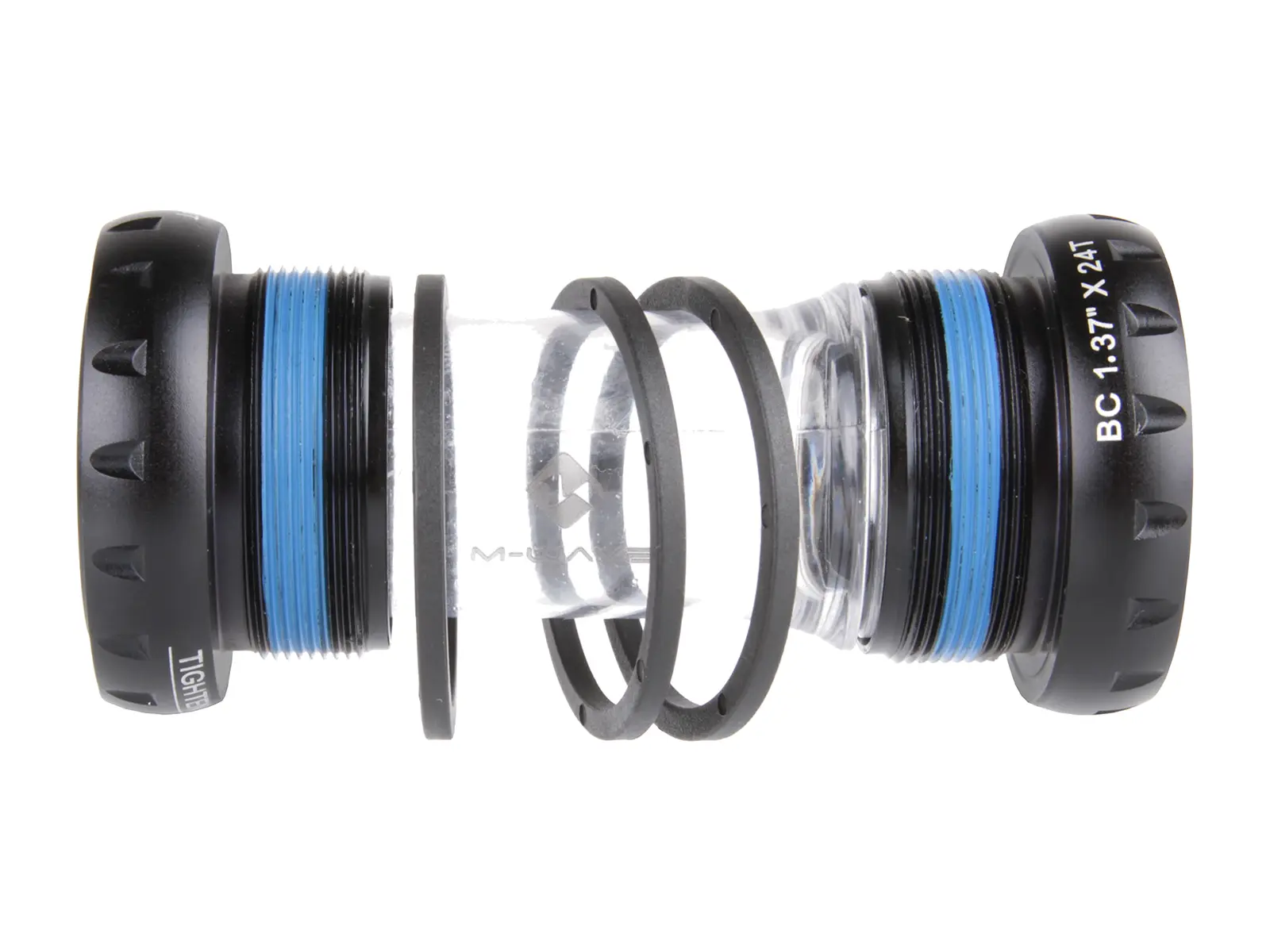

The M-Wave "Carousel BSA" MTB Bottom Bracket - 24mm is a threaded external bearing bottom bracket for BSA shells and cranks with a 24 mm Shimano-type spindle (not an original Shimano spare part). CNC-machined aluminium cups run on sealed bearings, a clear plastic sleeve protects the inside of the shell, and an adaptor ring is included. 90 grams.
Facts: M-Wave "Carousel BSA" MTB Bottom Bracket - 24mm
- Material: cups aluminium, CNC-machined; sleeve plastic
- Style: BSA thread, external bearings, for Shimano 24 mm cranks (not an original Shimano spare part)
- Outside diameter: BC 1.37" x 24T (printed on the cup)
- Axle Diameter: 24mm
- Shell Width: 68 / 73 - 78 mm
- Bearings: sealed bearings
- Distance Tube: clear plastic sleeve
- Scope of Delivery: cups, plastic sleeve, adaptor ring and spacers (three rings in the photo)
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
