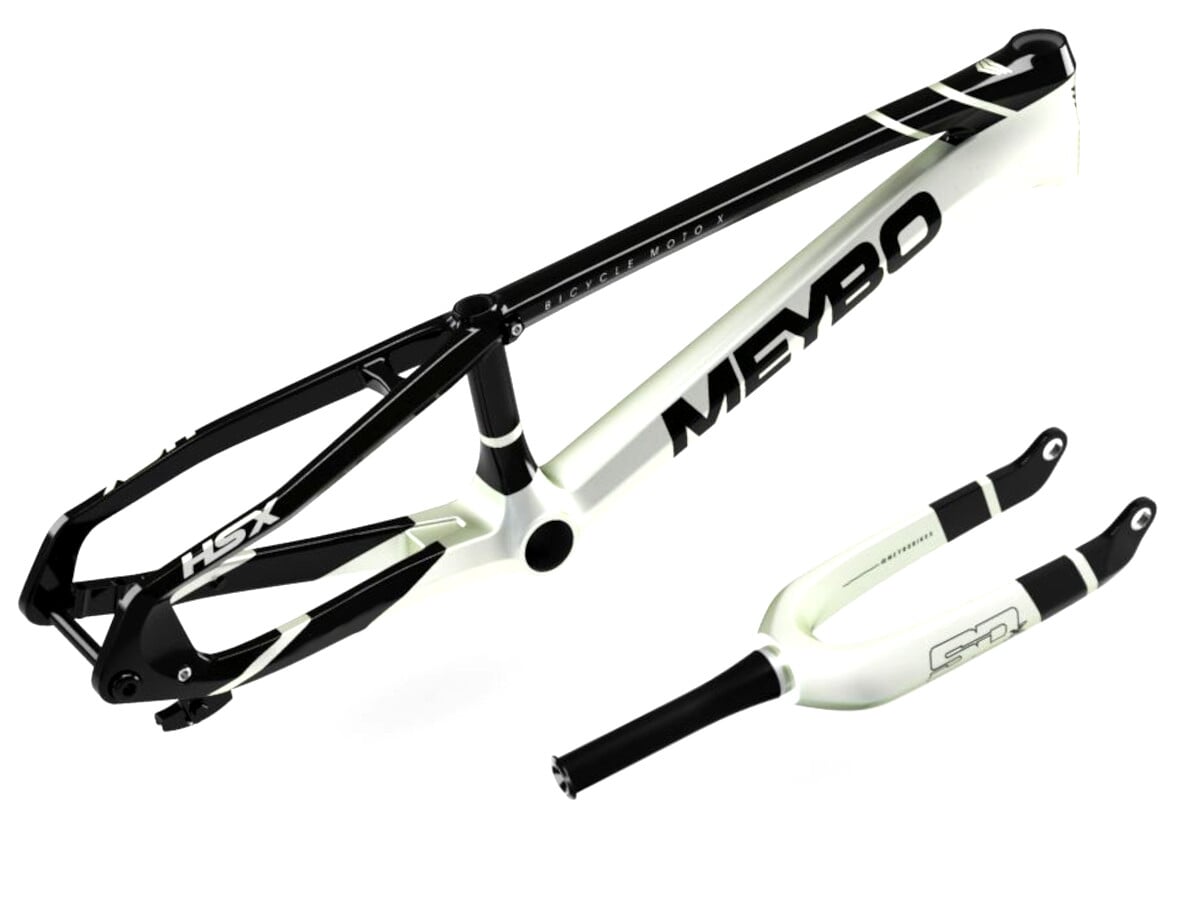

Meybo "HSX Carbon Expert" 2025 BMX Race Frame + Fork Set

1,692.95 EUR- 15 %

1,438.95 EUR

Color | Top Tube Length
  • Please Select
Unavailable options

These product options are currently unavailable. Should they come back in, we can let you know!

Color | Top Tube Length
  • black/white | 19.69"
  • Weight : 1.9kg / 4.19lbs
  • Packaging Unit: 1 Set
  • Product ID (PID): 29086
  • Product safety

Product safety

Manufacturer
Meybo Bikes
Rijkevoortseweg 5, 5831 TG Boxmeer, The Netherlands
[email protected], +31 492 329013

Information pursuant to the EU General Product Safety Regulation (GPSR).

Report a product error

Spotted an error in the product data? Let us know, we'll check your report. If the error is confirmed you'll receive a 5 EUR voucher as a thank you (max. 1 voucher per week and customer, applies to the first confirmed report of an error).

We only use your email address to get back to you about this report and to send the voucher.

The Meybo "HSX Carbon Expert" 2025 BMX Race Frame + Fork Set is the fastest frame in the lineup of the Dutch brand. Its geometry has been specifically developed for championship and World Cup tracks, offering a perfect balance between agility and stability at high speeds. There are some important specifications to consider for the Meybo "HSX Carbon Expert" 2025 BMX Race Frame + Fork Set. In terms of braking, this frame is only compatible with flat-mount disc brakes. This means the brake caliper is mounted directly to the rear dropout of the frame. For optimal installation, two mounting bolts pass through the rear dropout to secure the caliper. This setup requires internal cable routing within the frame. It is essential to use a J-KIT or C-JET disc brake kit. With a flat-mount setup, the use of a brake kit with external cable routing is not possible. The fork of the Meybo "HSX Carbon Expert" 2025 BMX Race Frame + Fork Set is made of carbon and a 7075‑T6 aluminum head tube, has a 30mm offset, and a total length of 310mm.

The top tube length is suitable for riders with a height of 165cm and above.

Facts: Meybo "HSX Carbon Expert" 2025 BMX Race Frame + Fork Set

  • Frame: Meybo "HSX Carbon Cruiser Pro 22" BMX Race Frame
    Wheel size: 20"
    Material: 100% Toray T800 Carbon
    Geometry:
    - Toptube (TT): 19.69"
    - Chainstay (CS): 13.38"
    - Headtube Angle (HA): 73.5°
    - Seattube angle: 71°
    - Dropouts: 15mm (including chain tensioner for 10mm), supplied with a fixed 15mm through axle for the rear wheel in Aluminum 7005 (CNC-machined)
    Seat clamp: Integrated
    Seat post diameter: 24.4mm
    Bottom Bracket: Press Fit (BB386), compatible with 24mm and 30mm axles
    Chain tensioners: Included
    Brake style: Disc, flatmounted
    Brake ahrdware: Compatible with "flatmounted" hydraulic brakes
    Info: Not compatible with 140mm brake discs

  • Fork: Meybo "HSX Carbon Cruiser Pro 22" BMX Race Fork
    Wheel Size: 20"
    Material: Carbon (Legs), 7075-T6 Aluminum (Head Tube)
    Stem Diameter: 1 1/8 to 1.5"
    Stem Length: 180mm, Aluminum
    Top Bolt: Yes, M22
    Dropouts: 20mm thru-axle mount, 8mm thick
    Ride: 30mm
    Bearing Race: One
    Recommended for: Race
