Meybo "HSX Carbon Expert" 2026 BMX Race Frame + Fork Set

from 1,692.95 EUR

Taxfree excl. shipping

Color | Top Tube Length

Please Select

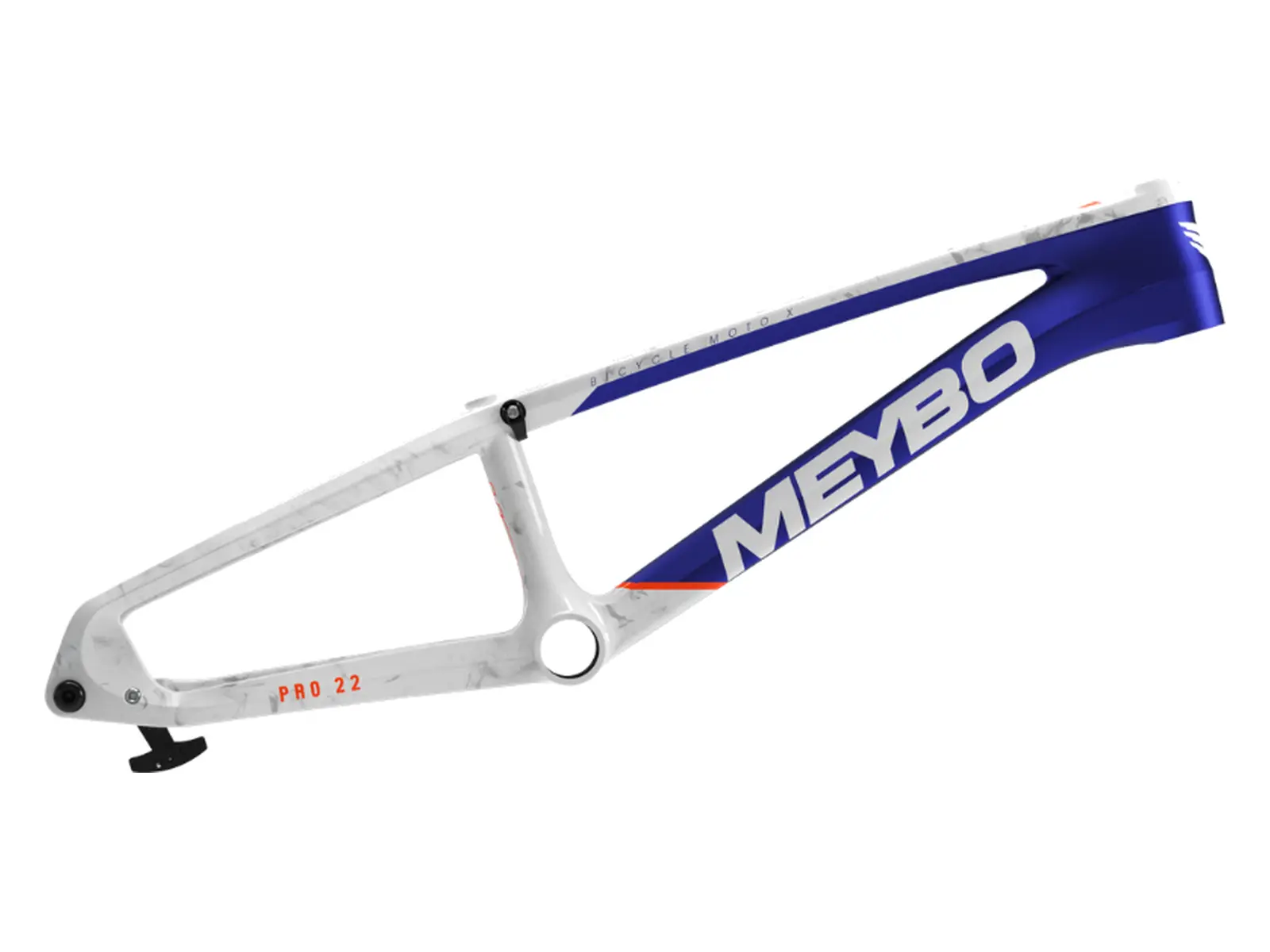

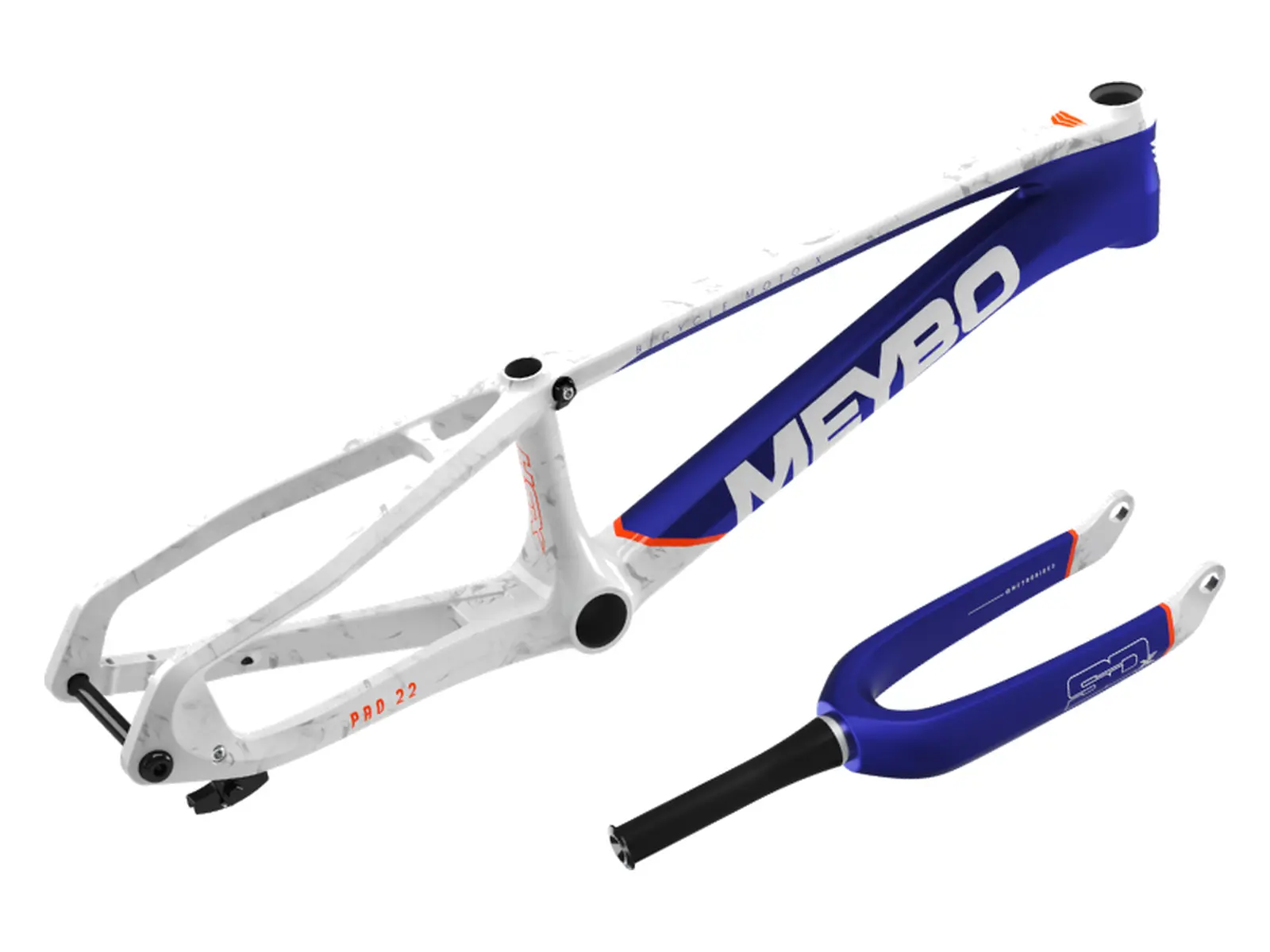

- - dark blue/white | 19.69"1,781.95 EUR

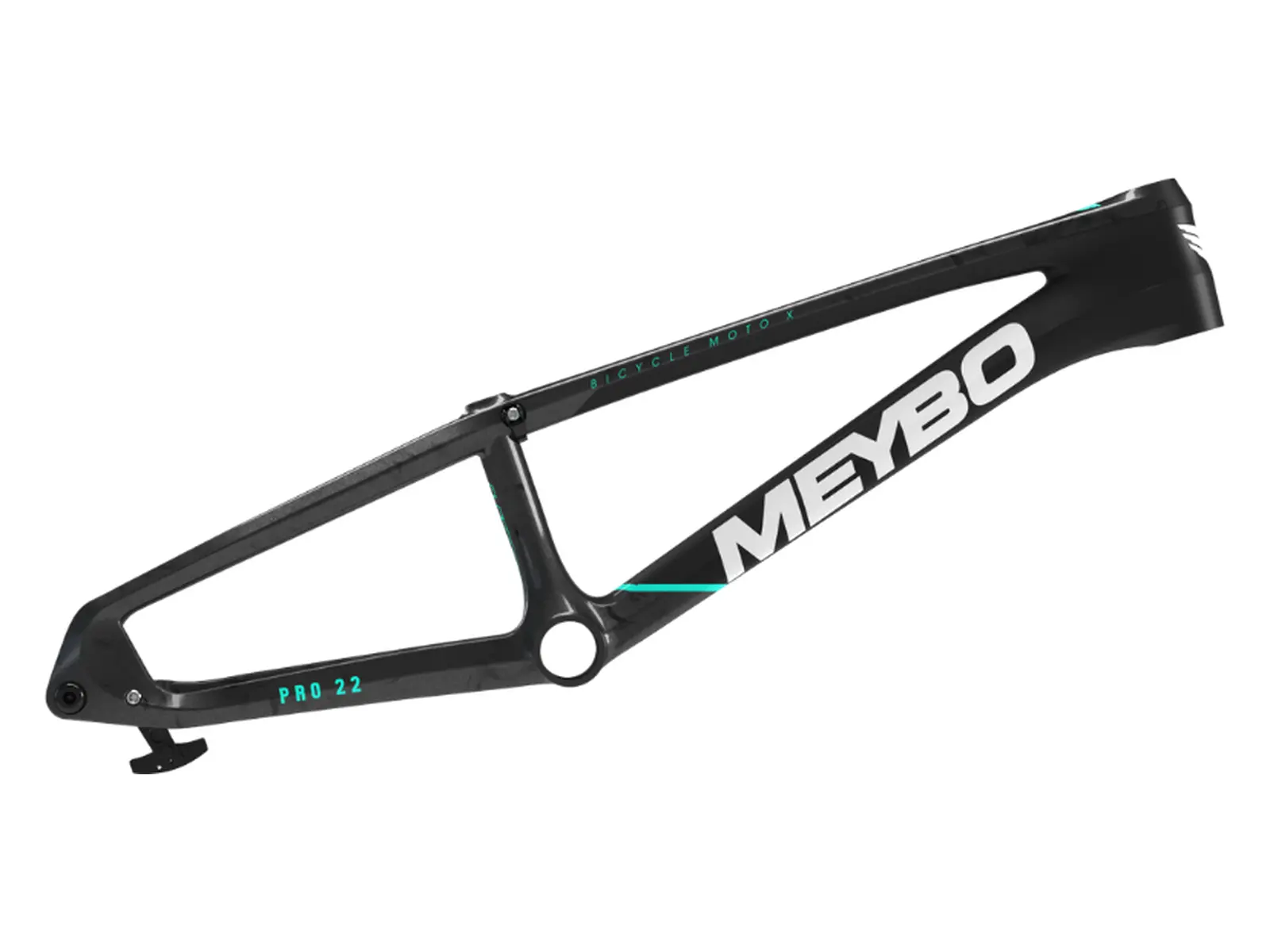

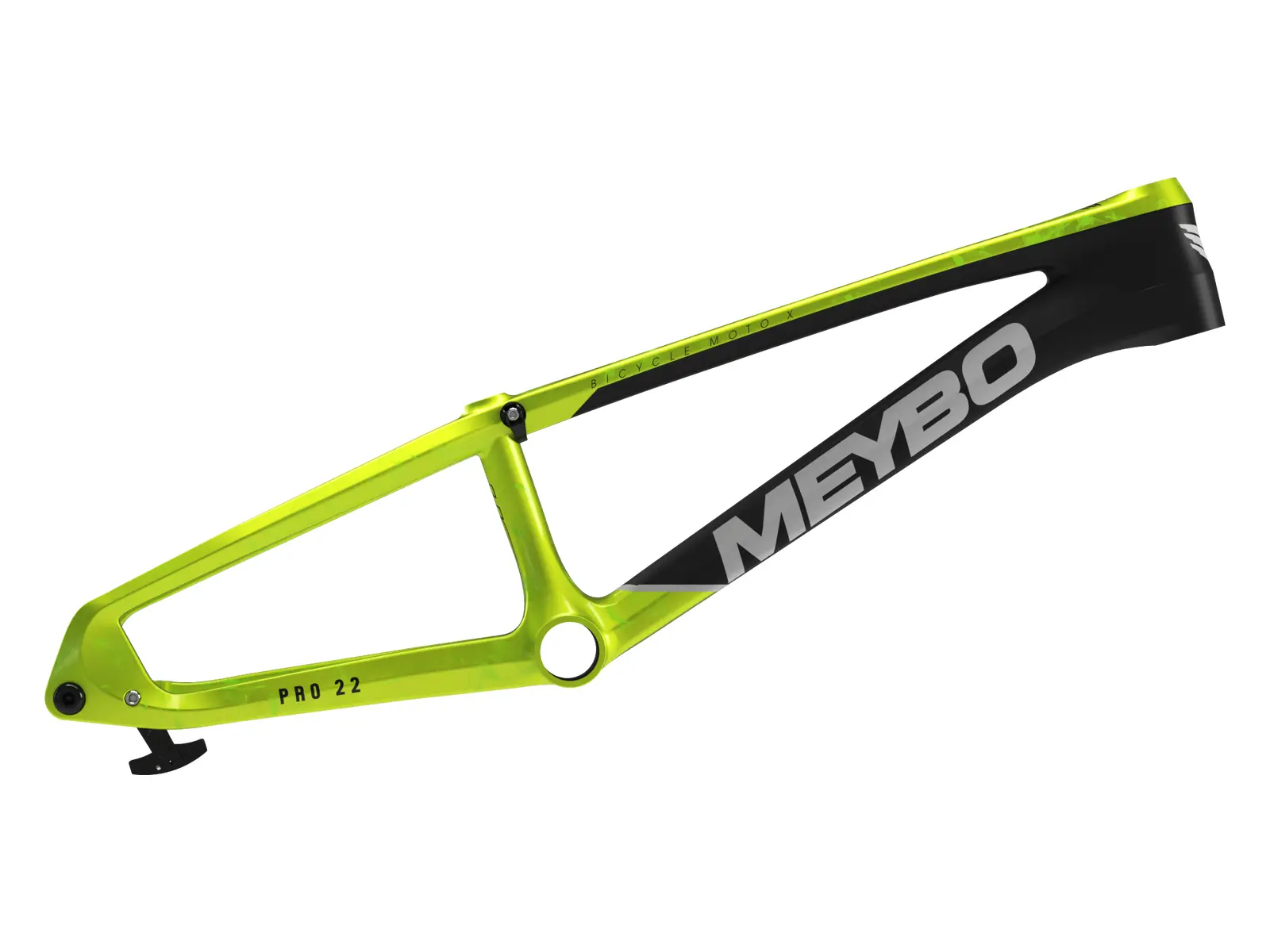

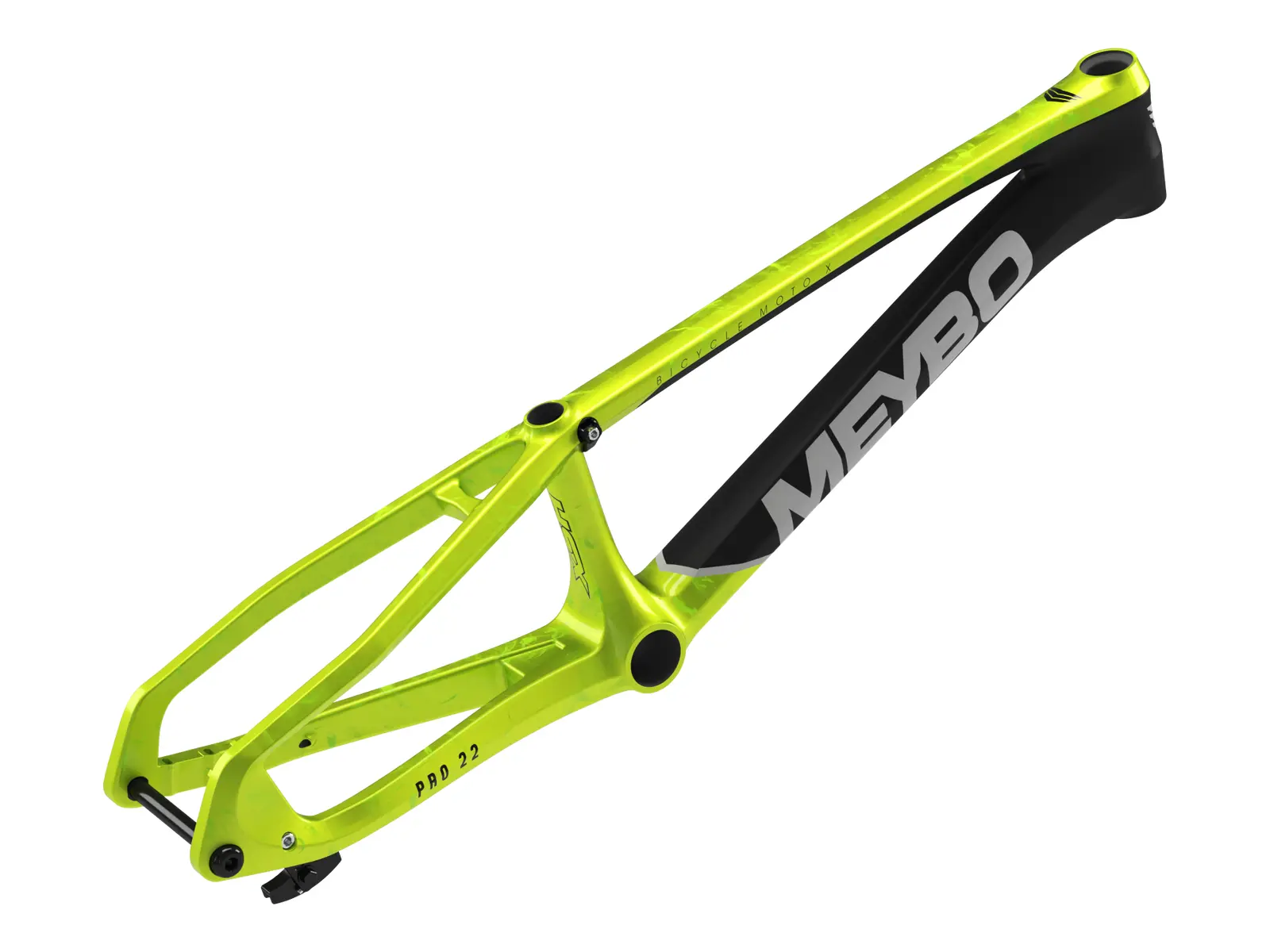

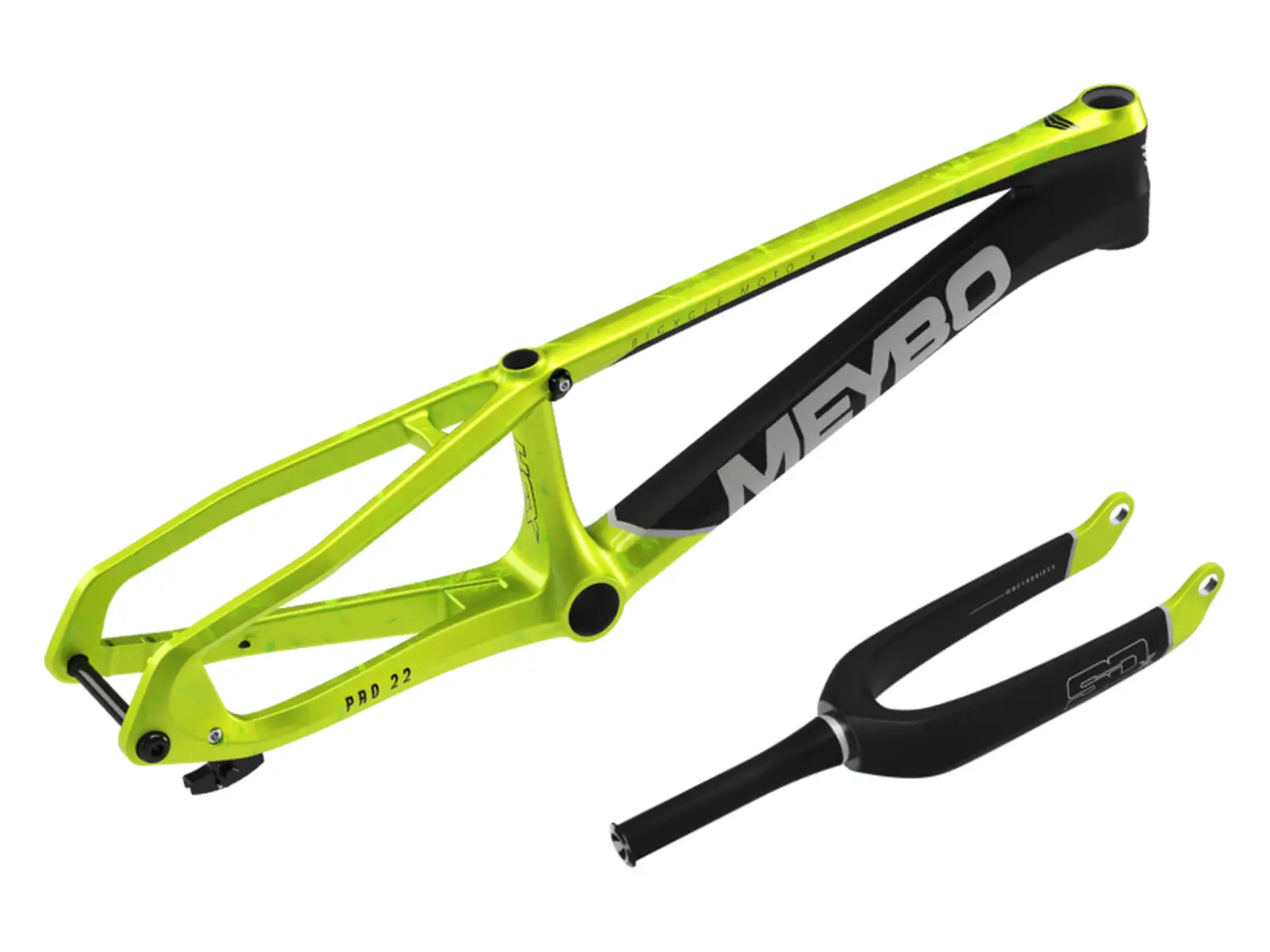

  - black/neon green | 19.69"1,692.95 EUR

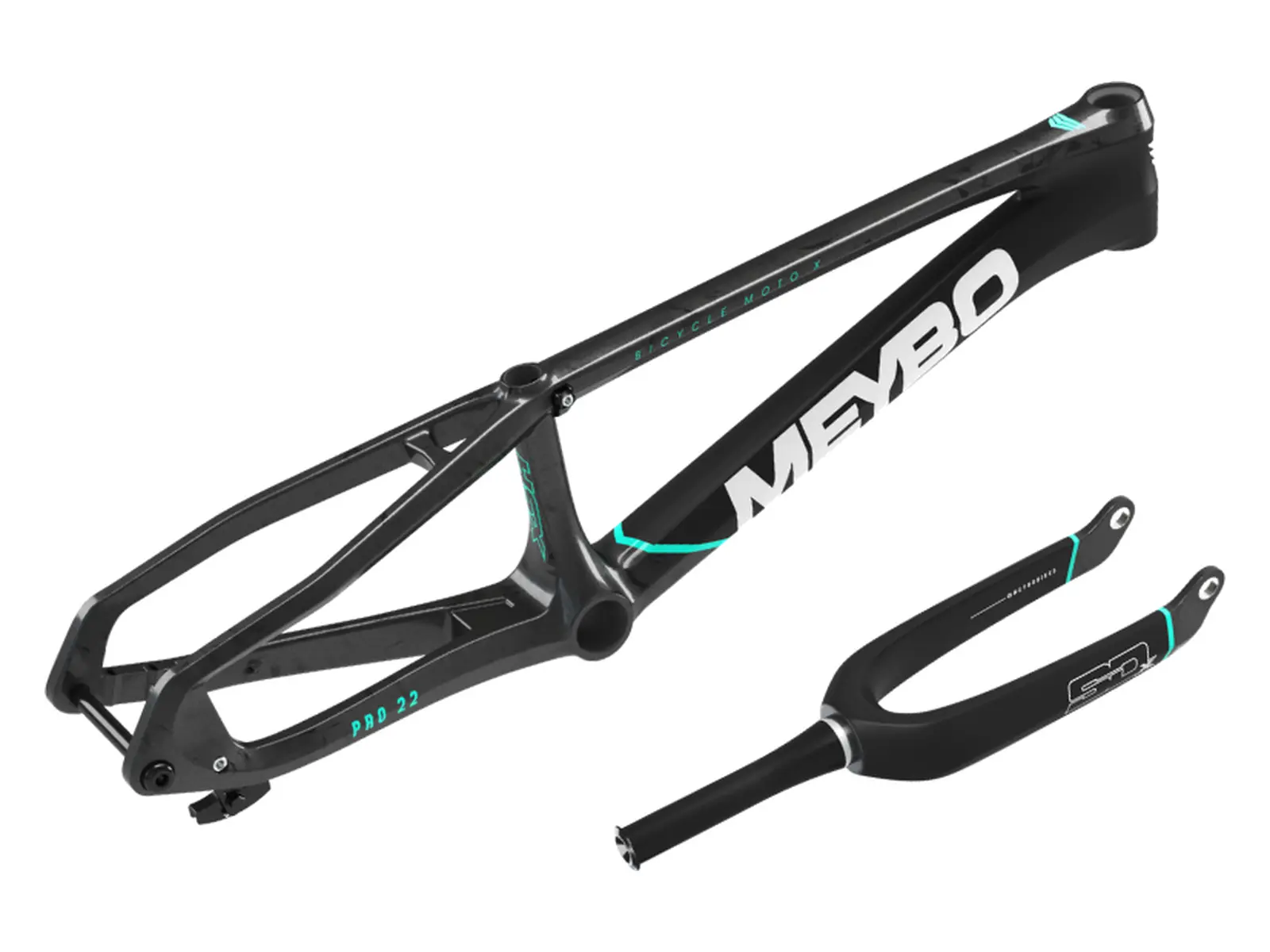

  - black/teal | 19.69"1,781.95 EUR

Straight to the checkout with PayPal: delivery address and payment come from there. The amount (incl. shipping) is only reserved and charged only when you order. Vouchers & discount codes can then be redeemed in the checkout.

pick up in our shop?

Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.

Weight : 1.77kg / 3.90lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Packaging Unit: 1 Set
Product ID (PID): 42561
Product safety

Found an error? Report it. 5 EUR voucher if confirmed.

The Meybo "HSX Carbon Expert" 2026 BMX Race Frame + Fork Set combines the Meybo "HSX Carbon" frame with the SD Components "Carbon V2" fork. The HSX Carbon is the most advanced frame in the Meybo line-up, built for the highest level of competition: Toray T800 carbon for the best blend of low weight, stiffness and stability, and a World Cup derived geometry that balances agility and stability even at high speed.

The brake interface is flat mount for 120mm rotors, a CNC-machined 15mm thru axle in 7005 aluminum keeps the rear triangle stiff, and the integrated chain tensioner keeps the chain tension constant with any gearing. The seat clamp is integrated, and depending on the size the frame uses a BB86 or BB386 EVO press fit bottom bracket.

The SD Components "Carbon V2" fork has carbon legs and a 7075-T6 aluminum steerer. Frame and fork comply with the CPSC and EN 14781 standards. Important: have carbon frames installed by a professional mechanic only, use seat posts of max. 150mm length and have the frame inspected after any crash.

Facts: Meybo "HSX Carbon Expert" 2026 BMX Race Frame + Fork Set

Frame: Meybo "HSX Carbon Expert" 2026 BMX Race Frame
Wheel size: 20"
Race size: Expert
Model year: 2026
Material: 100% Toray T800 carbon
Geometry:
- Top Tube (TT): 19.69"
- Chainstay (CS): 13.39" (340mm), fixed
- Head Tube Angle (HA): 73.5°
- Seat Tube Angle (SA): 71°
Head tube: 1-1/8"
Bottom bracket: BB86 (Ø41mm), for 24mm or 30mm crank axles
Dropouts: 15mm, incl. CNC-machined 15mm thru axle (7005 aluminum, fixed), OS20 compatible
Chain tensioner: integrated
Brake mount: flat mount only, 120mm rotor only (1, 2 and 4mm spacers included)
Seat clamp: integrated
Seat post diameter: 25.4mm, max. 150mm length
Frame weight: 1213g (manufacturer)

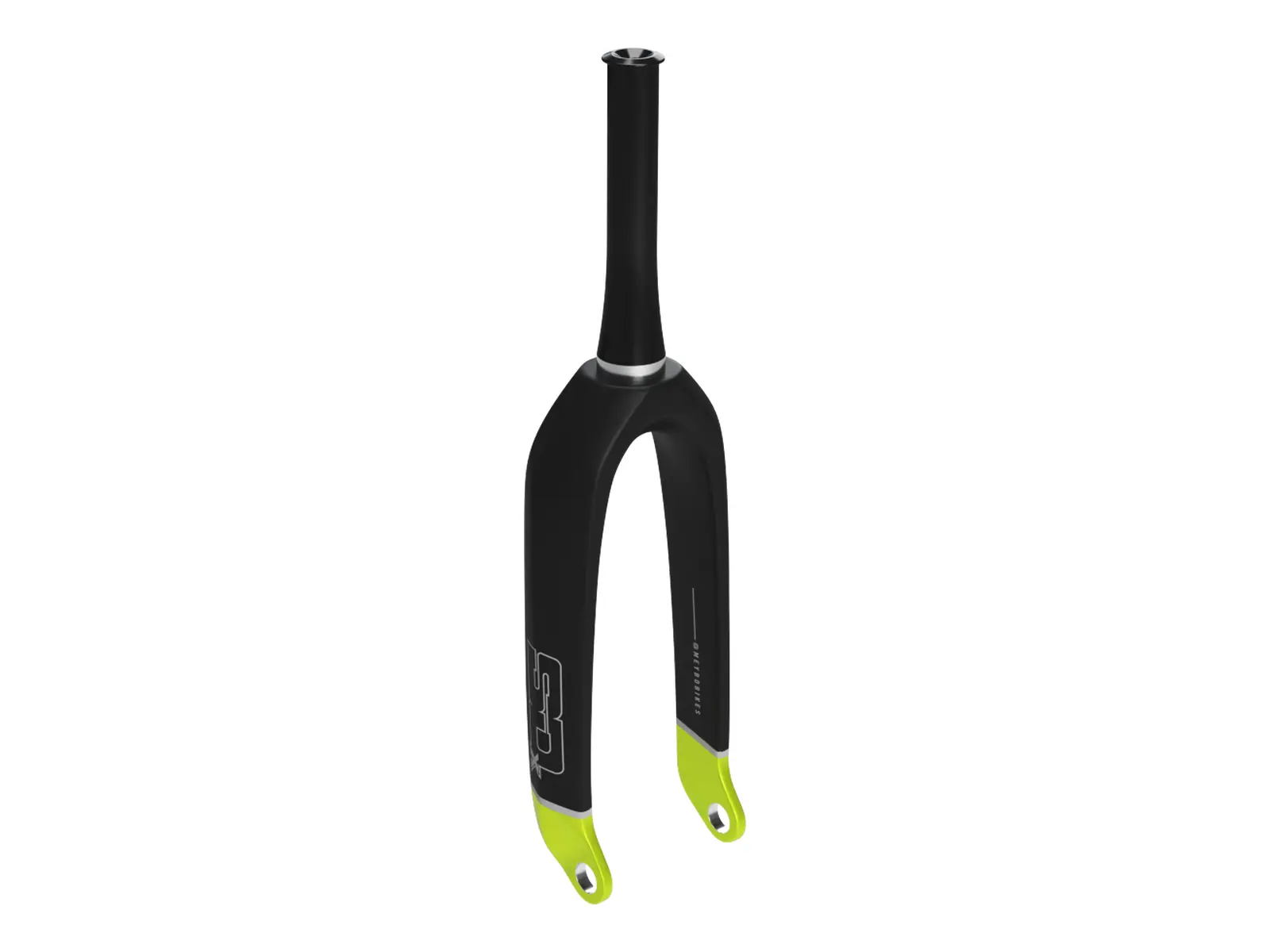

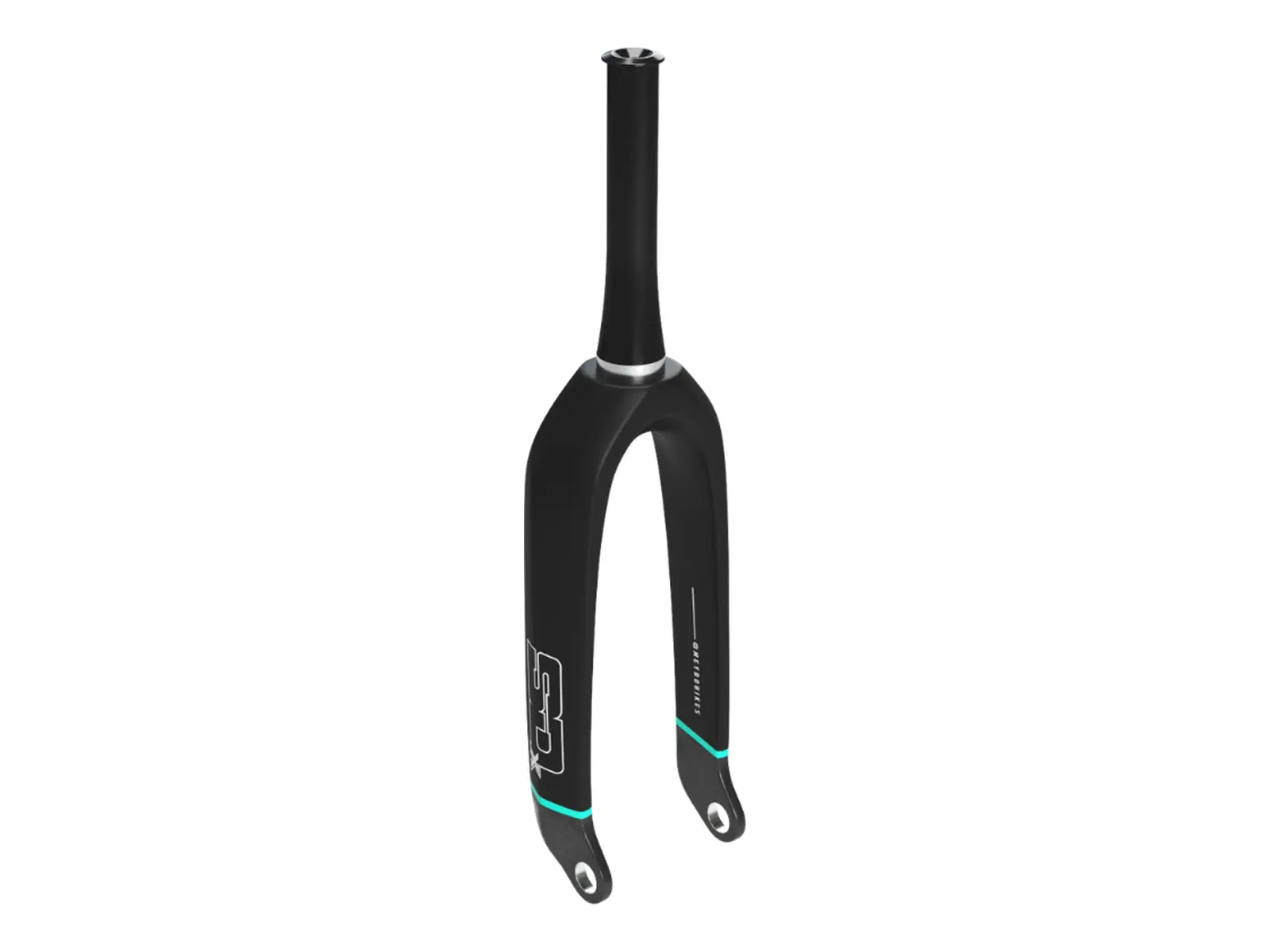

Fork: SD Components "Carbon V2" BMX Race Fork
Material: carbon (legs), 7000 series aluminum (steerer)
Axle: 10mm
Steerer: tapered 1-1/8" - 1.5", 180mm (not cuttable)
Compression bolt: M22 x 20mm
Fork height: 310mm
Offset: 30mm
Fork weight: 561g
Content: 1 frame incl. 15mm thru axle and rotor spacers, 1 fork
