Praxis Works "BB86/90/92" MTB Bottom Bracket
-
Weight : 0.07kg / 0.15lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 40337
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

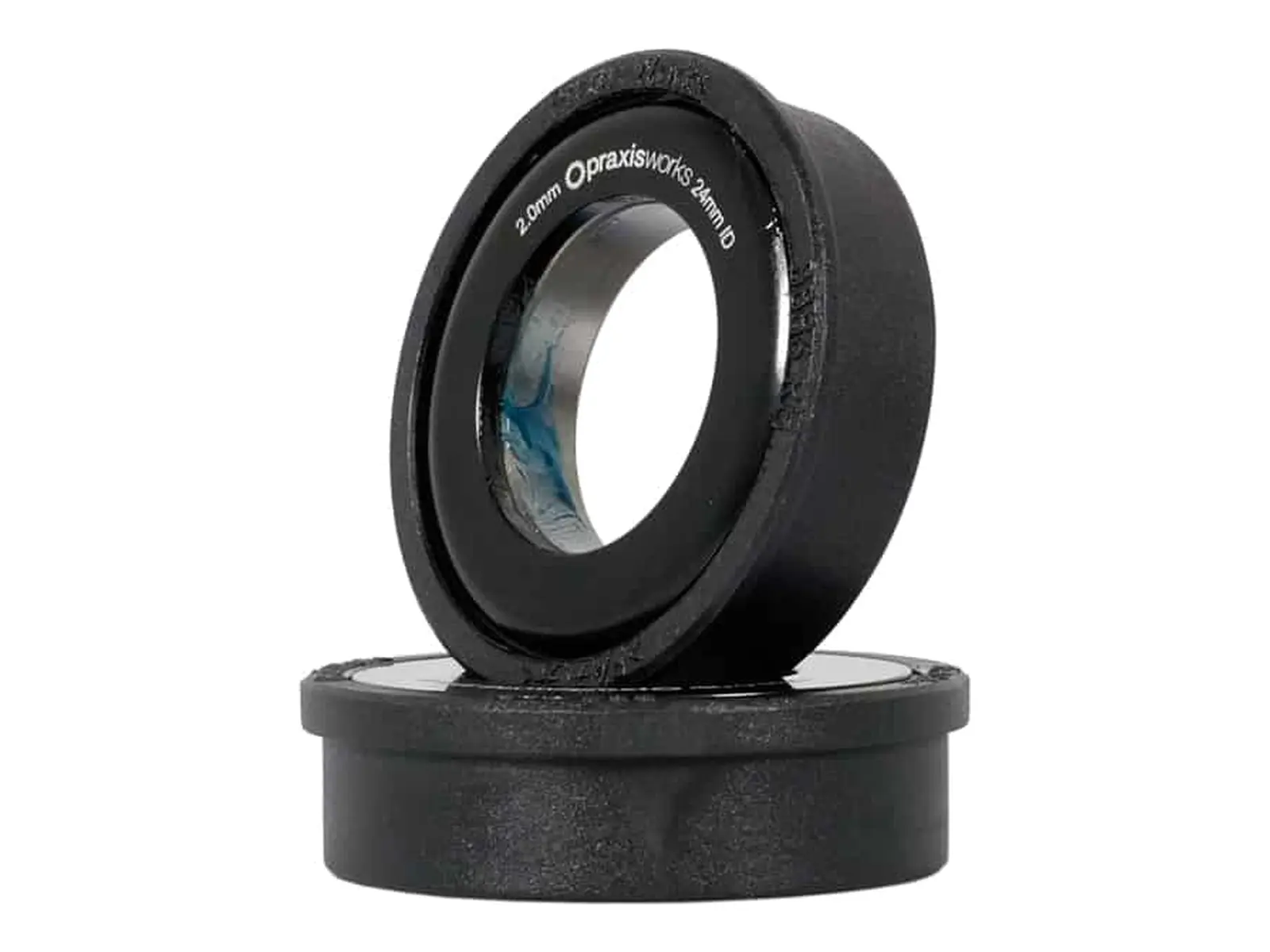

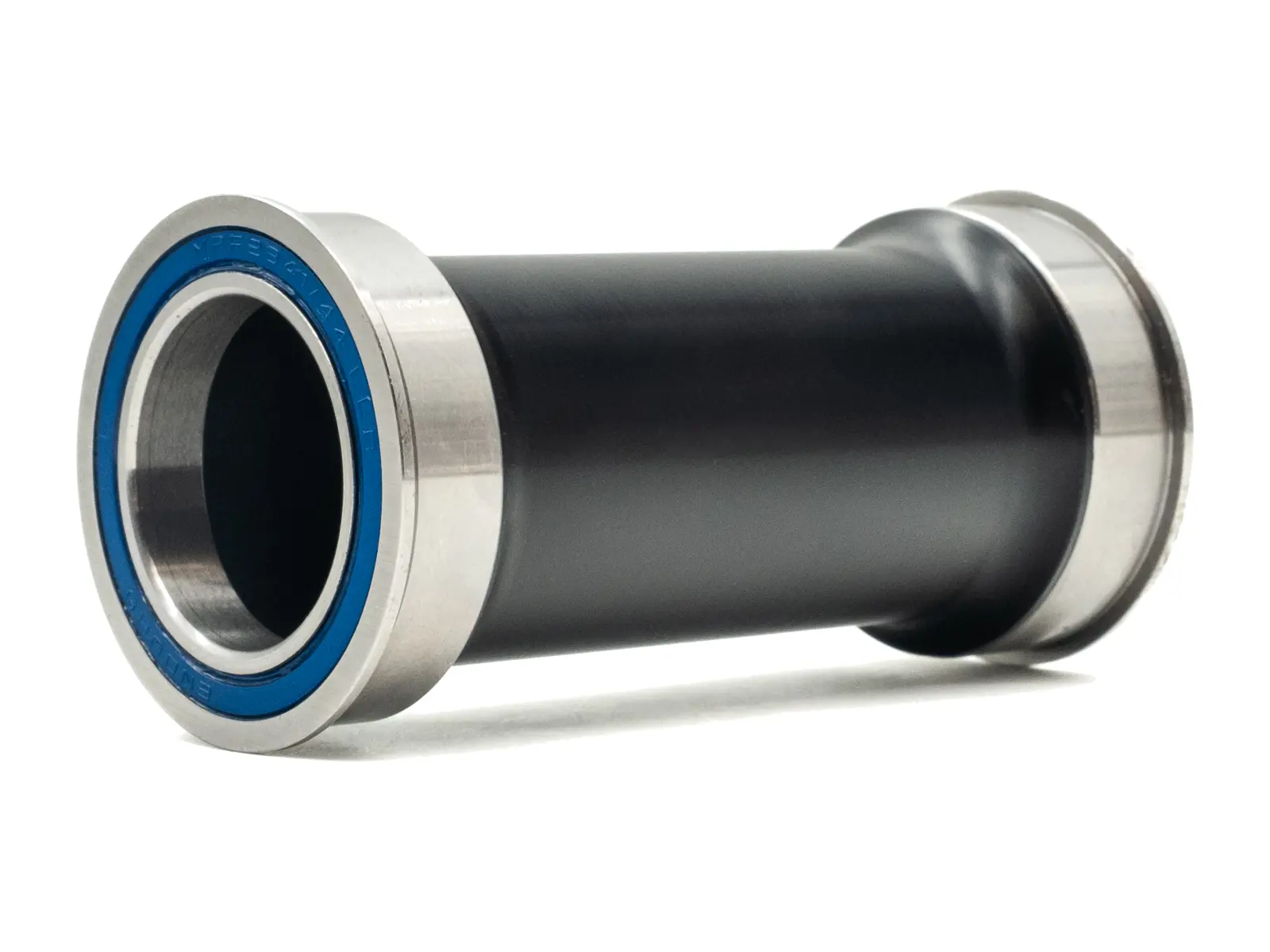

The Praxis Works "BB86/90/92" MTB Bottom Bracket is the press fit bottom bracket from Praxis Works for frames with a 41mm bore, so BB90 and BB92 on mountain bikes and BB86. It is pressed in, not threaded. The M30 and M30 Thru versions are made of precision ground steel with bearing race and cup in one piece, the M24 version uses Delrin cups. Your crank decides the version: Praxis M30, M30 Thru for 30mm spindles of other brands or M24 for SRAM GXP.
Facts: Praxis Works "BB86/90/92" MTB Bottom Bracket
- Material:
- M30 and M30 Thru: steel, precision ground, bearing race and cup in one piece
- M24: Delrin cups - Style: press fit, 41mm bore
- Outside diameter: 41mm
- Axle Diameter: 24/22mm or 30mm
- Shell Width: BB90 89.5mm and BB92 92mm (MTB), BB86 86.5mm, the M30 version also BB104.5 and BB107 (DH)
- Bearings: steel, integrated (M30, M30 Thru), steel cartridge bearings (M24)
- Distance Tube: inner protective sleeve on the M30 version for BB86, BB90 and BB92
- Scope of Delivery: 1 bottom bracket
- Extras:
- Praxis M30: only for Praxis M30 cranks (Cadet, Girder, DH9, Zane), bearings 30mm/28mm
- M30 Thru: for cranks with a straight 30mm spindle (Praxis Lyft, SRAM 30mm, Race Face Cinch 30, Rotor, Cane Creek eeWings), spindle length 108mm or longer (MTB)
- M24: for Praxis M24 and SRAM GXP steel spindles (24mm/22mm)
- installed with a press tool, removed with a cup removal tool
- weight approx. 65g (M30, M30 Thru), 100g (M24), manufacturer
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
