Praxis Works "Cadet G2" MTB Crank Arm Set
-
Weight : 0.56kg / 1.23lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 36891
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

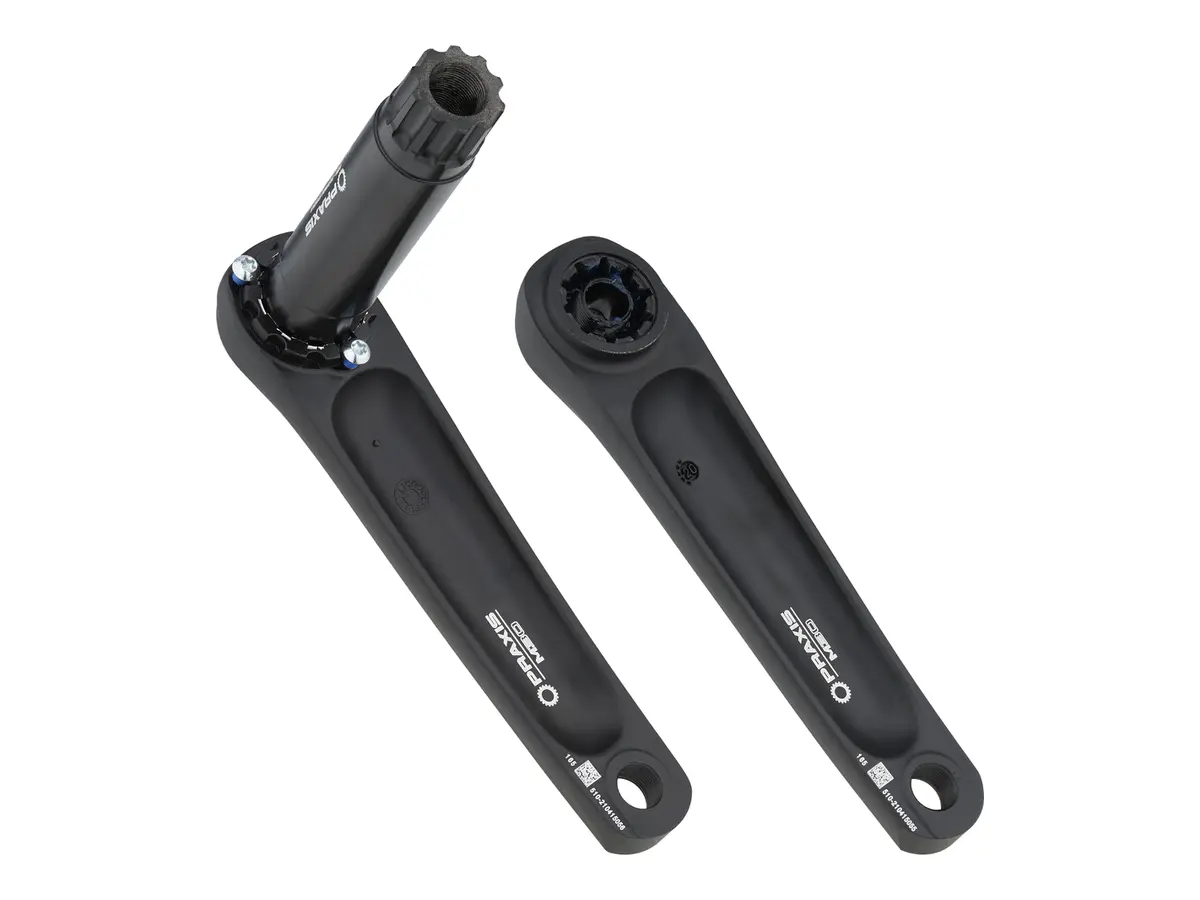

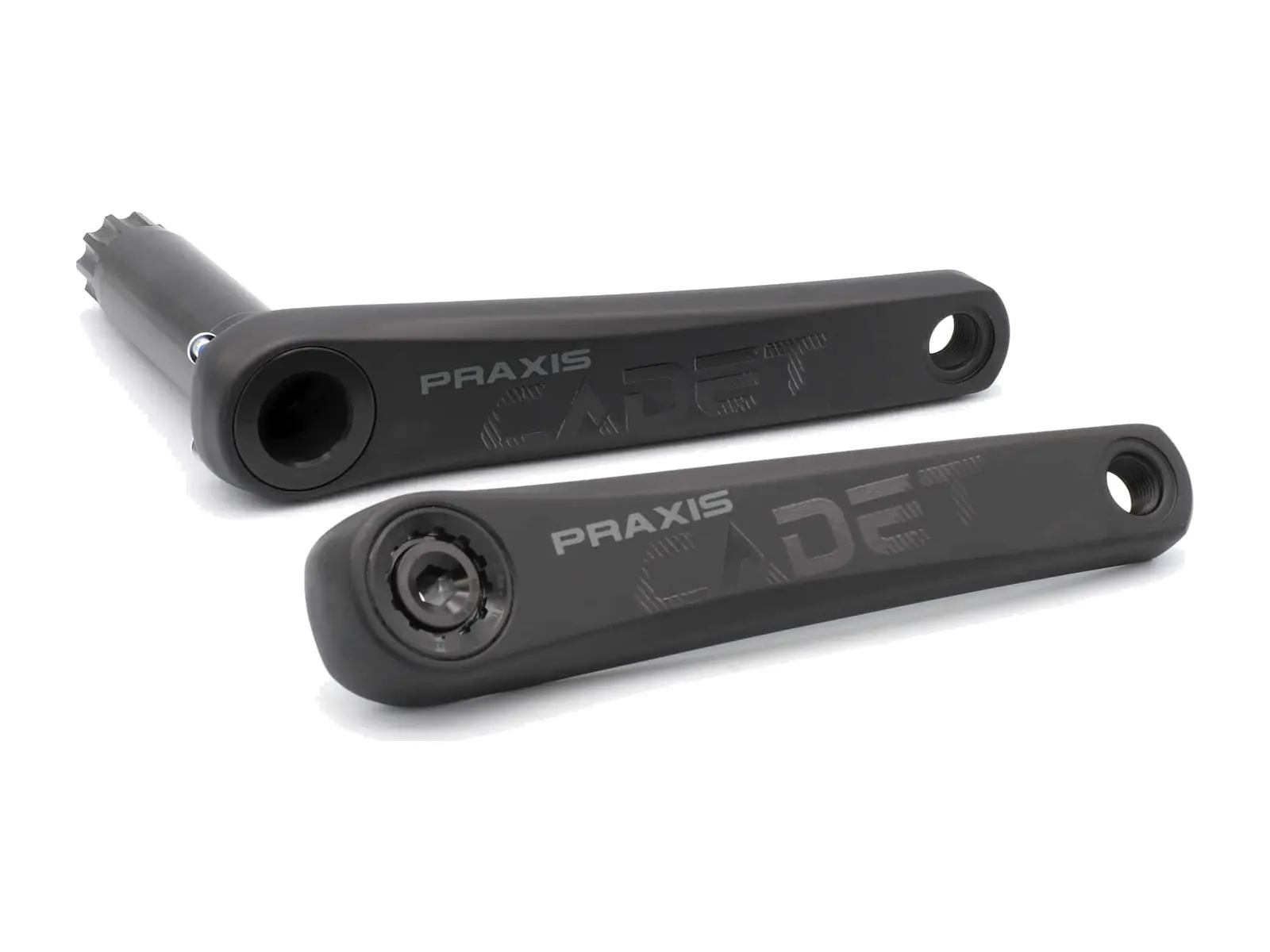

The Praxis Works "Cadet G2" MTB Crank Arm Set is the forged aluminium crank from Praxis Works for XC and trail, in its second generation with reshaped arms. The 30mm M30 spindle is fixed to the drive side arm, the chainring mounts on the 3-bolt direct mount interface, so any 3-bolt ring from Praxis or another brand fits. The crank needs a Praxis M30 bottom bracket, chainring and bottom bracket are not included.
Facts: Praxis Works "Cadet G2" MTB Crank Arm Set
- Crank Arm Material: aluminium, forged
- Crank Spindle Material: aluminium (M30, 30mm drive side, 28mm non-drive side)
- Crank Type: 2-piece
- Crank Arm Length: 165mm, 170mm or 175mm
- Spindle Diameter: 30mm
- Chainring Mount: Direct Mount (SRAM 3-Bolt)
- Bottom Bracket: Praxis M30 (BSA 68/73mm, BB86/BB92, T47 external, BB30/PF30), not included
- Pedal Thread: for 9/16" pedals
- Spindle Bolt: M30 aluminium self-extracting, 8mm hex
- Content: 1 pair of crank arms with spindle, without chainring, without bottom bracket
- Extras:
- intended use XC and trail
- chainline depends on the chainring offset: 0mm 55mm, 3mm 52mm (Boost), 6mm 49mm
- Q factor 172mm
- sticker on the back of the drive side arm shows the offset options
- weight 558g (170mm)
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
