Pride Racing "Matrix" BMX Race Hub Set
- Weight : 0.53kg / 1.17lbs
- Packaging Unit: 1 Set
- Product ID (PID): 31082
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.

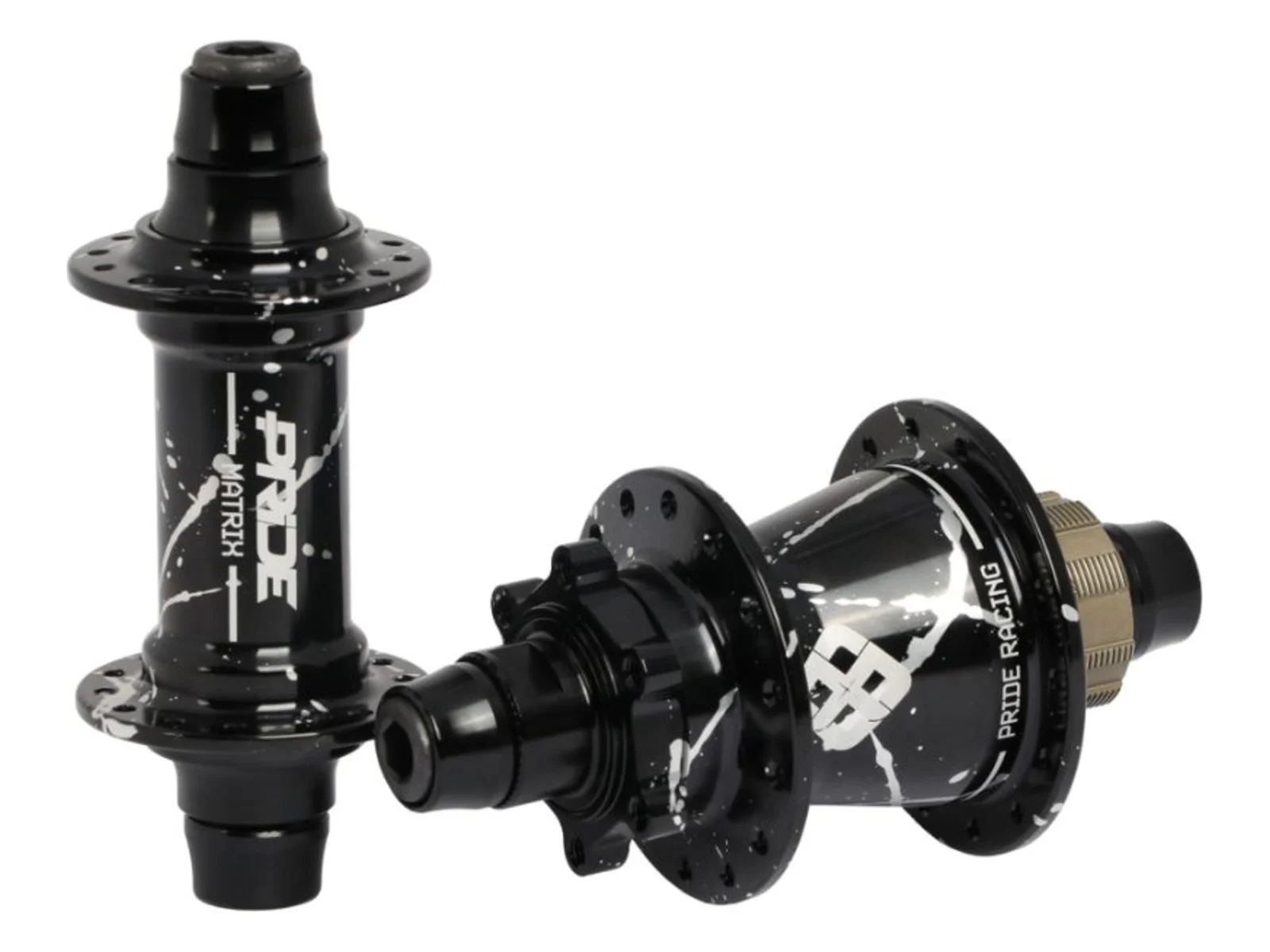

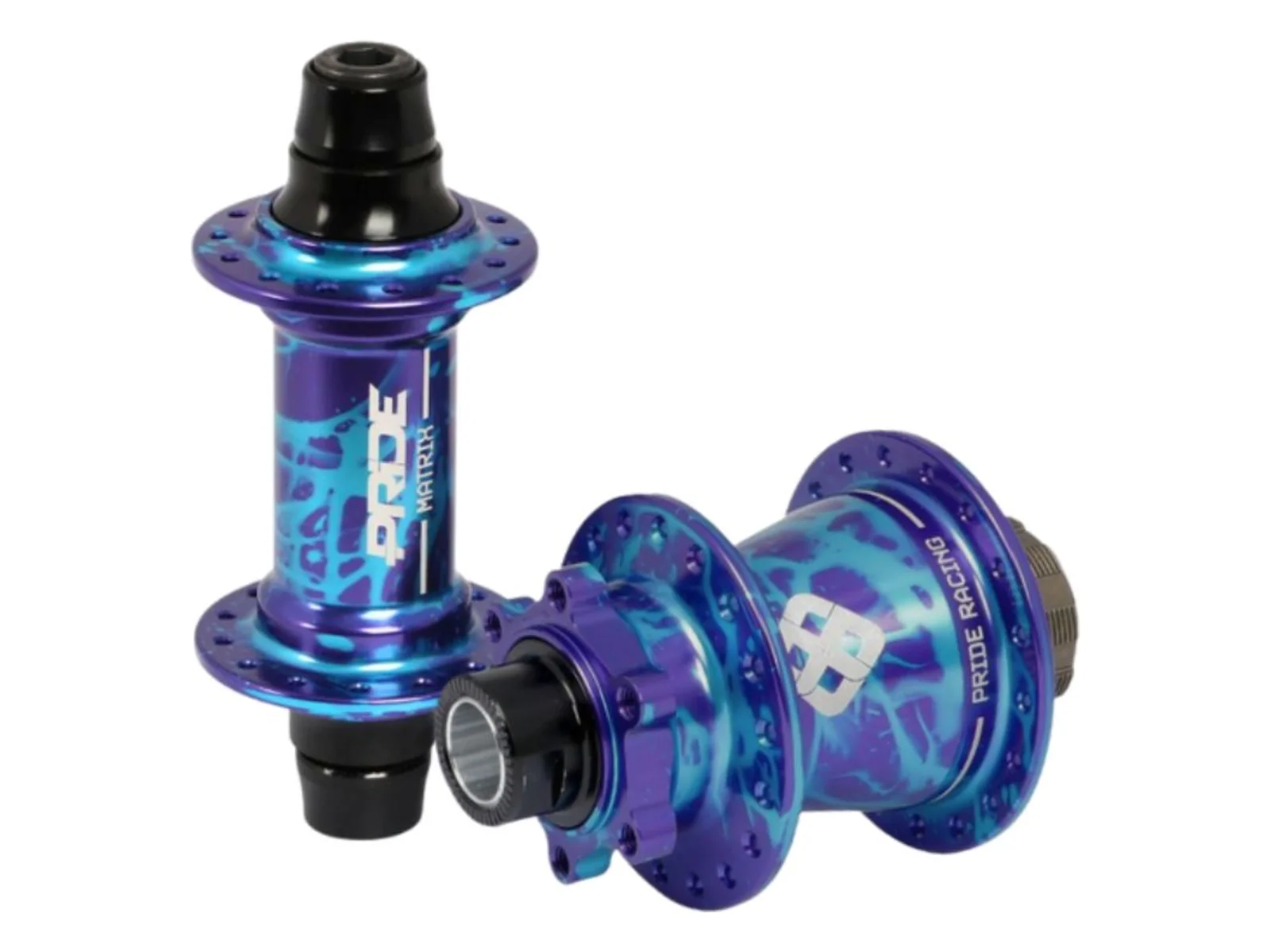

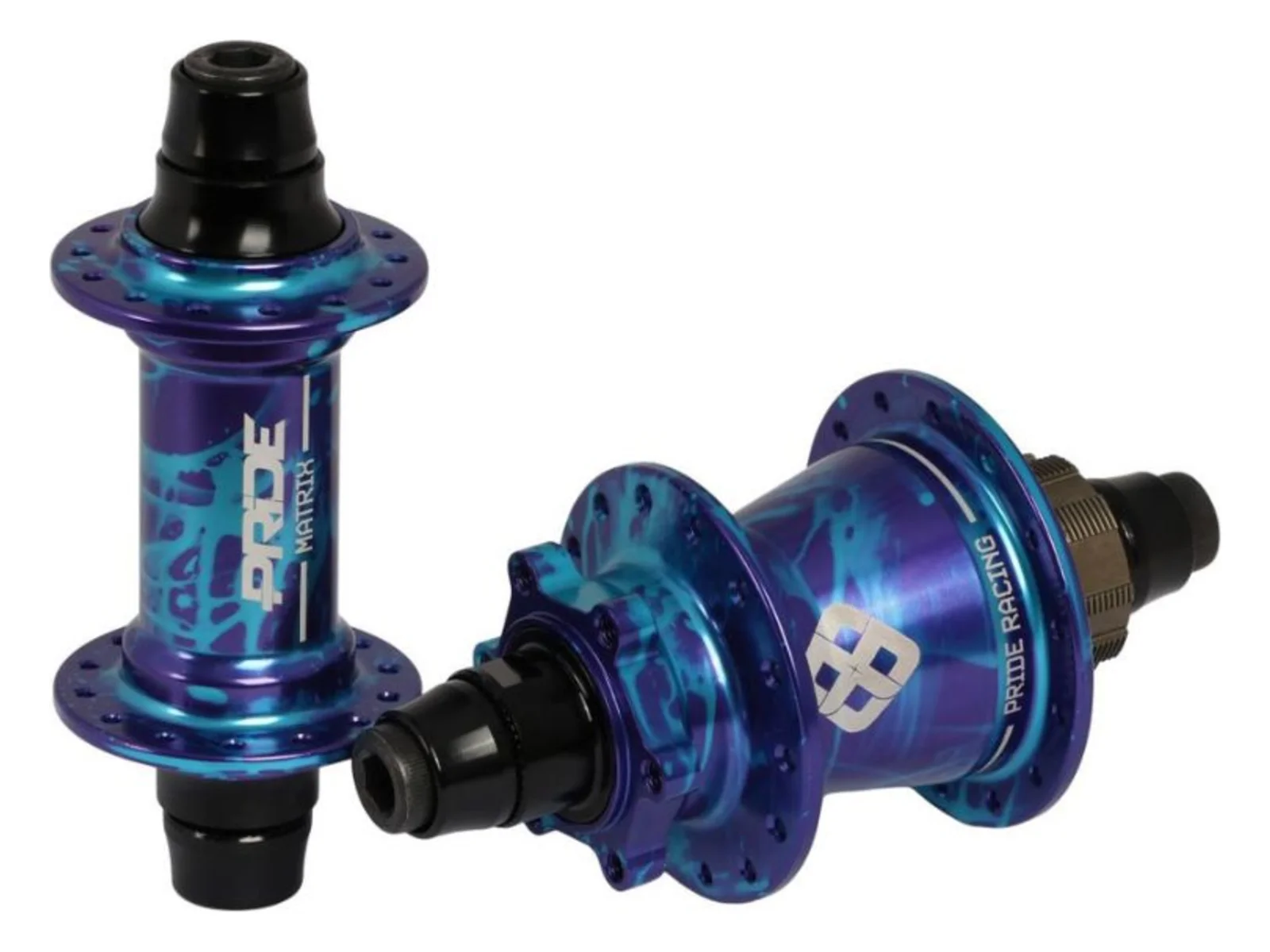

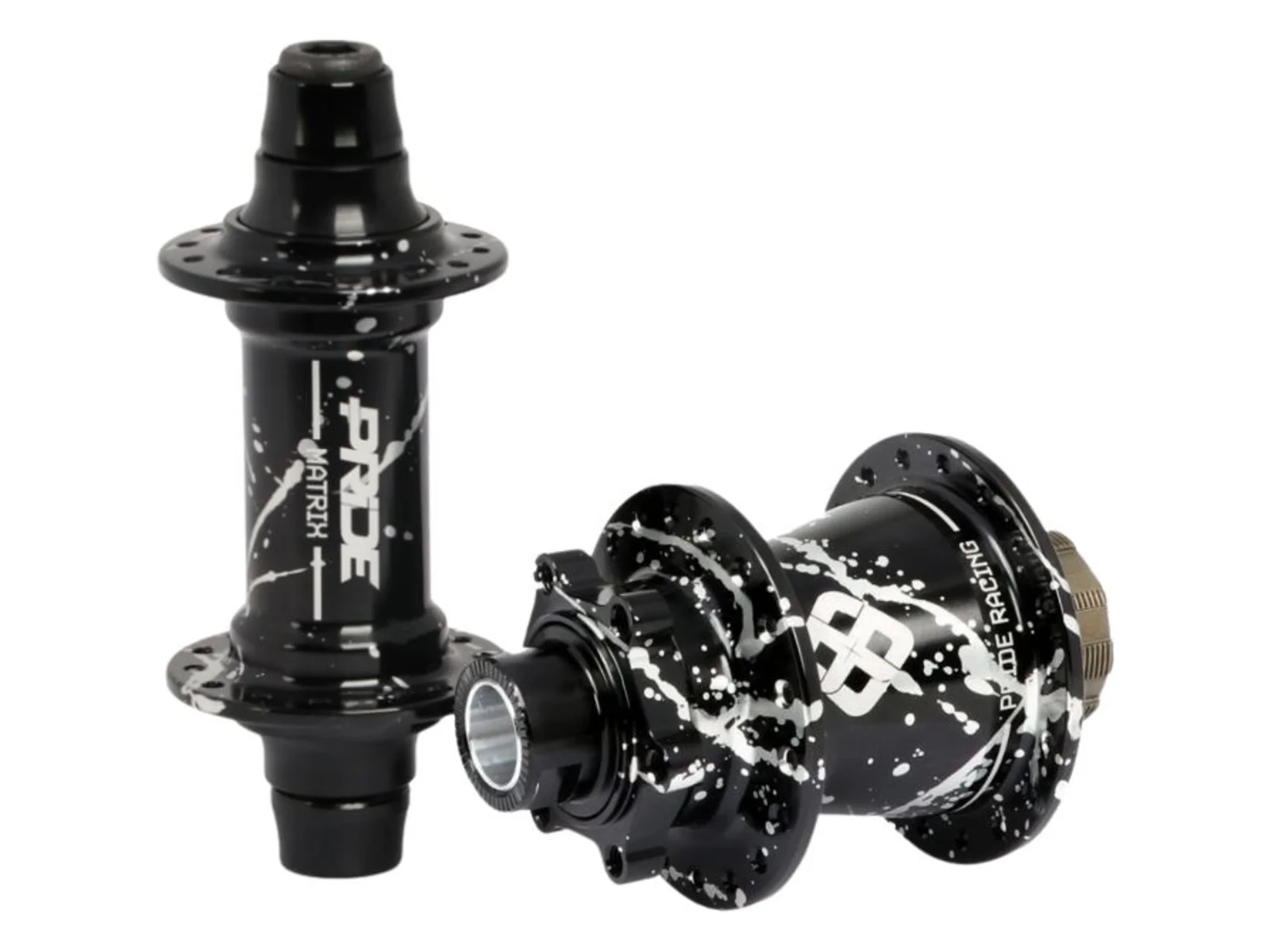

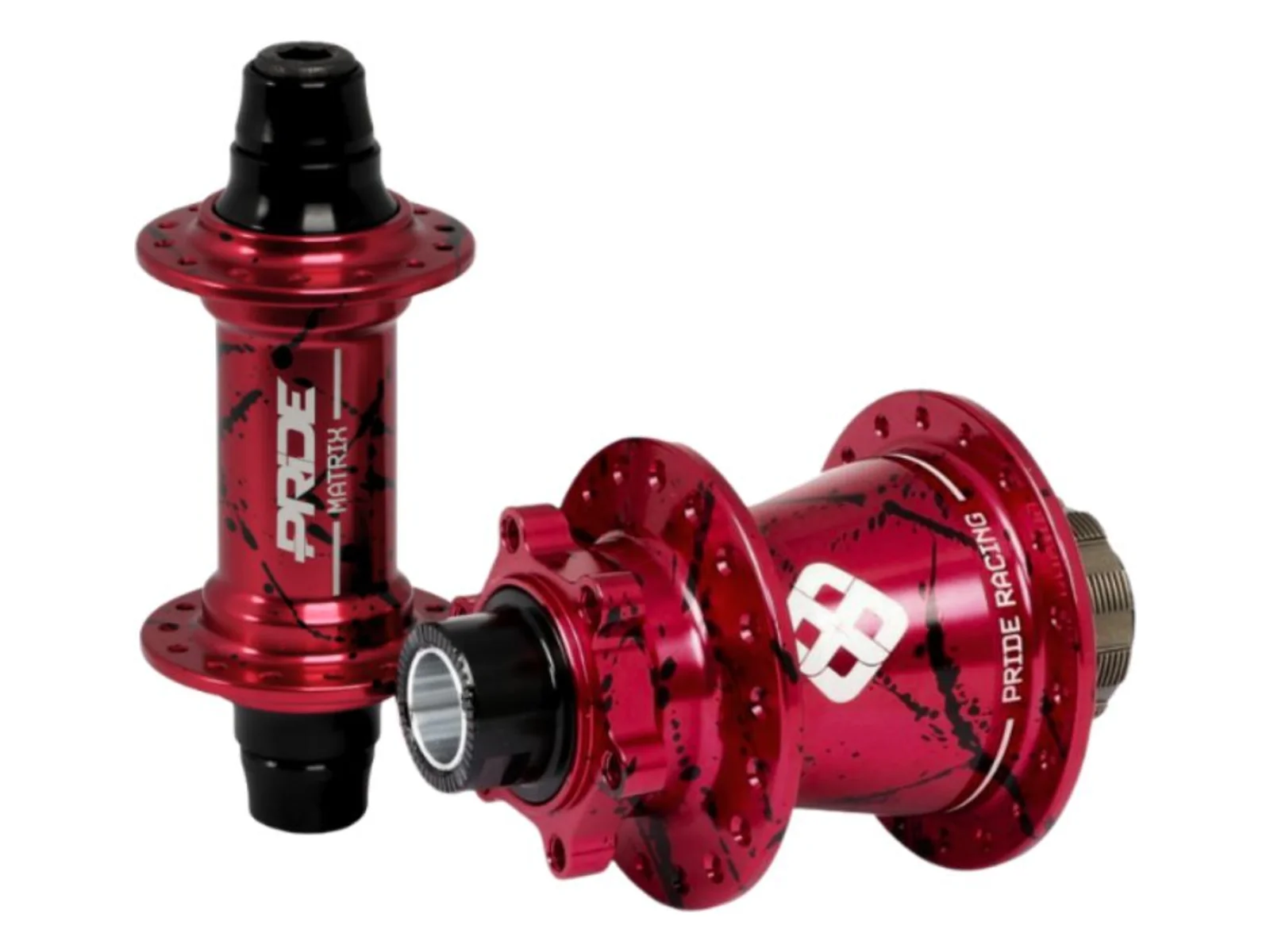

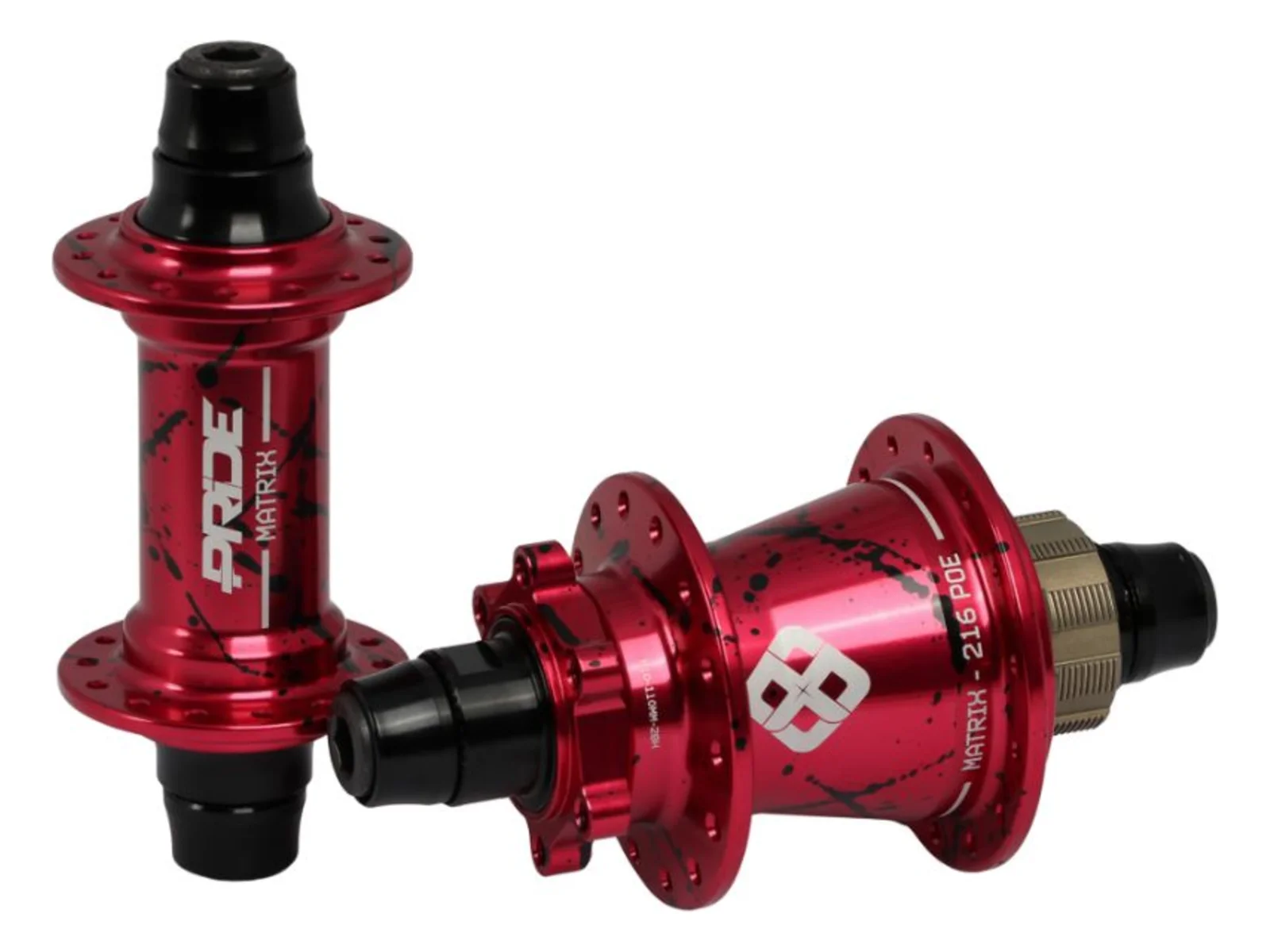

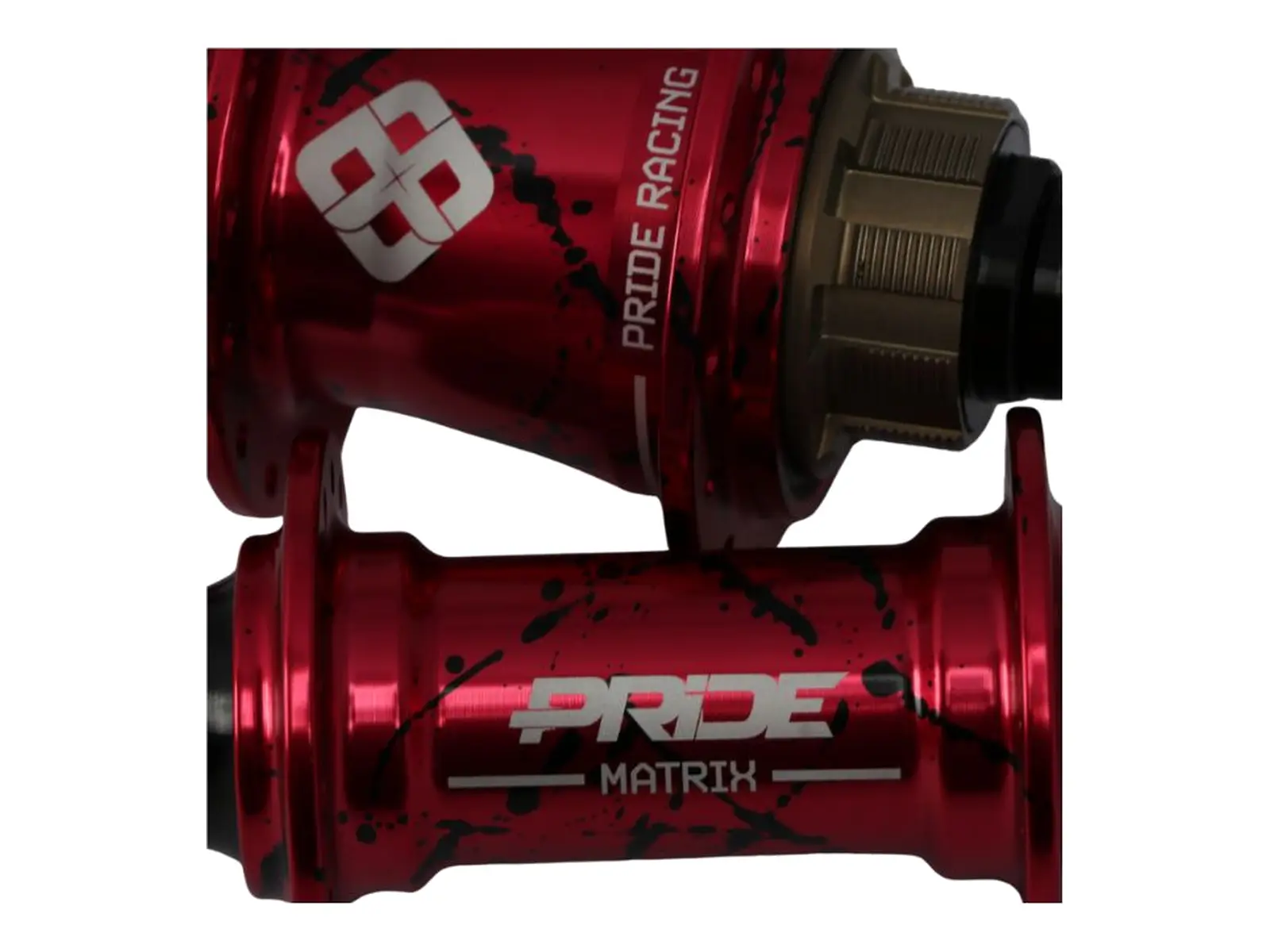

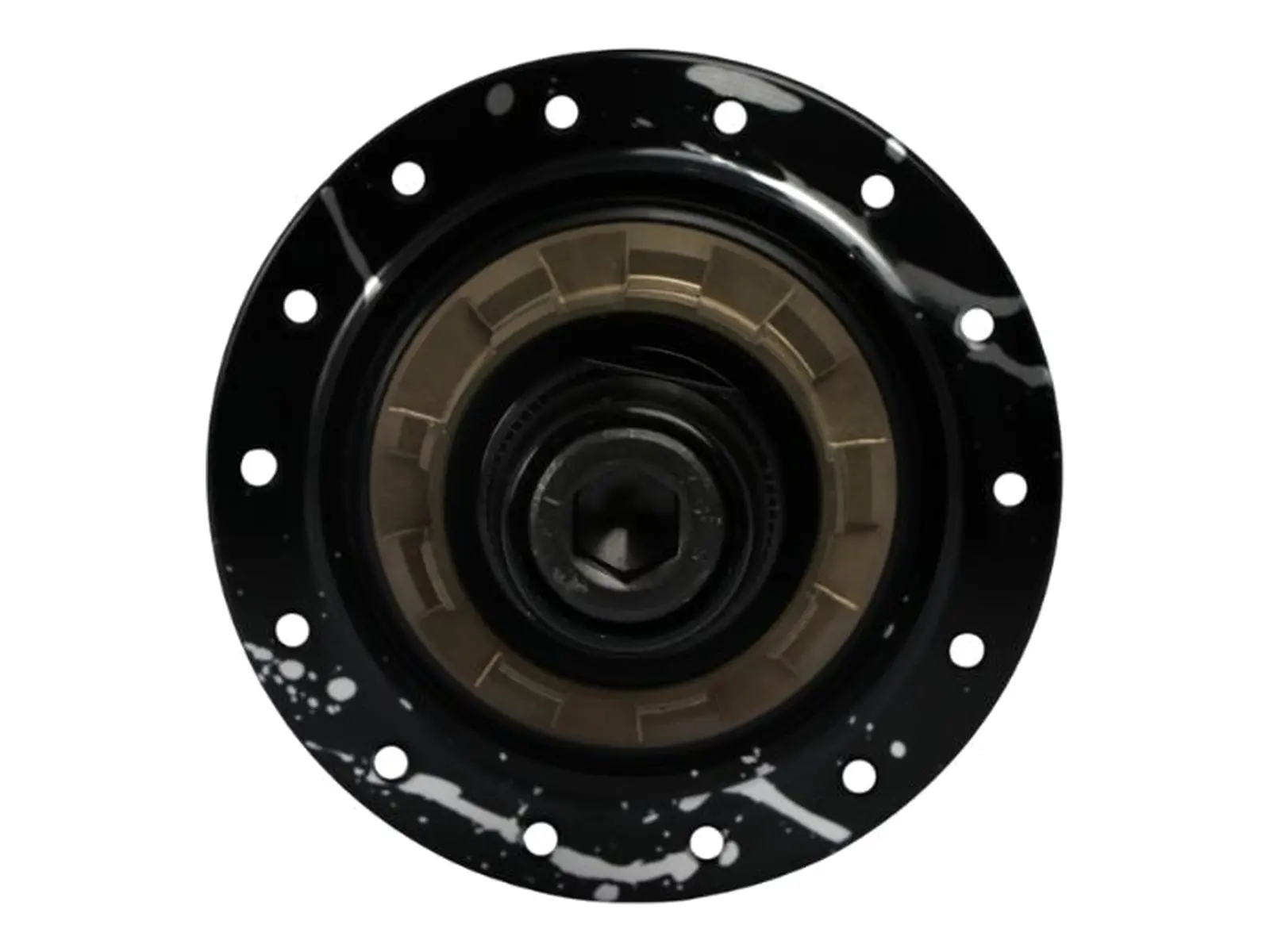

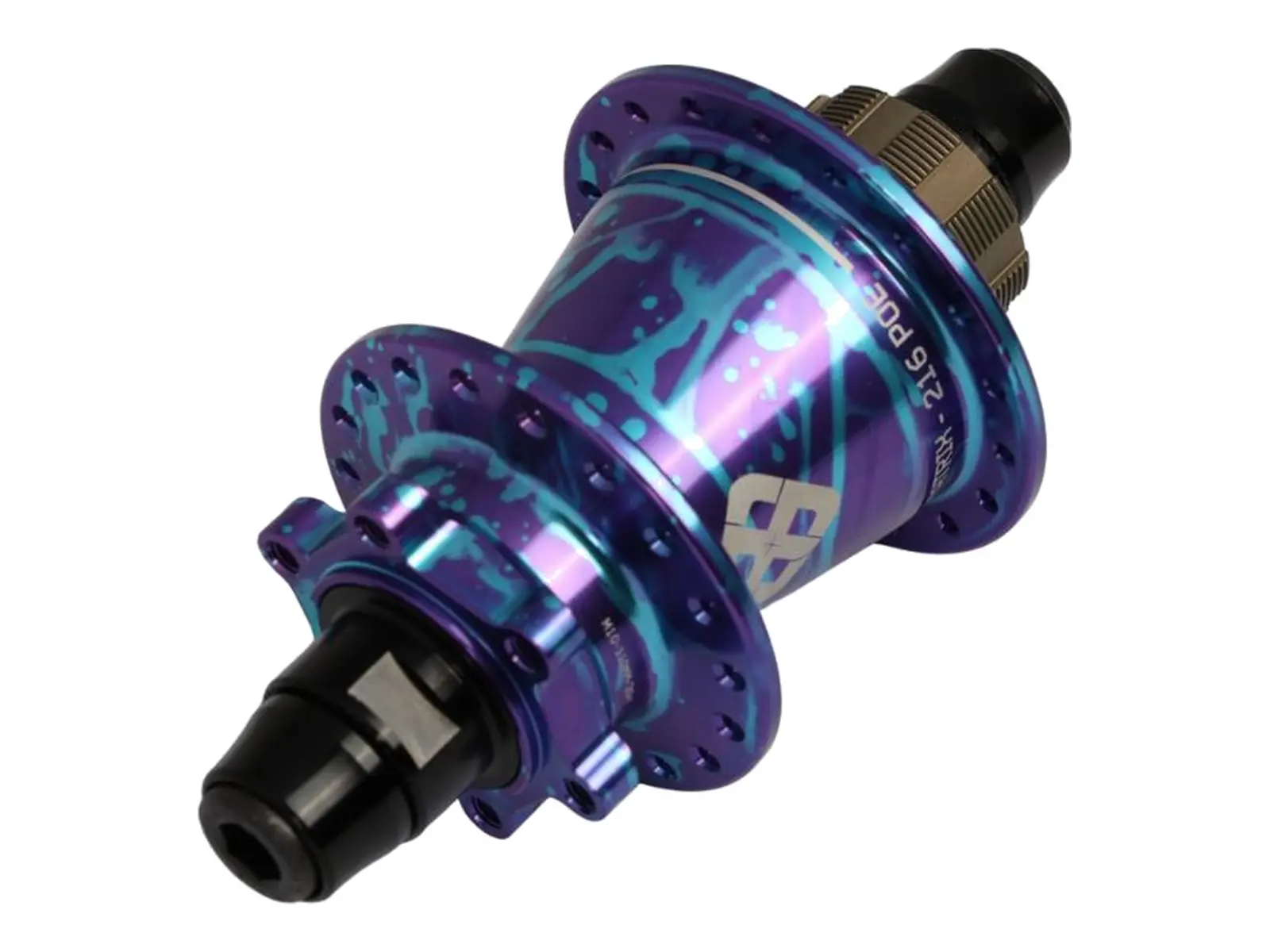

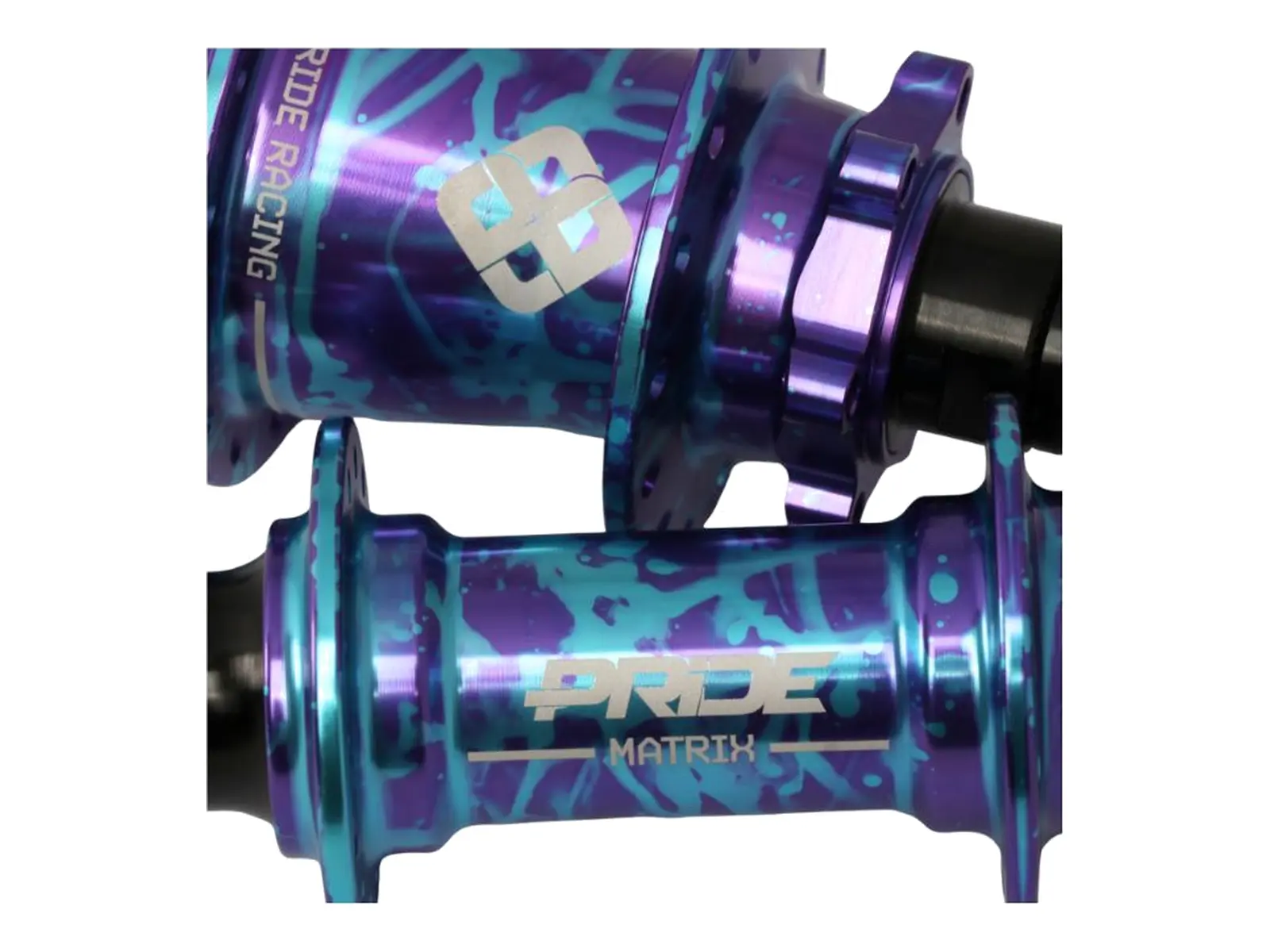

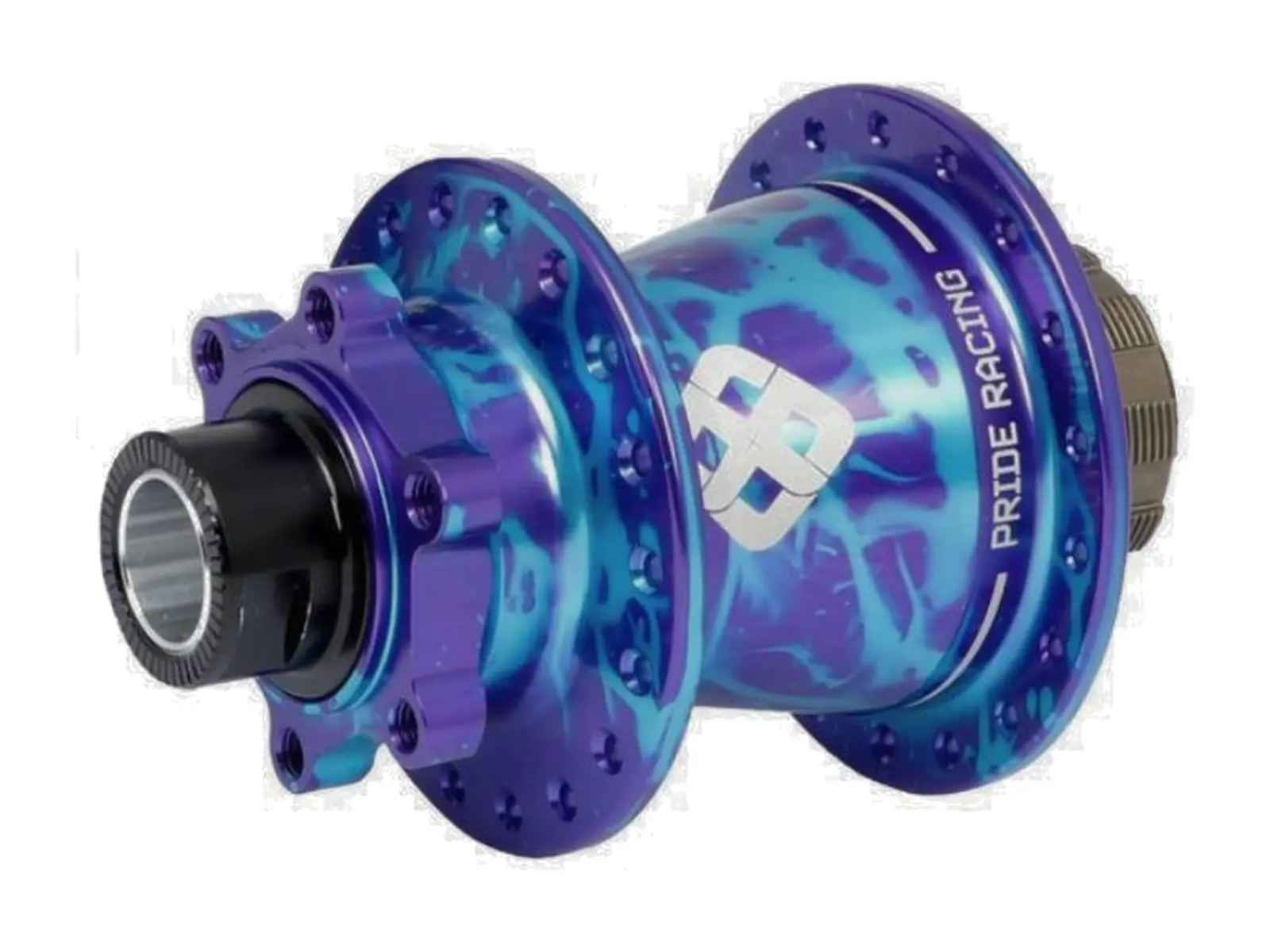

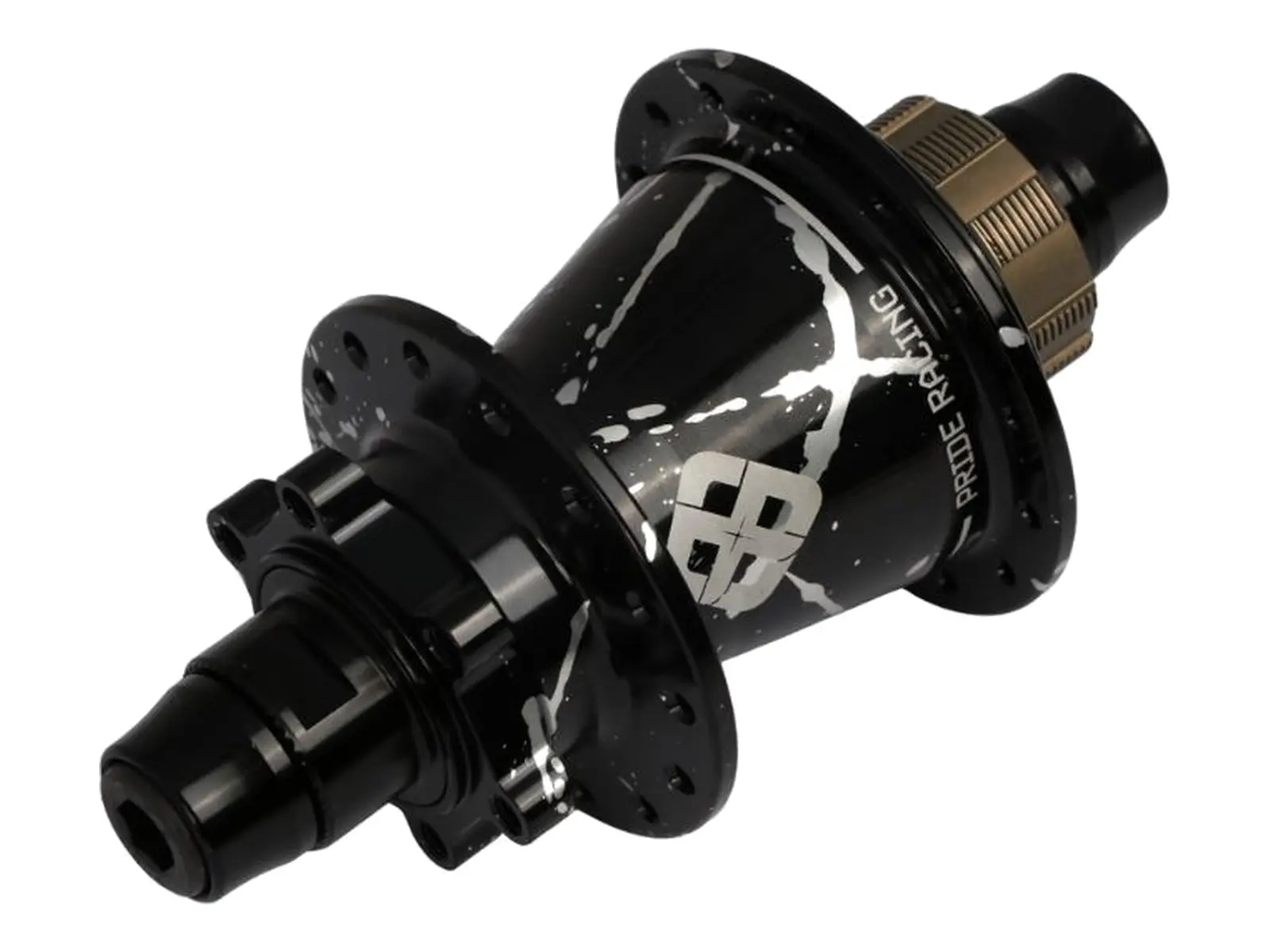

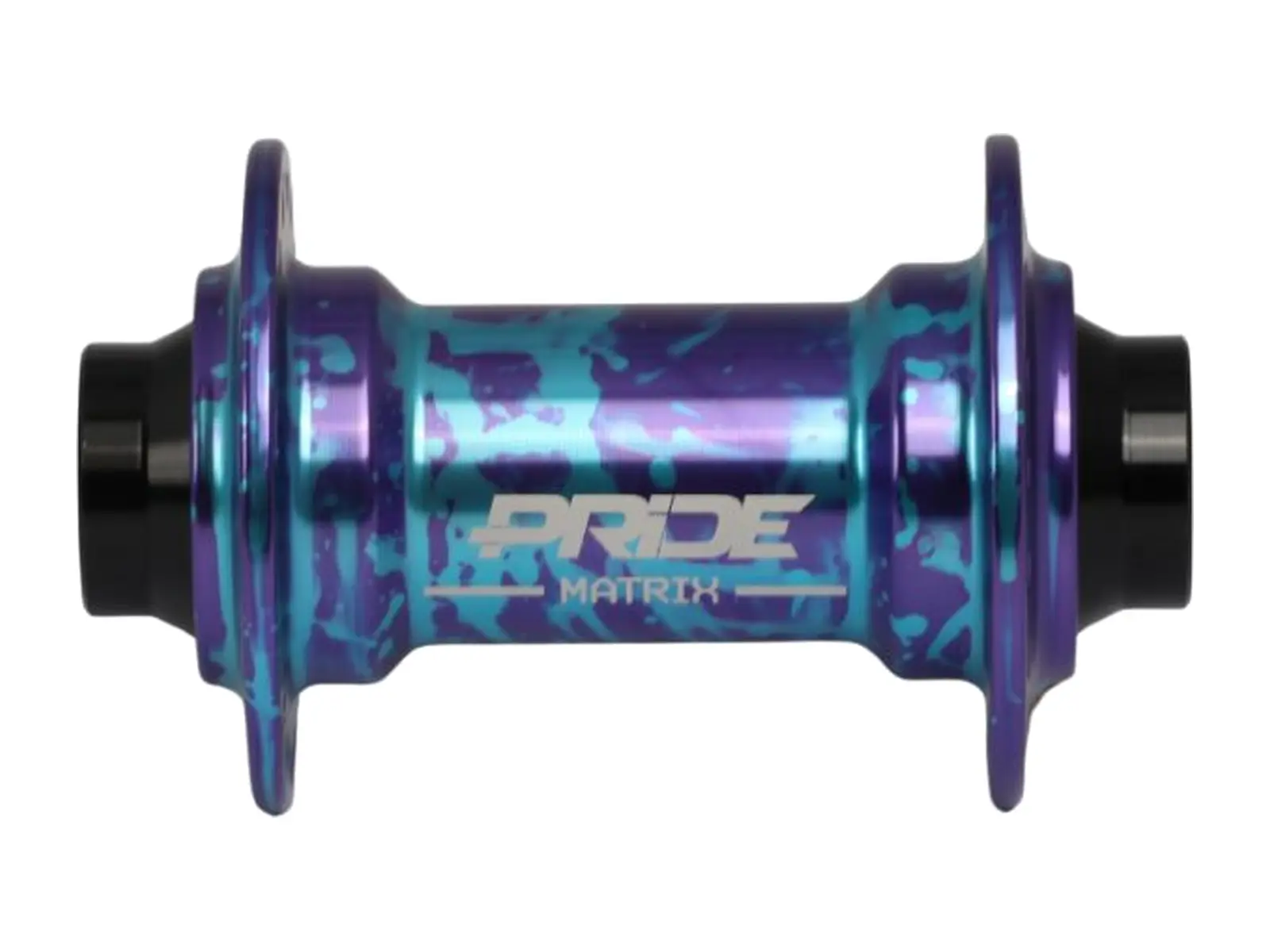

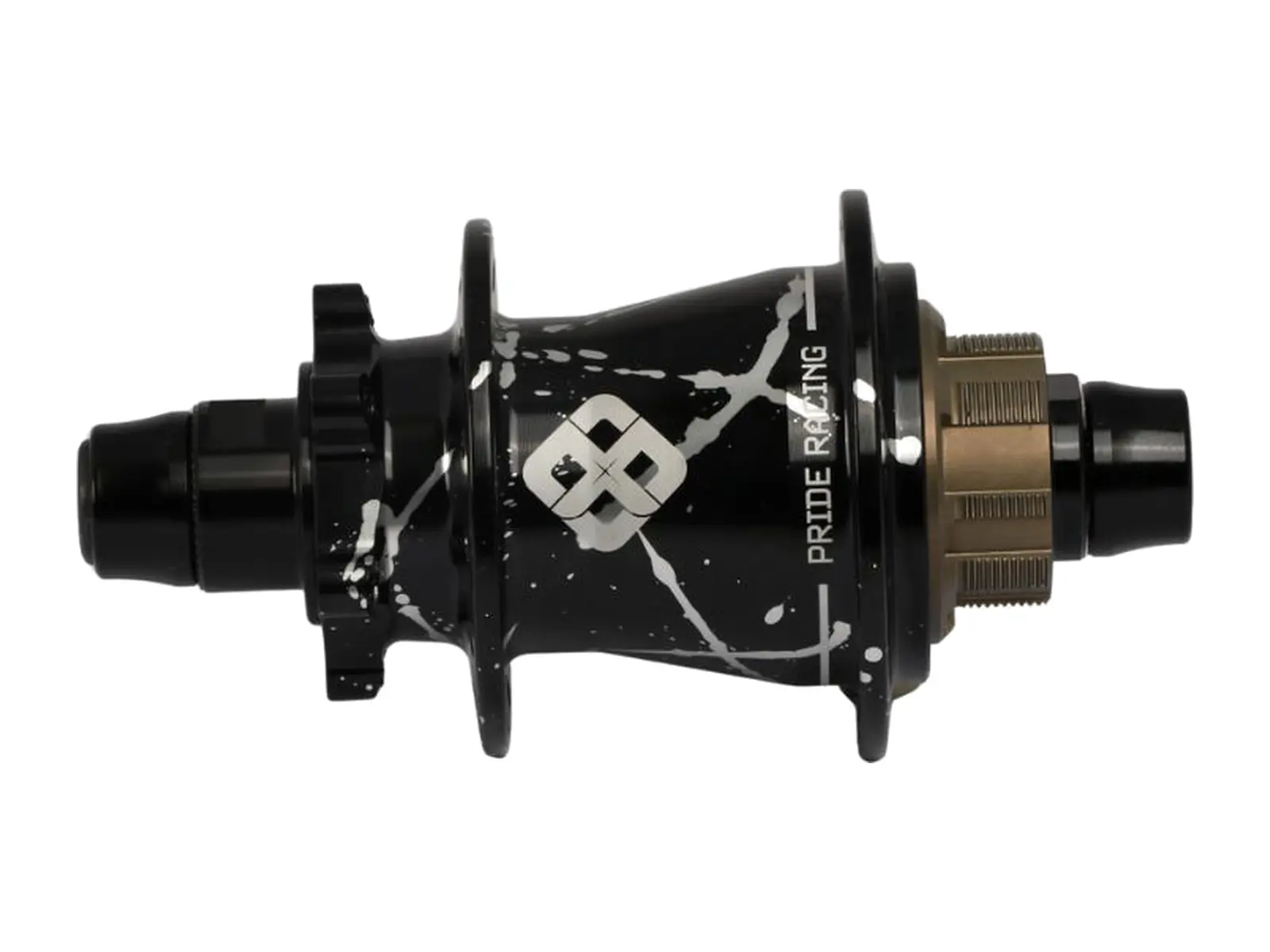

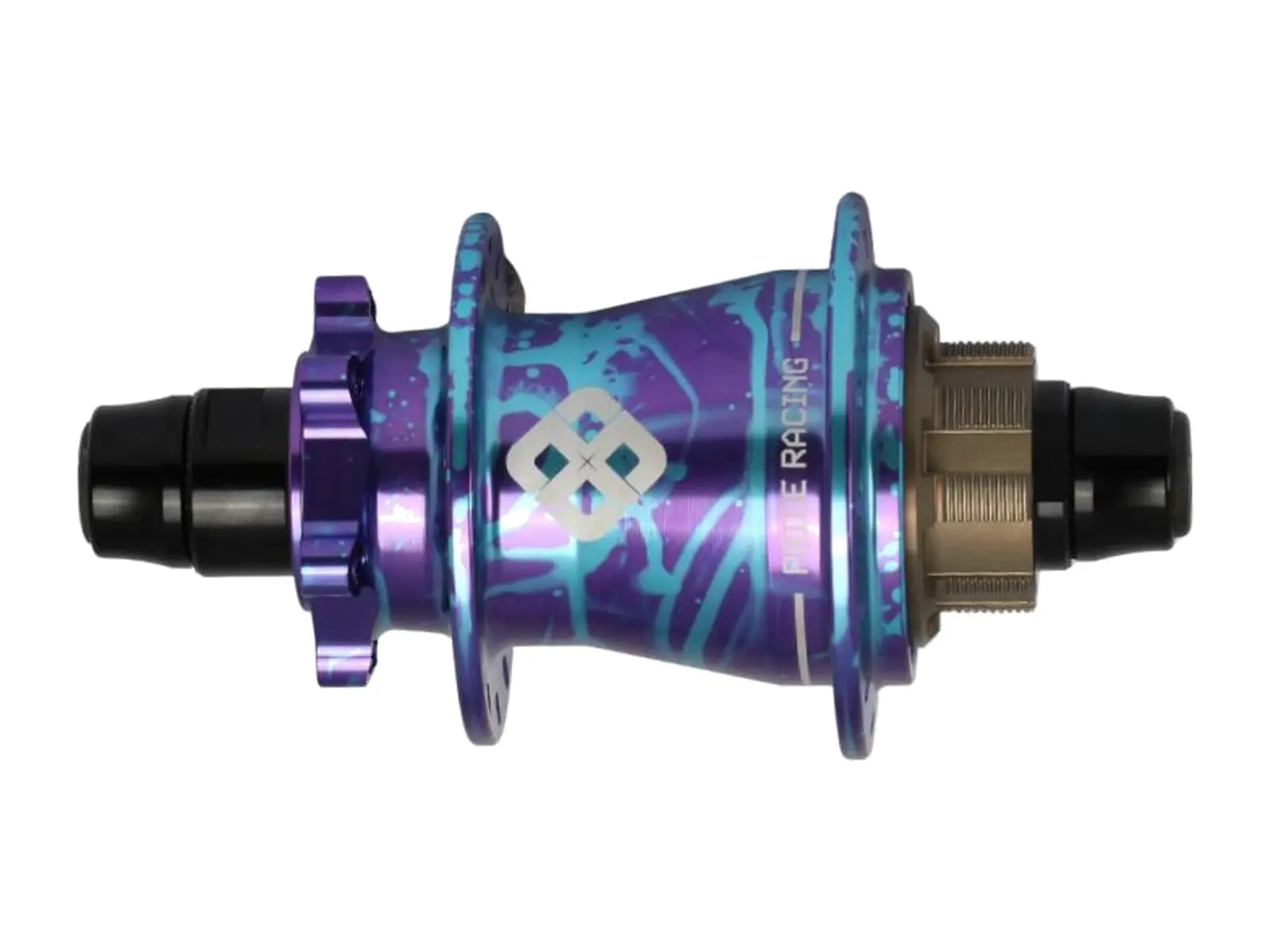

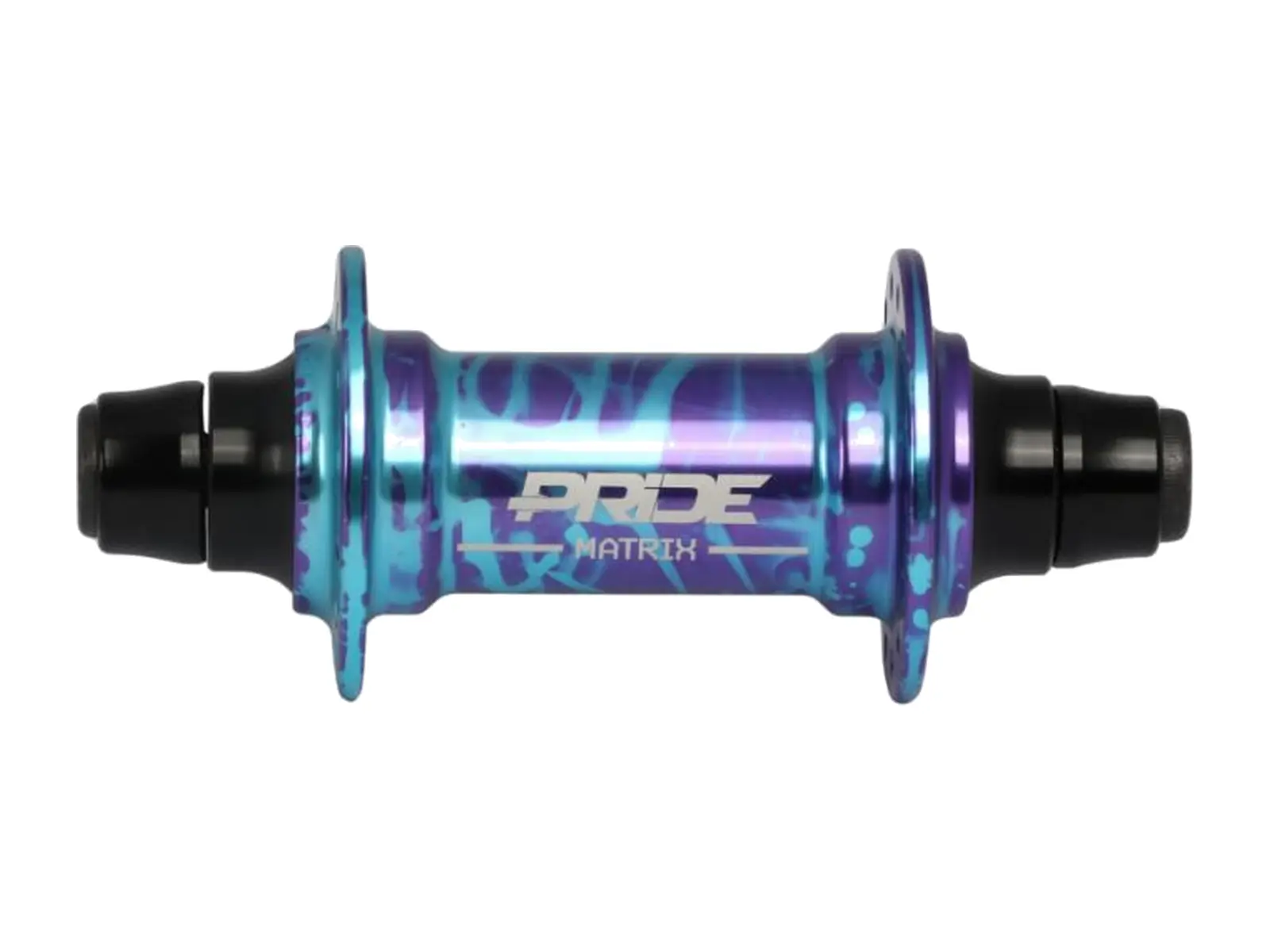

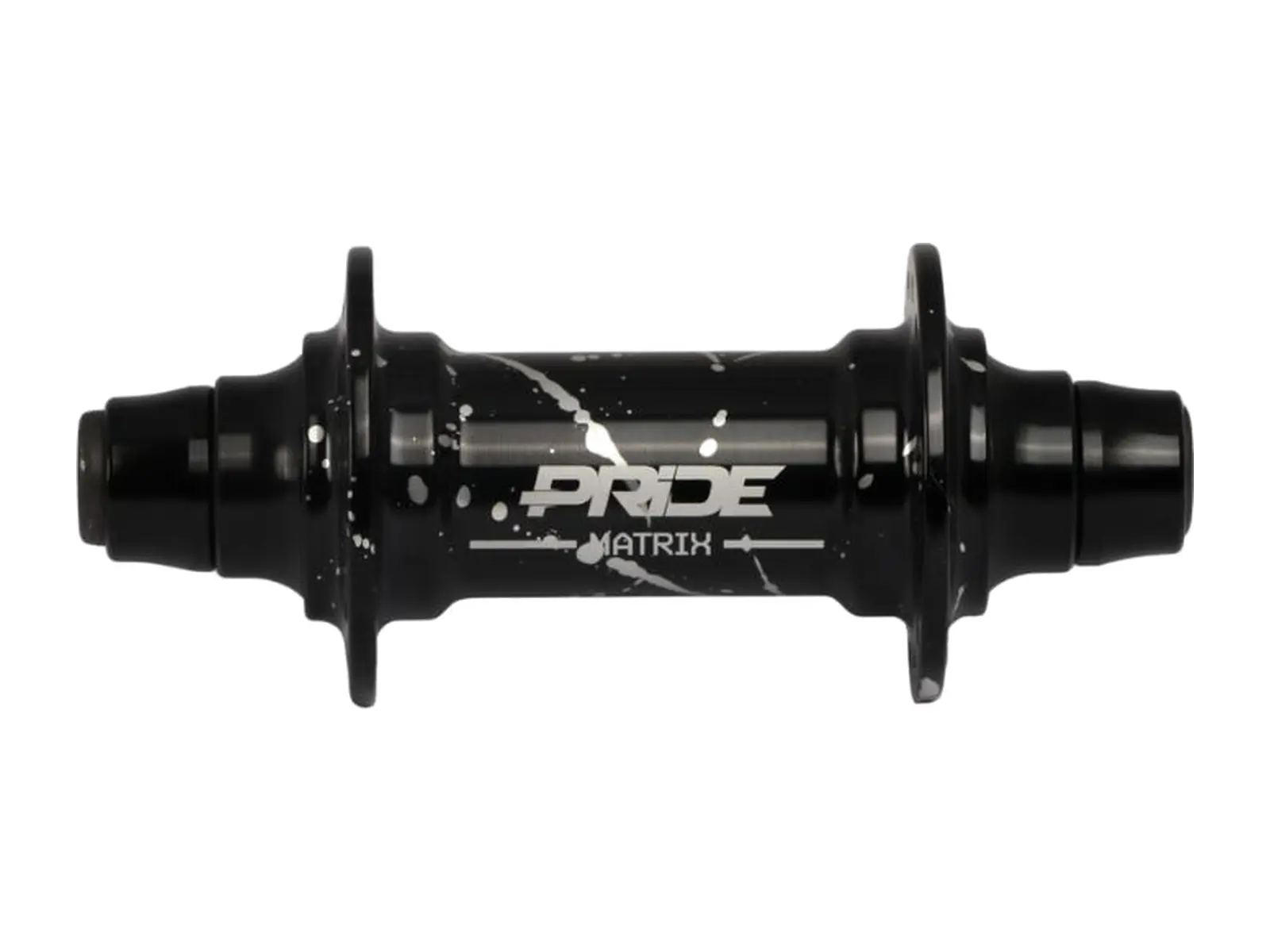

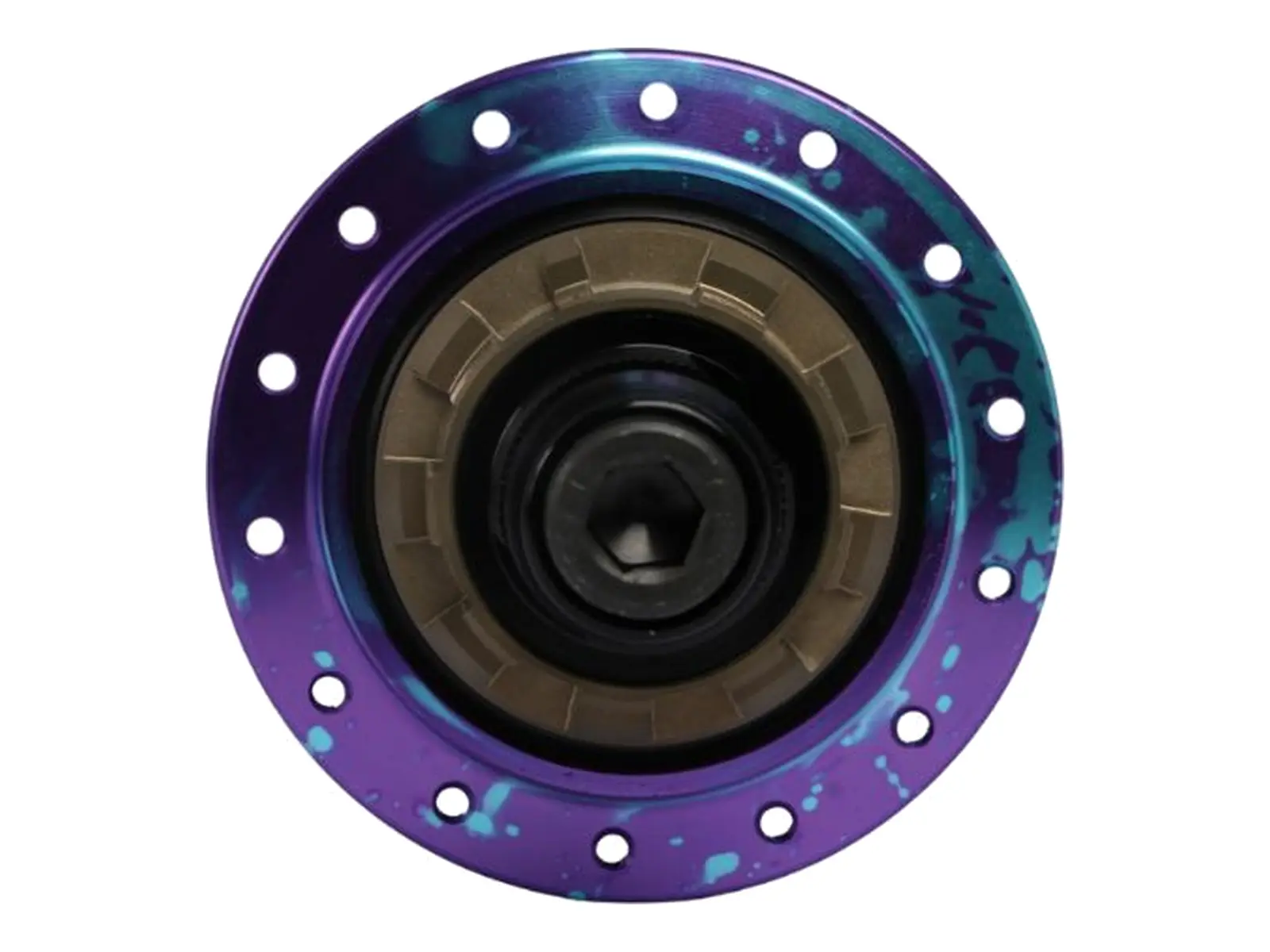

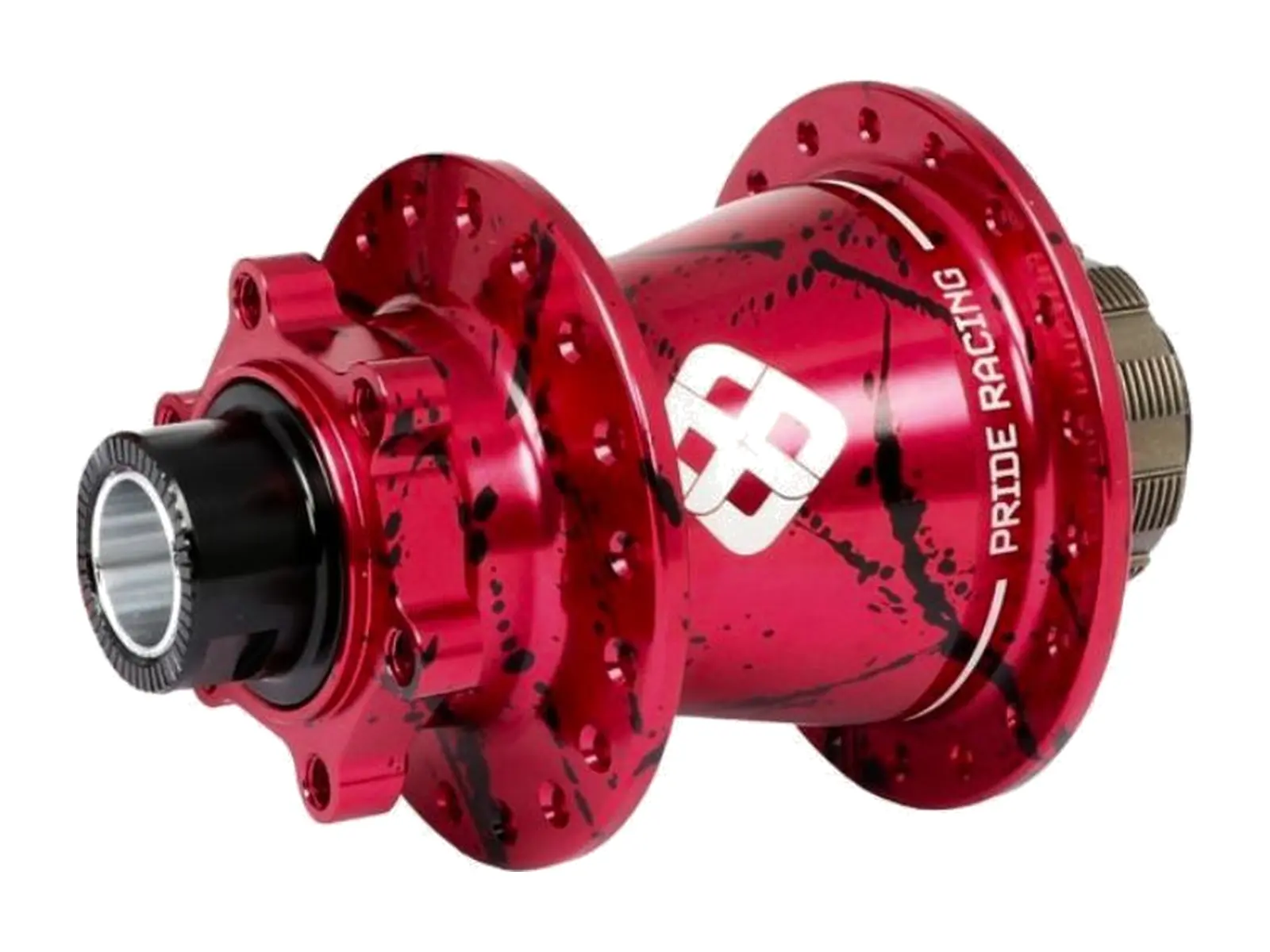

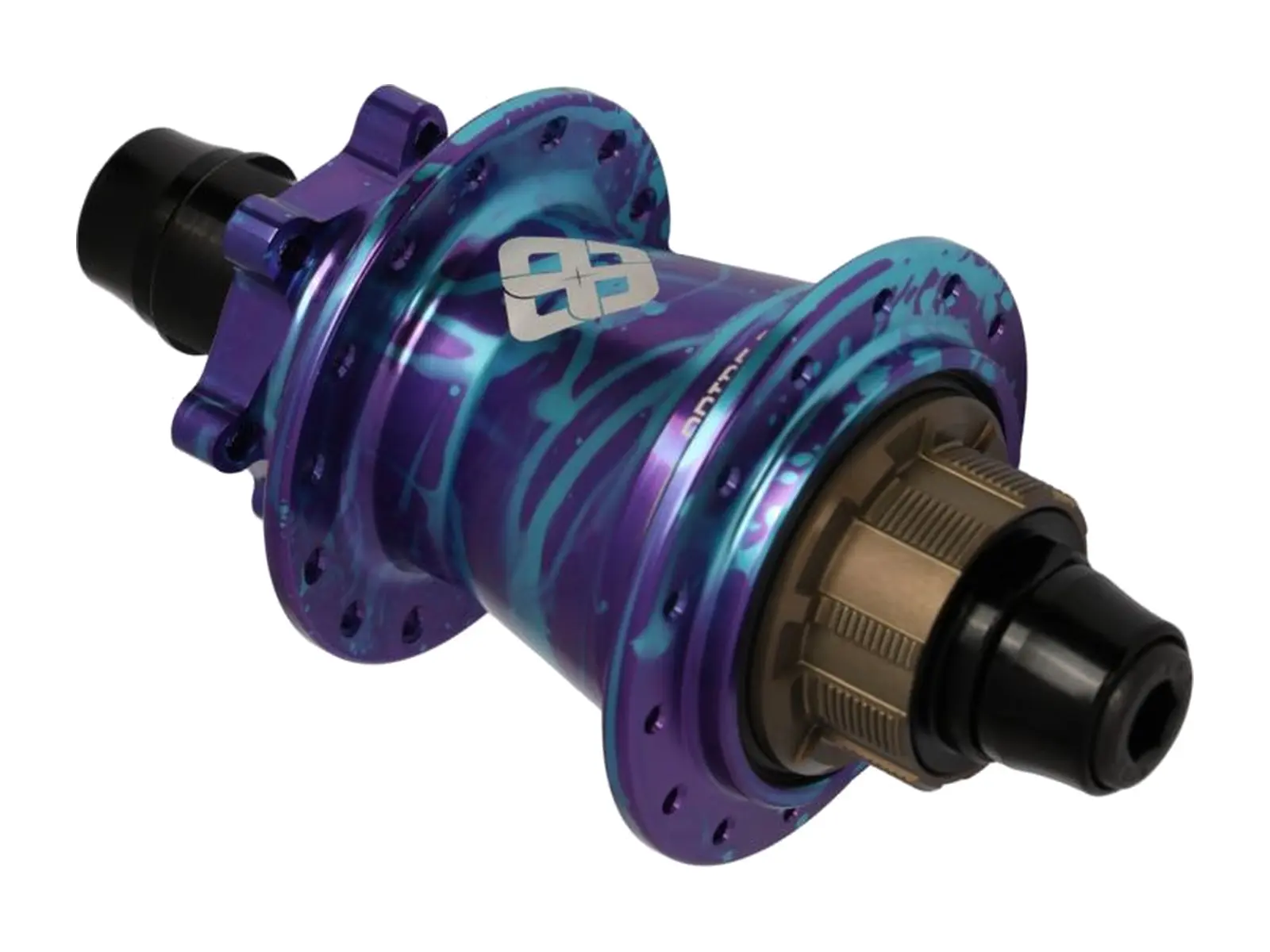

The Pride Racing "Matrix" BMX Race Hub Set is the hub set of the Matrix series, Pride Racing's top model, built for the pick-up out of the gate and through technical sections. The cassette hub works with two offset rows of 6 pawls, 12 in total, engaging alternately for 216 points of engagement at an engagement angle of only 1.67 degrees; the driver takes Shimano cogs. Both hub shells are made from 6061-T6 aluminium, run on sealed bearings and carry an ISO6 mount, at the rear with more clearance between spokes and calliper for 120mm rotors. You choose between four axle combinations, 20/10mm and 20/15mm with 36 spoke holes or 10/10mm and 10/15mm with 28 spoke holes, and the Splash finishes black/silver, red/black and blue/purple. A lock ring and spacers for chainline adjustment come with the Pride Racing "Matrix" BMX Race Hub Set, which weighs 531g as a set.
Facts: Pride Racing "Matrix" BMX Race Hub Set
- Scope of Delivery: Front hub + cassette hub (rear hub)

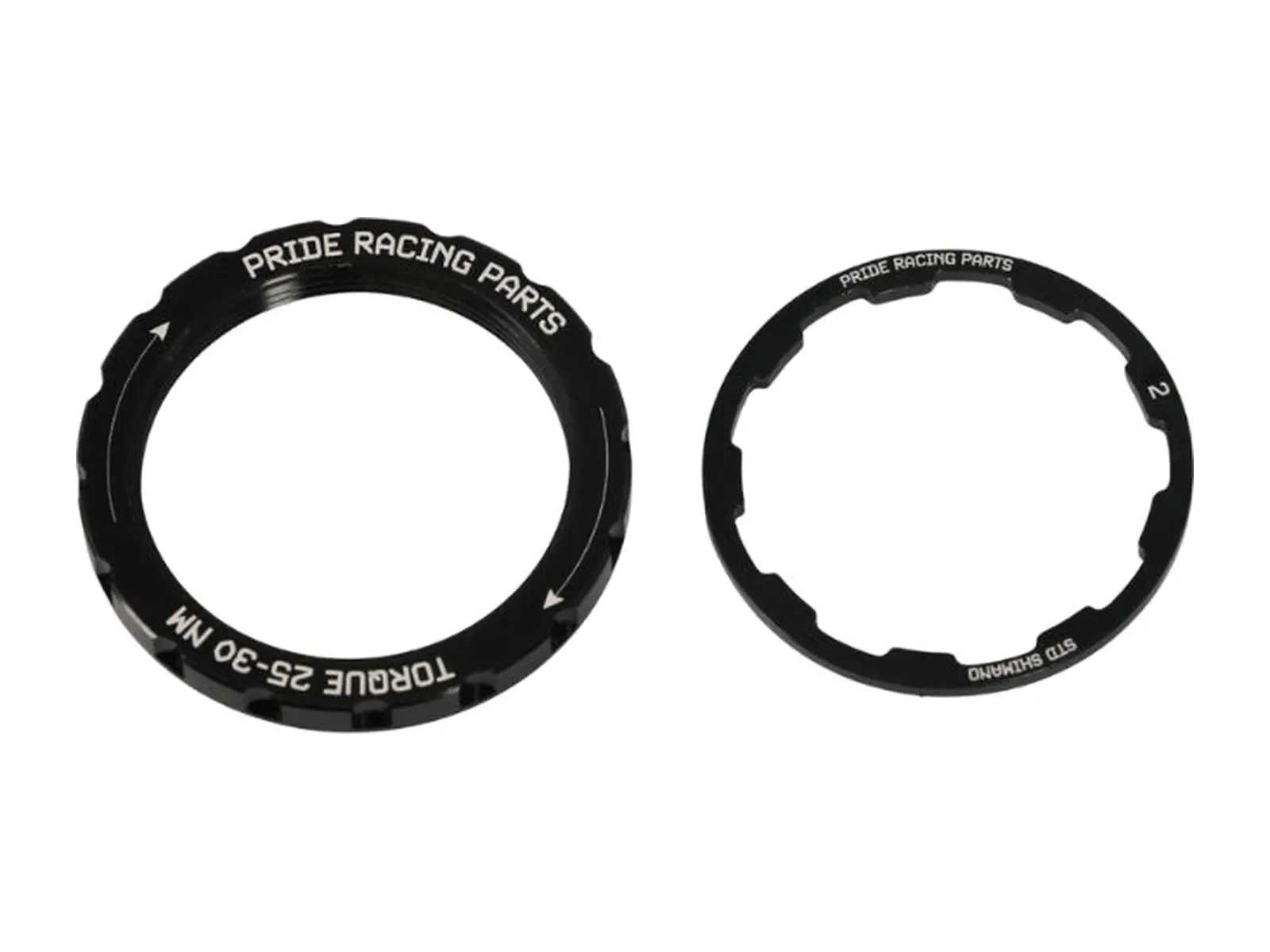

- lock ring and spacers for chainline adjustment - Material Hub Shell: 6061-T6 aluminum
- disc mount: ISO6, rear optimised for 120mm rotors (more clearance between spokes and calliper) - Holes: 36H (20/10mm and 20/15mm versions) | 28H (10/10mm and 10/15mm versions)

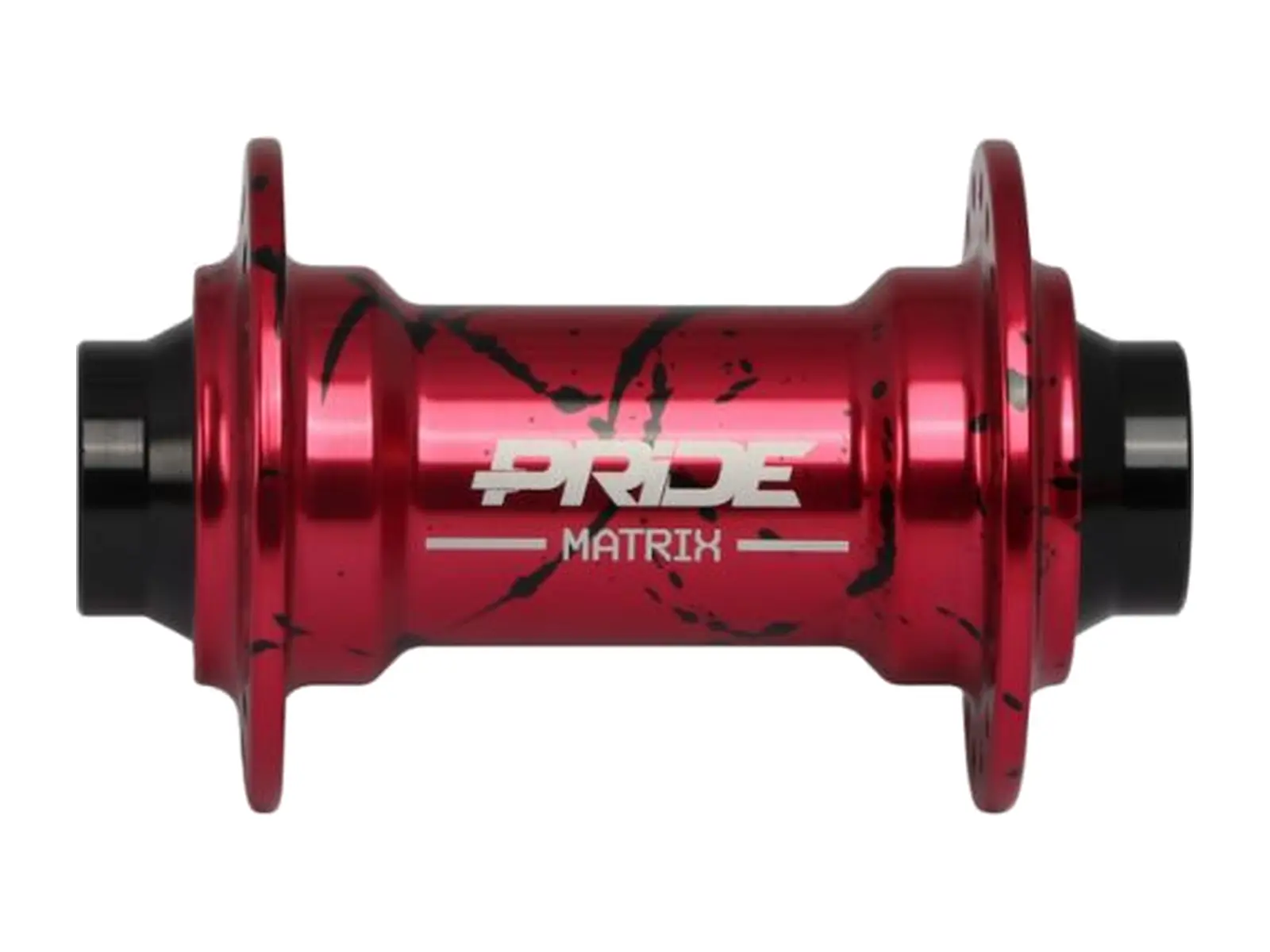

- Front Axle: per version (10/10mm - 28H, 10/15mm - 28H, 20/10mm - 36H or 20/15mm - 36H): 20mm thru-axle, 100mm spacing | 10mm (3/8"), 100mm spacing

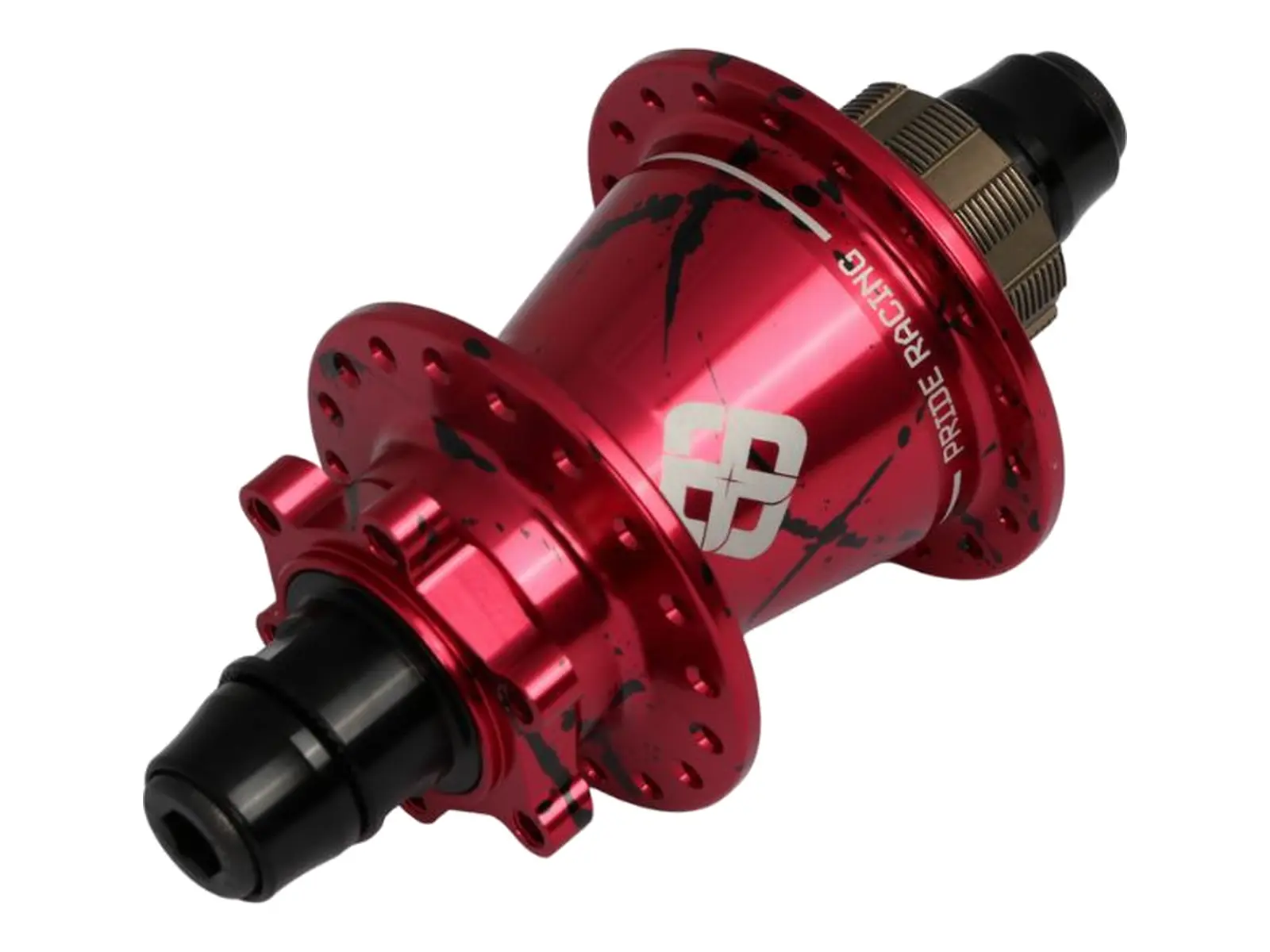

- Rear Axle: per version (10/10mm - 28H, 10/15mm - 28H, 20/10mm - 36H or 20/15mm - 36H): 10mm (3/8"), 110mm spacing | 15mm thru-axle, 110mm spacing
- Driver: Shimano standard (cassette freehub)
- engagement: 216 points, 12 pawls in two offset rows of 6, 1.67° engagement angle - Bearing: Sealed Bearings (SB)
- front: 6804 (20x32x7mm) with 20mm axle, 6902 (15x28x7mm) with 10mm axle
- rear: 18307 (18x30x7mm) - Set Weight: 531g (front 182g + rear 349g)
