Ryde "Andra 25 Disc" MTB Rim - 29" Inch
-
Weight : 0.87kg / 1.92lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36967
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

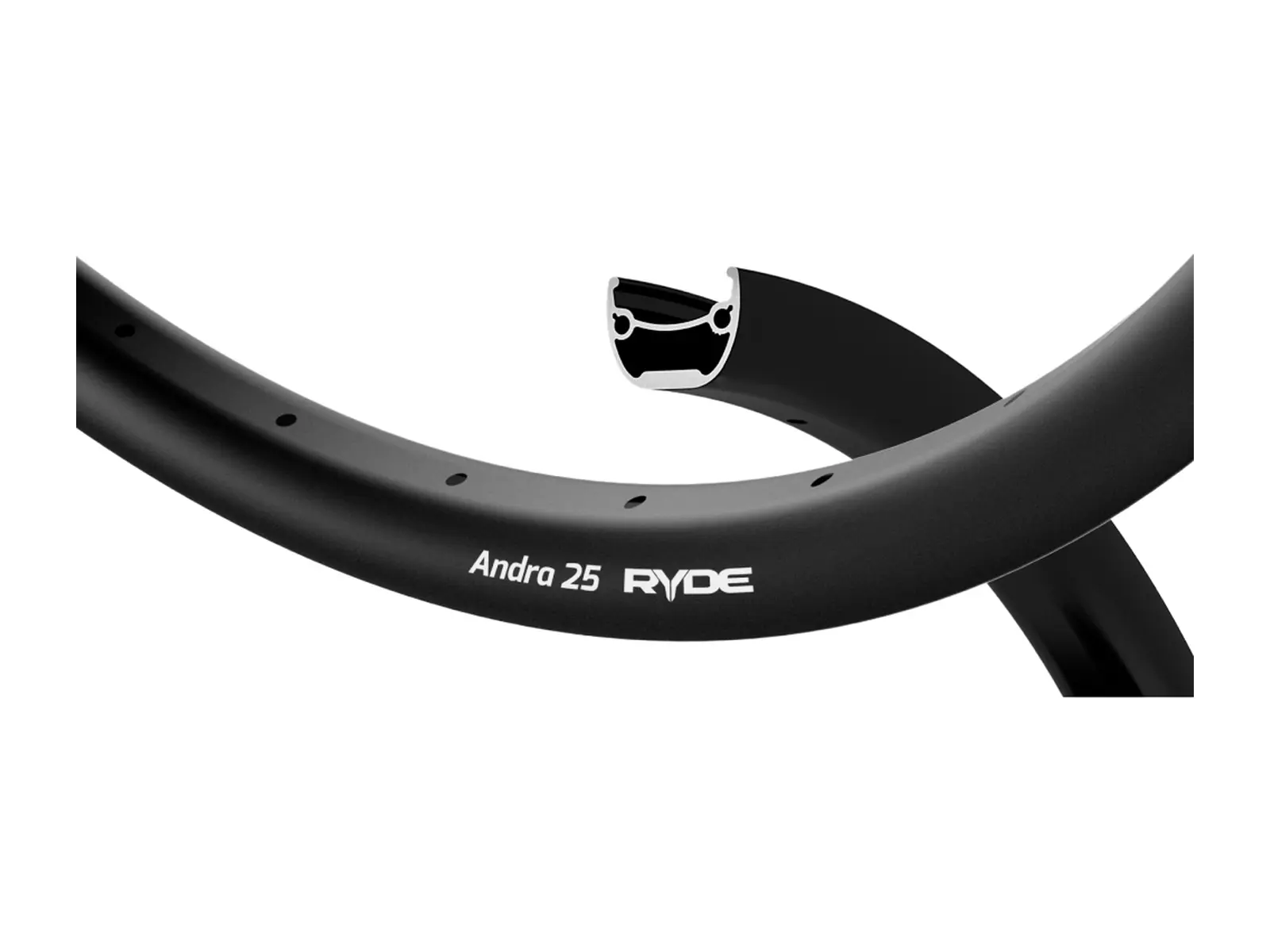

The Ryde "Andra 25 Disc" MTB Rim - 29" Inch is one of the strongest rims in Ryde's Andra range: a pinned double wall rim made of 6063-T6 aluminium, black anodised, 25mm internal width for tyres from 29 to 71mm, built for a 120kg axle load and 1400N spoke tension. The nipple bed is thick and internally reinforced, the 36 spoke holes are drilled 8 degrees radially and 2 degrees axially towards the hub, the valve hole takes Schrader valves. It is not tubeless ready and runs with a tube, there is no brake track. For 29 inch disc brake wheels that have to carry a lot.
Facts: Ryde "Andra 25 Disc" MTB Rim - 29" Inch
- Wheel Size: 29"
- Material: 6063-T6 aluminium, double wall, anodised
- Seam: Pinned
- Holes: 36H

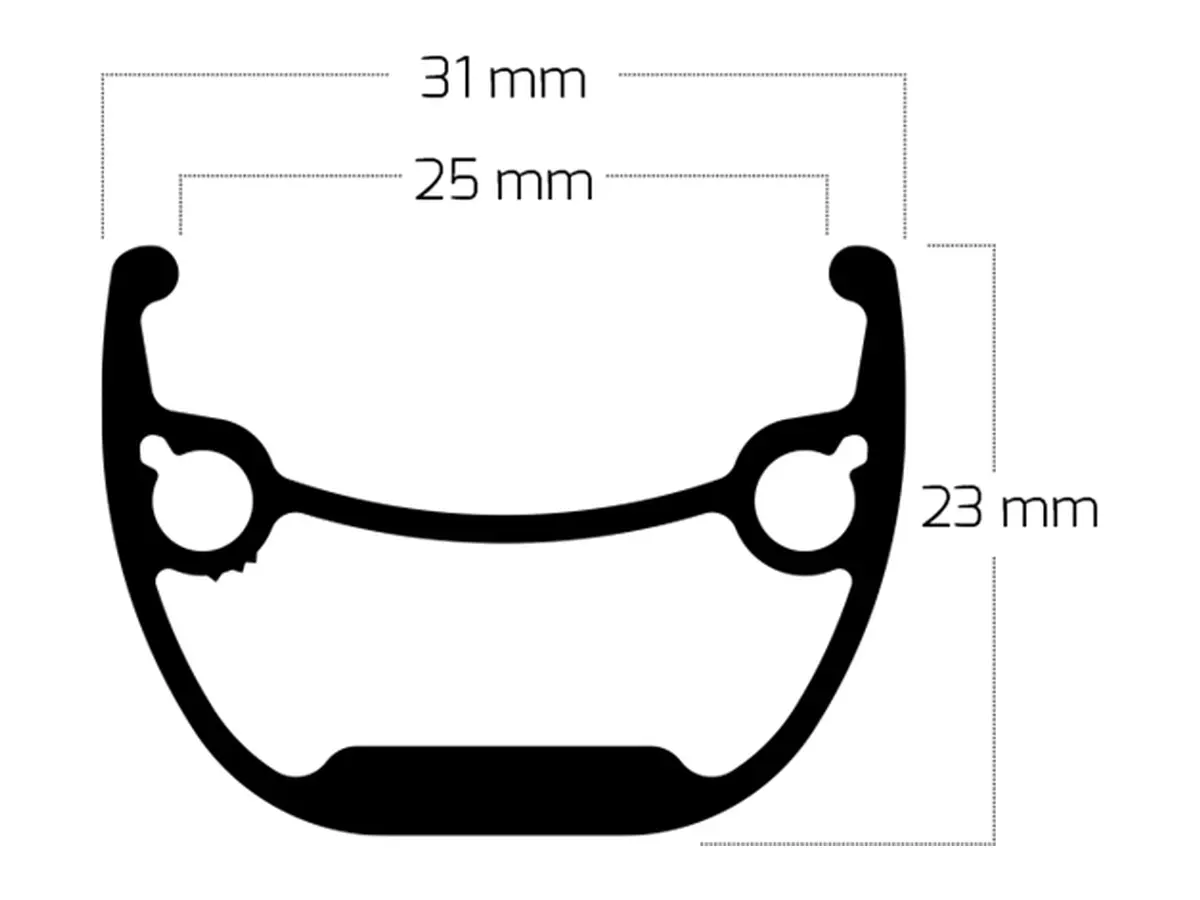

- Width: 25mm internal, 31mm external
- Height (Rim Wall): 23mm
- Rim Wall: no brake track, disc brake only
- Valve Hole Diameter: 8.5mm for Schrader valve
- Contains: 1 rim
- Extras:
- not tubeless ready, for tube tyres
- hooked rim (crotchet)
- no eyelets, internally reinforced nipple bed
- French drilling pattern (staggered holes)
- spoke holes drilled 8° radial and 2° axial
- max. spoke tension 1400N
- recommended tyre width 29mm to 71mm
- axle load up to 120kg
- ERD 596mm (maker figure)
- developed by Ryde for cargo bikes and high loads
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
