Ryde "Rival 23" MTB Rim - 29" Inch
-
Weight : 0.62kg / 1.37lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36952
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

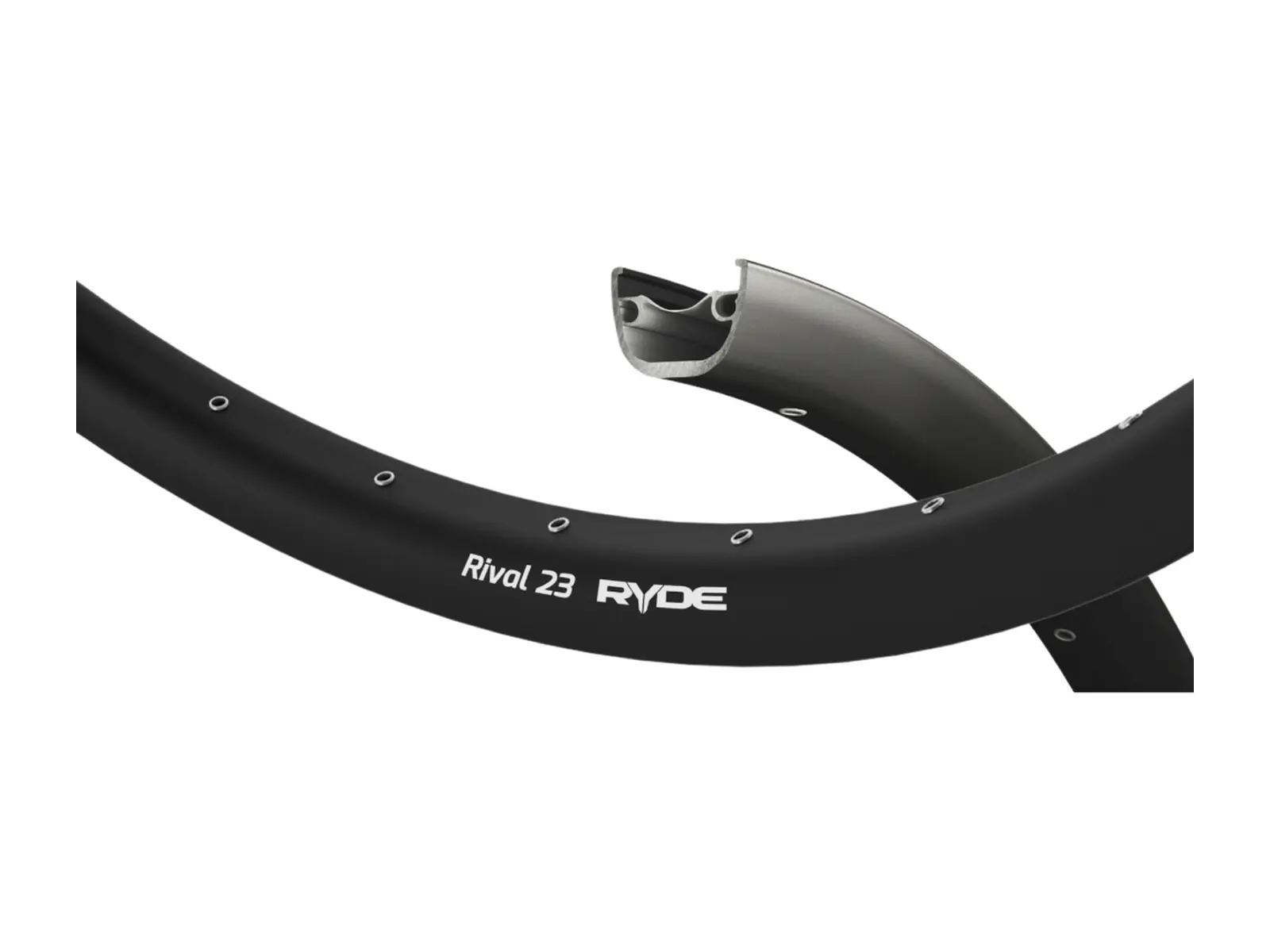

The Ryde "Rival 23" MTB Rim - 29" Inch is the entry into Ryde's tubeless ready Rival range: a pinned double wall rim made of 6106-T6 aluminium with 23.5mm internal width for tyres from 37 to 64mm. The spoke holes carry single eyelets, the valve hole is drilled for Presta valves, there is no brake track, the rim is meant for disc brakes only. Ryde rates it for MTB, ATB, city, touring and e-bikes up to 25 km/h with an axle load of up to 90kg. For a trail hardtail or an all round 29 inch wheel that must not cost much.
Facts: Ryde "Rival 23" MTB Rim - 29" Inch
- Wheel Size: 29"
- Material: 6106-T6 aluminium, double wall, powder coated
- Seam: Pinned
- Holes: 28H

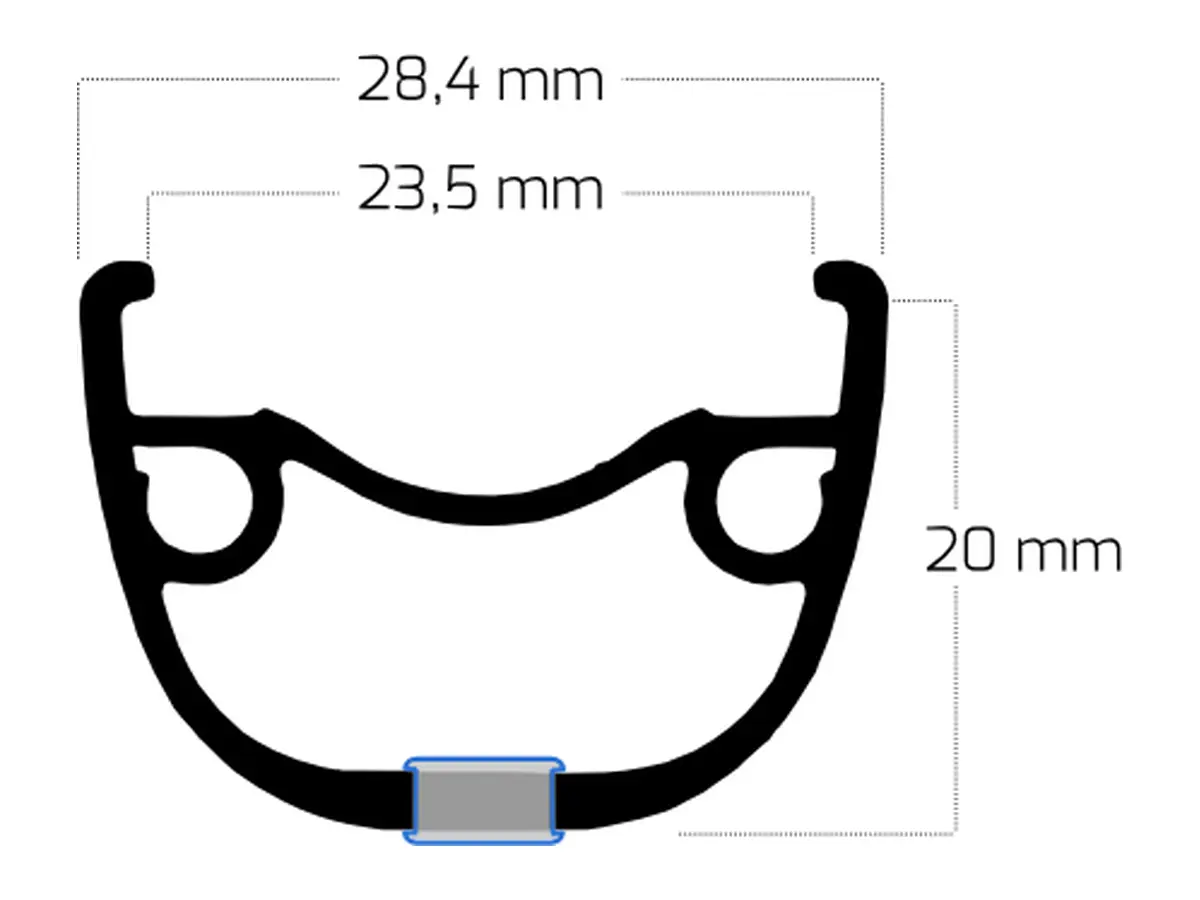

- Width: 23.5mm internal, 28.4mm external
- Height (Rim Wall): 20mm
- Rim Wall: no brake track, disc brake only
- Valve Hole Diameter: 6.5mm for Presta valve
- Contains: 1 rim
- Extras:
- tubeless ready
- hooked rim (crotchet)
- single eyelets
- French drilling pattern (staggered holes)
- max. spoke tension 1200N
- recommended tyre width 37mm to 64mm
- axle load up to 90kg
- ERD 597mm (maker figure)
- use as rated by Ryde: MTB, ATB, city, touring, e-bike 25 km/h
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
