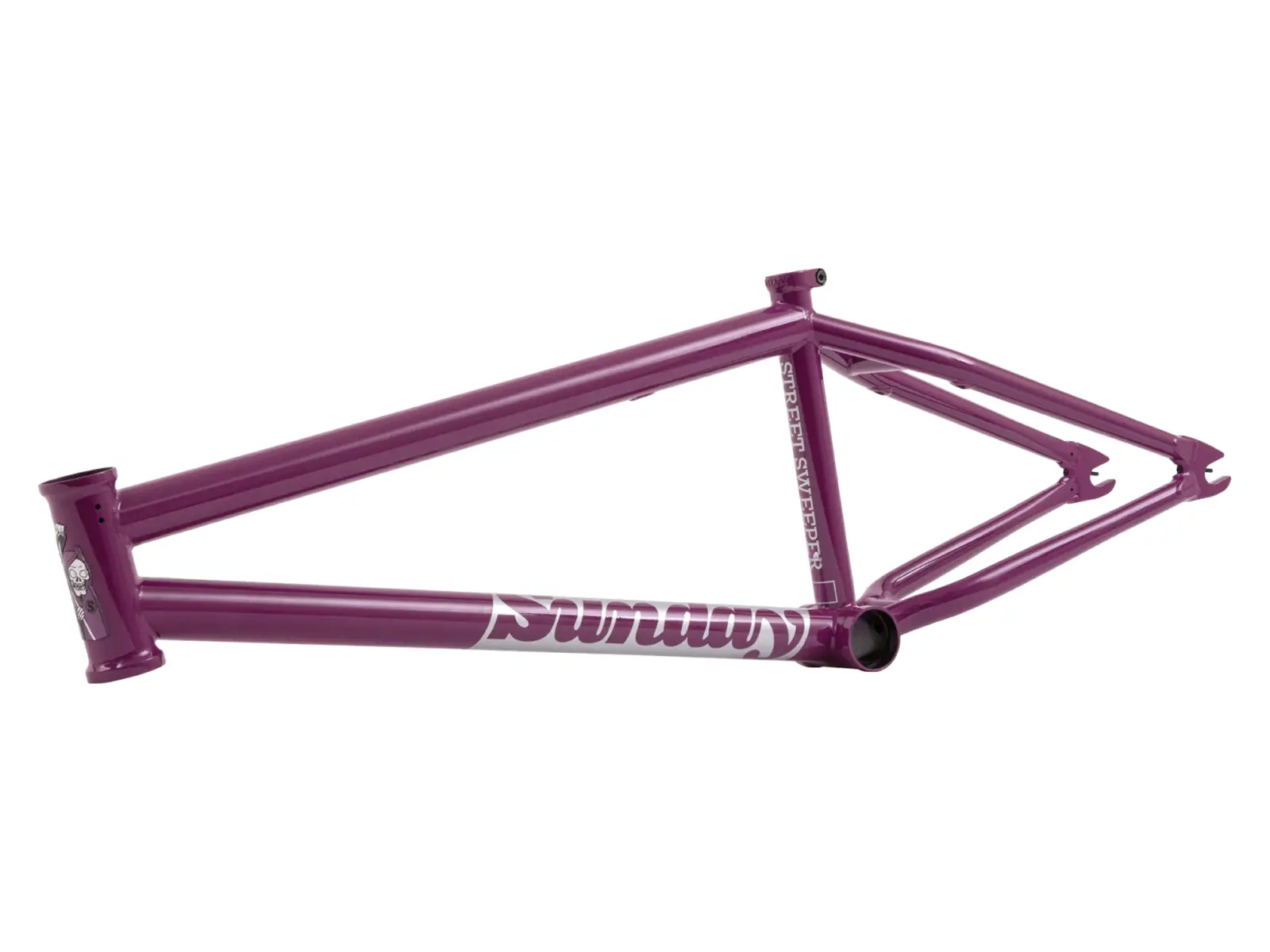

Sunday Bikes "Street Sweeper 2026" BMX Frame
-
Weight : 2.27kg / 5.00lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 35704
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The
Sunday Bikes "Street Sweeper 2026" BMX Frame
is the signature frame of Sunday team rider Jake Seeley and it is built for technical street riding.
It evolves directly from Jake Seeley's original Broadcaster frame, using shorter chain stays, a steeper head tube angle, a taller bottom bracket and smaller hollow dropouts with integrated chain tensioners.
The front triangle of the
Sunday Bikes "Street Sweeper 2026" BMX Frame
uses traditional round Nightshift style top and down tubes, both double-butted and internally gusseted. The miter cut top tube creates a precise joint with the seat stays, which is substantially stronger than a sandwiched top tube. Chain and seat stays taper and are angled on the inside, which improves chain clearance and saves weight.
Brake mounts, cable guides and stops are removable and included with the
Sunday Bikes "Street Sweeper 2026" BMX Frame
, gyro tabs are there as well. The seat clamp is integrated.
Facts: Sunday Bikes "Street Sweeper 2026" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, double-butted top tube and down tube with internal gussets, butted seat tube, tapered chain and seat stays, miter cut top tube
- Geometry:
- Top Tube Length (TT): 20.5" or 21.0"
- Chainstay Length (CS): 12.7" (32.26cm) - 13.0" (33.02cm)
- Head Tube Length: 4.7" (11.94cm)
- Head Tube Angle (HA): 75.25°
- Seat Tube Angle (SA): 71°
- Bottom Bracket Height: 11.7" (29.72cm)
- Standover Height (SO): 8.8" (22.35cm) - Seat Clamp: integrated
- Dropouts: hollow, 8mm thick, with integrated chain tensioners
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable)
- Brakemounts included with delivery: Yes
- Gyro compatible: Yes
- Features: Jake Seeley signature frame, tire clearance up to 2.4", gyro tabs
- Model Year: 2026
