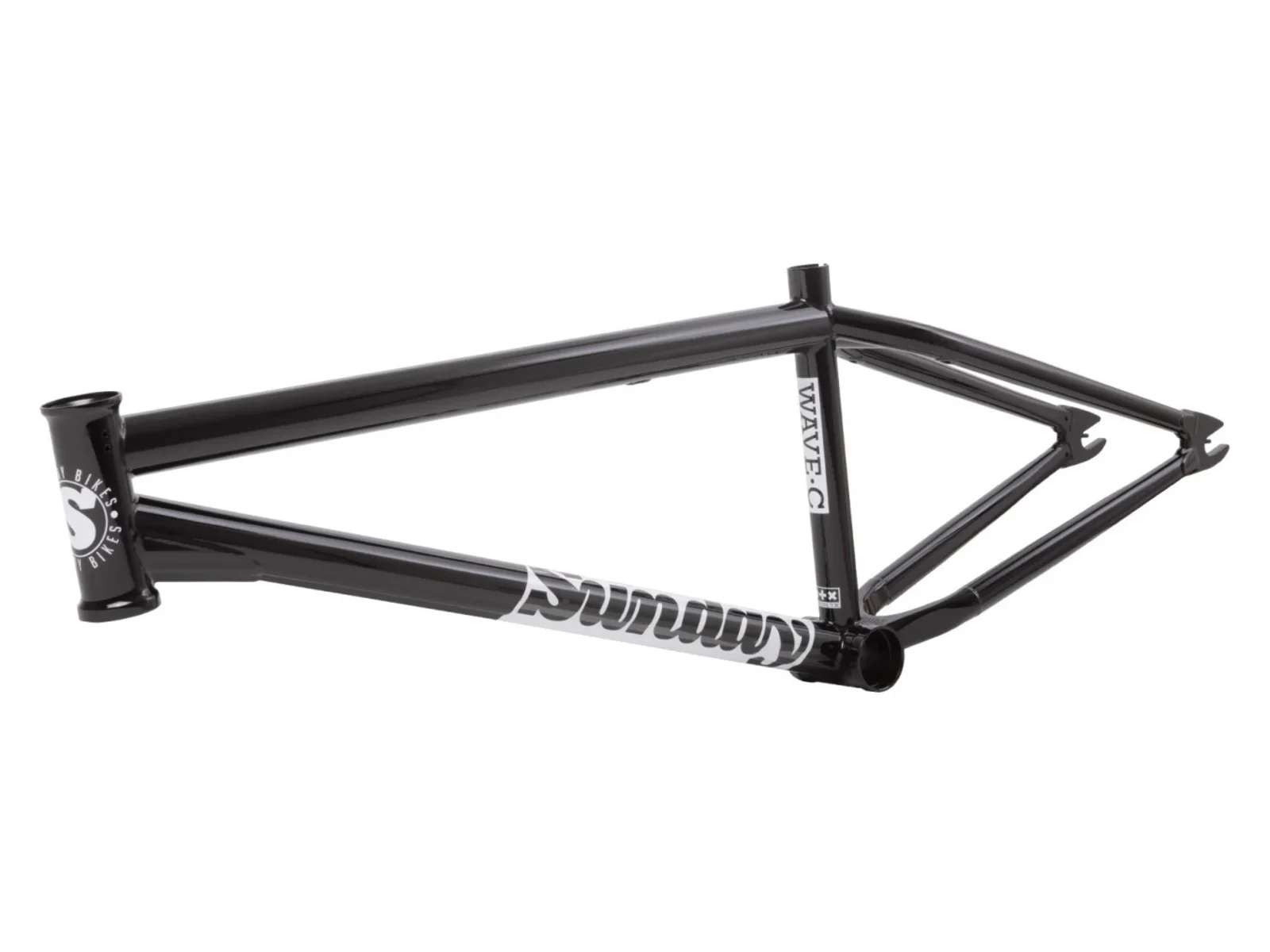

Sunday Bikes "Wave-C 24" BMX Frame - 24 Inch
-
Weight : 2.67kg / 5.89lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 30218
The Sunday Bikes "Wave-C 24" BMX Frame - 24 Inch is designed for 24-inch wheels and delivers a 100% BMX feel. It is perfect for hitting the trails, but also ideal for sporty cruising around town or at the skate park.
Facts: Sunday Bikes "Wave-C 24" BMX Frame - 24 Inch
- Wheel Size: 20"
- Material: 100% 4130 CrMo, down tube gussets, butted tubes, tapered chainstays, integrated headset
- Geometry:
Top Tube Length (TT): 22"
Chainstay Length (CS): 14.1" (35.81cm) - 14.35" (36.45cm)

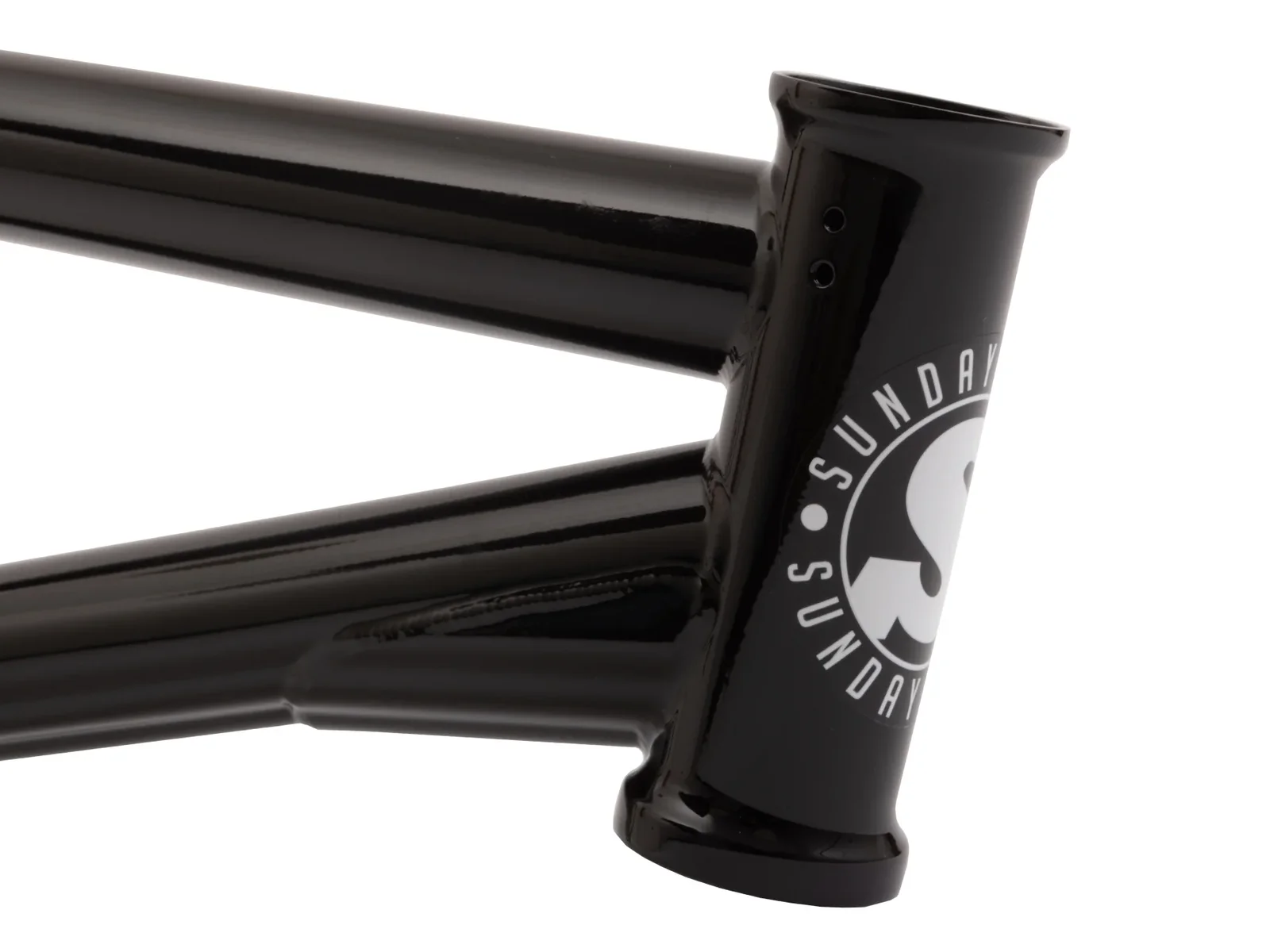

Head Tube Length: 4.8" (12.19cm)
Head Tube Angle (HA): 74.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 13.0\" (33.02cm)
Standover Height (SO): 9.125\" (23.17cm) - Seat Clamp: without (included with delivery)
- Seat Post Diameter: 25.4mm

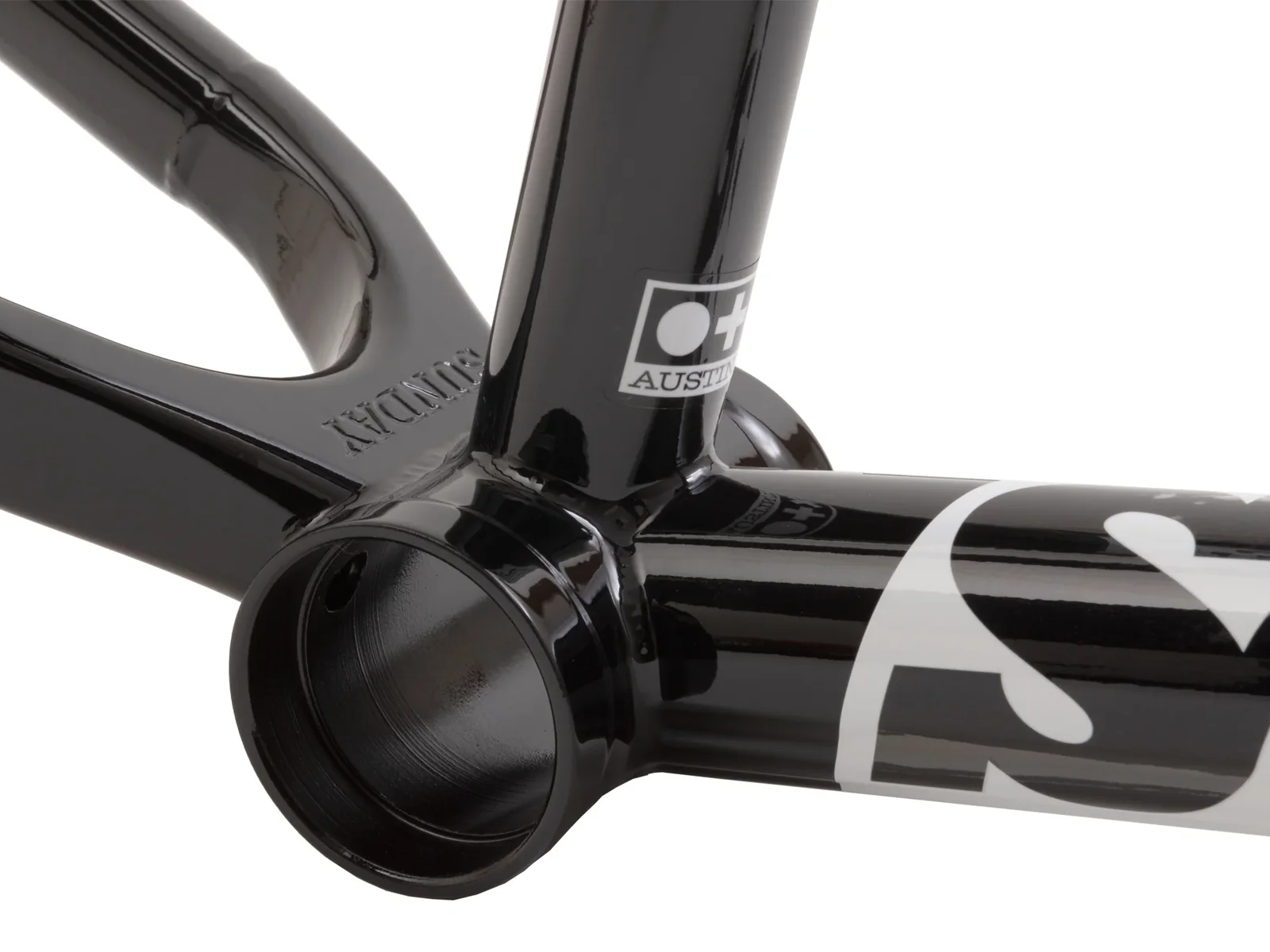

- Bottom Bracket: Mid BB

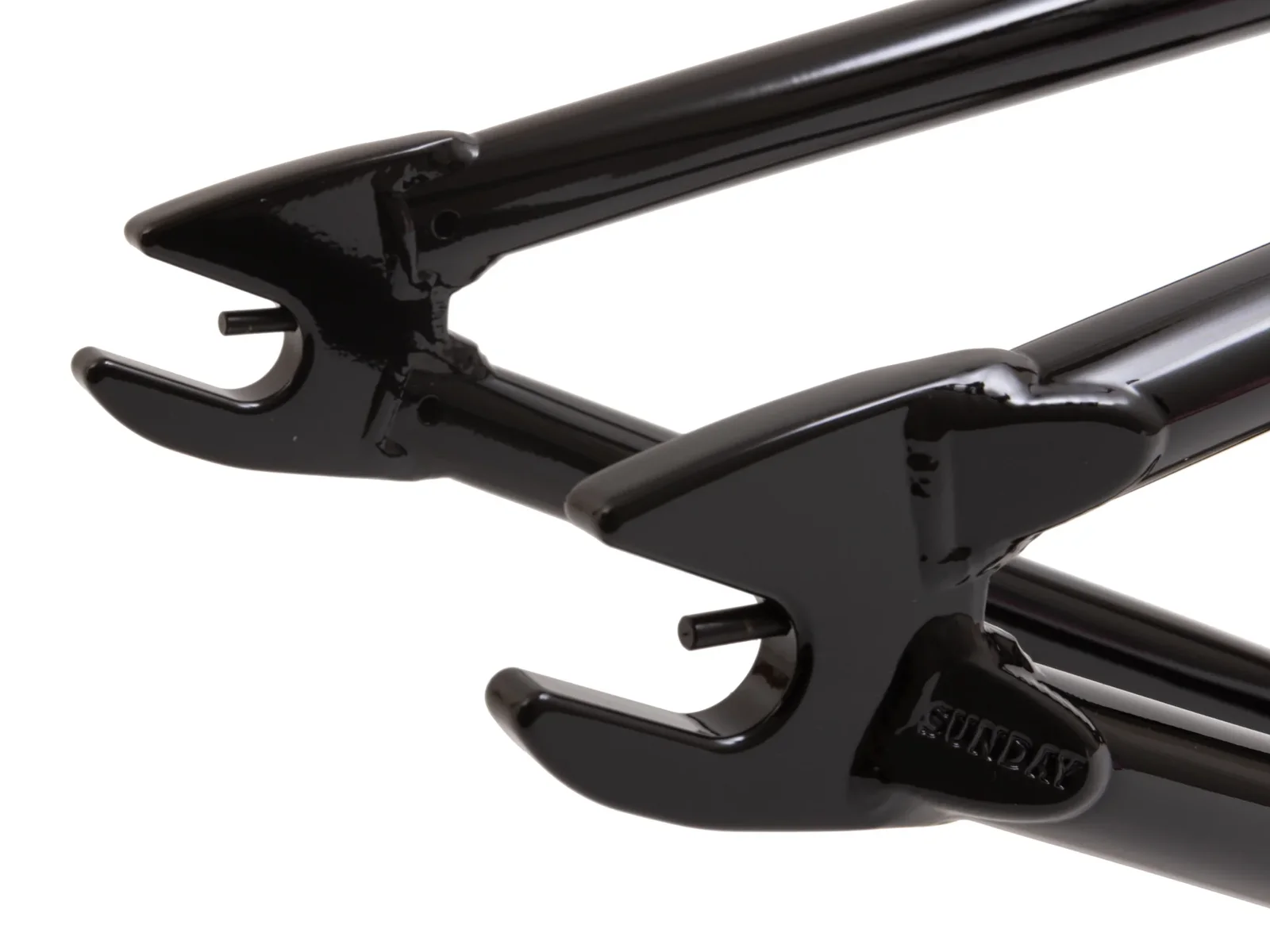

- Dropouts: Investment cast, 8mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: Yes | No
- Gyro compatible: Yes
- Model Year: 206
