Title MTB “Single Speed Spacer Set” Single Speed Conversion Kit
-
Weight : 0.08kg / 0.18lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 30646
The Title MTB “Single Speed Spacer Set” Single Speed Conversion Kit offers you a clean and absolutely reliable single-speed setup for your dirt jump or downhill bike. Featuring a robust 13T steel cog and precision CNC-machined spacers made from 6061-T6 aluminum, the kit allows for accurate chainline adjustment on Shimano HG freehubs. This way, the Title MTB “Single Speed Spacer Set” Single Speed Conversion Kit ensures a secure drivetrain with fewer parts and zero distractions on the trail.
Installation Guide
Things You Will Need: Cassette tool
Assembly time: approximately 5 minutes
Difficulty: Easy

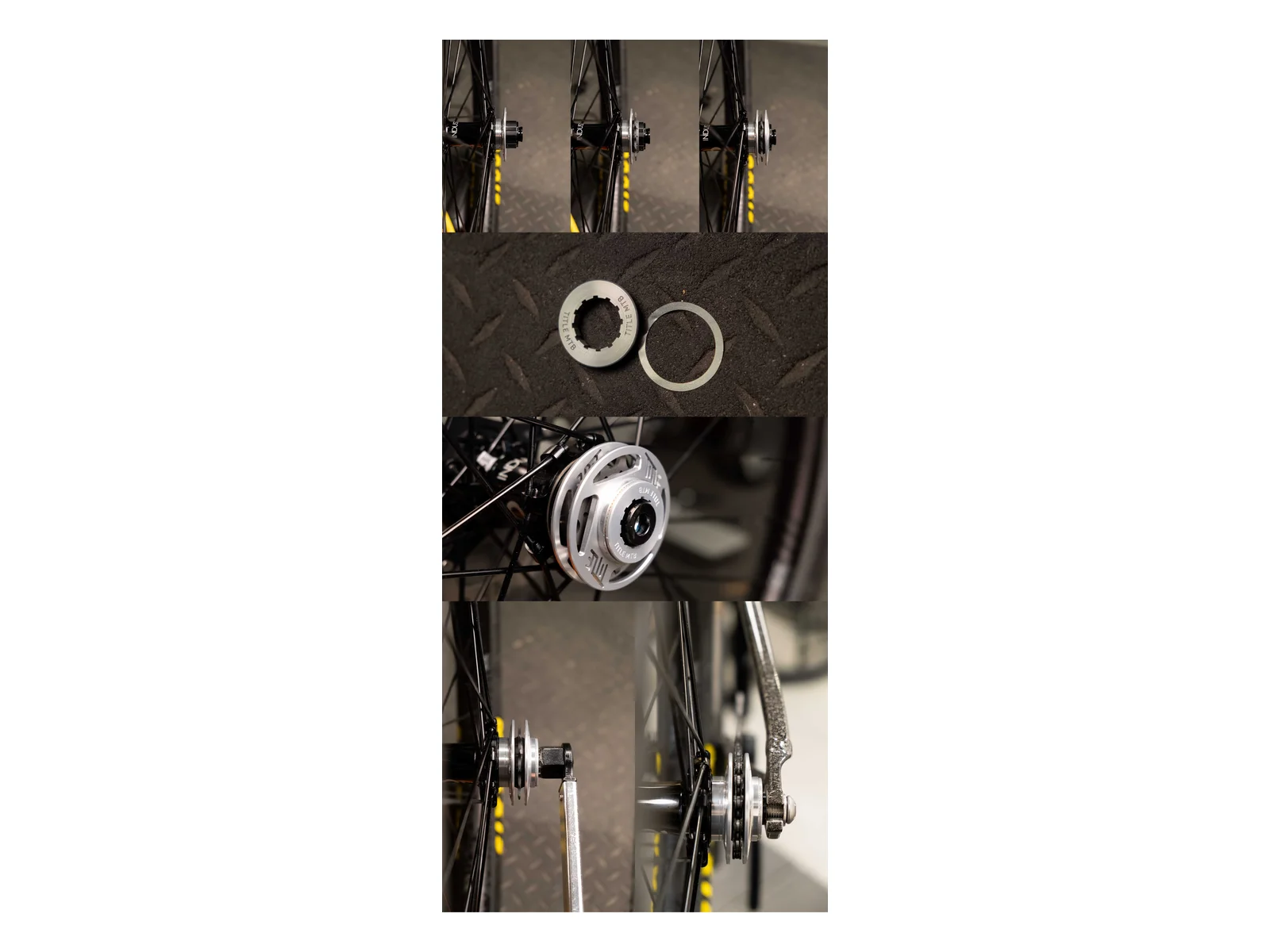

- Remove your rear wheel. Thoroughly clean your hub driver to ensure optimal operation of our Single Speed Kit.
- Slide on desired amount of spacers to create desired chainline.
- Slide on the Single Speed back plate.
- Slide on the toothed cog gear.
- Slide on the Single Speed front plate.
- Slide on desired amount of additional spacers.
- Hand thread end cap (ensure locking ring is placed on first).
- Use your cassette tool and torque the end cap to 40nm.

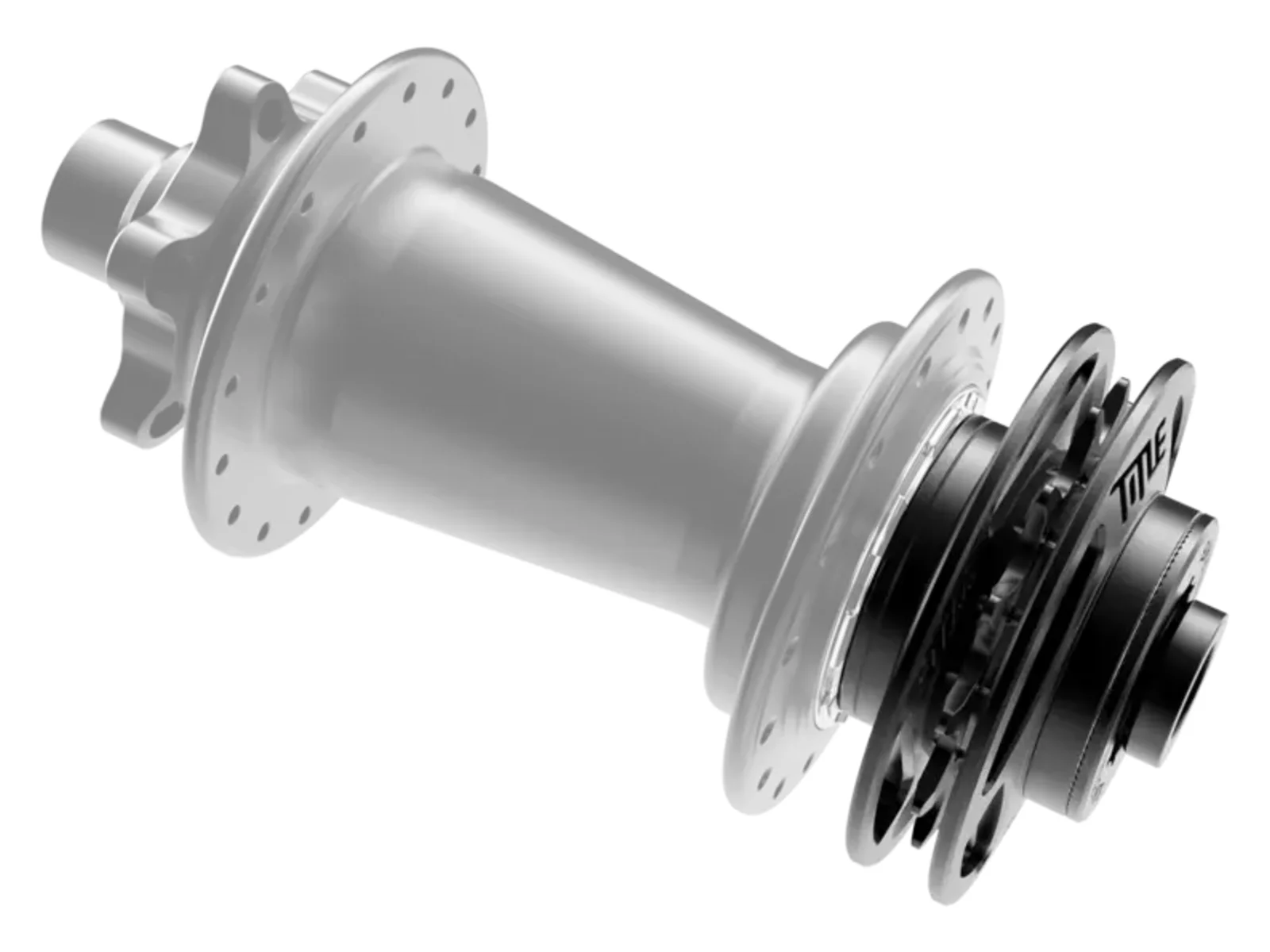

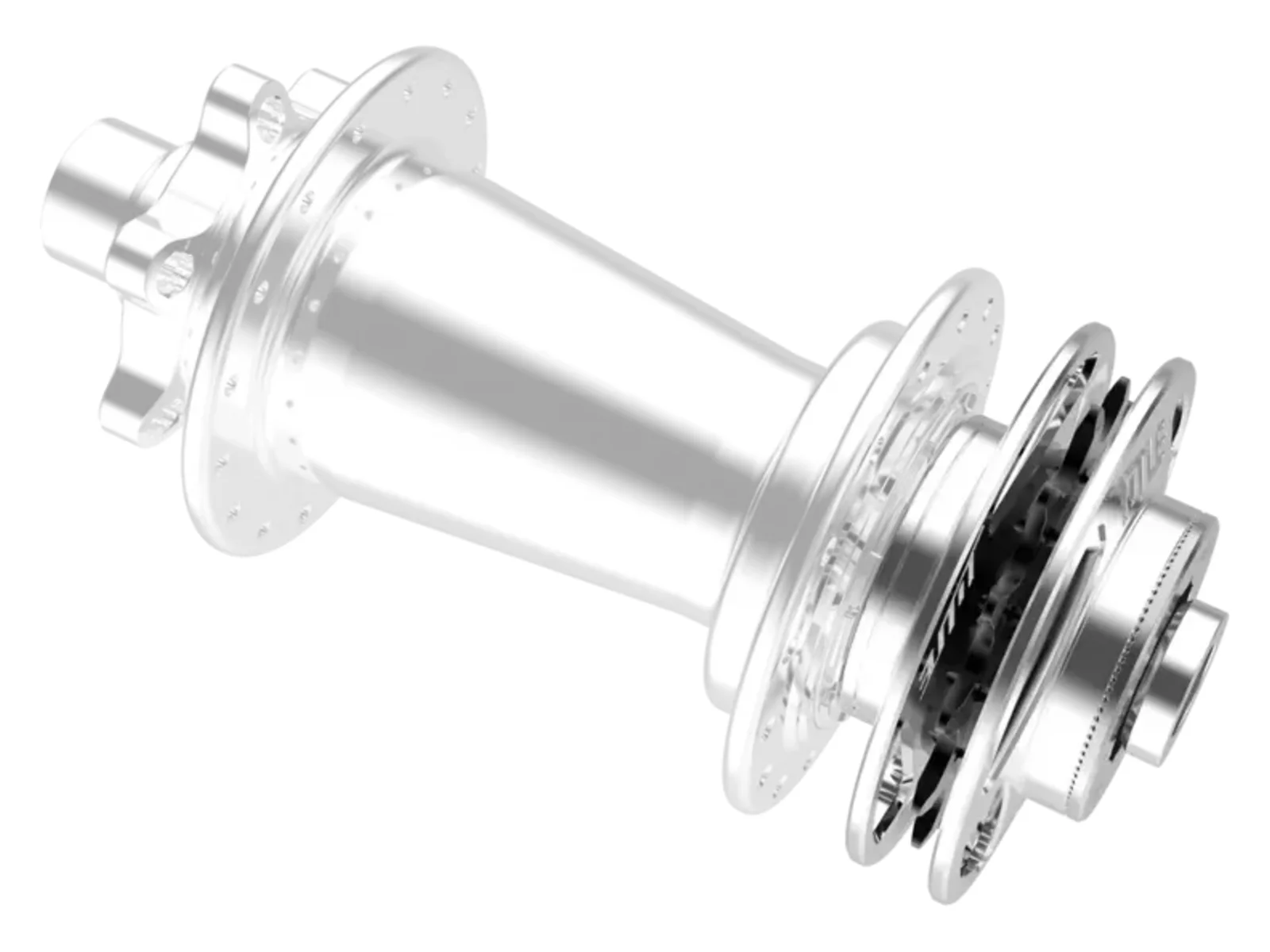

- Mount your rear wheel back on your bike, install the chain and double check the chain line is optimal.
Facts: Title MTB “Single Speed Spacer Set” Single Speed Conversion Kit

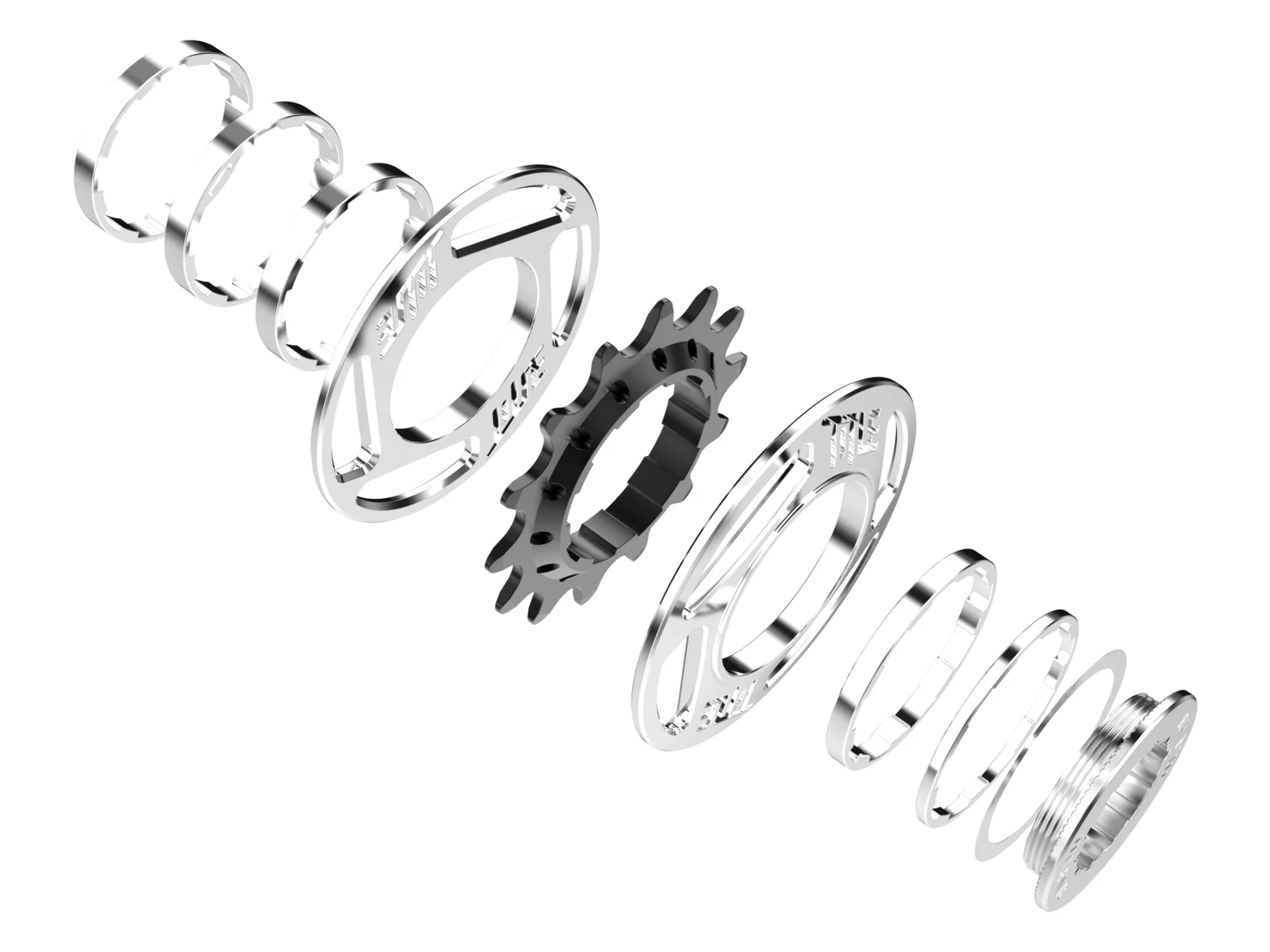

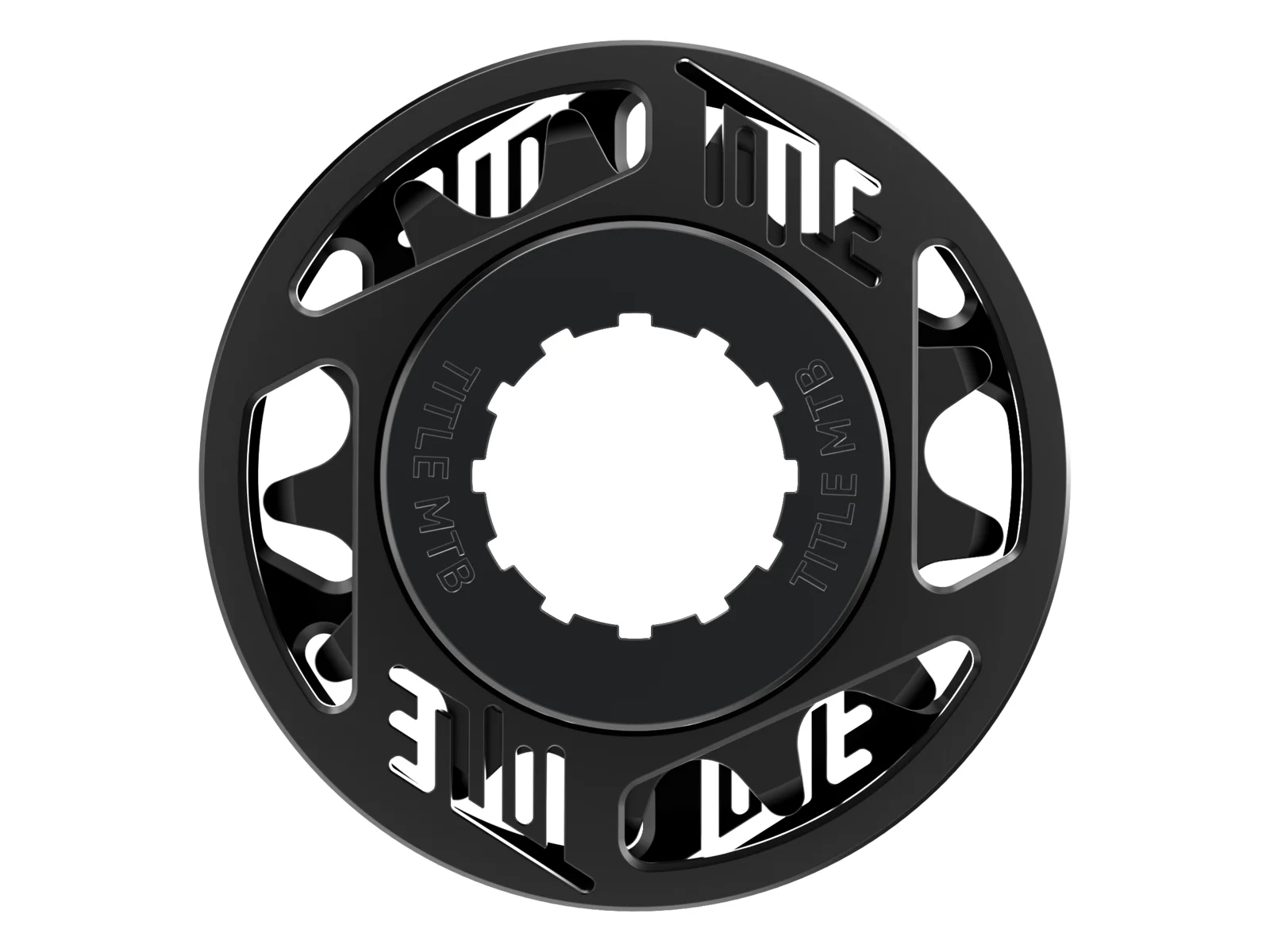

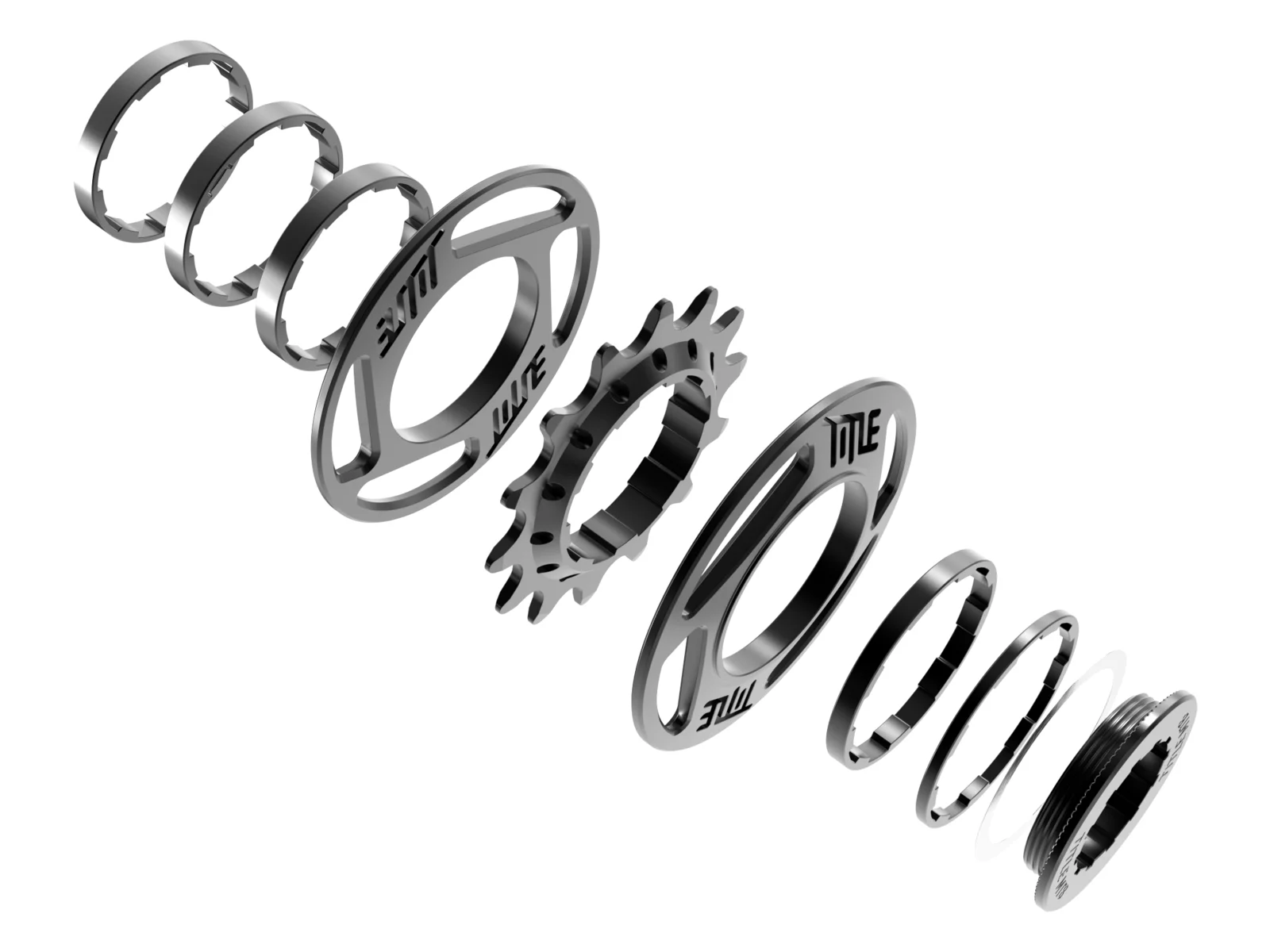

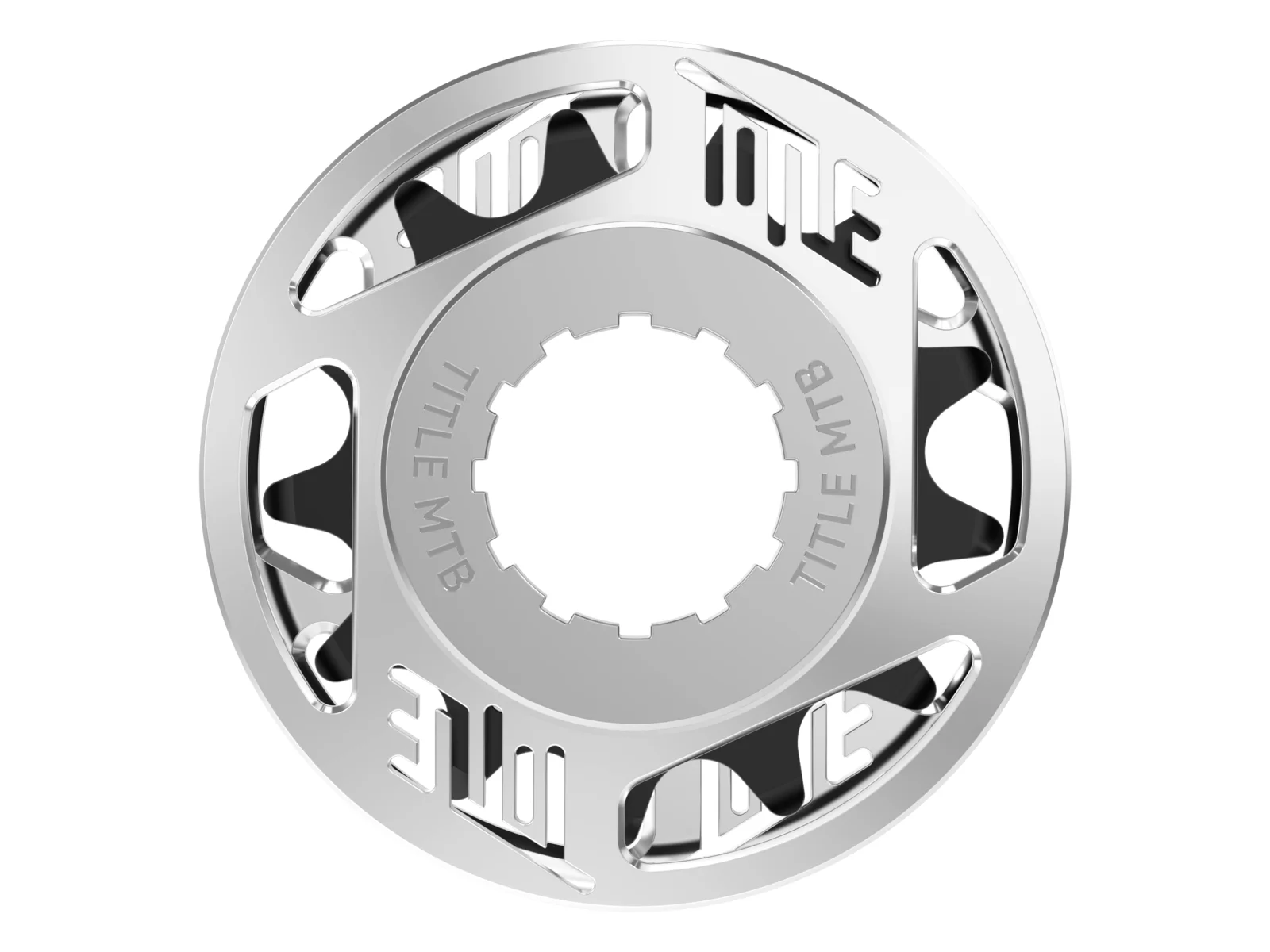

- Contents: 1x 13T cog (steel), 1x threaded lock ring (7075-T6), 1x steel washer, 2x CNC machined guide plates (6061-T6), spacers (3x 5mm, 1x 3.5mm, 2x 2mm made of 6061-T6)
- Compatibility: Shimano HG freehubs (not compatible with SRAM XD)
- Extras: Allows for accurate chainline adjustment and secure drivetrain alignment
