Total BMX "TWS Mark Webb 2" BMX Frame

319.29 EUR

Taxfree excl. shipping

Color | Brake Mounts | Top Tube Length

Please Select
- - green | with (screwable) | 21.0"
  - green | with (screwable) | 21.25"

Qty.:

pick up in our shop?

Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.

Weight : 2.2kg / 4.85lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Packaging Unit: 1 Piece
Product ID (PID): 18180
Product safety

Found an error? Report it. 5 EUR voucher if confirmed.

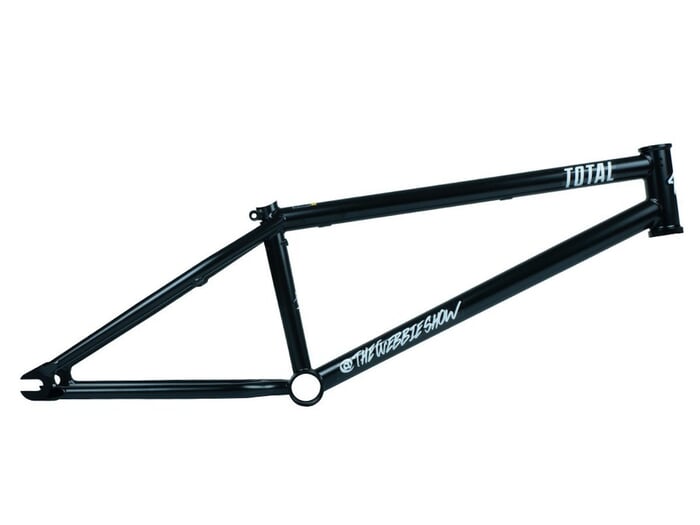

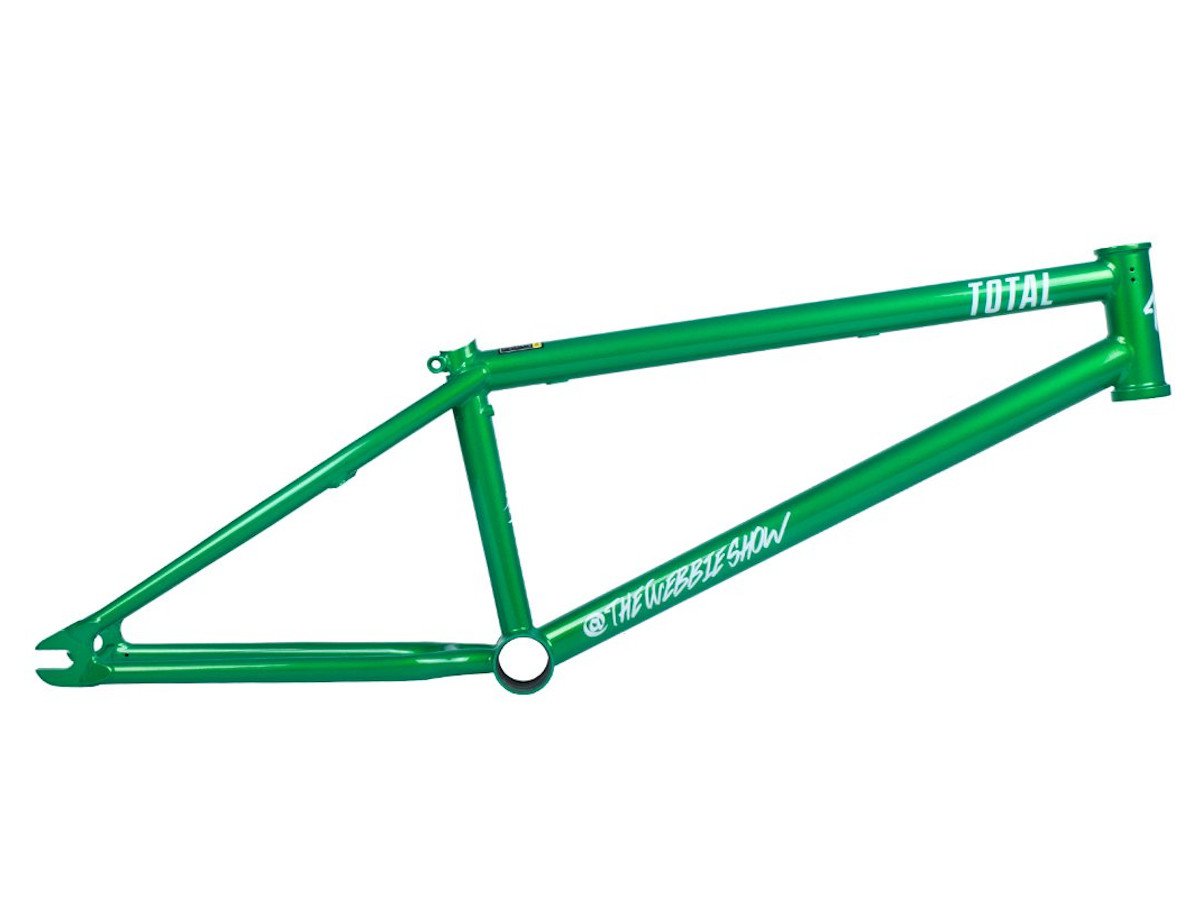

The Total BMX "TWS Mark Webb 2" BMX Frame is Mark Webb's signature frame, was in accordance to his riding style and is the famous Voltron frame perfected. For the Total BMX "TWS Mark Webb 2" BMX Frame Total BMX added the DBS brake mod which works a treat and simplifies the lower brake cables of a gyro, this mod was originally designed by team mate Mark Webb but has been refined by total's product designer for the production model Americano frame. The Total BMX "TWS Mark Webb 2" BMX Frame is made from heat treated 100% 4130 CrMo and a steep 75.5° head tube paired with a 13.2" (slammed) rear end and a solid 8.75" standover height make this high quality BMX frame very responsiv.

Facts: Total BMX "TWS Mark Webb 2" BMX Frame

Wheel Size: 20"
Material: 100% 4130 CrMo, tapered tubes, integrated headset, integrated seatclamp, removable brake hardware, Mid BB
Geometry:
- Top Tube Length (TT): 21.0" or 21.25"
- Chainstay Length (CS): 13.2" (33.53cm) - 13.4" (34.04cm)
- Head Tube Angle (HA): 75.5°
- Seat Tube Angle (SA): 71°
- Bottom Bracket Height: 11.5" (29.21cm)
- Standover Height (SO): 8.75" (22.22cm)
Seat Clamp: integrated
Seat Post Diameter: 25.4mm
Bottom Bracket: Mid BB
Dropouts: Investment cast, 6mm thick, 14mm slots
Chain Tensioners: without
Brake Type: U-Brake
Brakemounts: with (screwable, M8)
Brakemounts included with delivery: No
Gyro compatible: Yes
Features: Mark Webb Signature frame, Brake Mod "DBS" (Dual Brake System), Wide rear end for fat 2.4" tires
Model Year: 2020
