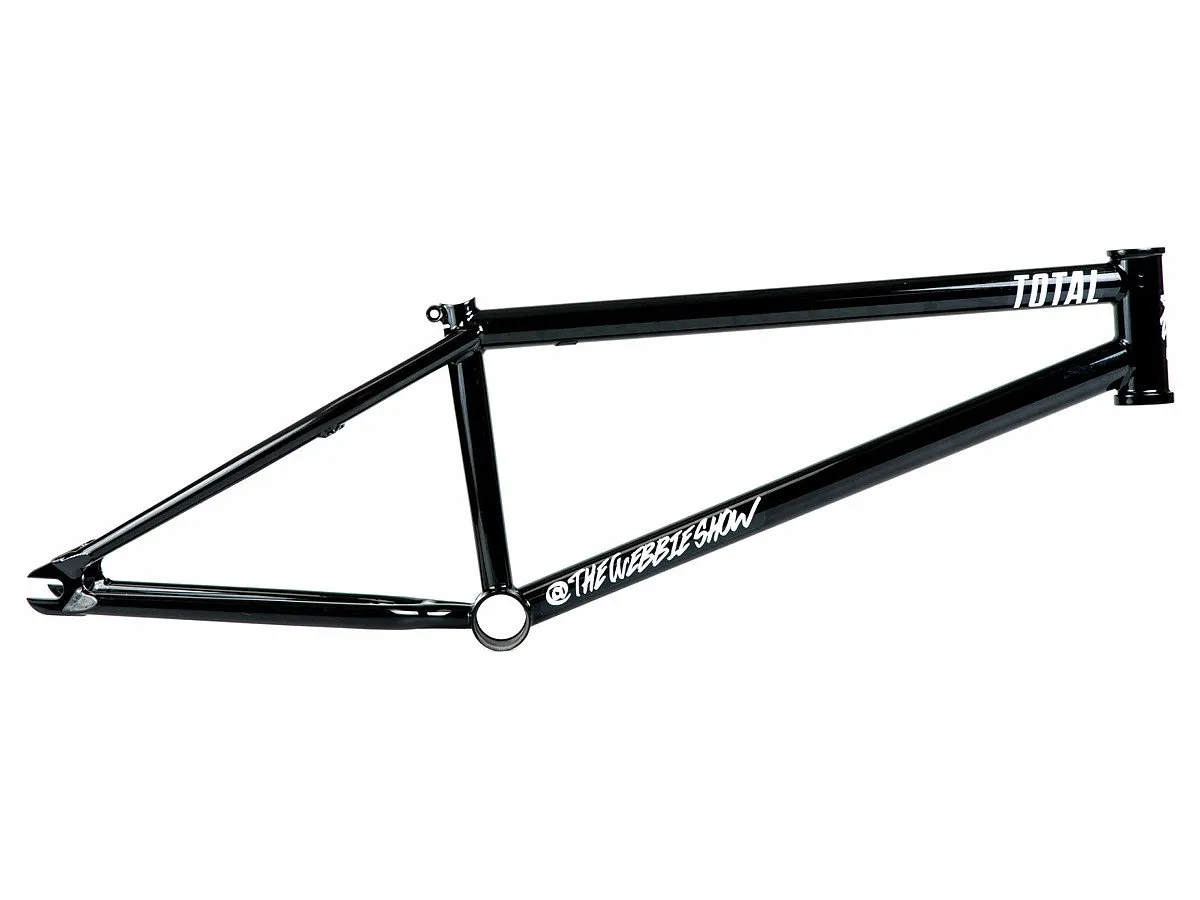

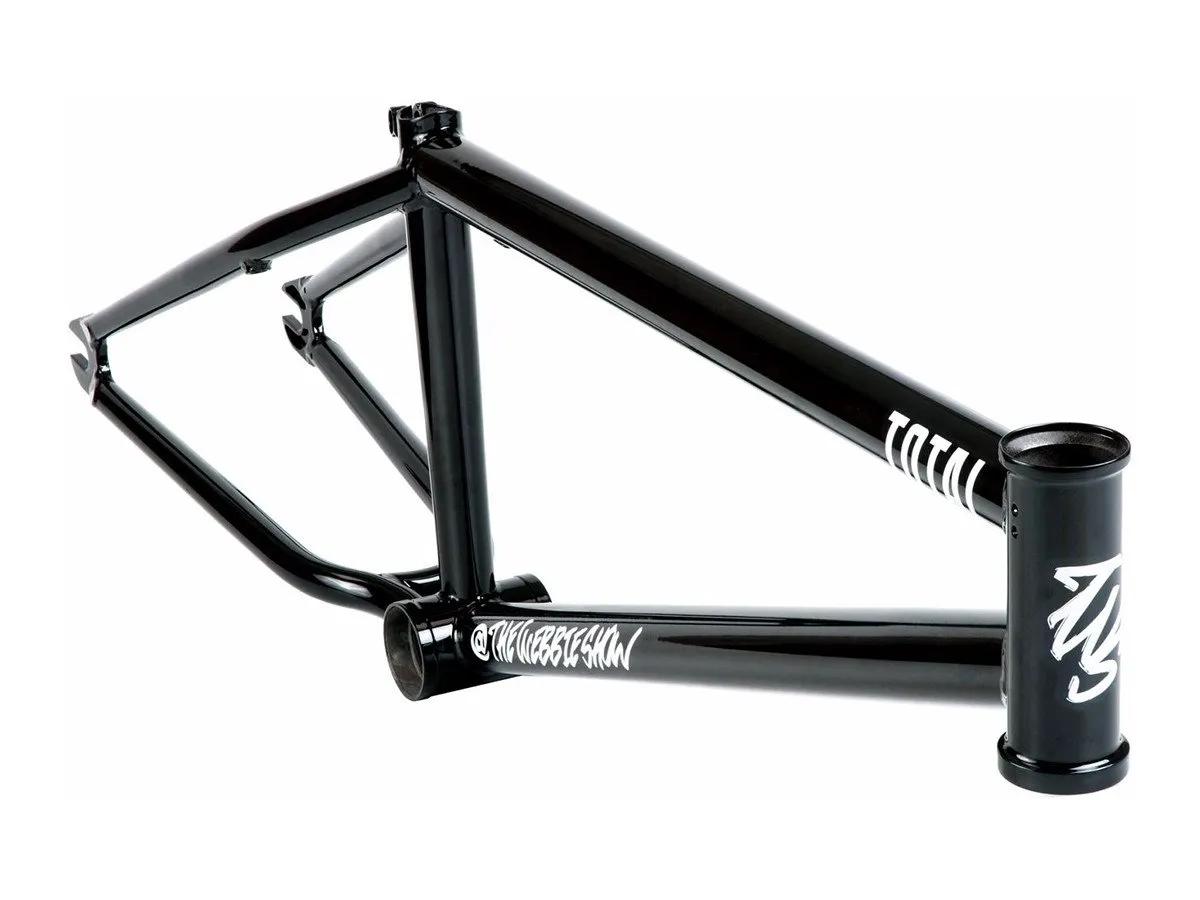

Total BMX "TWS Mark Webb" BMX Frame

369.95 EUR

[incl. 19% VAT excl. shipping]
Color
Brake Mounts
Toptube
Qty.
  • Weight (in kg): 2.2
  • Weight (in lbs): 4.85
  • Packaging Unit: 1 Piece
  • Product ID (PID): 12470

The Total BMX "TWS Mark Webb" BMX Frame is Mark Webb's signature frame, was in accordance to his riding style and is the famous Voltron frame perfected. The Total BMX "TWS Mark Webb" BMX Frame is made from heat treated 100% 4130 CrMo and a steep 75.5° head tube paired with a 13.2" (slammed) rear end and a solid 8.75" standover height make this high quality BMX frame very responsiv.

Facts: Total BMX "TWS Mark Webb" BMX Frame

  • Wheel Size: 20"
  • Material: 100% 4130 CrMo, tapered tubes, integrated headset, integrated seatclamp, removable brake hardware, Mid BB
  • Geometry:
    Top Tube (TT): 20.6", 21.0" or 21.25" (selectable as an option)
    Chain Stay (CS): 13.2" - 13.4"
    Head Tube Angle (HA): 75.5°
    Seat Tube Angle (SA): 71°
    BB Height: 11.5"
    Standover Height (SO): 8.75"
  • Seat Clamp: integrated
  • Seat Post Diameter: 25.4mm
  • Bottom Bracket: Mid BB
  • Dropouts: 5mm thick, 14mm slots
  • Chain Tensioners: without
  • Brakemounts: removable, M8
  • Extras: Mark Webb Signature frame, Wide rear end for fat 2.4" tires
  • Model Year: 2017
