United Bikes "Supreme V3" BMX Crank

117.61 EUR

Color | lenght
  • Please Select
Qty.
pick up in our shop?
Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.
Stuttgart Please select a product option!
Berlin Please select a product option!
  • Weight : 0.97kg / 2.14lbs
  • Packaging Unit: 1 Set
  • Product ID (PID): 12893

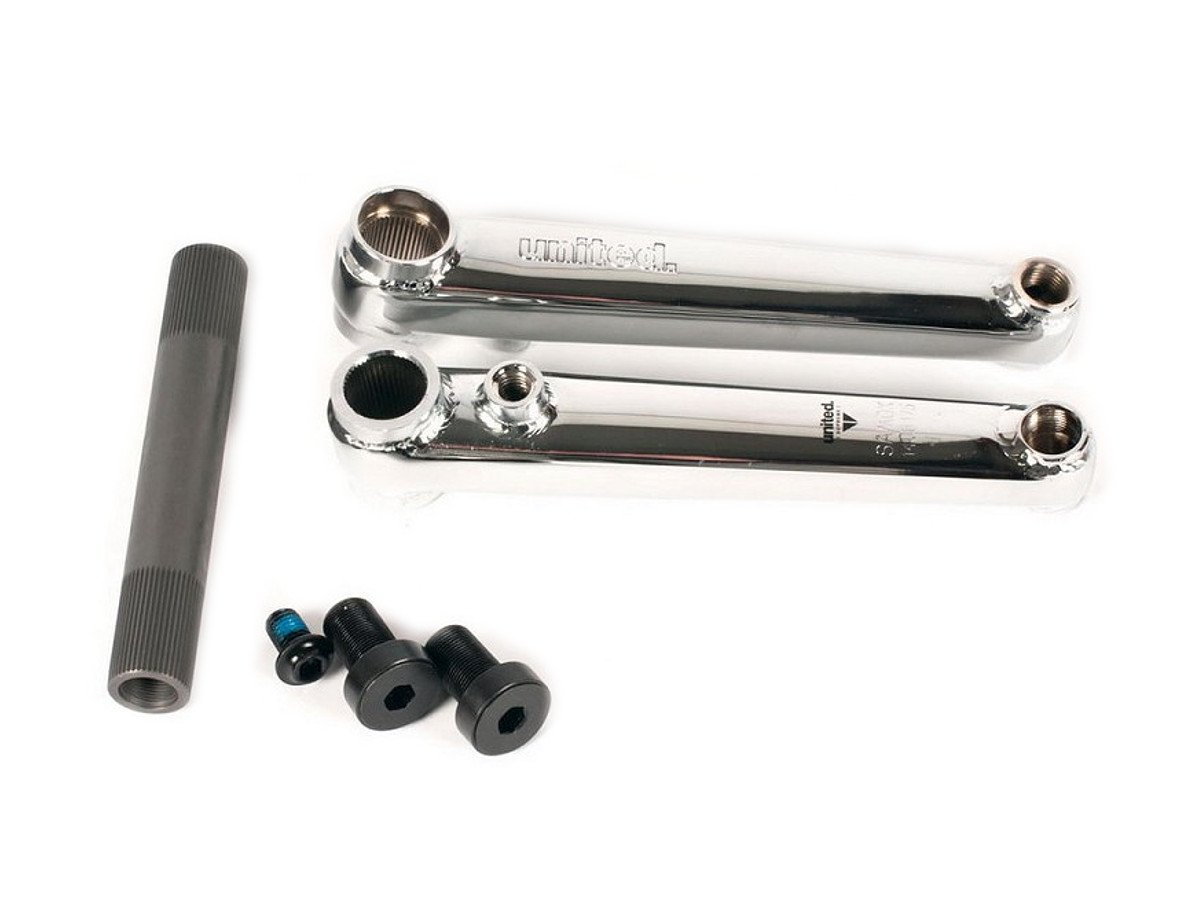

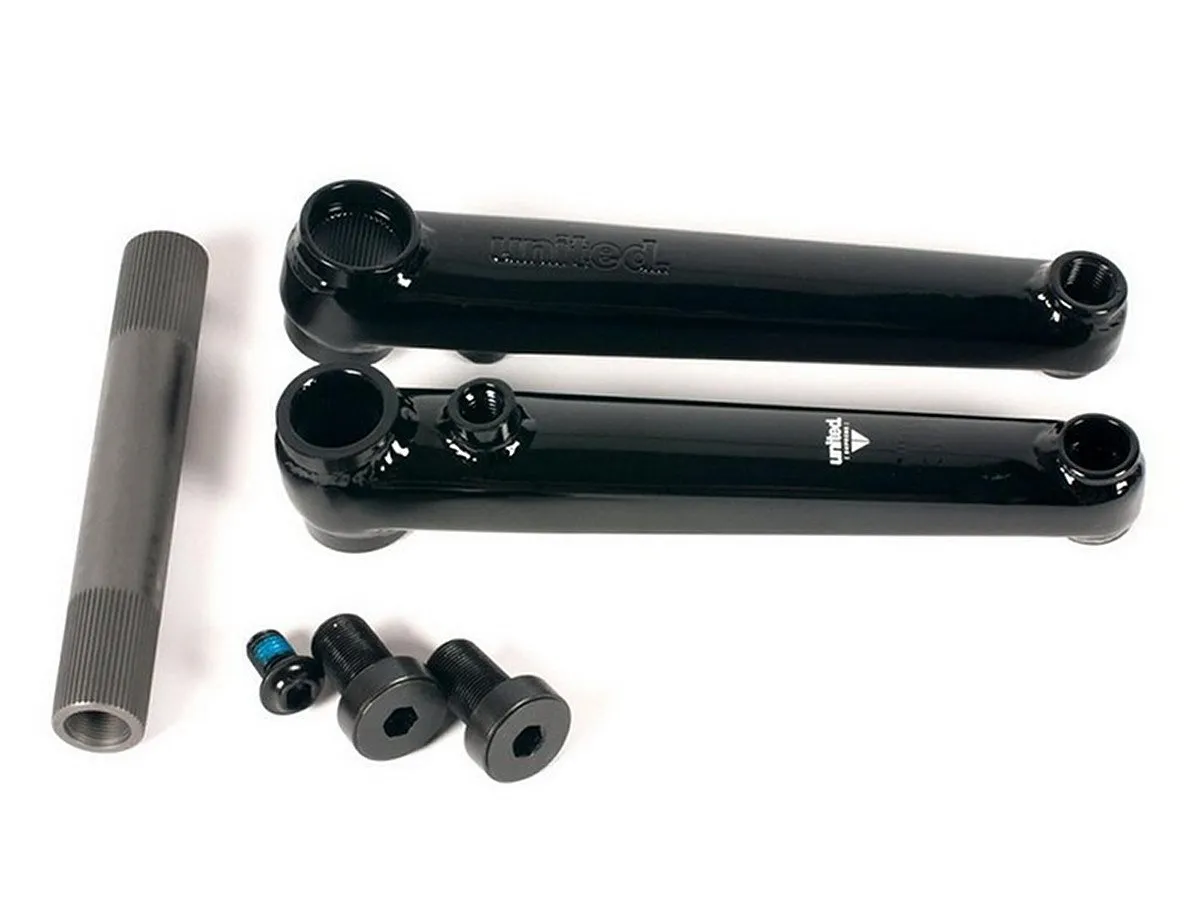

The United Bikes "Supreme V3" BMX Crank is a solid 3pc BMX crank with 48 spline 22mm spindle. The United Bikes "Supreme V3" BMX Crank can mount the sprocket on the right and on the left side.

Facts: United Bikes "Supreme V3" BMX Crank

  • Material Crank Arms: 4130 CrMo, heat treated
  • Material Crank Spindle: 4130 CrMo, heat treated, hollow
  • Crank-Type: 3-piece
  • Crank Arm Length: 175mm
  • Spindle Diameter: 22mm
  • Spindle-Type: 48-Spline
  • possible Sprocket Mount by:
    Bolt-Drive (25T or larger): right (RHD) and left (LHD)
    Spline-Drive: right (RHD) and left (LHD)
  • Pedal Threat: for 9/16" pedals
  • Spindle Bolt: 2x bolts (15x1mm, 22mm Axle) with 6mm allen key
  • Sprocket Bolt: 1x bolt (10x1.5mm)(Standard)
  • Extras: completely surround welded axle and pedal jacks
  • Recommended for: Street, Park or Trails
