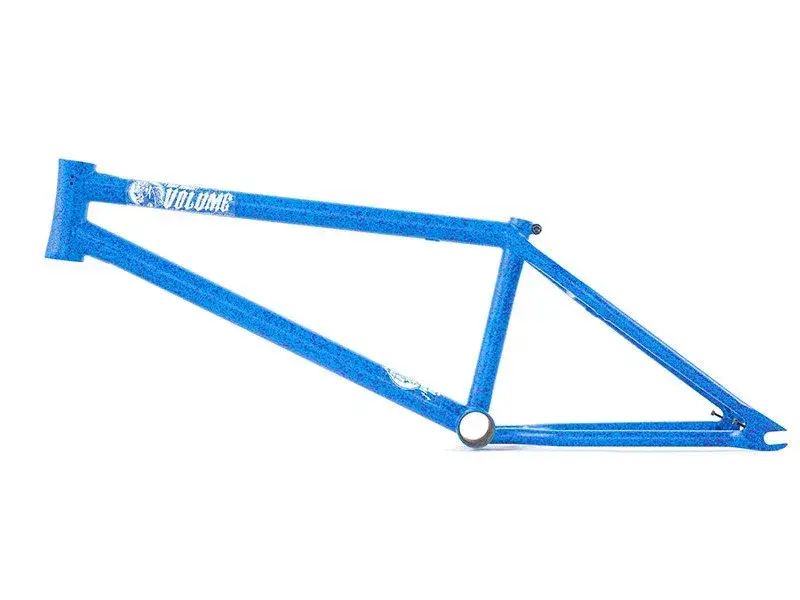

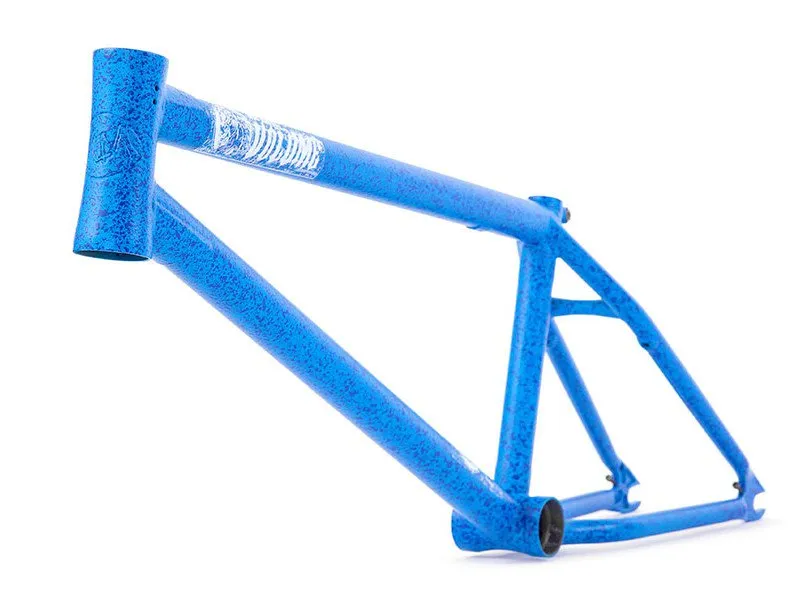

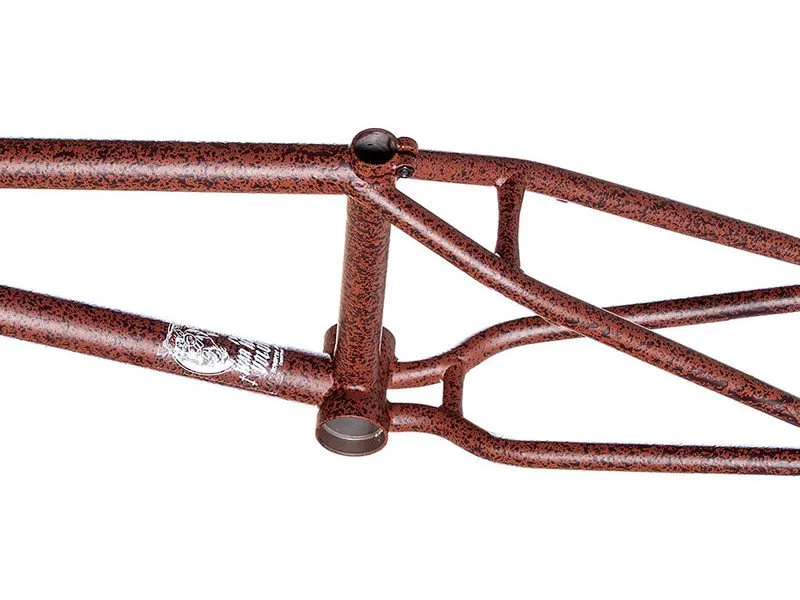

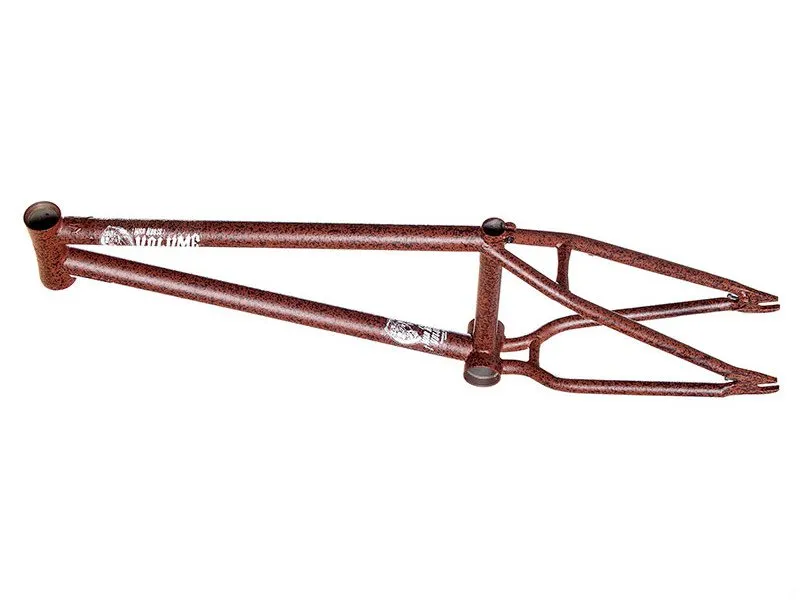

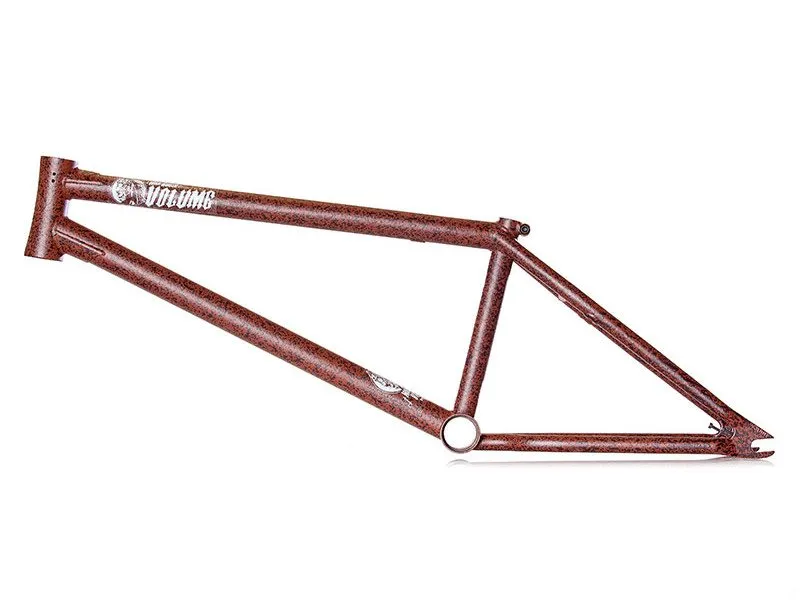

Volume Bikes "War Horse" 2017 BMX Frame
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 2.32kg / 5.11lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 10498
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The
Volume Bikes "War Horse" 2017 BMX Frame

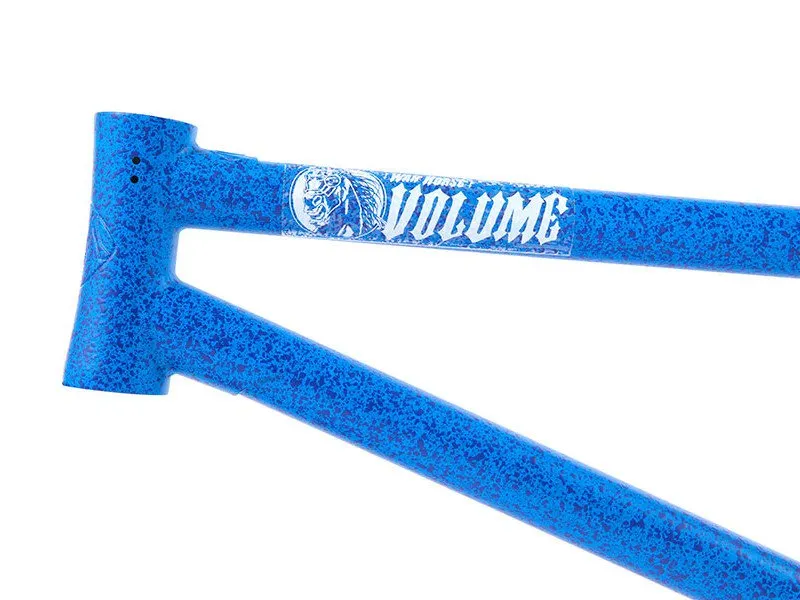

is DeMarcus Paul's first signature BMX frame, the War Horse. DeMarcus was very specific in what he wanted as geometry in his frame like short 13" slammed chainstay , 75.25º head tube, 9.25" stand over, and CNC'd VLM logo on the hour glass head tube. The
Volume Bikes "War Horse" 2017 BMX Frame
also features Volume's proven investment casted 7mm dropouts with built-in chain adjusters. Also features full 4130 CrMo heat treated tubing, double butted front triangle with both top and bottom gussets for added strength, removable brake mounts, and "S" chainstays for bigger tire clearance.
Facts: Volume Bikes "War Horse" 2017 BMX Frame
- Geometry:
- Top Tube (TT): 21.0"
- Chain Stay (CS): 13" - 13.5"
- Head Tube Angle (HA): 75.25°
- Seat Tube Angle (SA): 71°
- BB Height: 11.7"
- Standover Height (SO): 9.25" - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 7mm thick, 14mm slots
- Chain Tensioners: integrated
- Brakemounts: removable, M8
- Extras: DeMarcus Paul Signature frame, Wide rear end for fat 2.4" tires
- Model Year: 2017
