Wolf Tooth "CAMO" Direct Mount Spider - SRAM 3-Bolt

Name: Wolf Tooth "CAMO" Direct Mount Spider - SRAM 3-Bolt
Brand: Wolf Tooth
SKU: 36503-2
Availability: InStock

40.95 EUR

Taxfree excl. shipping

Color | Style

Please Select
- - black | M8 Standard, 49mm chainline (6mm offset, GXP and BB30 long spindle)
  - black | M5 Boost, 52mm chainline (3mm offset)
  - black | M2, 49mm chainline on BB30 short spindle (0mm offset)

Straight to the checkout with PayPal. The amount (incl. shipping) is only reserved and charged only when you order. Vouchers & discount codes can then be redeemed in the checkout.

pick up in our shop?

Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.

Weight : 0.04kg / 0.09lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Packaging Unit: 1 Piece
Product ID (PID): 36503
Product safety

Found an error? Report it. 5 EUR voucher if confirmed.

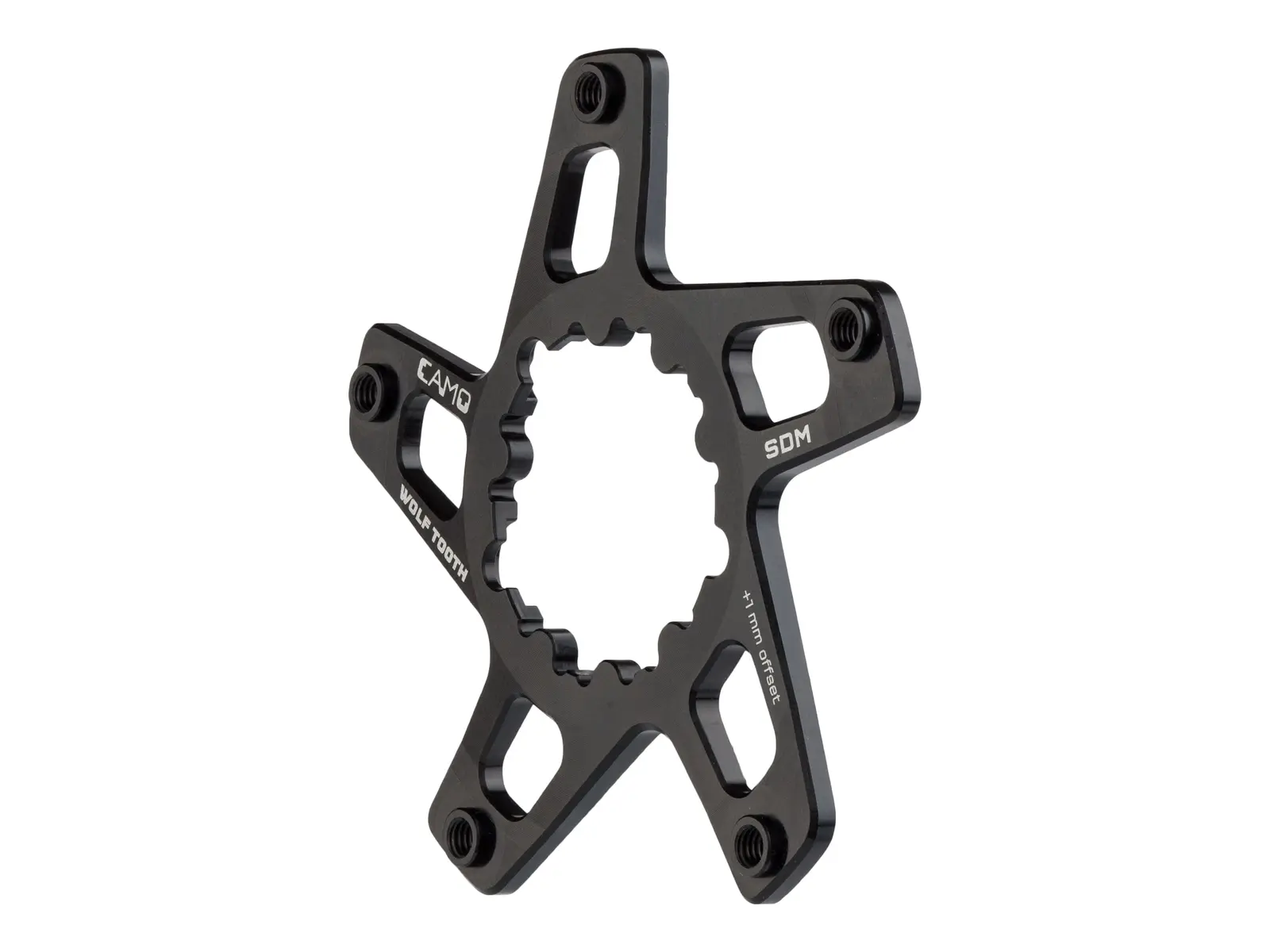

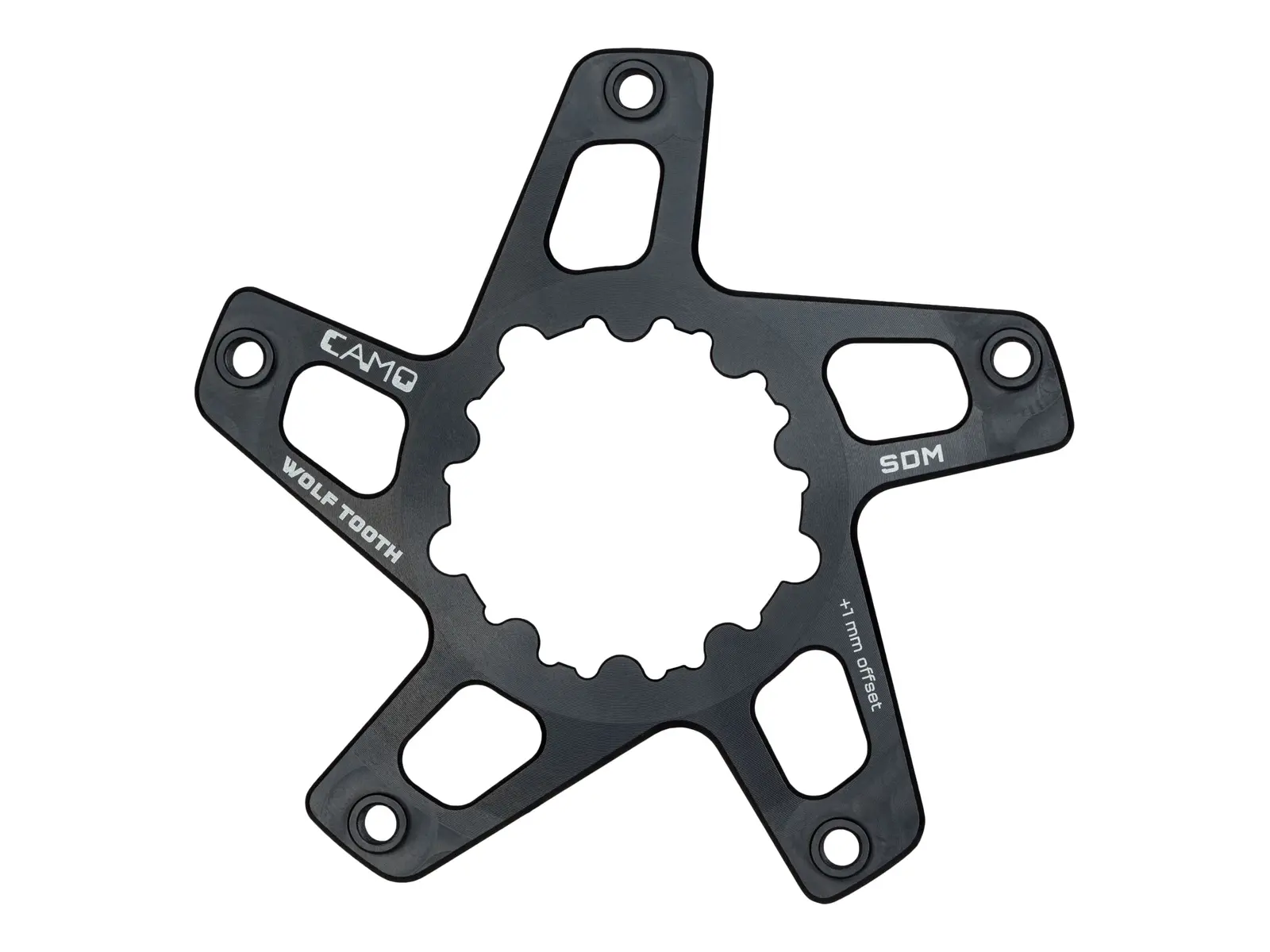

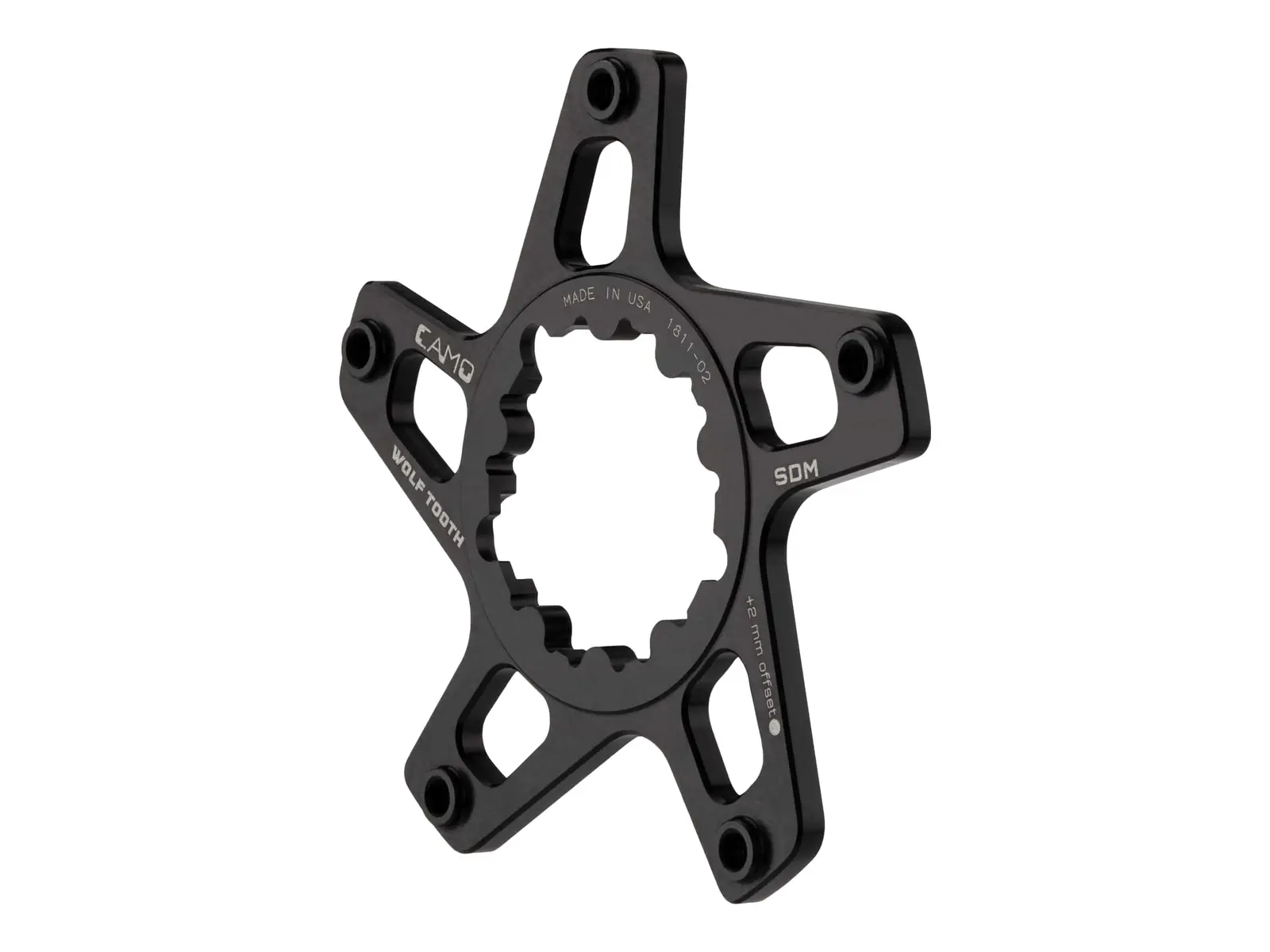

Wolf Tooth "CAMO" Direct Mount Spider - SRAM 3-Bolt is the carrier of the CAMO system: it stays on the crank, the CAMO chainring goes on with five small bolts and no nuts and can be swapped without removing the spider. The letter and number in the name say which way and how far the teeth are offset from the mounting face, so the chainline is right for a standard or Boost rear end. Machined in Minnesota, the five stainless steel bolts are included, a chainring is not.

Facts: Wolf Tooth "CAMO" Direct Mount Spider - SRAM 3-Bolt

Content: 1 CAMO spider with 5 stainless steel bolts, no chainring
Material: 7075-T6 aluminium, CNC machined
Style: M2, 49mm chainline on BB30 short spindle (0mm offset), M5 Boost, 52mm chainline (3mm offset) or M8 Standard, 49mm chainline (6mm offset, GXP and BB30 long spindle)
Chainring Mount: Wolf Tooth CAMO
Extras:
- for SRAM cranks with a removable spider and the 3-bolt direct mount interface; M8 for GXP and long spindle BB30 (135/142mm), M5 for 148mm Boost, M2 for short spindle BB30
- takes every Wolf Tooth CAMO chainring (round or oval, aluminium or stainless steel), ring swap with five bolts and no nuts
- torque 4-5Nm with medium strength threadlocker
- not compatible with ISCG05 bash guides
- made in USA
