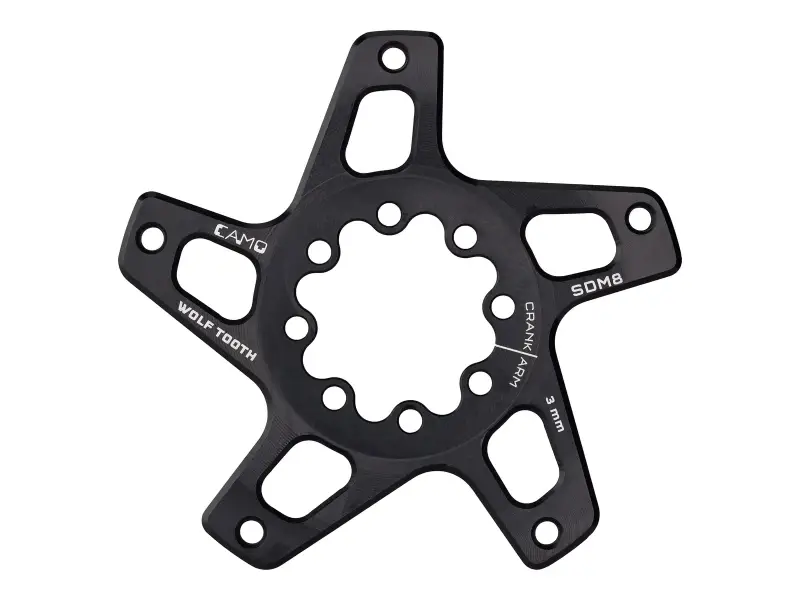

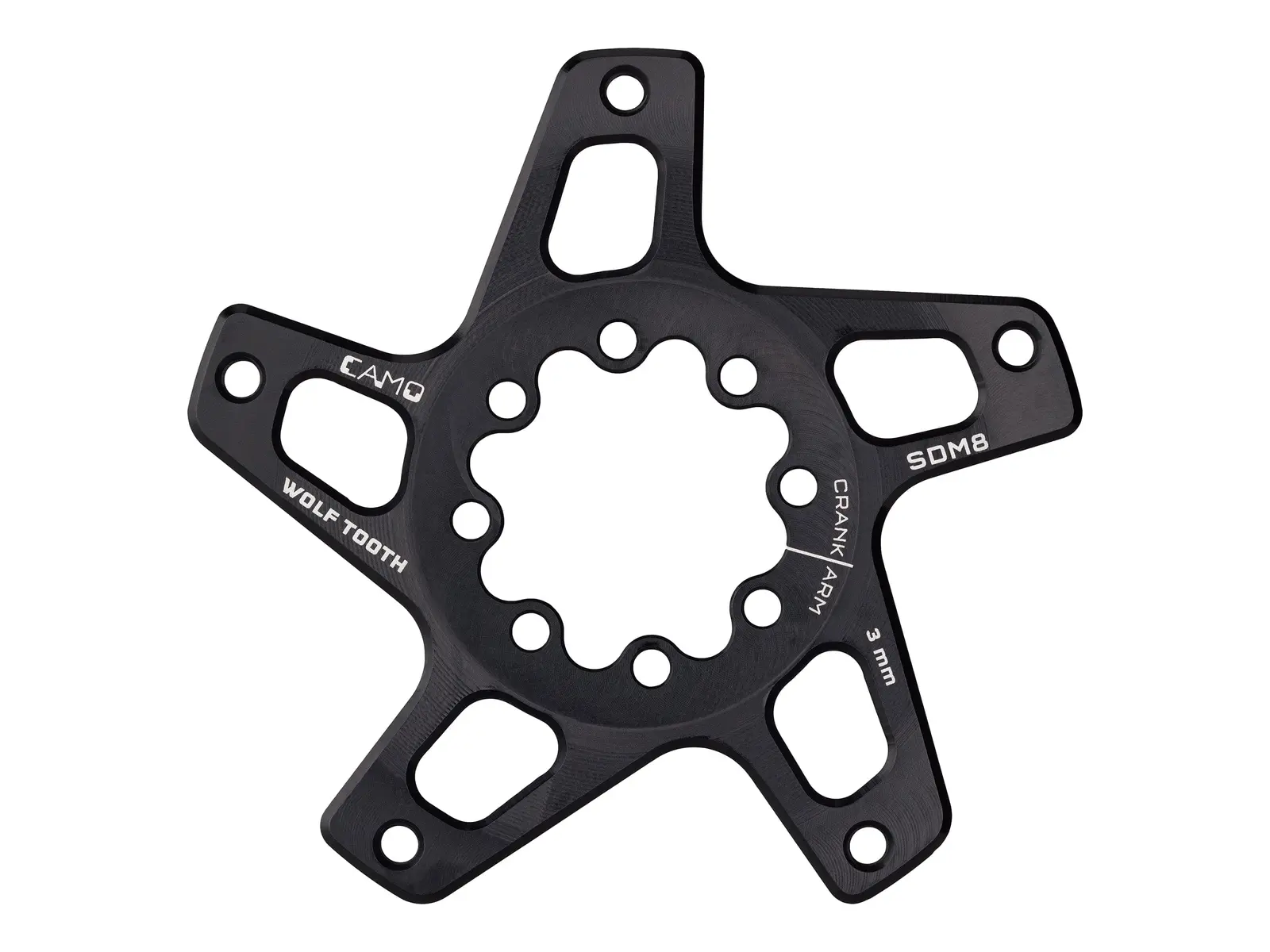

Wolf Tooth "CAMO" Direct Mount Spider - SRAM 8-Bolt
-
Weight : 0.05kg / 0.11lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36504
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
Wolf Tooth "CAMO" Direct Mount Spider - SRAM 8-Bolt is the carrier of the CAMO system: it stays on the crank, the CAMO chainring goes on with five small bolts and no nuts and can be swapped without removing the spider. The letter and number in the name say which way and how far the teeth are offset from the mounting face, so the chainline is right for a standard or Boost rear end. Machined in Minnesota, the five stainless steel bolts are included, a chainring is not.
Facts: Wolf Tooth "CAMO" Direct Mount Spider - SRAM 8-Bolt
- Content: 1 CAMO spider with 5 stainless steel bolts, no chainring
- Material: 7075-T6 aluminium, CNC machined

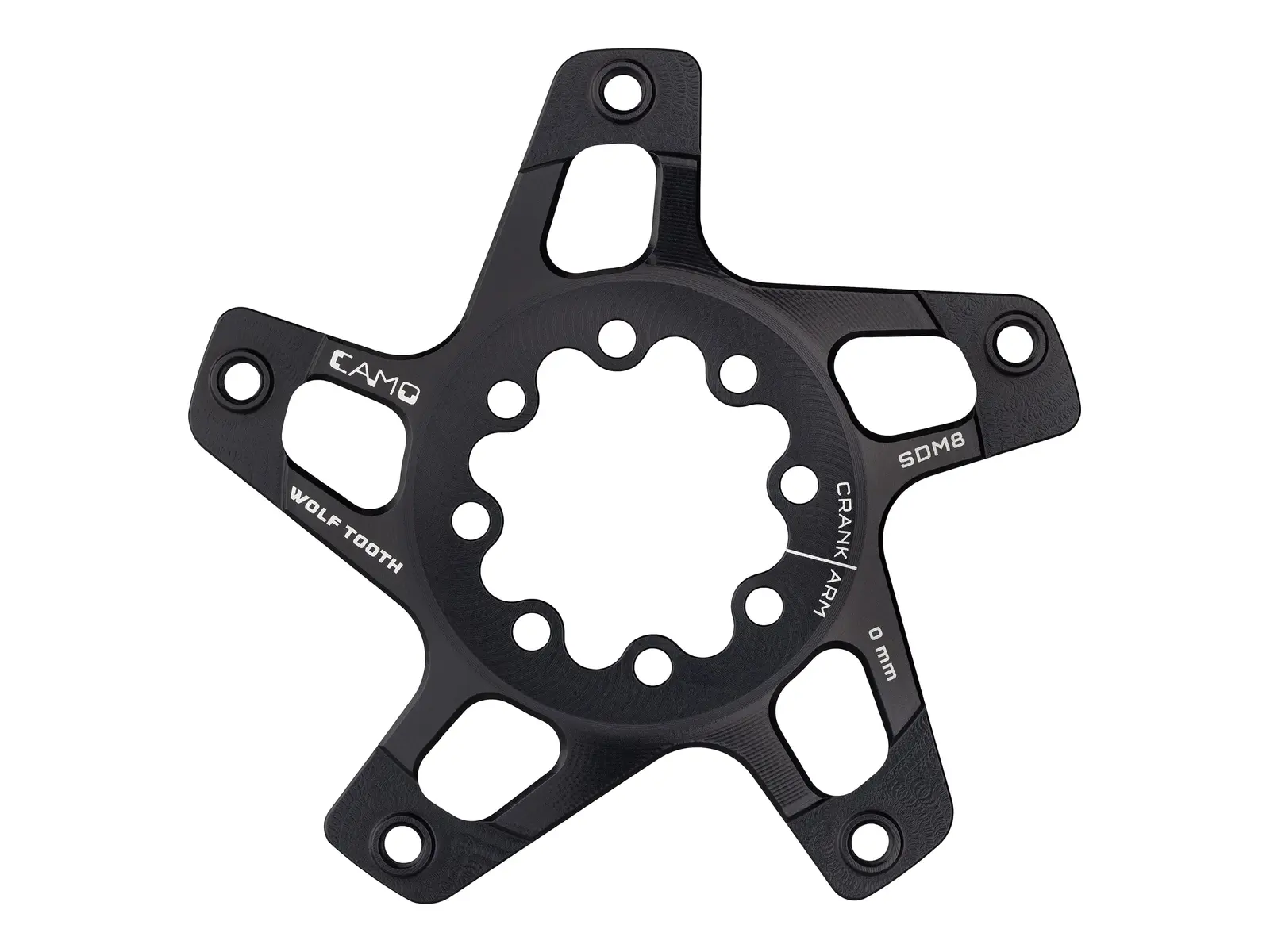

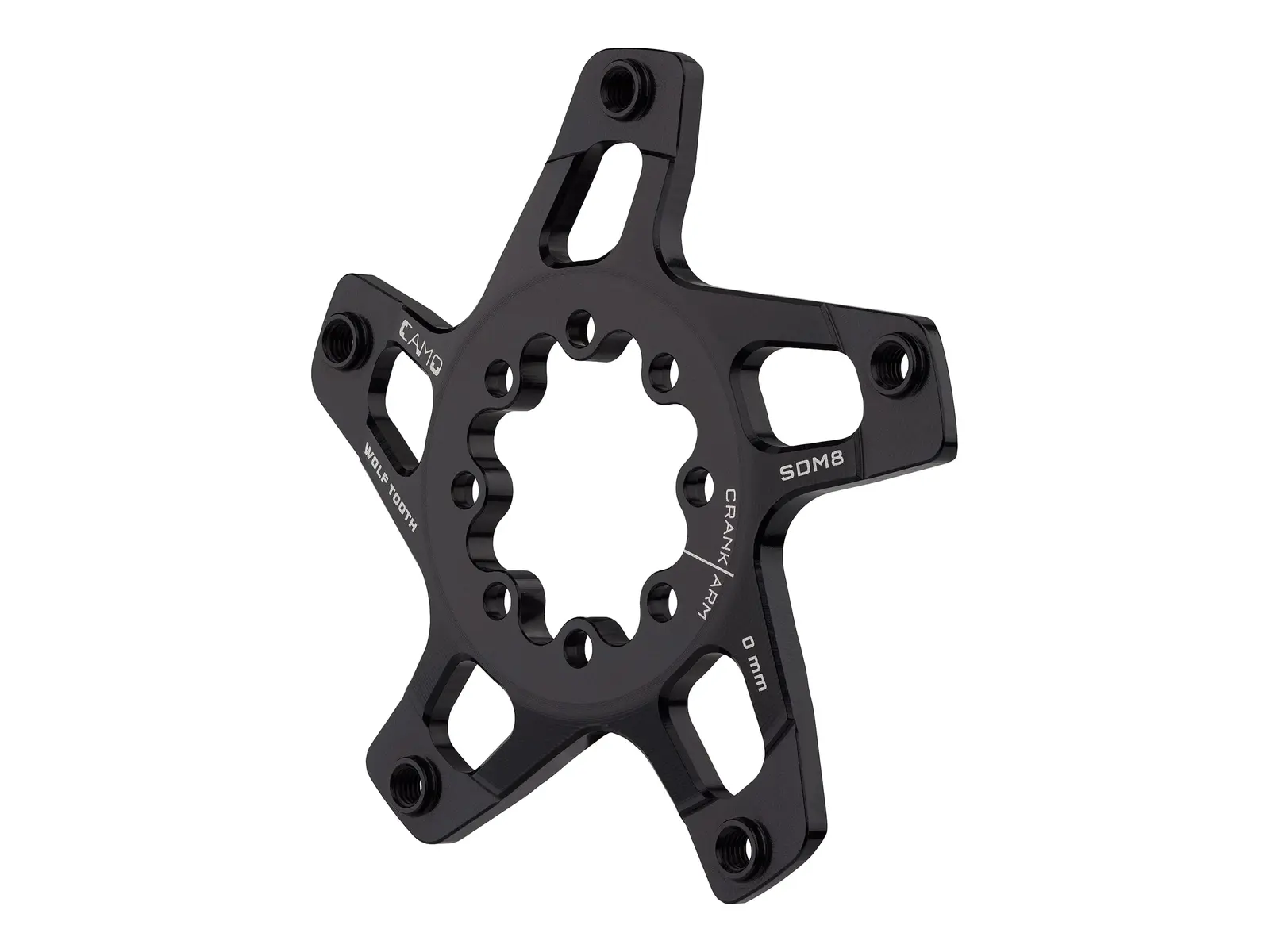

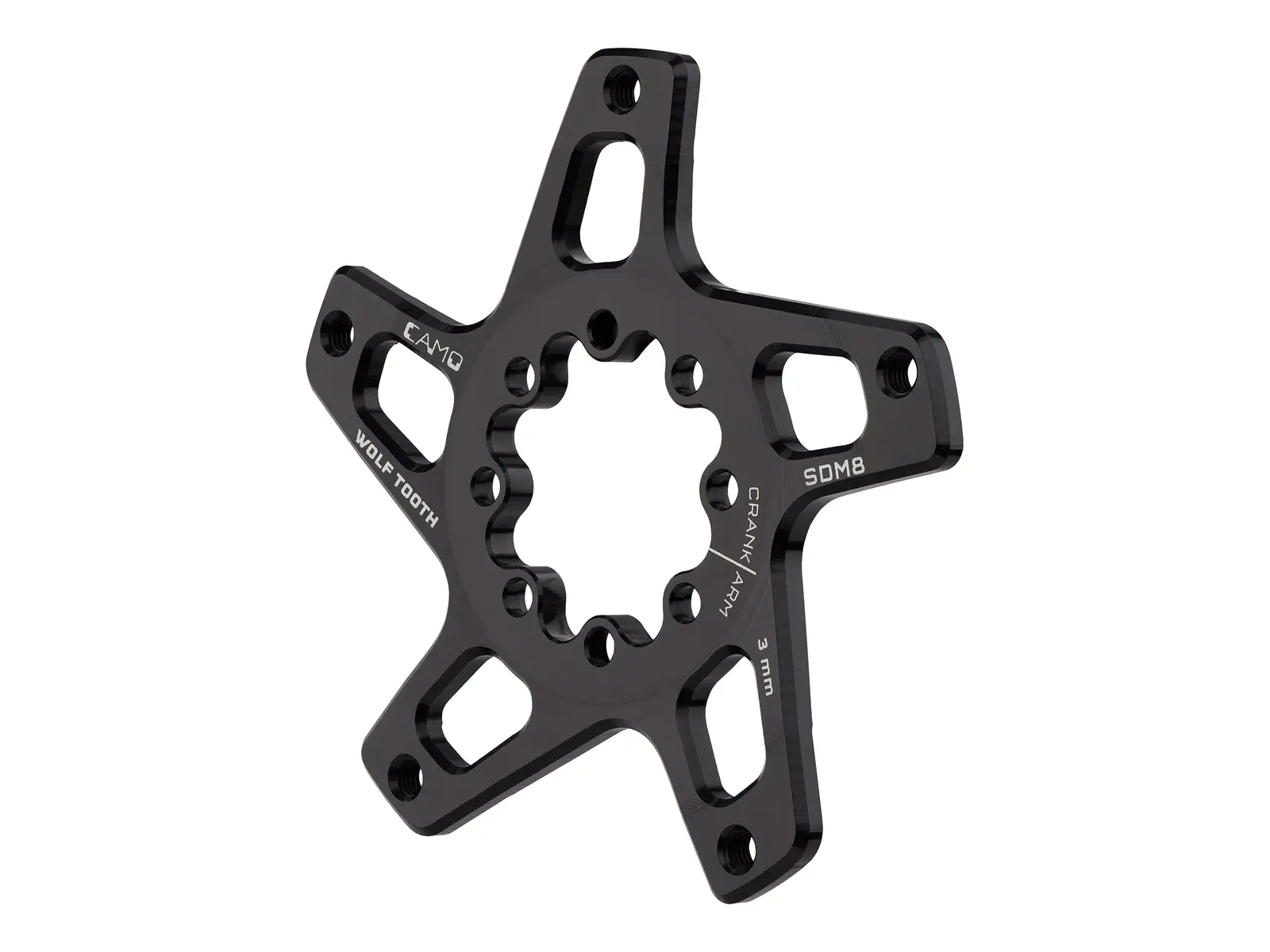

- Style: M2, 0mm offset (55mm chainline on DUB) or M5 Boost, 3mm offset (52mm chainline on DUB, 55mm on DUB Wide)
- Chainring Mount: Wolf Tooth CAMO
- Extras:
- for SRAM cranks with the 8-bolt direct mount (T-Type Transmission AXS, Transmission 70 and 90, DUB Wide, 2025 Cane Creek eeWings); M5 for DUB and DUB Wide, M2 for a 55mm chainline on DUB
- takes every Wolf Tooth CAMO chainring (round or oval, aluminium or stainless steel), ring swap with five bolts and no nuts
- torque 4-5Nm with medium strength threadlocker
- not compatible with ISCG05 bash guides
- weight according to the manufacturer: M5 52g, M2 53g
- made in USA
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
