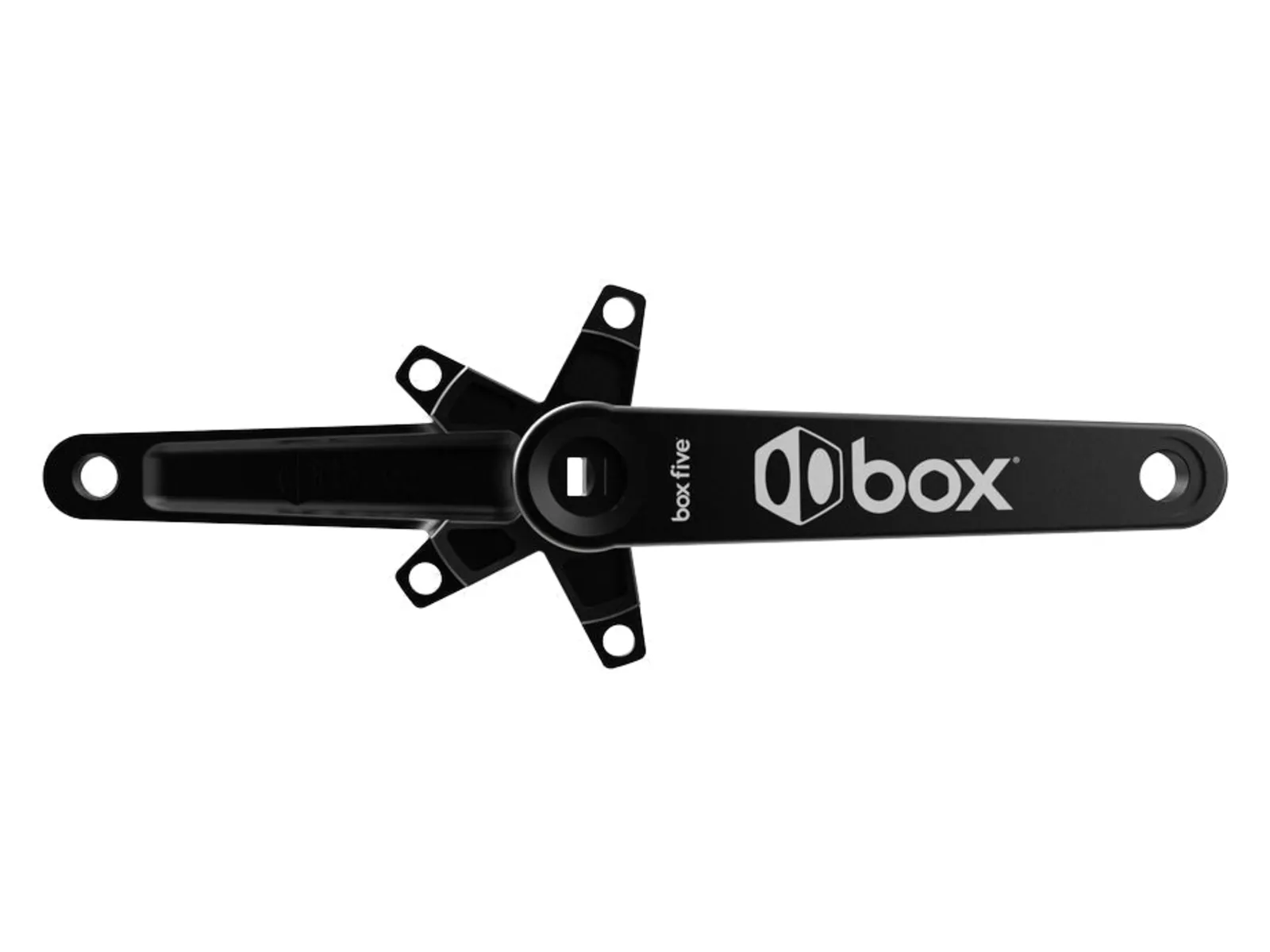

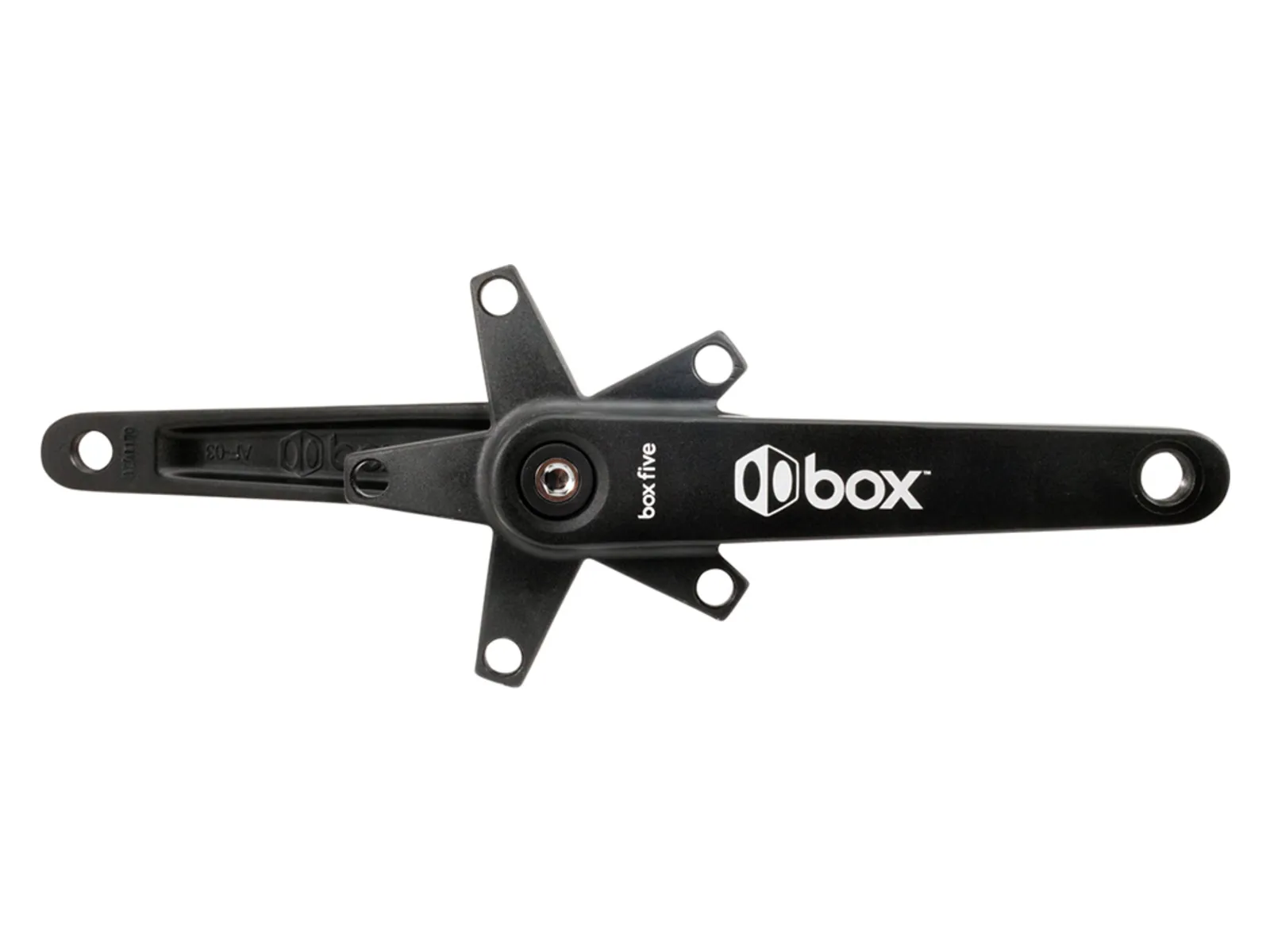

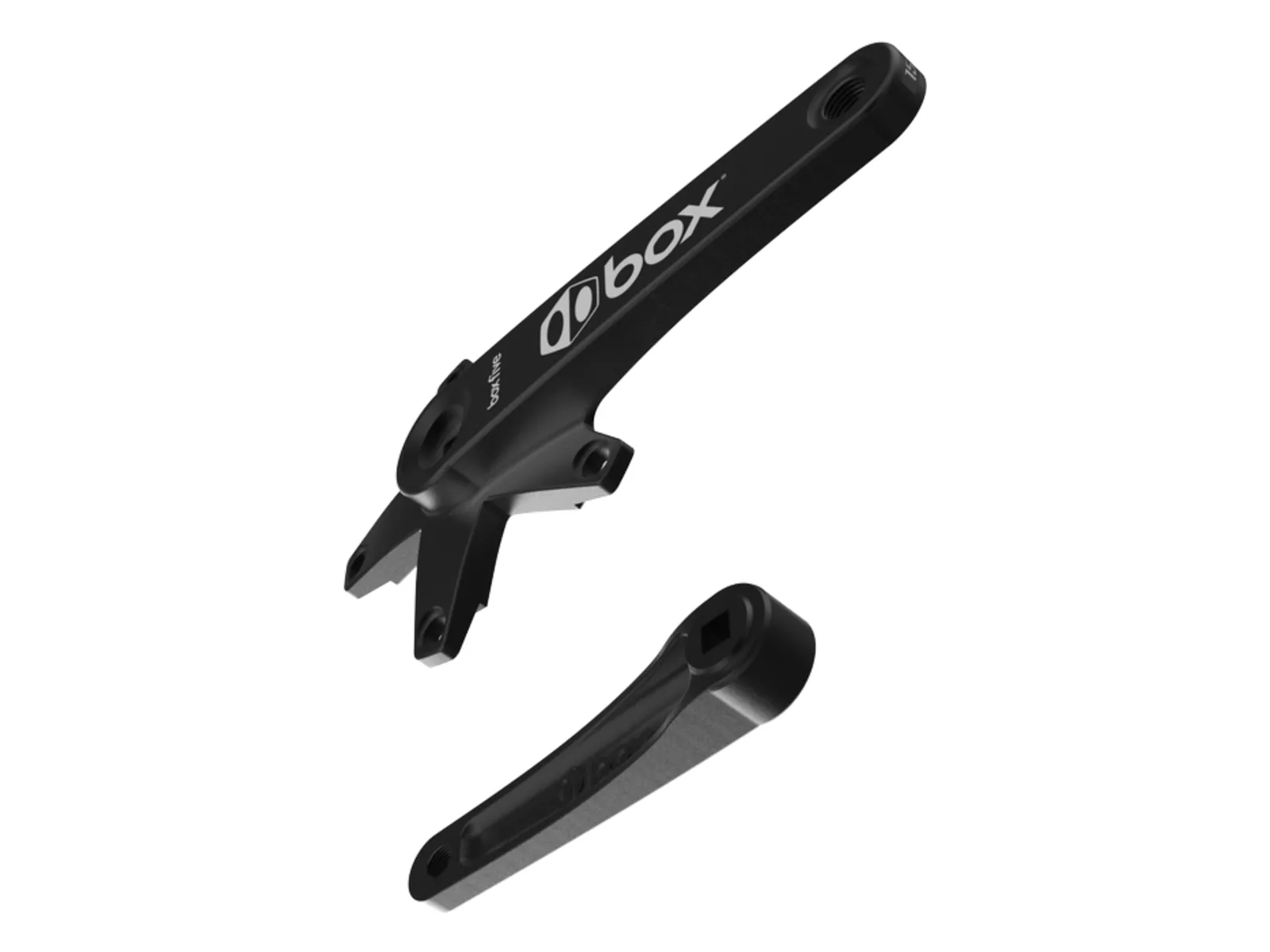

BOX Components "Box Five Square Taper" BMX Race Crankset
- Weight : 0.48kg / 1.06lbs
- Packaging Unit: 1 Set
- Product ID (PID): 43072
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
The BOX Components "Box Five Square Taper" BMX Race Crankset is BOX Components' square taper crankset in short lengths for the youngest racers: cold-forged alloy arms with a JIS square taper interface that fits any BSA square taper bottom bracket, and a 5-bolt 110 BCD spider. Each length has its own arm shape. The bottom bracket is not included, the BOX square taper bottom brackets fit.
Facts: BOX Components "Box Five Square Taper" BMX Race Crankset
- Material Crank Arms: 6061-T6 aluminum, cold-forged and CNC machined
- Material Crank Spindle: none (JIS square taper, fits BSA square taper bottom brackets)
- Crank-Type: 3-piece
- Crank Arm Length: 135mm or 140mm
- Spindle-Type: Square taper (JIS)
- possible Sprocket Mount by: bolt drive: 5-bolt spider, 110mm BCD
- Spindle Bolt: torque 12-14 Nm
- Extras: arms for short kids legs, chainline 44.5mm, Q factor 168mm, anodized with laser-etched graphics, weight: 480g (135mm), 485g (140mm)
- Recommended for: Race
- Content: 2 crank arms (without bottom bracket)
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
