Insight "RLC" BMX Race Crankset
- Weight : 0.87kg / 1.92lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45517
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/insight-rlc-bmx-race-crankset-p-45517
Printed: 10/29/2026
Printed: 10/29/2026

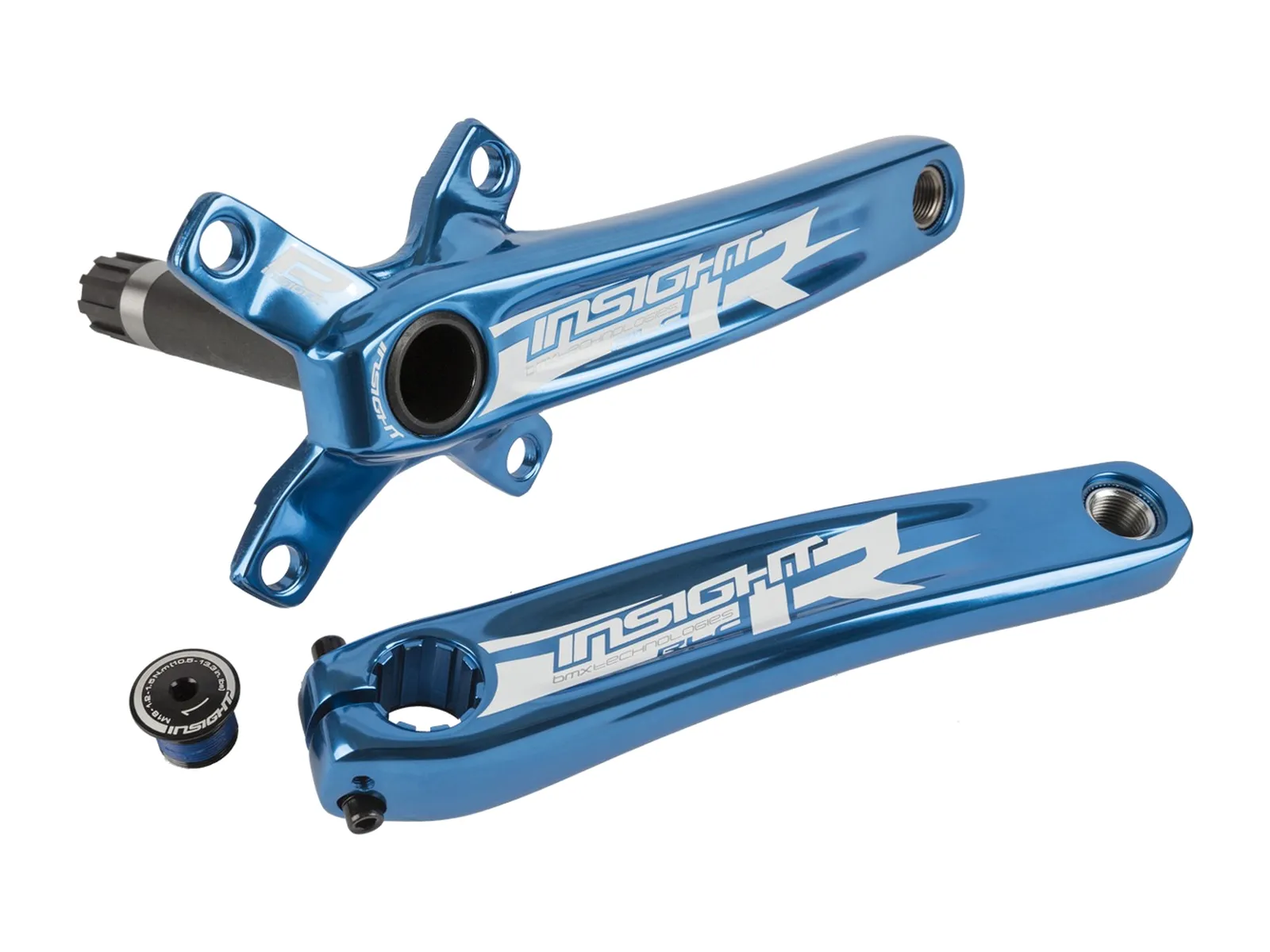

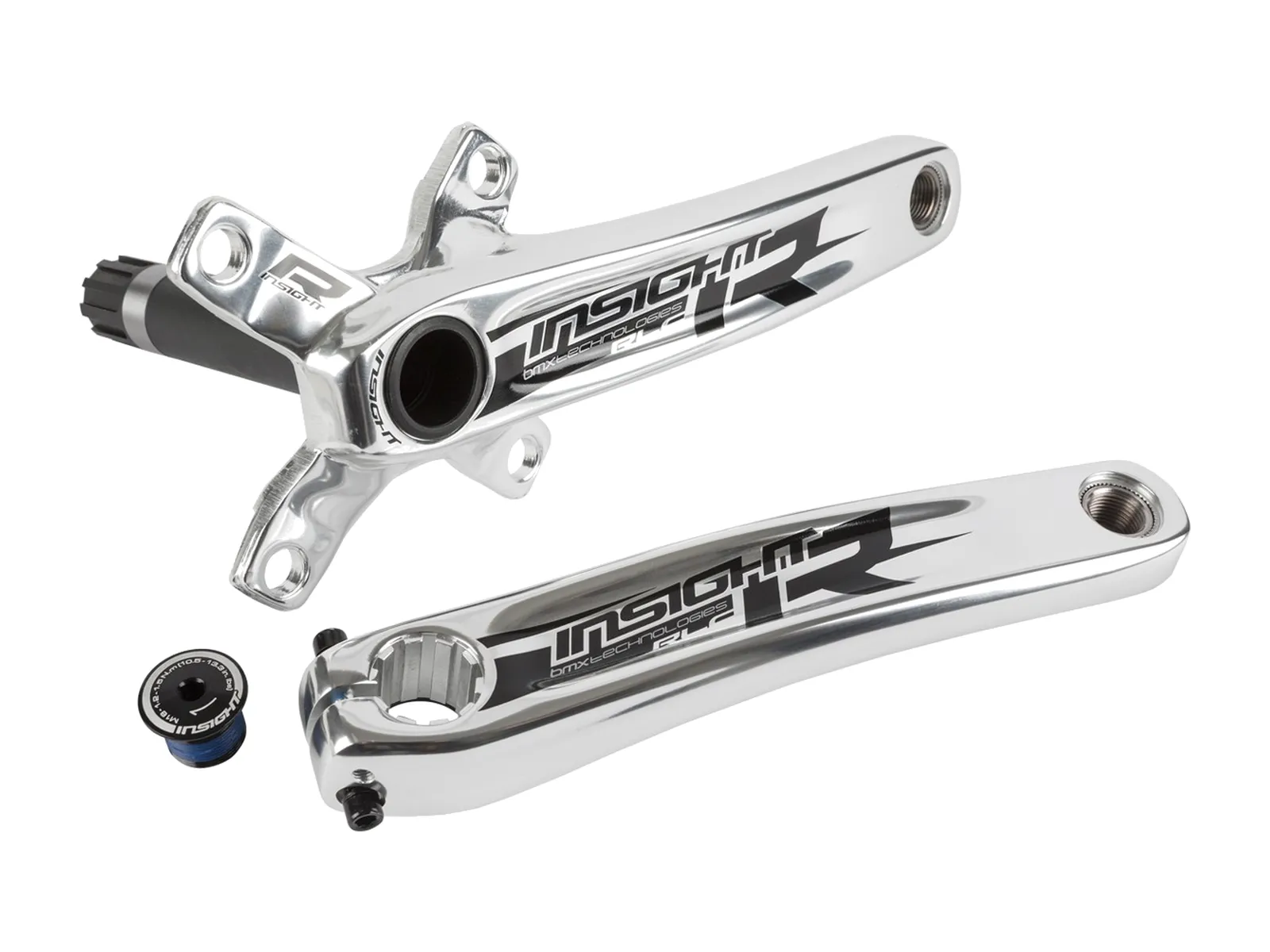

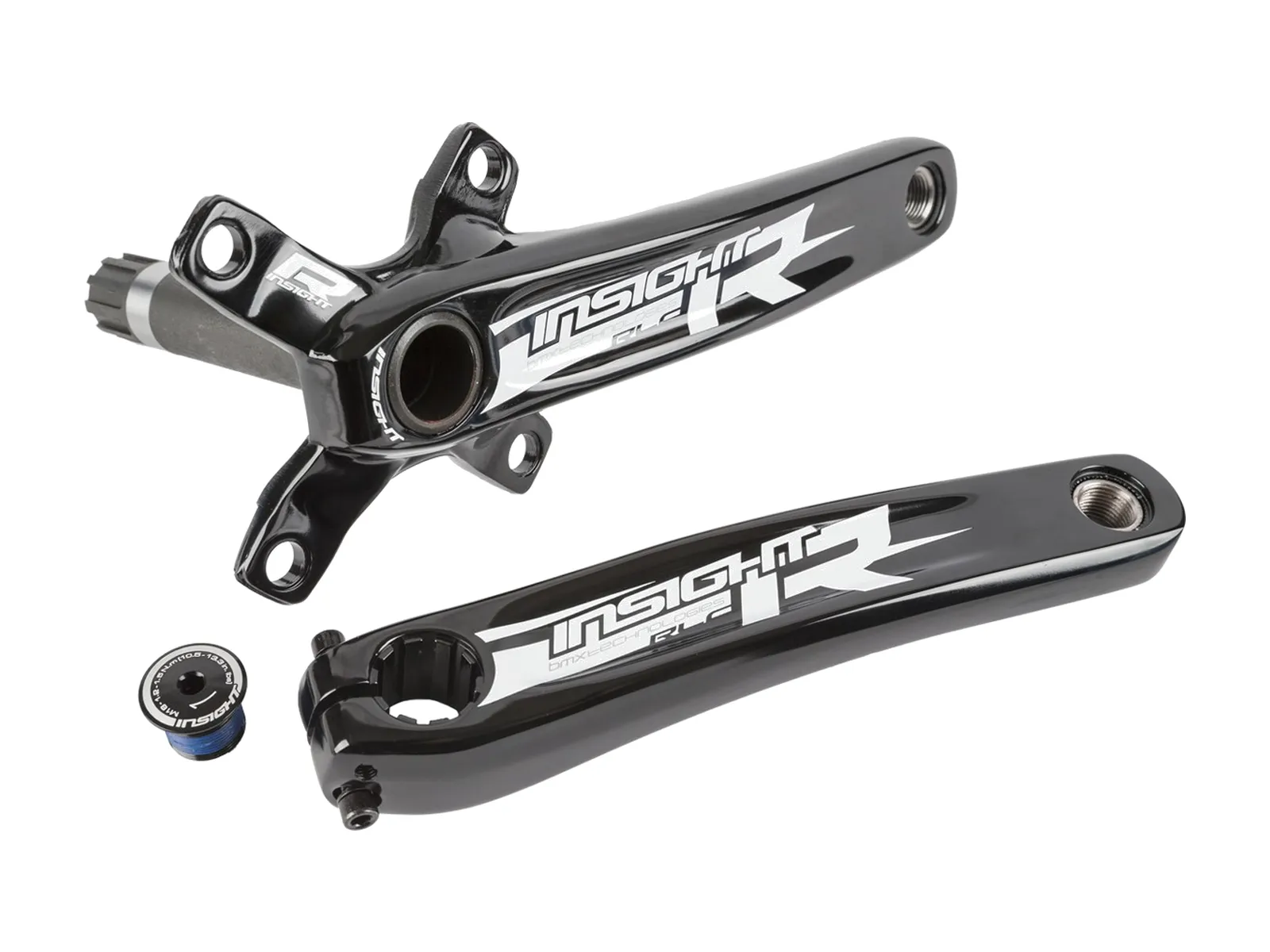

The Insight "RLC" BMX Race Crankset is a two piece race crankset with a 4 bolt spider, made as an affordable upgrade for your BMX race bike. The arms are forged from 6061-T6 aluminium and stay stiff under pedalling load. The 24mm spindle made of heat treated SCM435 chromoly is pressed into the drive side arm, and the pedal threads have chromoly inserts.
The spider takes chainrings with a 104mm BCD, the Q factor is 173mm. A bottom bracket is not included, the crank fits Press Fit 86mm and Euro BSA/BSC bottom brackets with a 24mm spindle. Fit the pedals with the supplied washers. Choose crank length and colour as options.
Facts: Insight "RLC" BMX Race Crankset
- Material Crank Arms: 6061-T6 aluminium, forged
- Material Crank Spindle: SCM435 chromoly, heat treated, pressed into the drive side arm
- Crank-Type: 2-piece
- Crank Arm Length: 165mm, 170mm, 175mm or 180mm
- Spindle Diameter: 24mm
- possible Sprocket Mount by: 4 bolt spider on the drive side arm, 104mm BCD
- Extras: chromoly pedal thread inserts, fit the pedals with the supplied washers, Q factor 173mm, for Press Fit 86mm and Euro BSA/BSC 68/73mm bottom brackets with a 24mm spindle, bottom bracket not included, weight with bolts: 815g (165mm), 833g (170mm), 870g (175mm), 863g (180mm)
- Recommended for: Race
- Contains: 2 crank arms with spindle, washers for the pedals, no bottom bracket and no chainring
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
