Shimano "DXR FC-MX71" BMX Race Crankset
- Weight : 0.77kg / 1.7lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45891
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/shimano-dxr-fc-mx71-bmx-race-crankset-p-45891
Printed: 10/29/2026
Printed: 10/29/2026

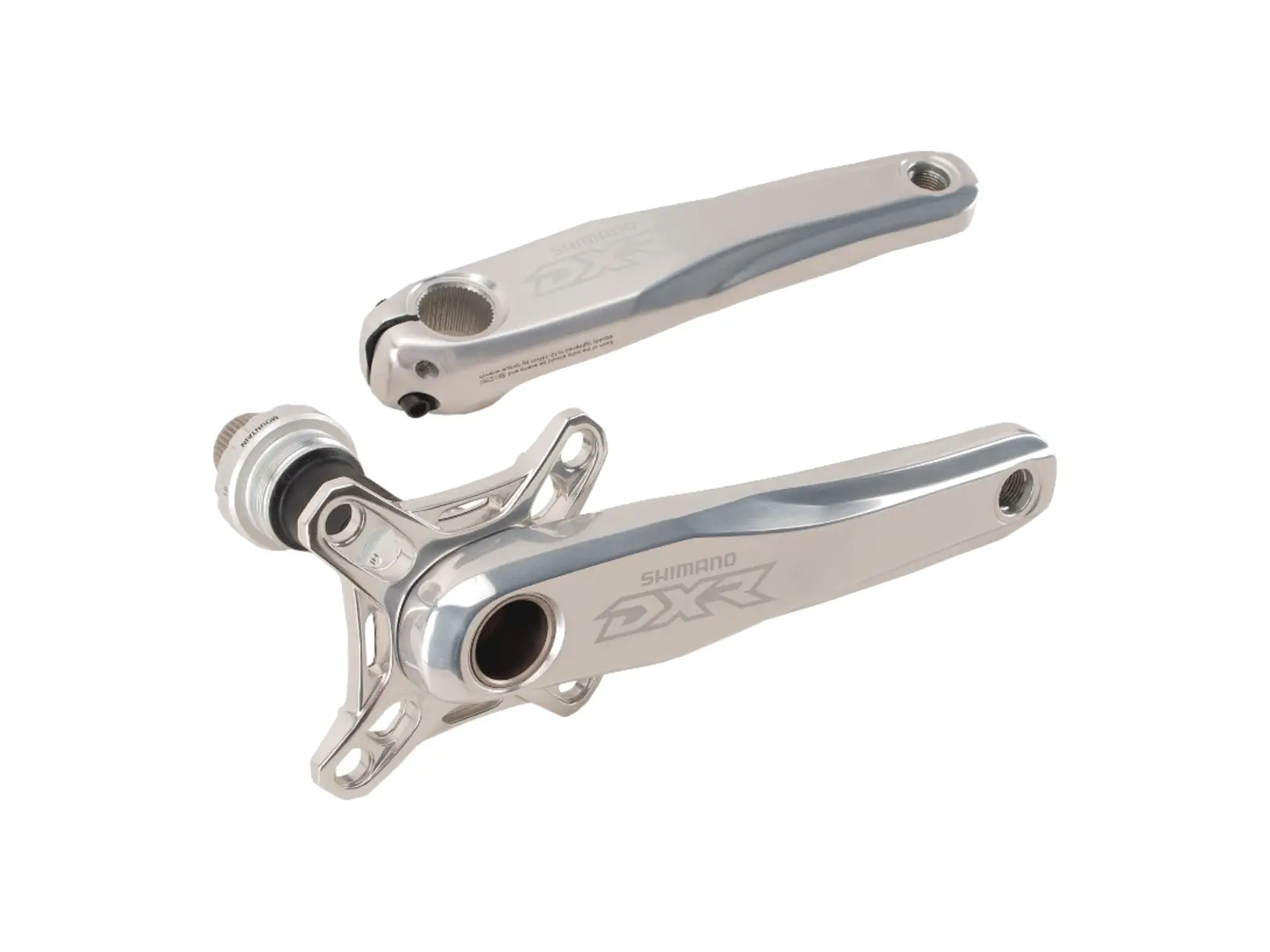

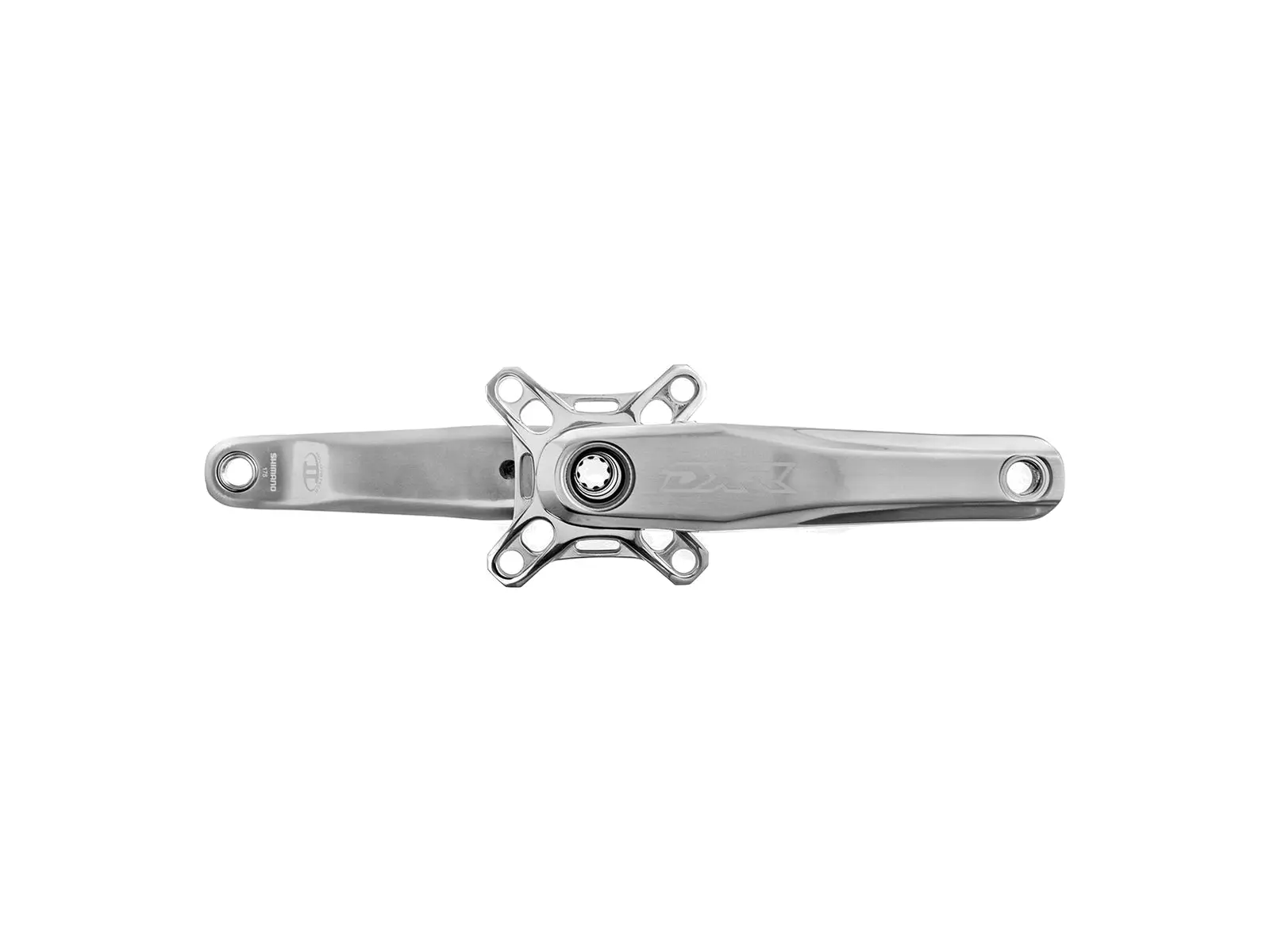

The Shimano "DXR FC-MX71" BMX Race Crankset is the Shimano race crank that many elite riders use. The two piece crank arms from 6061-T6 aluminum are hollow forged with Shimano Hollowtech II, which makes them stiff and light. The heat treated 24mm chromoly axle fits Euro BSC/BSA shells with 68 or 73mm and press fit 86mm with a 24mm bottom bracket, a Euro BSC/BSA bottom bracket is included. The chainring bolts to the 4 bolt spider with 104mm BCD and is not included. Chain line 44mm, Q factor 173mm.
Facts: Shimano "DXR FC-MX71" BMX Race Crankset
- Material Crank Arms: 6061-T6 aluminum, hollow forged (Hollowtech II)
- Material Crank Spindle: chromoly, heat treated, 24mm
- Crank-Type: 2-piece
- Crank Arm Length: 175mm or 180mm
- Spindle Diameter: 24mm
- possible Sprocket Mount by: Bolt-Drive: 4 bolt spider, 104mm BCD
- Pedal Thread: for 9/16" pedals, steel pedal inserts
- Extras: chain line 44mm, Q factor 173mm, fits Euro BSC/BSA 68/73mm and press fit 86mm with 24mm bottom bracket, without chainring
- Recommended for: Race

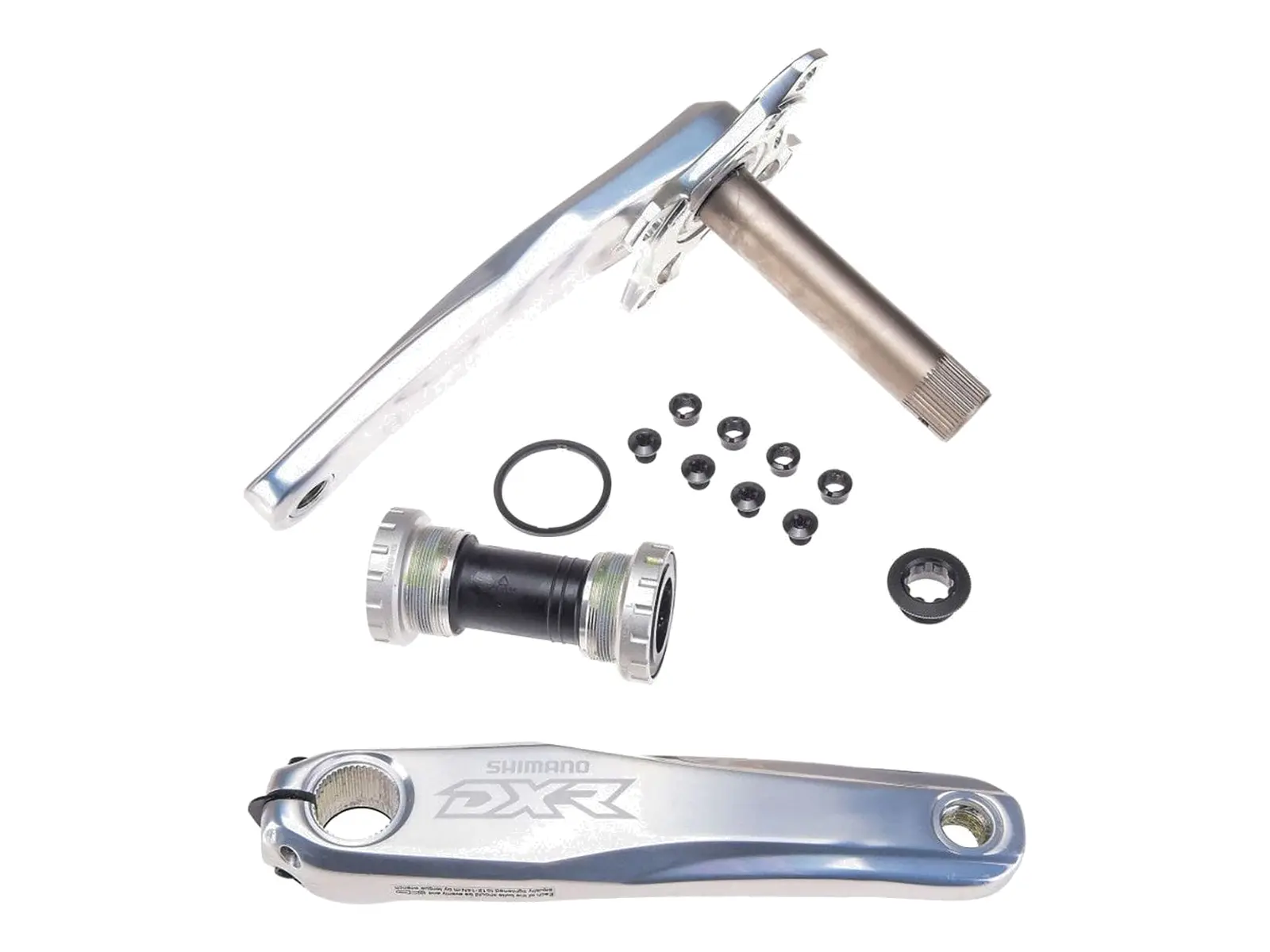

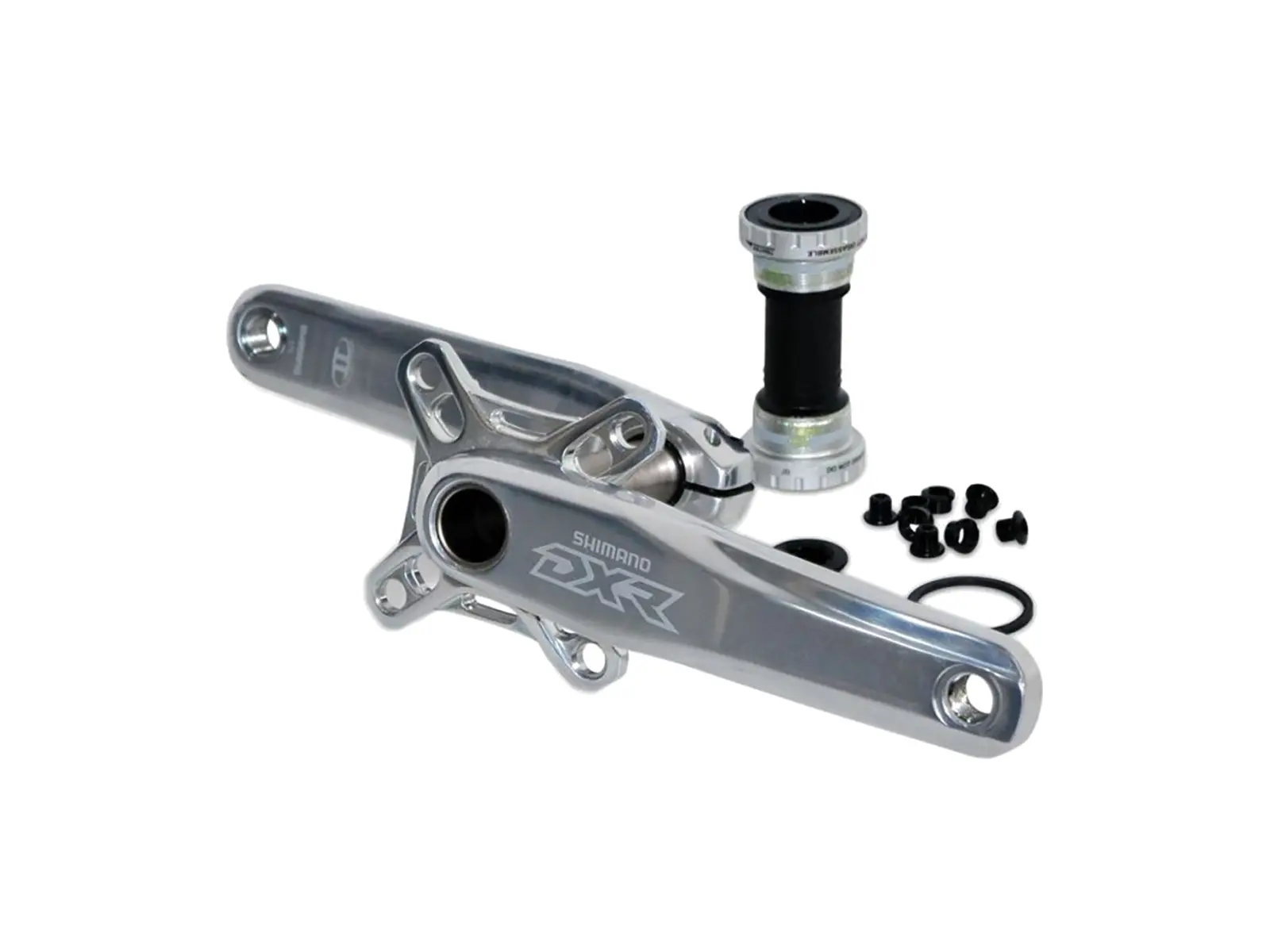

- Content: crankset with 24mm axle, Euro BSC/BSA bottom bracket
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
