Excess "LSP" BMX Race Crankset
- Weight : 0.76kg / 1.68lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45575
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/excess-lsp-bmx-race-crankset-p-45575
Printed: 10/29/2026
Printed: 10/29/2026

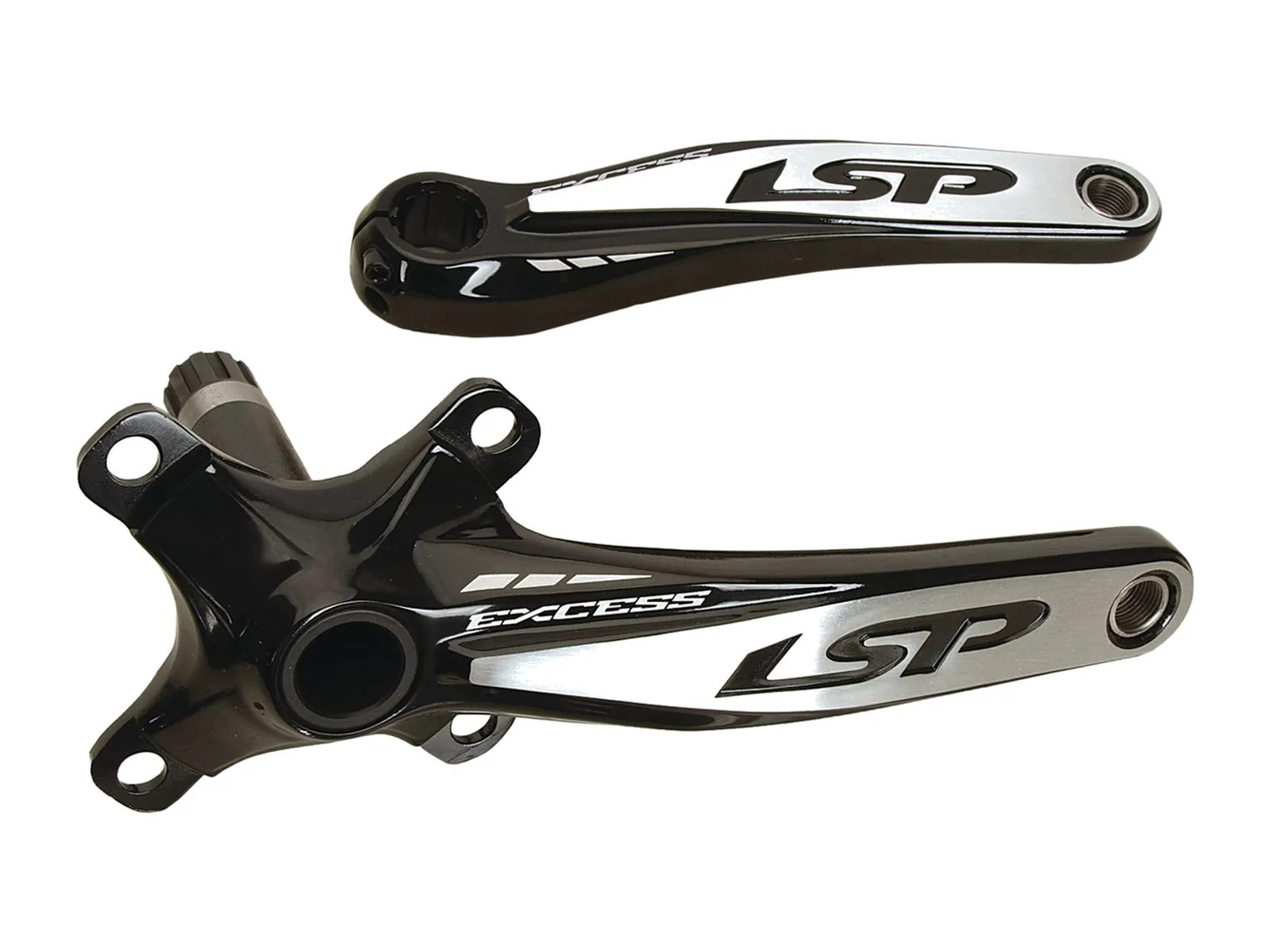

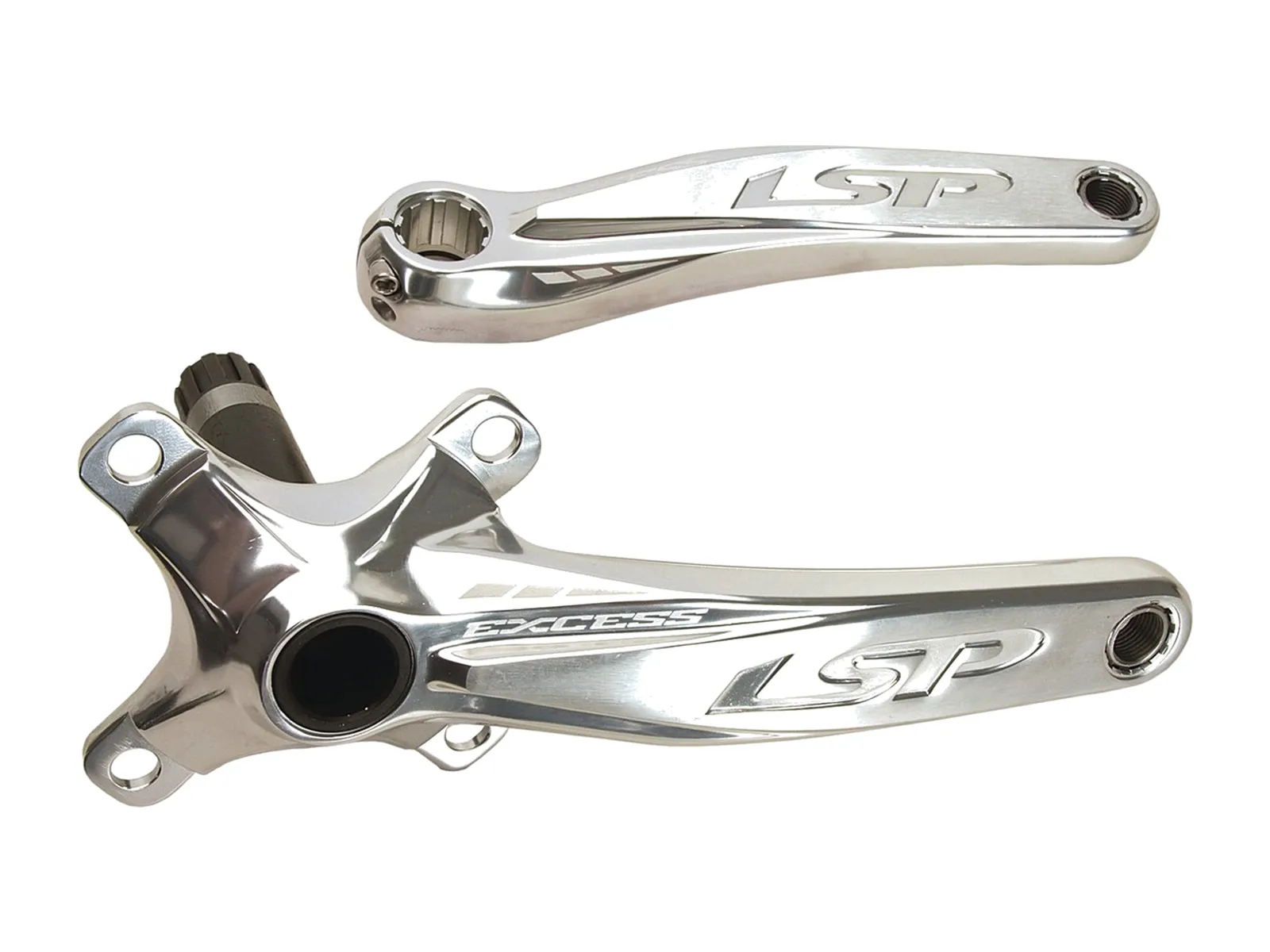

The Excess "LSP" BMX Race Crankset is a two piece crankset that Excess developed for BMX racing. The arms are forged from 6061-T6 aluminum, stiff and still light, so more of your power goes into the sprint. The 24mm spindle is heat treated SCM435 chromoly, and the pedal threads sit in chromoly inserts.
The spider takes 4 bolt chainrings with a 104mm bolt circle. The chain line is 42mm, the Q factor 161mm. A bottom bracket is not included: the crank fits Press Fit 86mm and Euro BSA 68/73mm shells, each with bearings for 24mm spindles. Excess requires the crank to be installed by a bike shop following the assembly instructions, otherwise the warranty is void.
Facts: Excess "LSP" BMX Race Crankset
- Material Crank Arms: 6061-T6 aluminum, forged, chromoly pedal inserts
- Material Crank Spindle: SCM435 chromoly, heat treated, 24mm
- Crank-Type: 2-piece
- Crank Arm Length: 165mm, 170mm, 177.5mm or 180mm
- Spindle Diameter: 24mm
- possible Sprocket Mount by: 4-Bolt (104mm BCD)
- Extras: chain line 42mm, Q factor 161mm, weight: 764g (180mm), fits Press Fit 86mm and Euro BSA 68/73mm shells with 24mm bearings, installation by a bike shop following the instructions
- Recommended for: Race
- Content: crankset with 24mm spindle, without bottom bracket
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
