Insight "MX4" BMX Race Crankset
- Weight : 0.58kg / 1.28lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45508
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/insight-mx4-bmx-race-crankset-p-45508
Printed: 10/29/2026
Printed: 10/29/2026

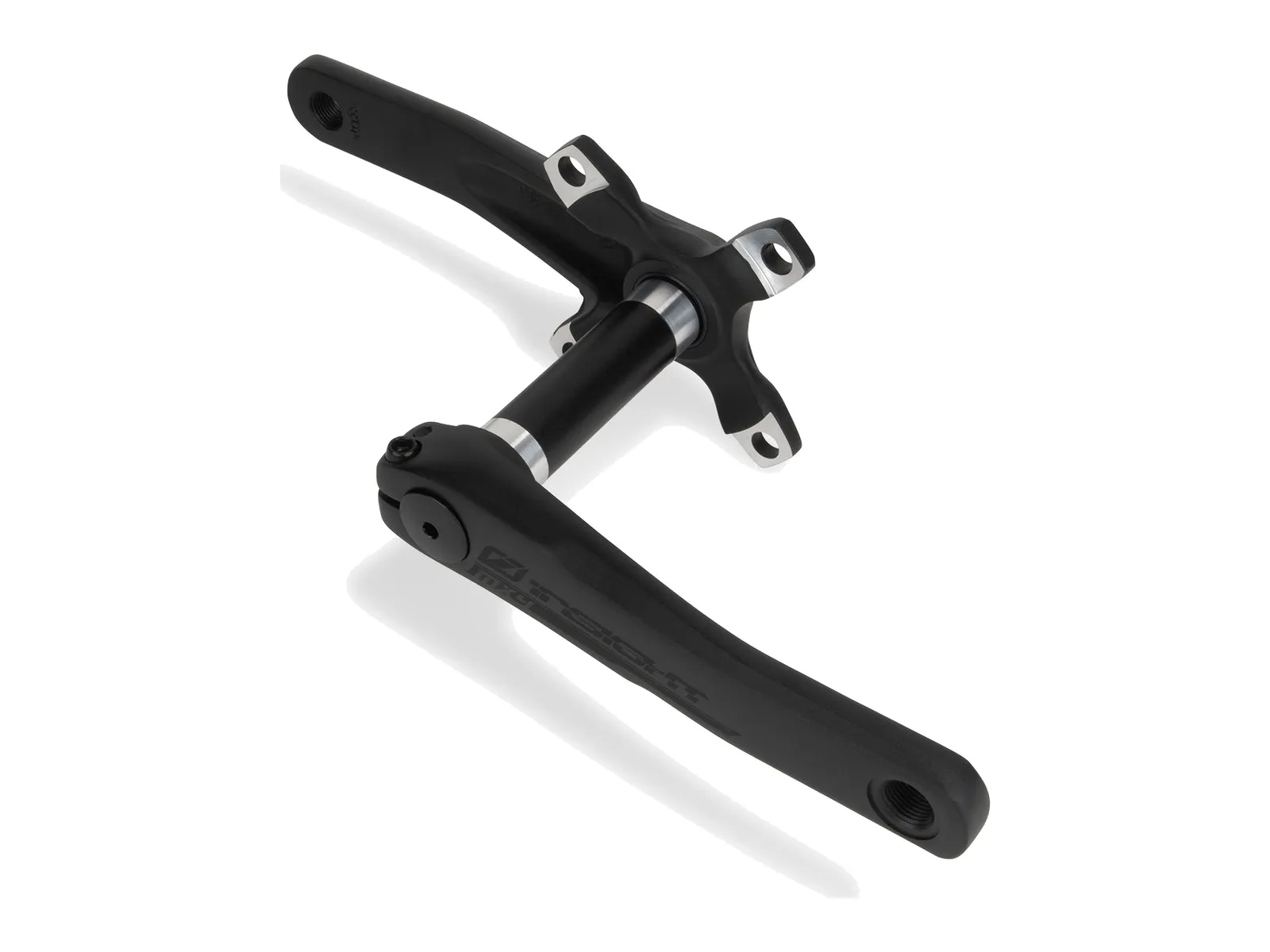

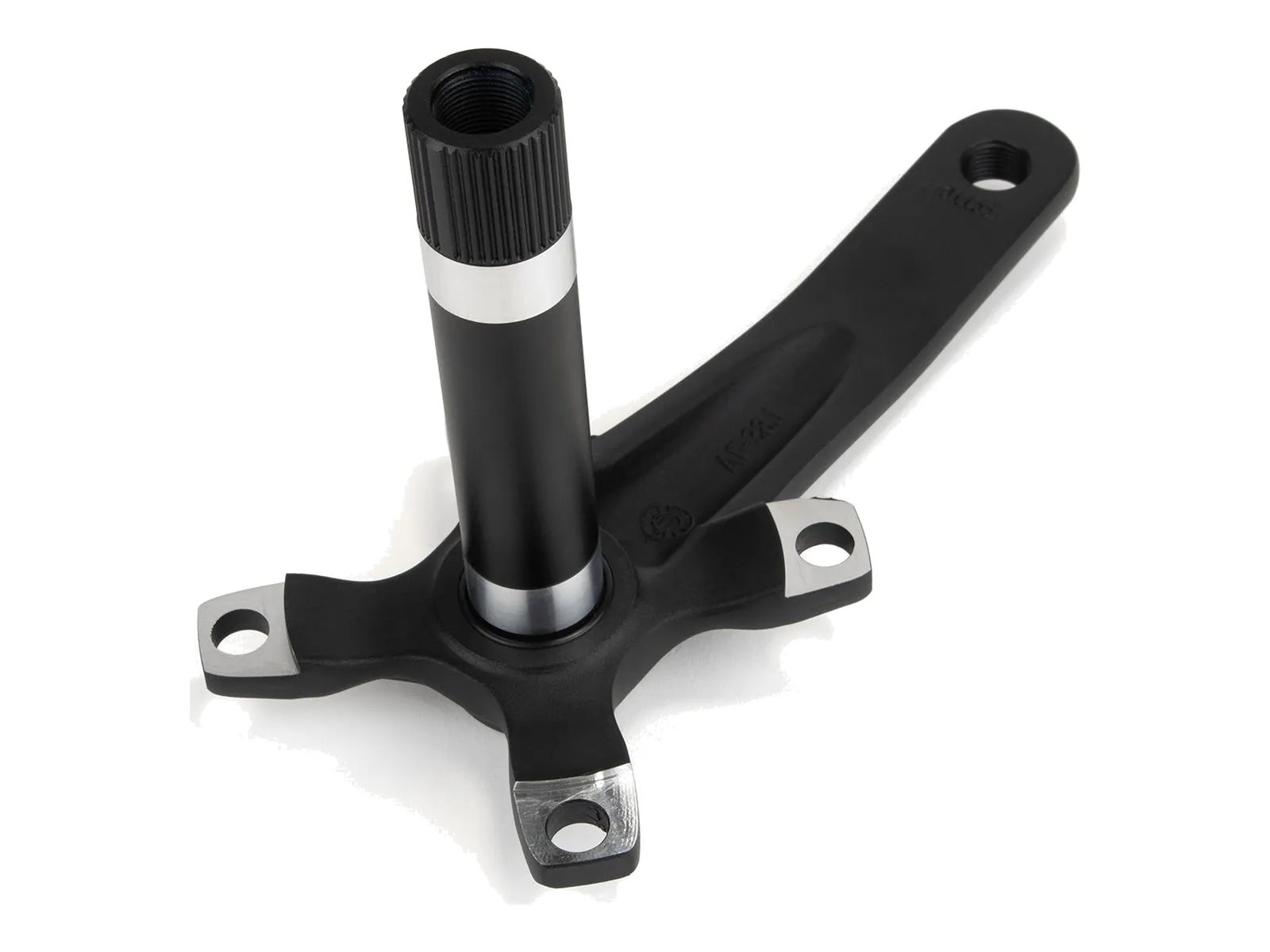

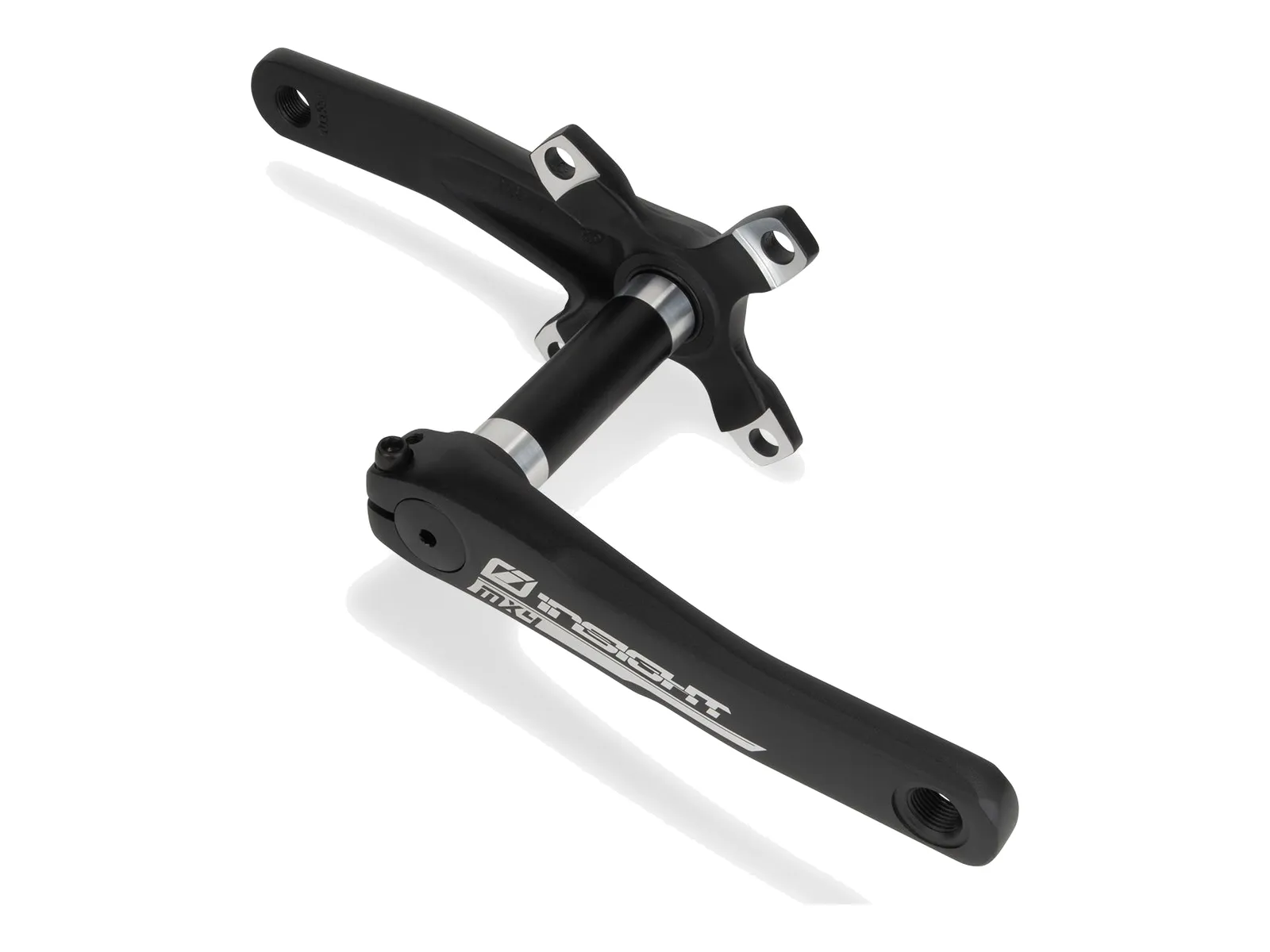

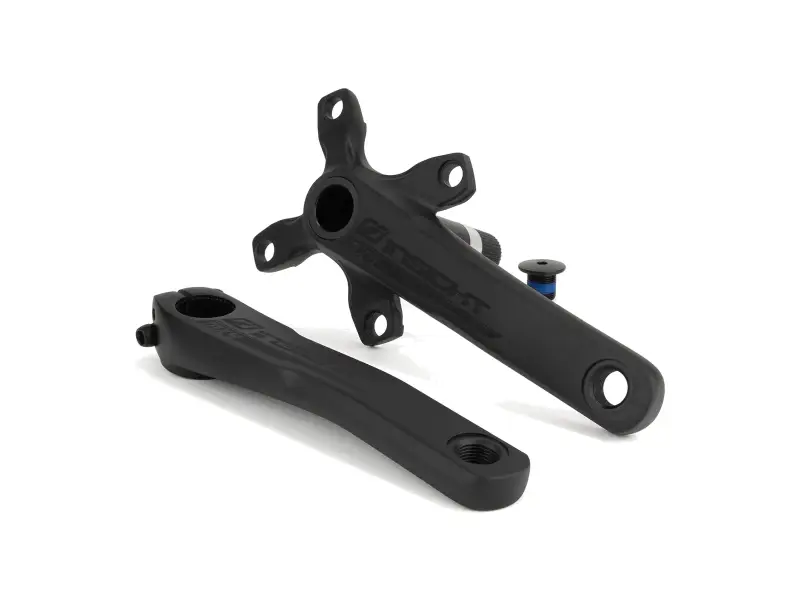

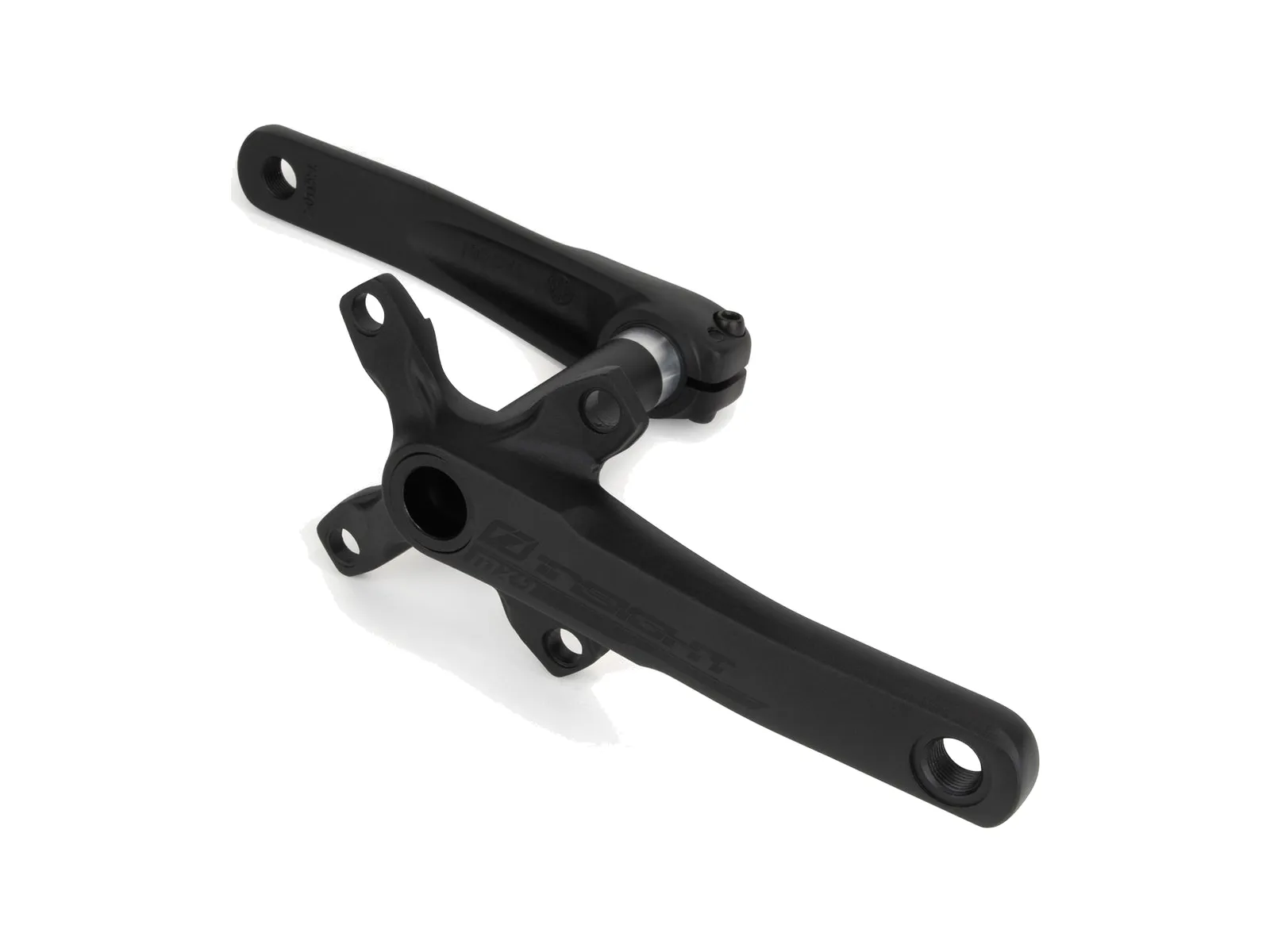

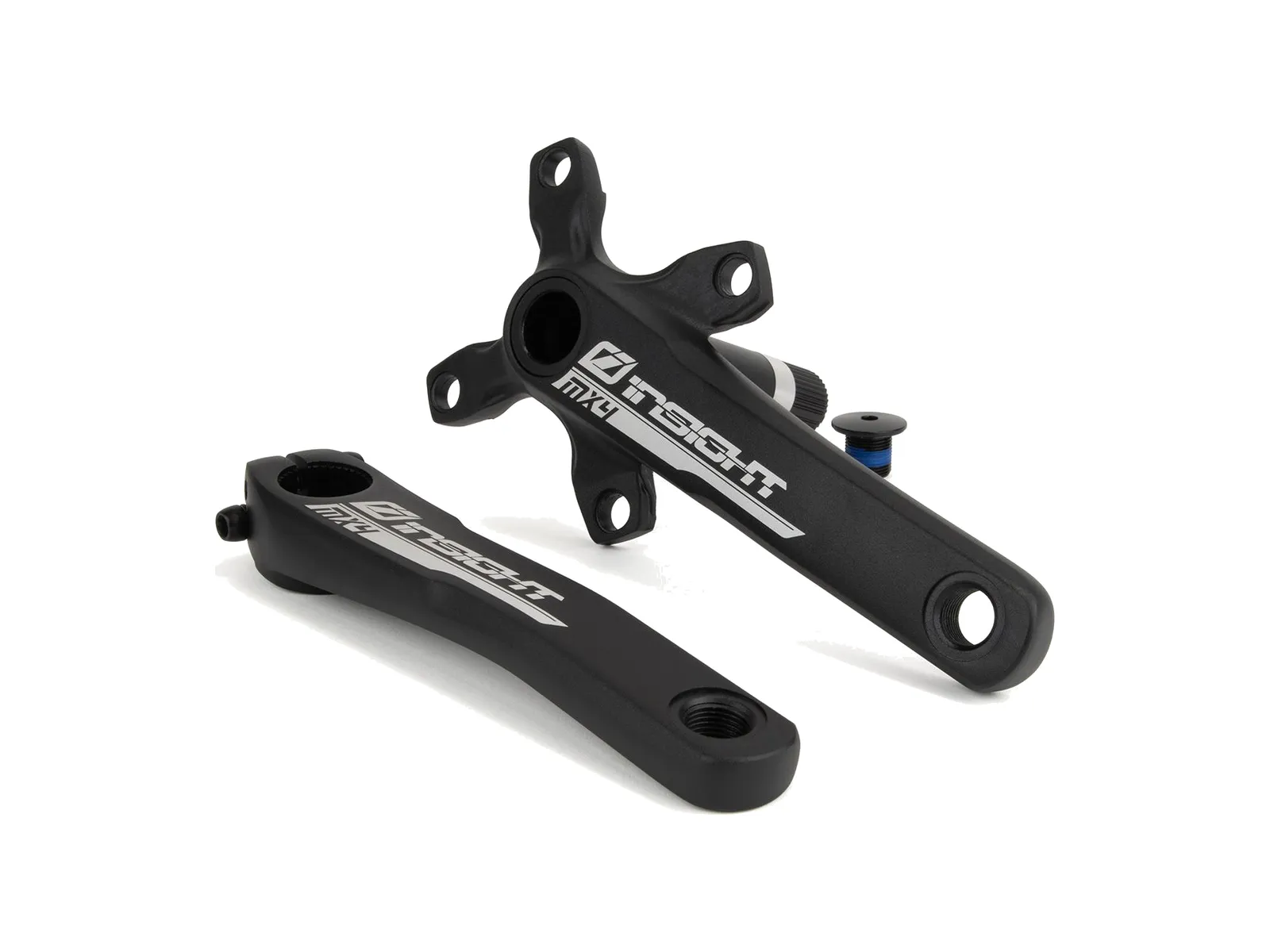

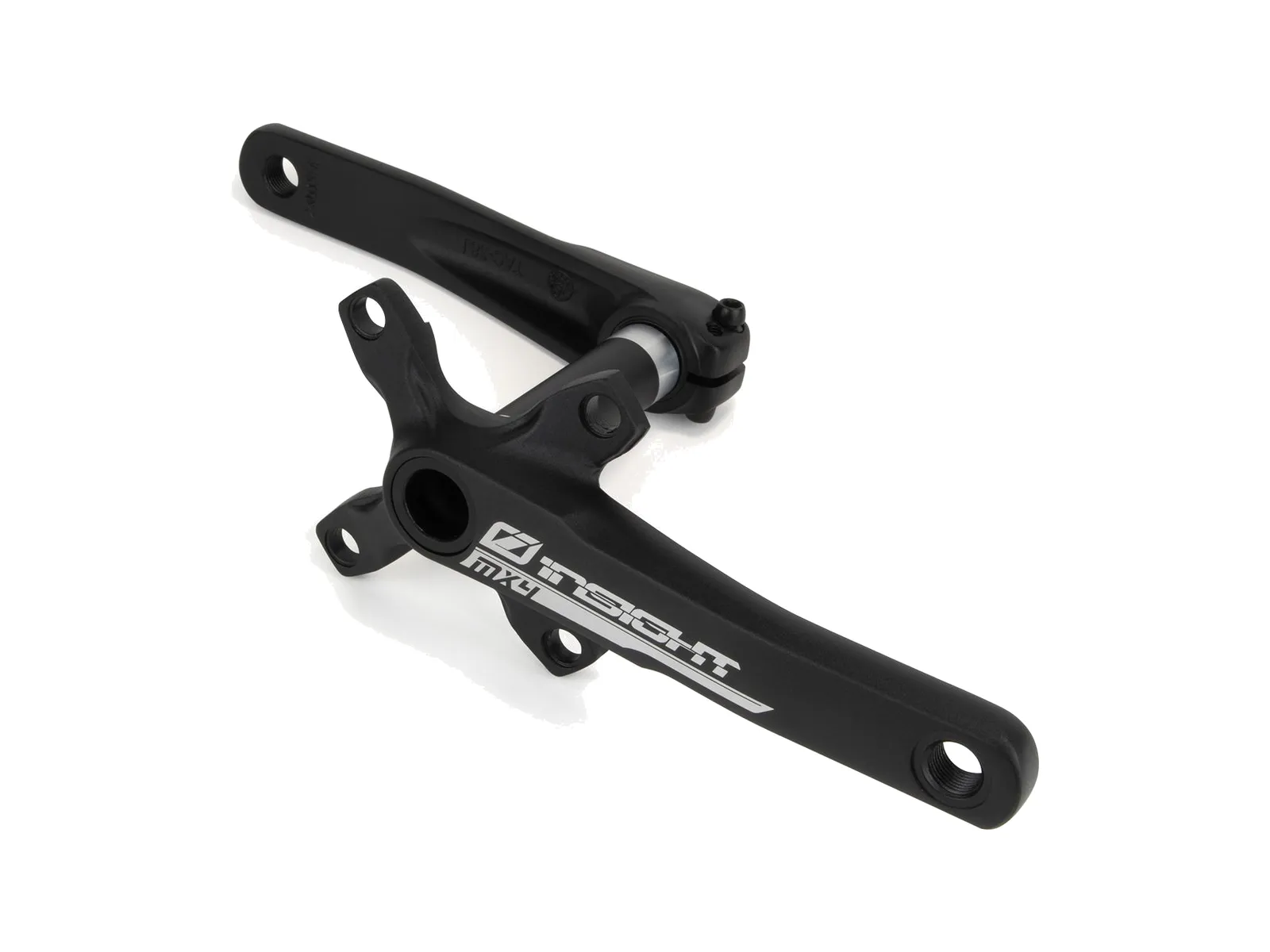

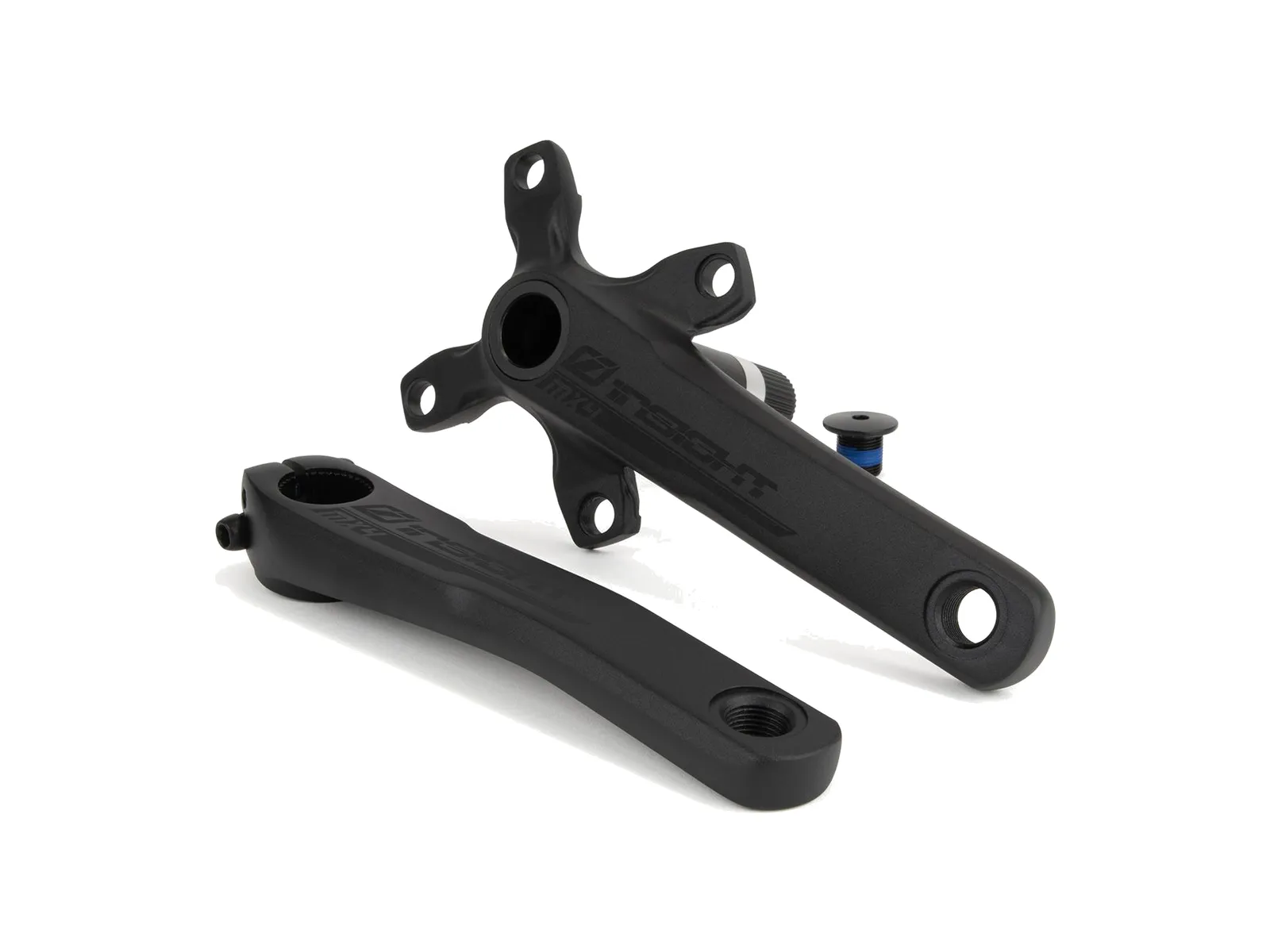

The Insight "MX4" BMX Race Crankset is a light 2-piece crank for young racers who want to move up to a 24mm spindle and a 4-bolt spider but still need short crank arms. The arms are forged from 6061-T6 aluminium, and the 24mm spindle made from 7075-T6 aluminium is pressed into the drive side arm.
The non-drive arm is held on the spindle with two pinch bolts. The spider takes a chainring with 104mm BCD and 4 bolts. A bottom bracket is not included; the crank fits 24mm bottom brackets, Press Fit or Euro BSA. Insight states a maximum rider weight of 65kg.
Facts: Insight "MX4" BMX Race Crankset
- Material Crank Arms: 6061-T6 aluminum, forged
- Material Crank Spindle: 7075-T6 aluminum, pressed into the drive side arm
- Crank-Type: 2-piece
- Crank Arm Length: 140mm, 145mm, 150mm, 152mm, 155mm, 160mm or 165mm
- Spindle Diameter: 24mm
- Chainring mount: 4-Bolt (104mm BCD)
- Q-Factor: 160mm
- Scope of delivery: 2 crank arms with spindle, without bottom bracket and chainring
- Extras: non-drive arm with two pinch bolts, fits 24mm bottom brackets (Press Fit or Euro BSA), max. rider weight 65kg, weight with bolts: 550g (140mm), 568g (152mm), 573g (155mm), 585g (160mm), 593g (165mm)
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
