Insight "PL4" BMX Race Crankset
- Weight : 0.79kg / 1.74lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45498
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/insight-pl4-bmx-race-crankset-p-45498
Printed: 10/29/2026
Printed: 10/29/2026

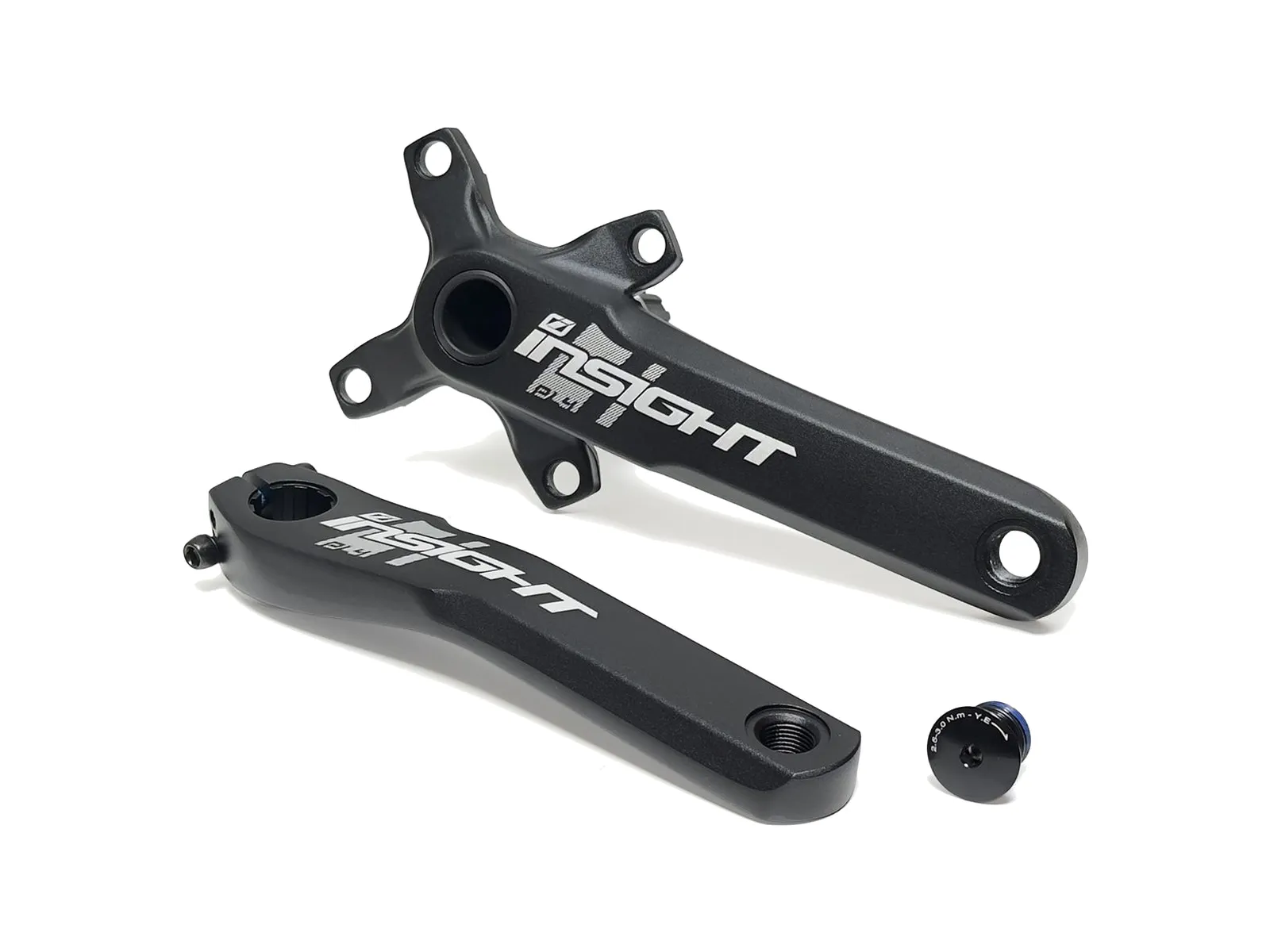

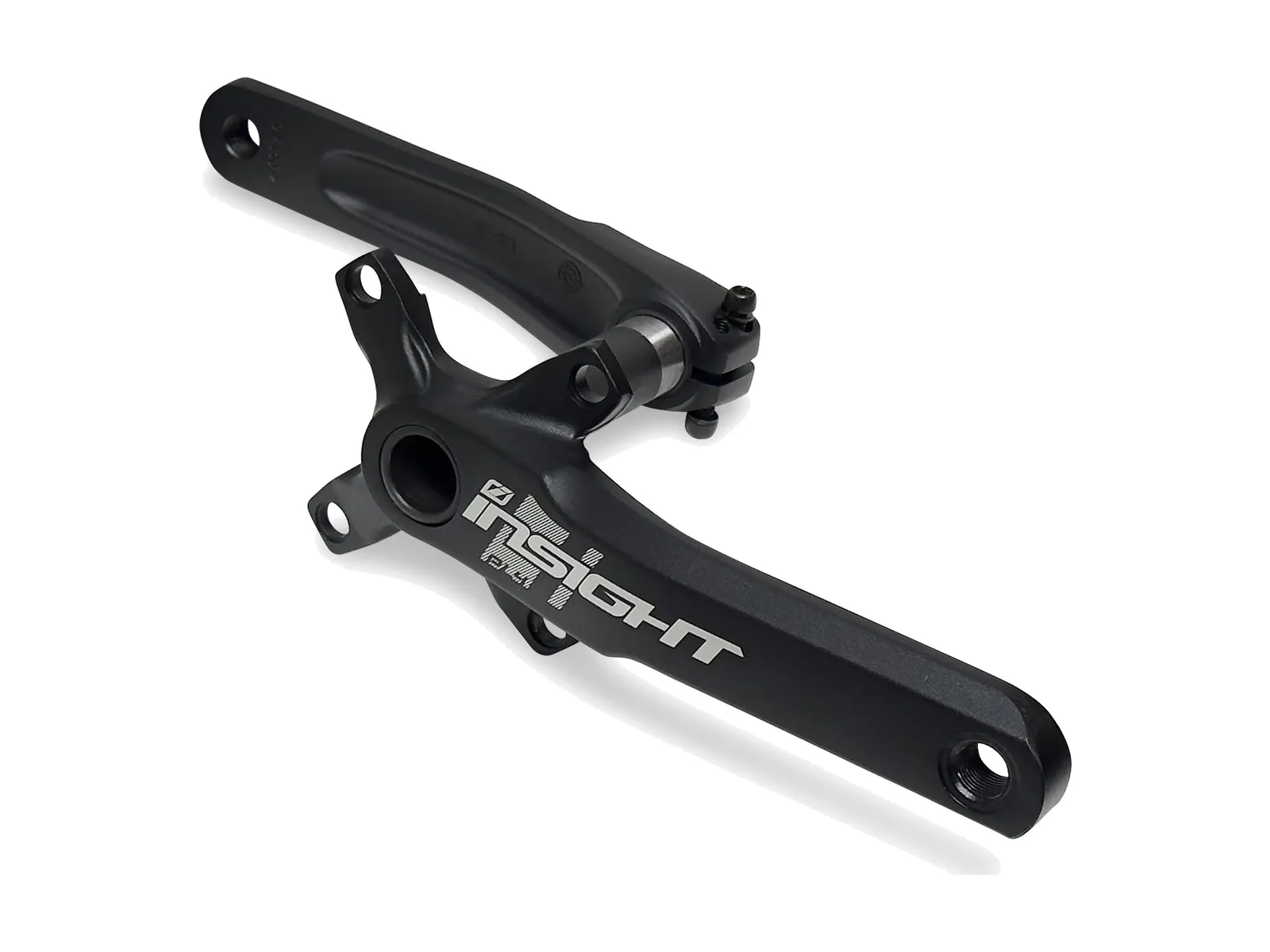

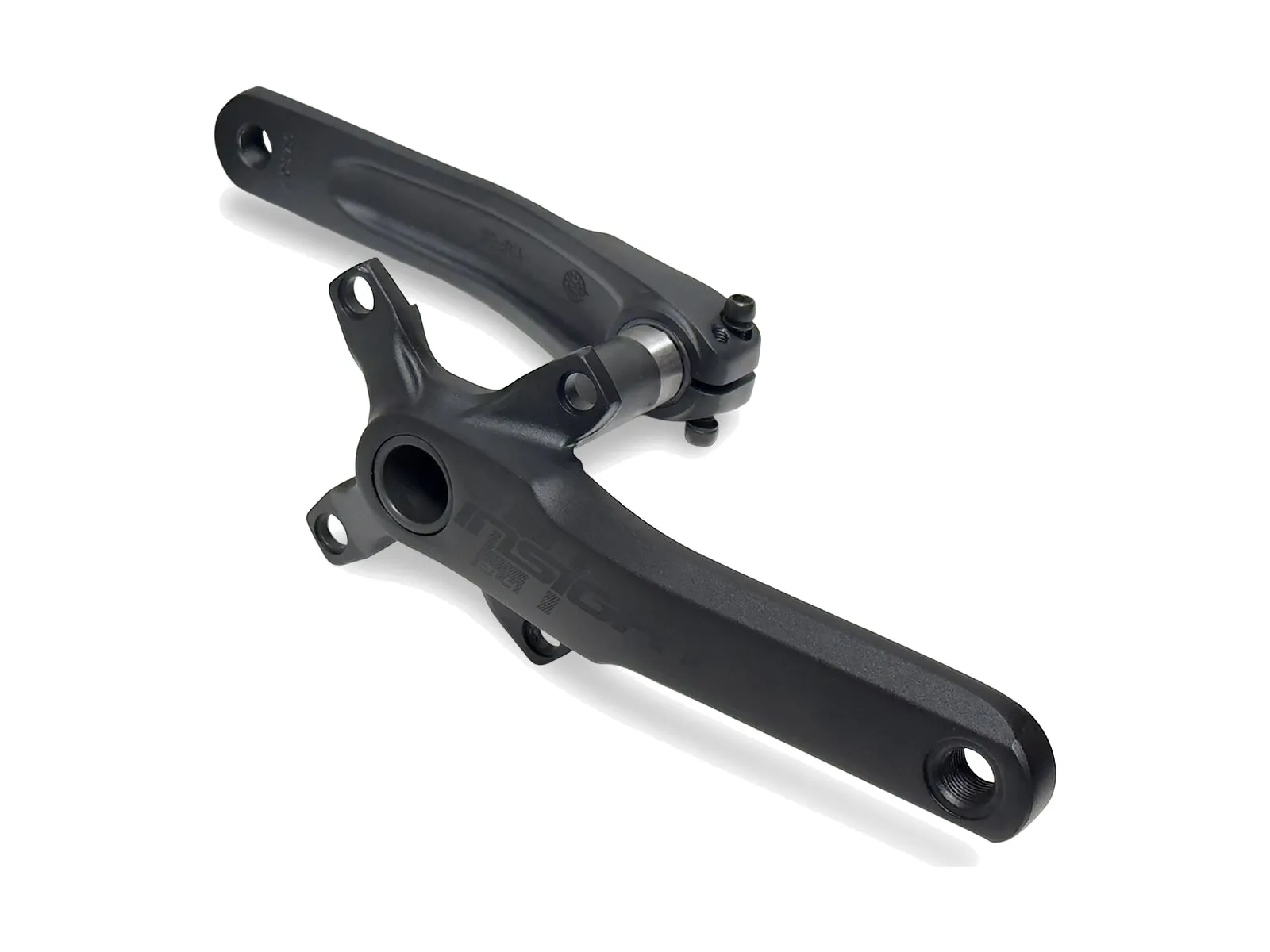

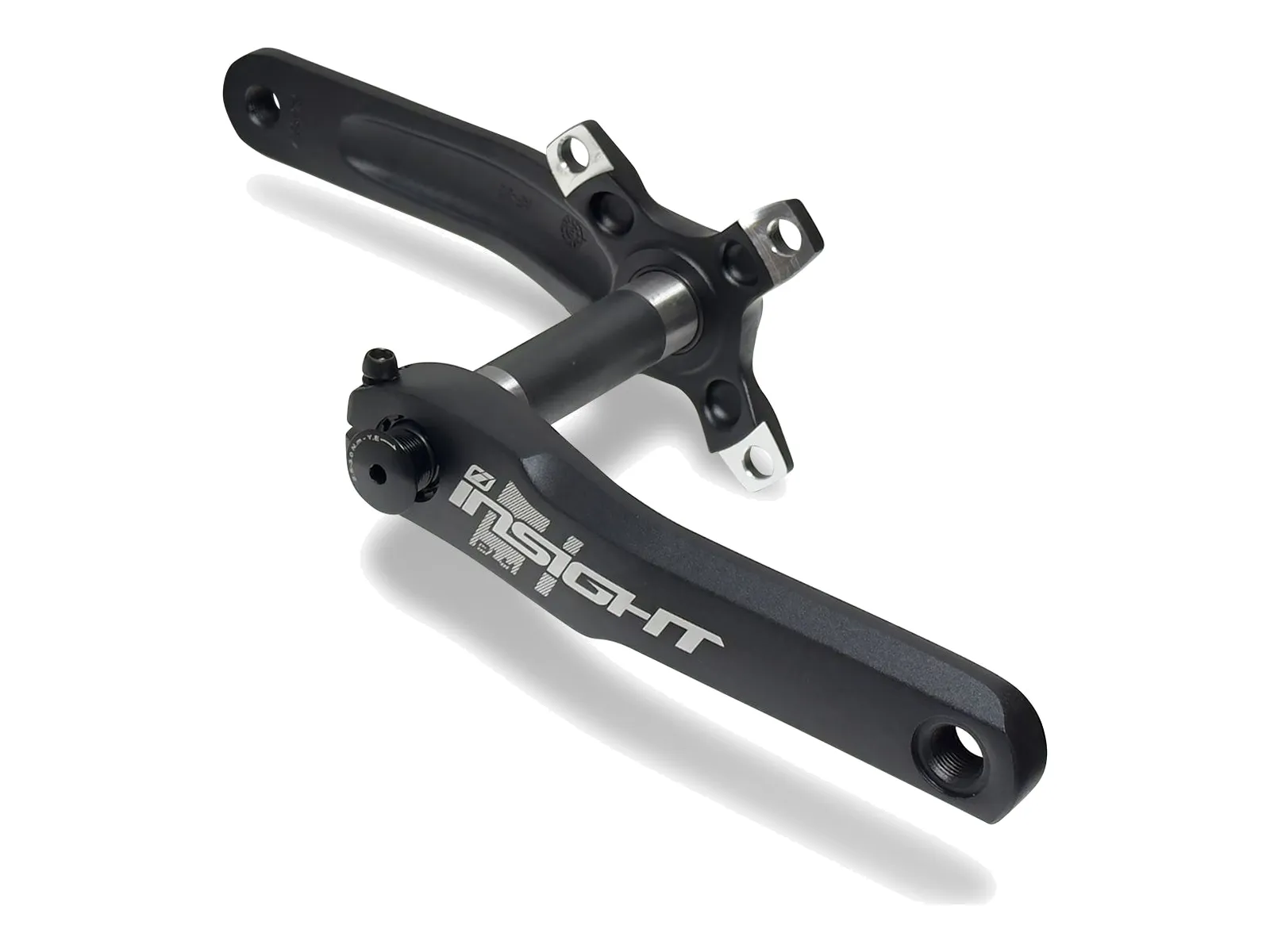

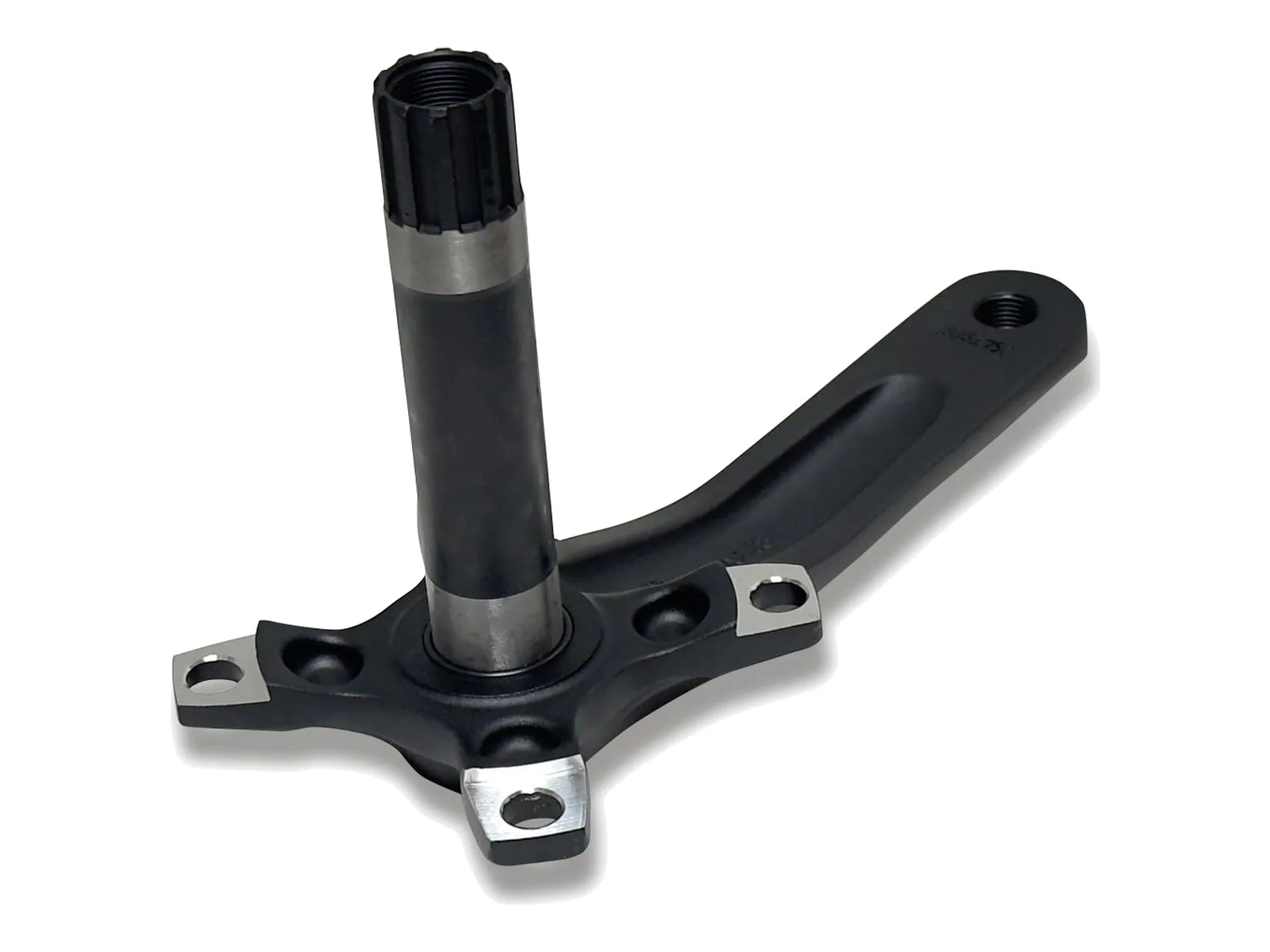

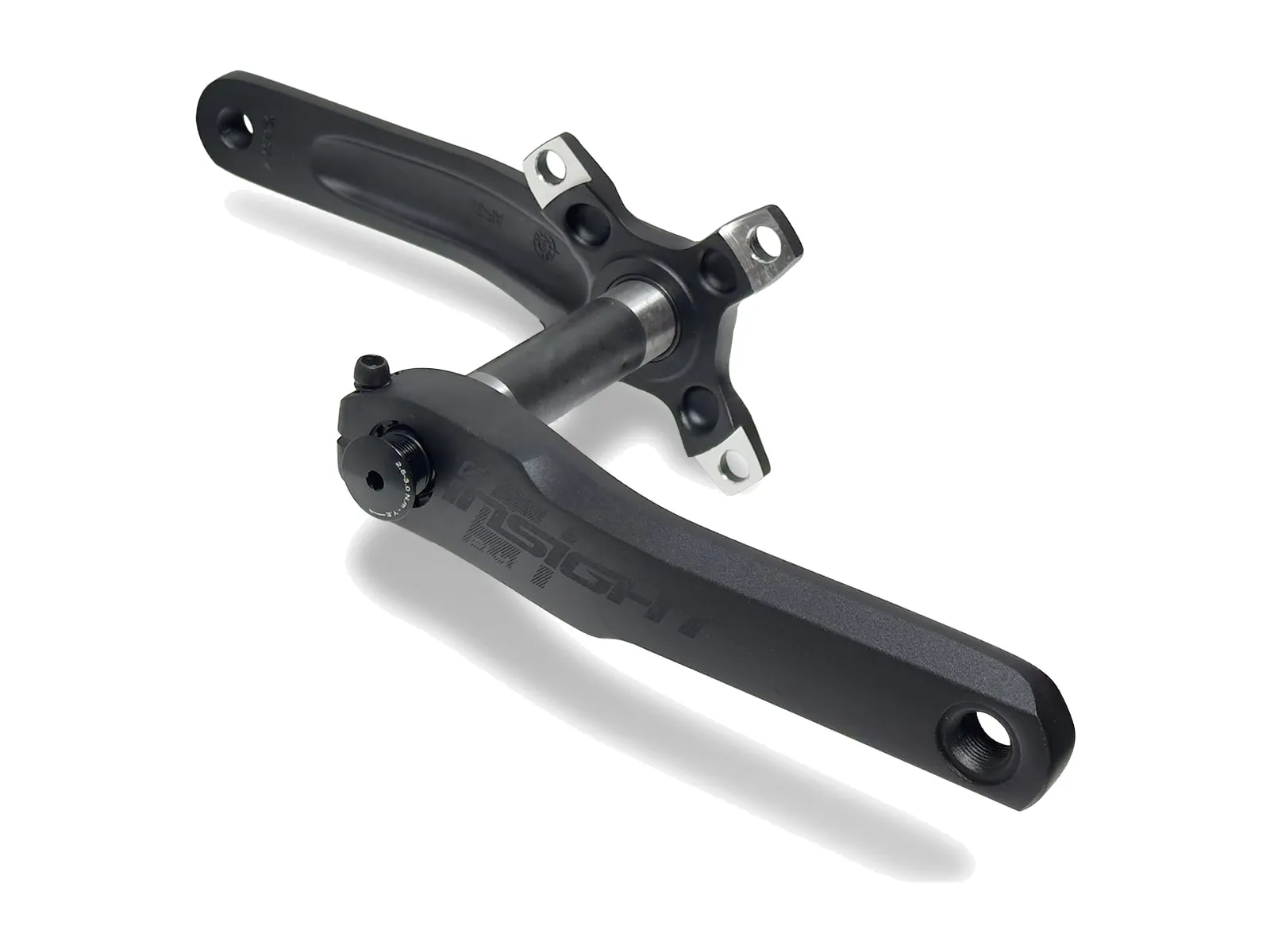

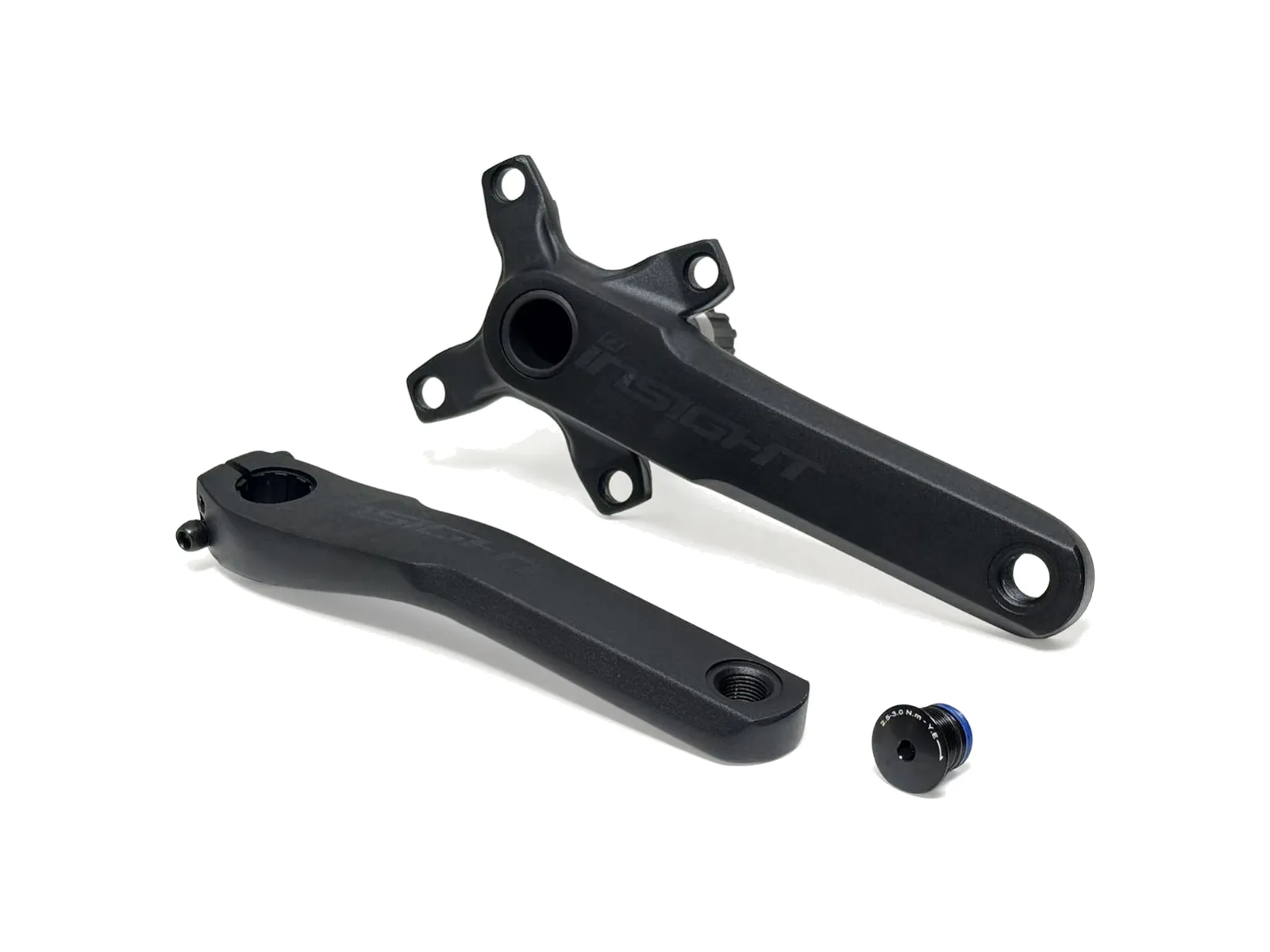

The Insight "PL4" BMX Race Crankset is a light two piece race crankset. The arms are forged 6061-T6 aluminum, the 24mm chromoly spindle is pressed into the drive side arm. The non drive side arm is secured on the spindle with two pinch bolts, so the crank stays tight and runs smoothly.
The drive side arm carries a 4 bolt spider with a 104mm BCD, the Q factor is 160mm. A bottom bracket is not included, the crank fits any 24mm bottom bracket, press fit or threaded Euro. The graphics are laser etched in black or silver.
Facts: Insight "PL4" BMX Race Crankset
- Material Crank Arms: 6061-T6 aluminum, forged
- Material Crank Spindle: chromoly, pressed into the drive side arm
- Crank-Type: 2-piece
- Crank Arm Length: 170mm, 175mm or 180mm
- Spindle Diameter: 24mm
- possible Sprocket Mount by: 4 bolt spider on the drive side arm, 104mm BCD
- Spindle Bolt: non drive side arm with two pinch bolts
- Extras: Q factor 160mm, for 24mm bottom brackets (press fit or threaded Euro), bottom bracket not included, graphics laser etched in black or silver, weight 774g (170mm), 785g (175mm), 793g (180mm)
- Recommended for: Race
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
