BOX Components "Box Four" BMX Race Crankset
- Weight : 0.9kg / 1.98lbs
- Packaging Unit: 1 Set
- Product ID (PID): 43068
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.

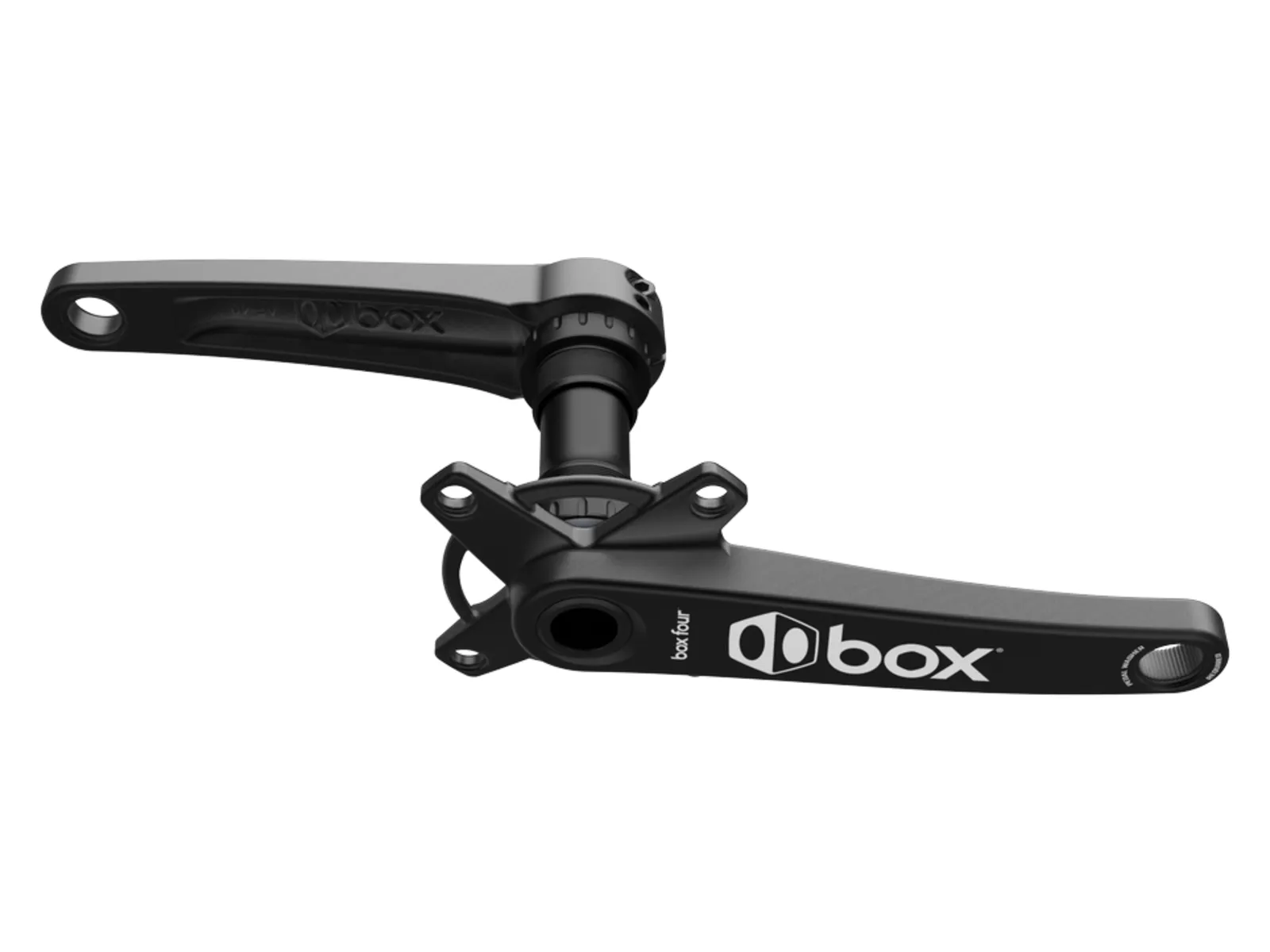

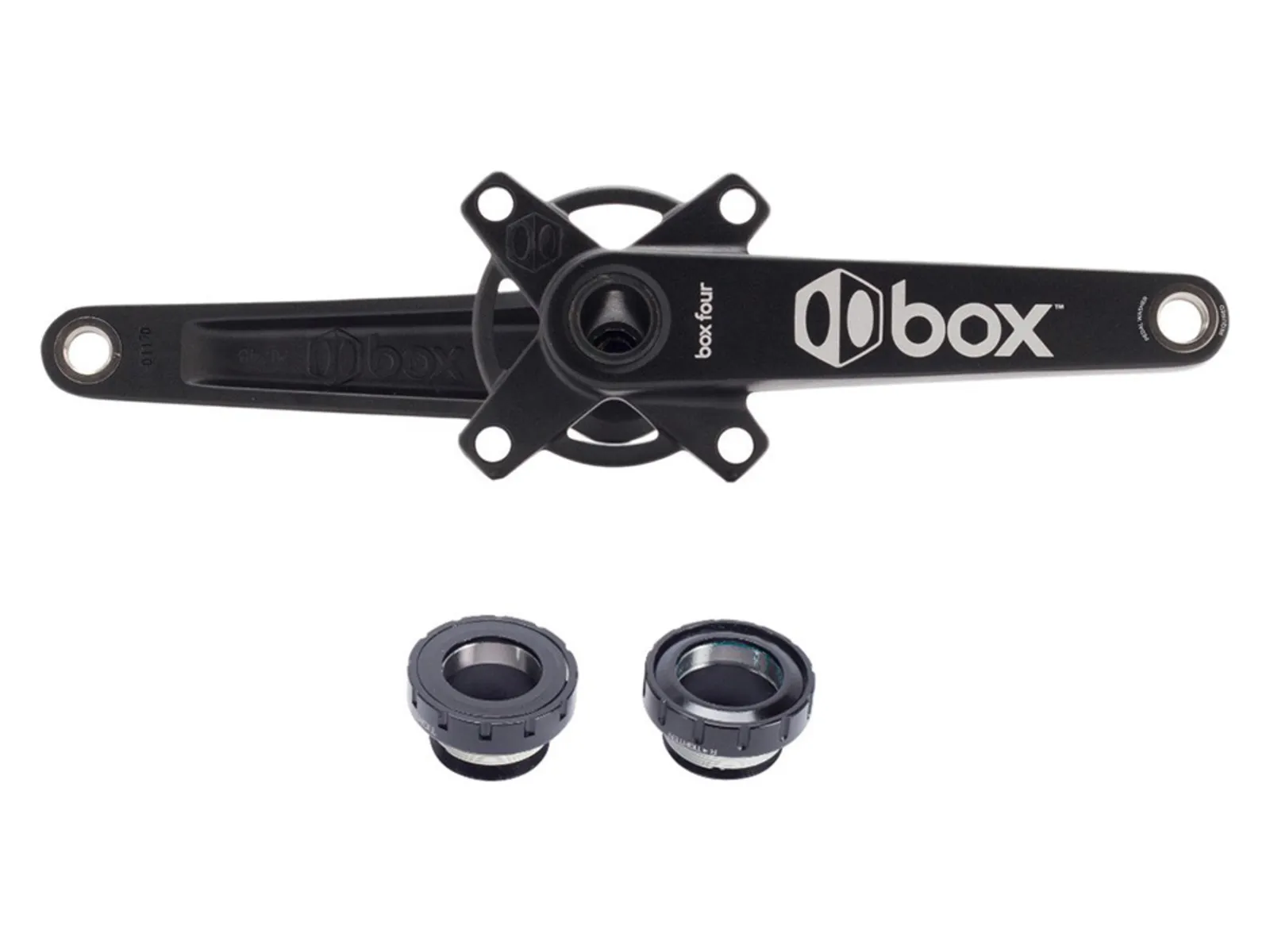

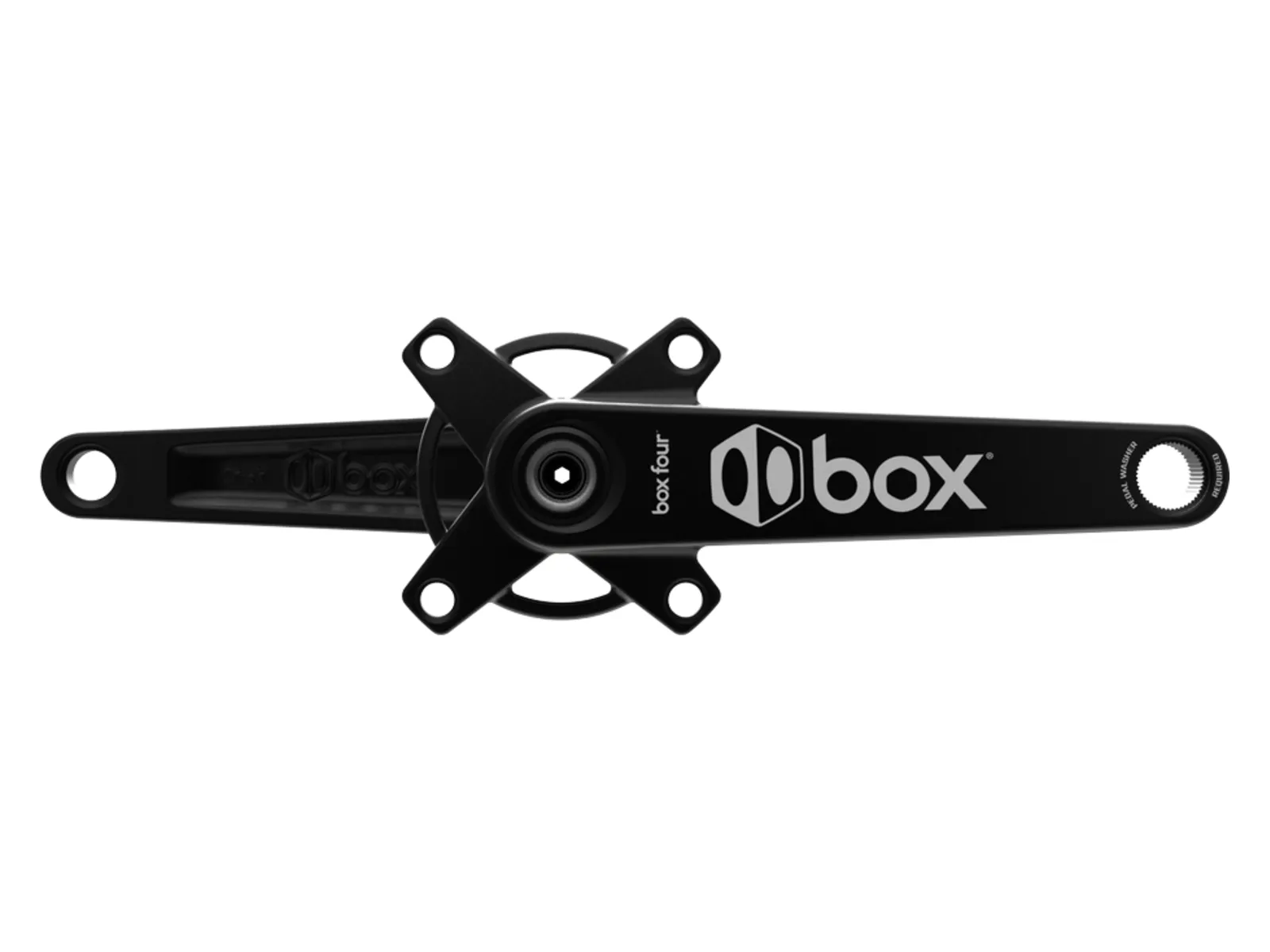

The BOX Components "Box Four" BMX Race Crankset is BOX Components' two-piece alloy race crankset with a 24mm chromoly spindle pressed into the drive side arm. The non-drive arm clamps with two pinch bolts, and the 4-bolt 104 BCD spider has a flex-resistant ring. The matching external BSA bottom bracket and the pedal washers for the steel pedal inserts are included.
Facts: BOX Components "Box Four" BMX Race Crankset
- Material Crank Arms: 6061-T6 aluminum, cold-forged and CNC machined
- Material Crank Spindle: chromoly, CNC turned, 24mm, pressed into the drive side arm
- Crank-Type: 2-piece
- Crank Arm Length: 160mm or 170mm
- Spindle Diameter: 24mm
- possible Sprocket Mount by: bolt drive: 4-bolt spider, 104mm BCD
- Spindle Bolt: 2 pinch bolts on the non-drive arm, torque 12-14 Nm
- Extras: spider with flex-resistant ring, steel pedal inserts, chainline 44.5mm, Q factor 168mm, anodized with laser-etched graphics, weight: 900g (160mm and 170mm)
- Recommended for: Race
- Content: crankset with 24mm spindle, BSA bottom bracket (1.37, external bearings), pedal washers
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
