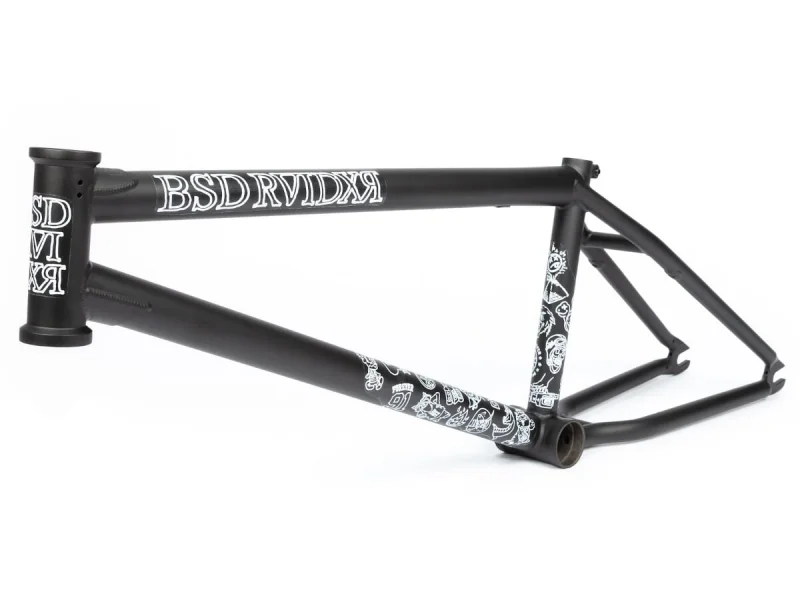

BSD "Raider V3" BMX Frame
-
Weight : 2.26kg / 4.98lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 20309
This BSD "Raider V3" BMX Frame comes with a long top tube coupled with a slightly longer 13.5 "- 14" inches rear end and a frame height of 9.5" offers especially taller riders an ideal allround BMX frame with modern geometry and specs. Of course this BSD "Raider V3" BMX Frame is made from best quality, partially heat treated 100% 4130 CrMo and a steep 75.2° degrees head tube make this high quality allround BMX frame very maneuverable in spite of its length. Furthermore this frame includes high quality made investment cast dropouts, an integrated seat clamp and removable brake hardware (not included with delivery).
Facts: BSD "Raider V3" BMX Frame
- Wheel Size: 20"
- Material: 100% Sanko Japanese seamless 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset, integrated seatclamp, removable brake hardware, Mid BB
- Geometry:
Top Tube Length (TT): 20.75" or 21.0"
Chainstay Length (CS): 13.5" (34.29cm) - 14" (35.56cm)
Head Tube Angle (HA): 75.2°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.75" (29.85cm)
Standover Height (SO): 9.5" (24.13cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 7mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: Long and high frame, ideal for tall riders, wide rear end for fat 2.4" tires
