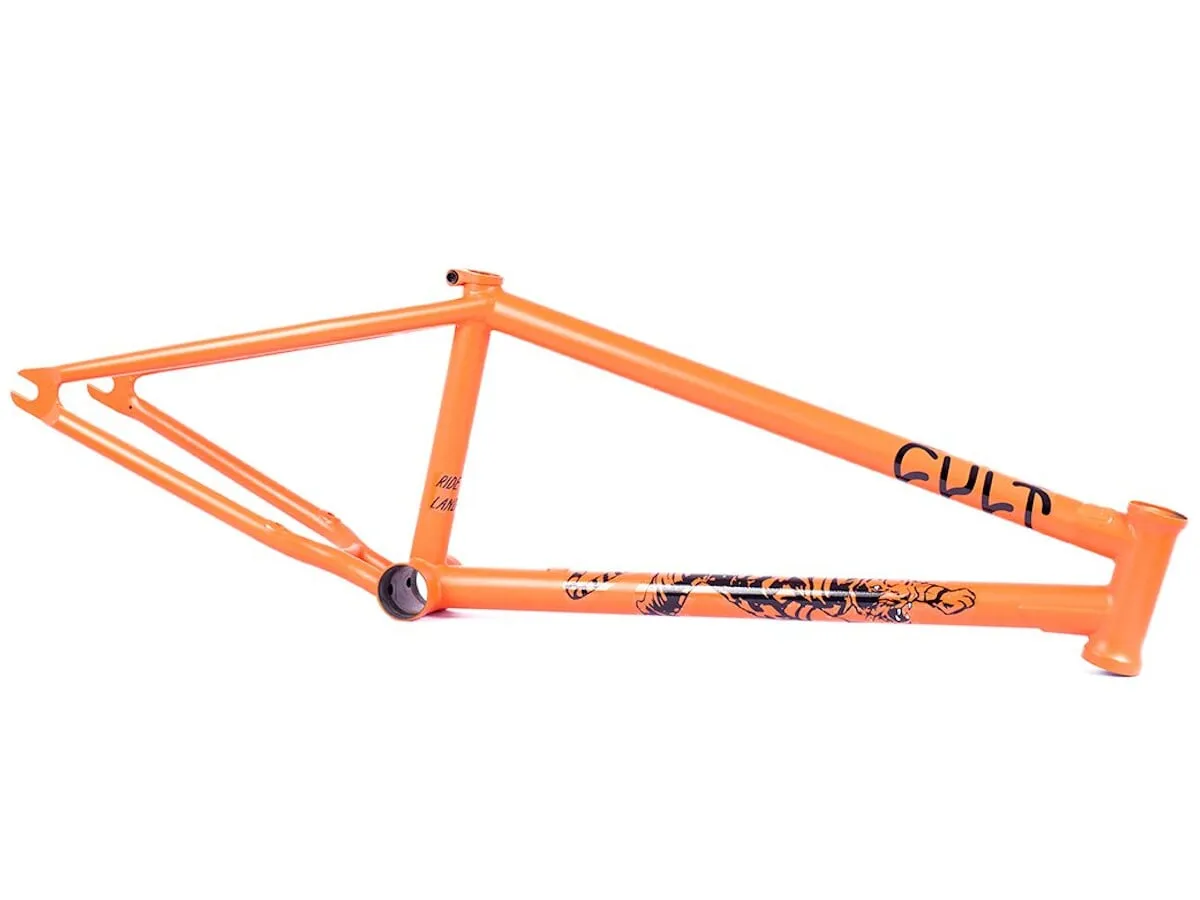

Cult "Tom Russel" 2022 BMX Frame - Burnt Orange
-
Weight : 2.3kg / 5.07lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 23071
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
This
Cult "Tom Russel" 2022 BMX Frame - Burnt Orange
is Corey Walsh's signature frame and comes in Tom Russel's signature colorway.
The
Cult "Tom Russel" 2022 BMX Frame - Burnt Orange
is made for top modern Bowl, Trail and transition riding.
Facts: Cult "Tom Russel" 2022 BMX Frame - Burnt Orange
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top and downtube gusset, headtube for integrated head sets, integrated investment cast seat clamp, investment cast seat stay bridge, tappered seat stays, removable brakehardware
- Geometry:
- Top Tube (TT): 20.75"
- Chain Stay (CS): 13.8" (35.05cm) - 14.1" (35.81cm)
- Head Tube Angle (HA): 74.5°
- Seat Tube Angle (SA): 71°
- BB Height: 11.5" (29.21cm)
- Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: investment cast, 5mm thick, 14mm slots, heat treated
- Chain Tensioners: without
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Corey Walsh signature frame, Tom Russel signature colorway, very good BMX Trail and Bowl frame, brake mounts on the lower chainstays, in connection with brakes can therefore only be driven with sprockets larger than 28t, wide rear end for wide 2.4" tires
- Model Year: 2022
