Excess "XLC-1 Mini/Expert" Wheelset - 20 x 1-3/8 Inch (451) - Axles 10/10mm - 28H
- Weight : 1.45kg / 3.2lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45606
- Product safety
Weight
Source: BMX Glossary
Printed: 10/29/2026

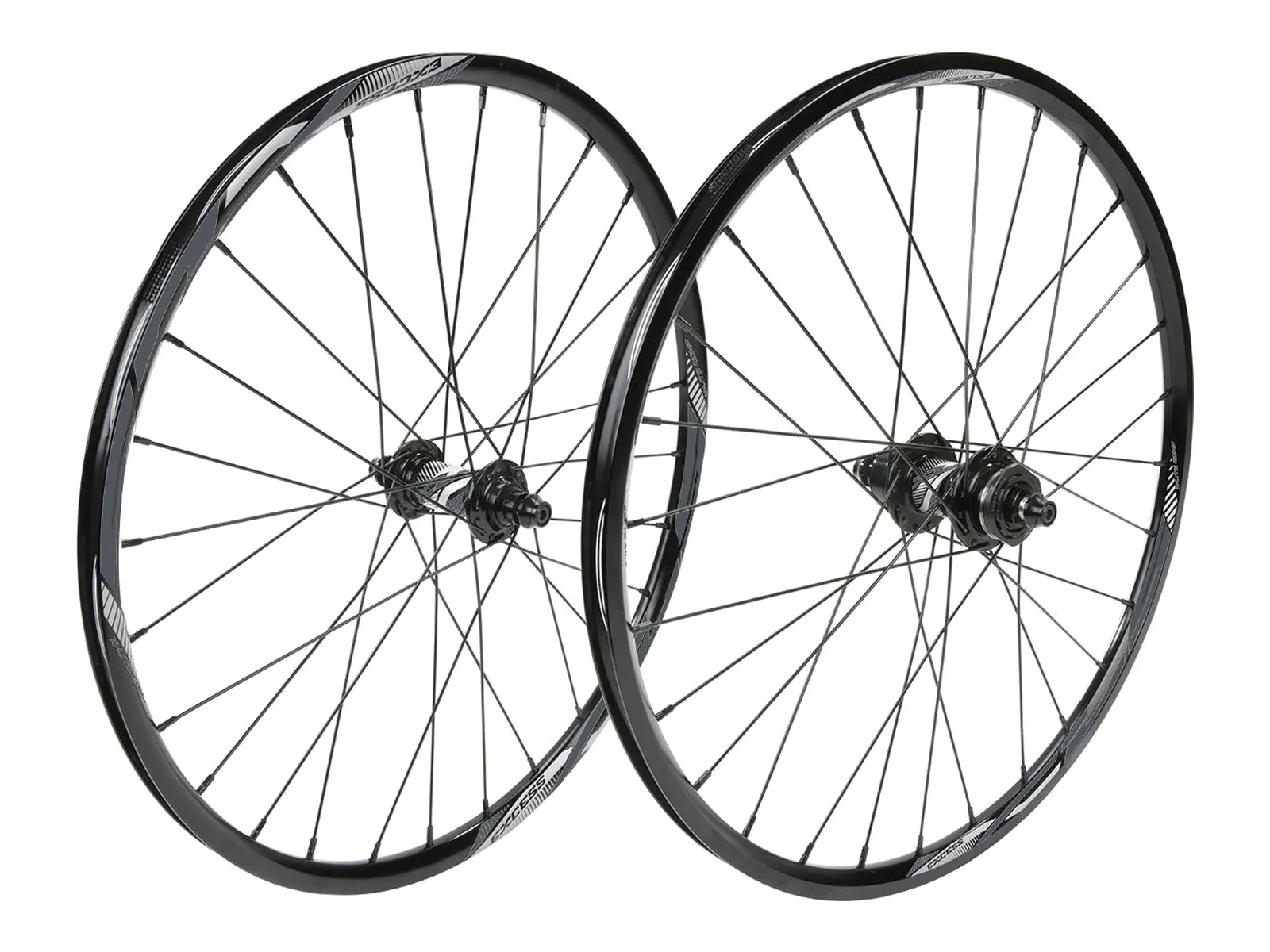

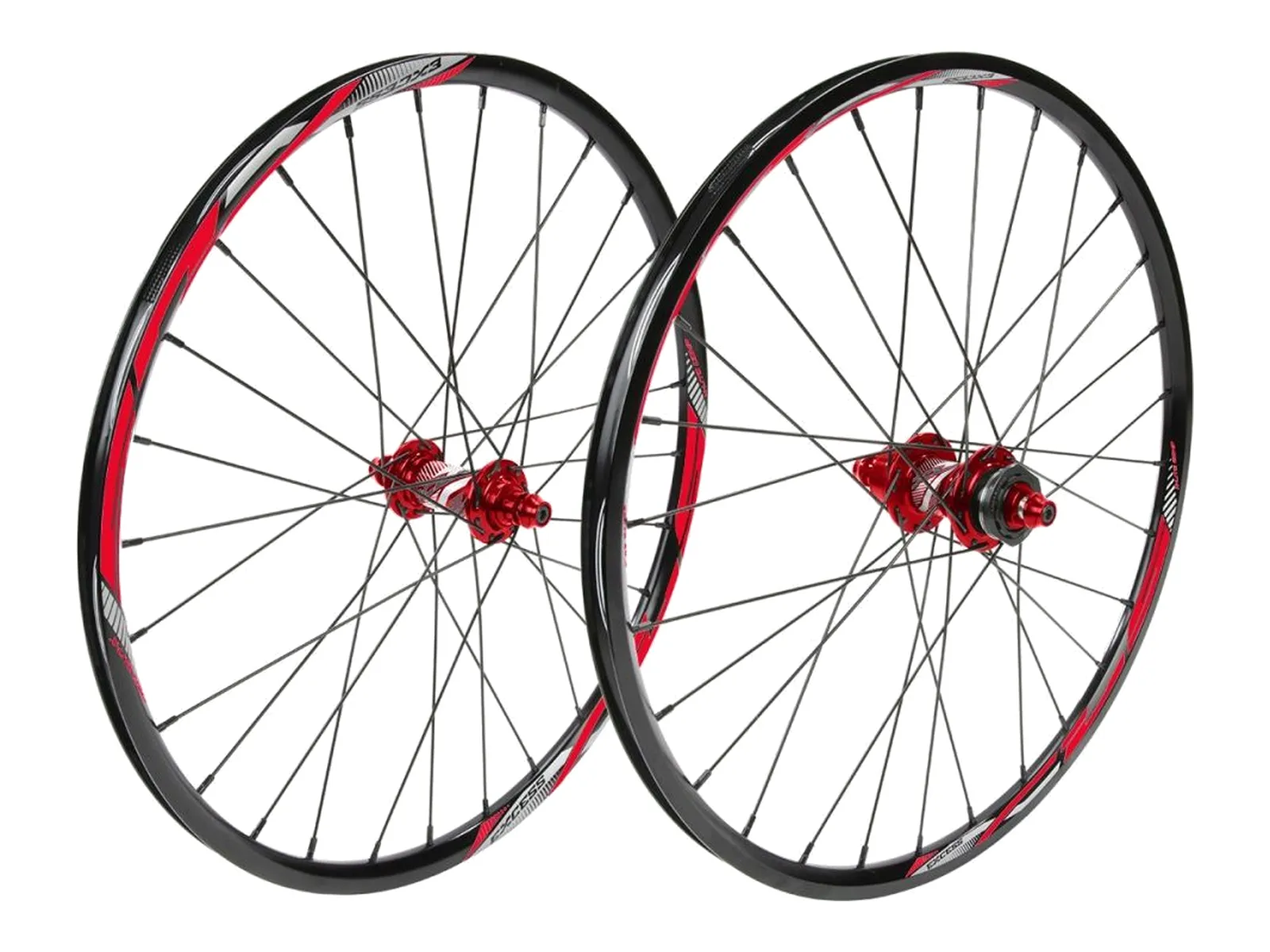

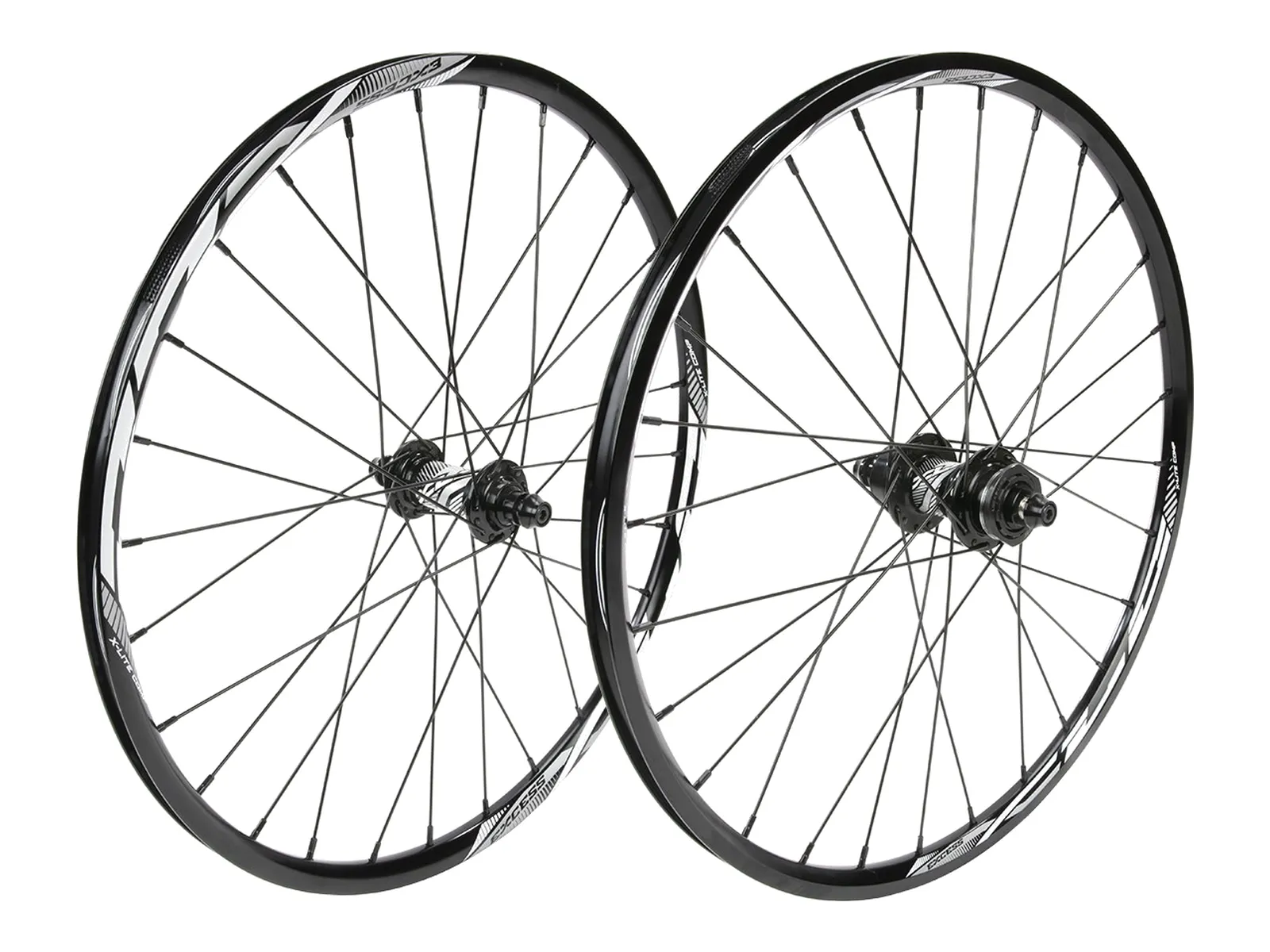

The Excess "XLC-1 Mini/Expert" Wheelset - 20 x 1-3/8 Inch (451) - Axles 10/10mm - 28H is a wheelset for young riders on Mini and Expert bikes, made for racing and training. The Excess XLC double wall rims are 6061-T6 aluminum in 451x19.5mm (20 x 1-1/8" to 1-3/8") with a specific profile front and rear, each wheel is laced with 28 14G steel spokes and aluminum nipples, rim tape fitted.

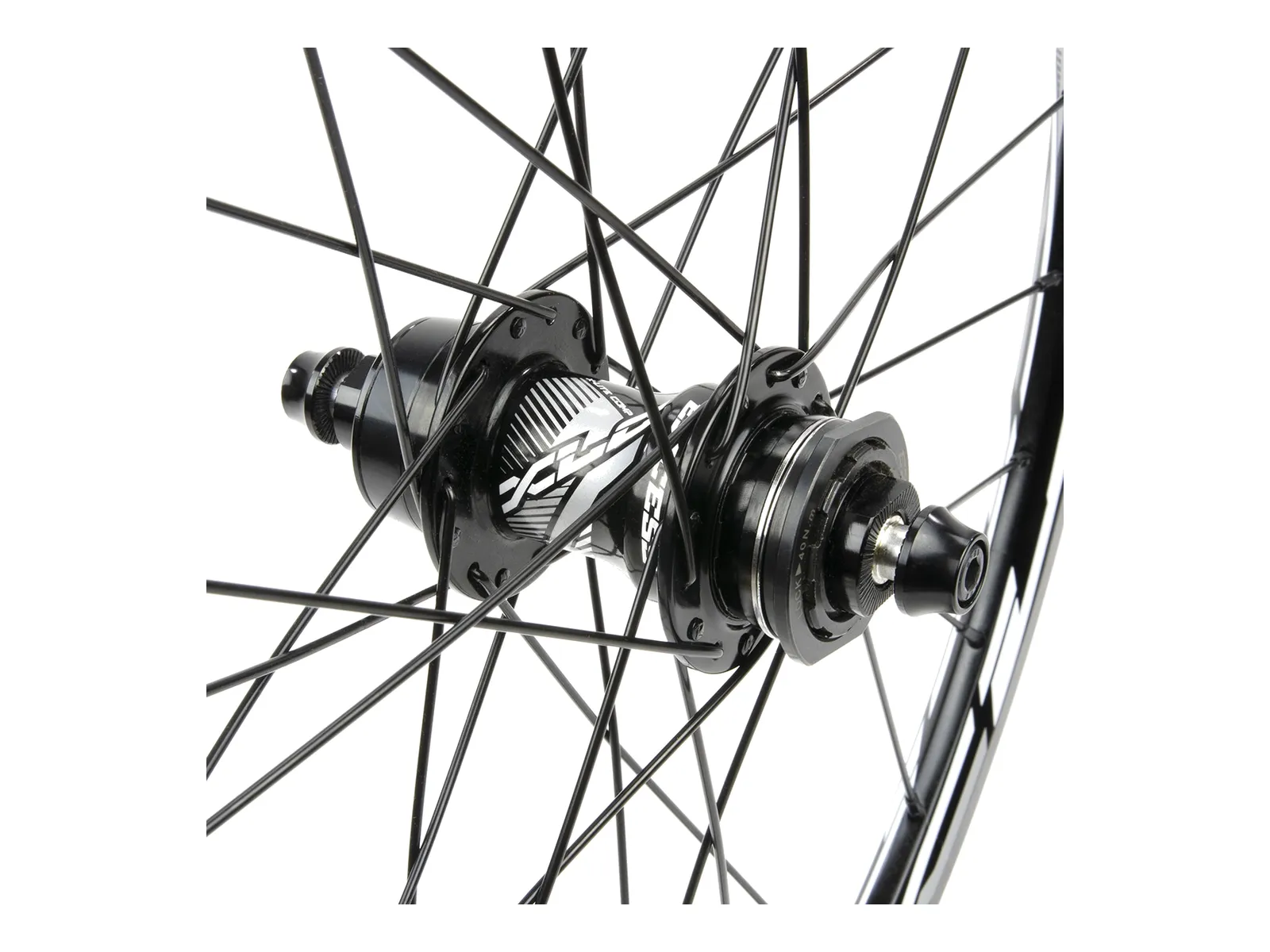

Up front runs the Excess XLC Expert front hub, at the rear the XLC Expert cassette hub, both with sealed bearings and aluminum axles with a 10mm outer diameter, fastened with M6 hex key bolts. At the rear 3 pawls engage a 24 tooth ratchet, and the chromoly freehub body takes Shimano standard cogs. The set is ready for V-brakes, and the rear hub has a Center Lock mount so you can convert to a disc brake. Cog and Center Lock/ISO adapter are sold separately. The pair weighs 1446g according to US Pro.
Facts: Excess "XLC-1 Mini/Expert" Wheelset - 20 x 1-3/8 Inch (451) - Axles 10/10mm - 28H
- Wheel Size: 20"

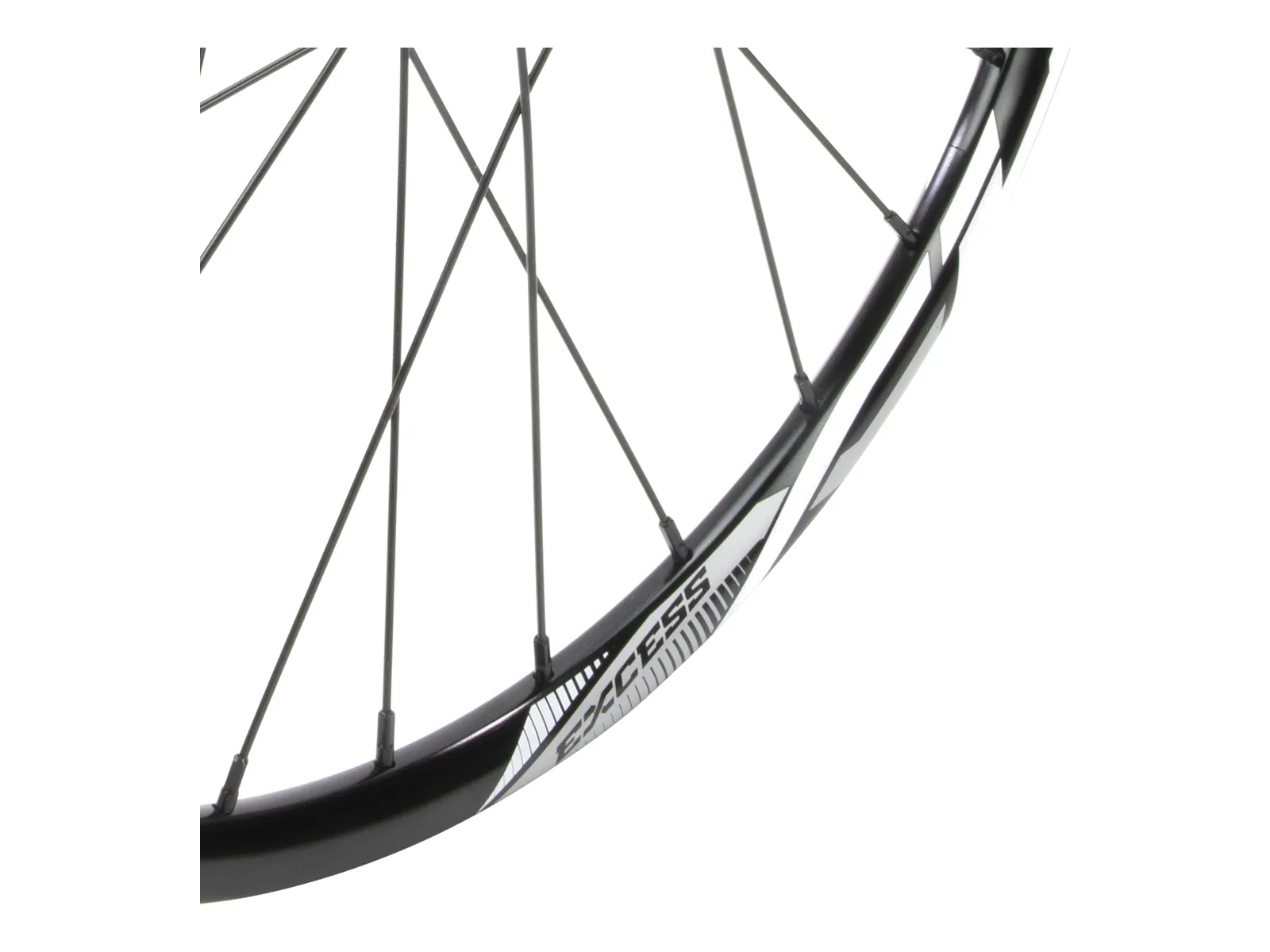

- Rim: Excess XLC 451x19.5mm
- Material: 6061-T6 aluminum, double wall
- Brake Type: V-Brake, disc via the Center Lock mount of the rear hub
- Holes: 28H - ETRTO ⌀: 451mm (20")
- Hub: Excess XLC Expert M6 28H (front), Excess XLC Expert Cassette Center Lock M6 28H (rear)
- Material: aluminum
- Bearing: Sealed Bearings (SB)
- Driver: Shimano standard (cassette freehub), chromoly freehub body
- Freehub: 3 pawls, 24 tooth ratchet
- Disc mount: Center Lock - Axles: 10mm (front), 10mm (rear), aluminum, M6 hex key axle bolts
- Holes: 28H
- Spokes: Excess steel, 14G, aluminum nipples
- Weight: 1446g (pair)
- Content: 1 wheel set (front wheel + rear wheel)
- rim tape fitted
- cog and Center Lock/ISO adapter not included
