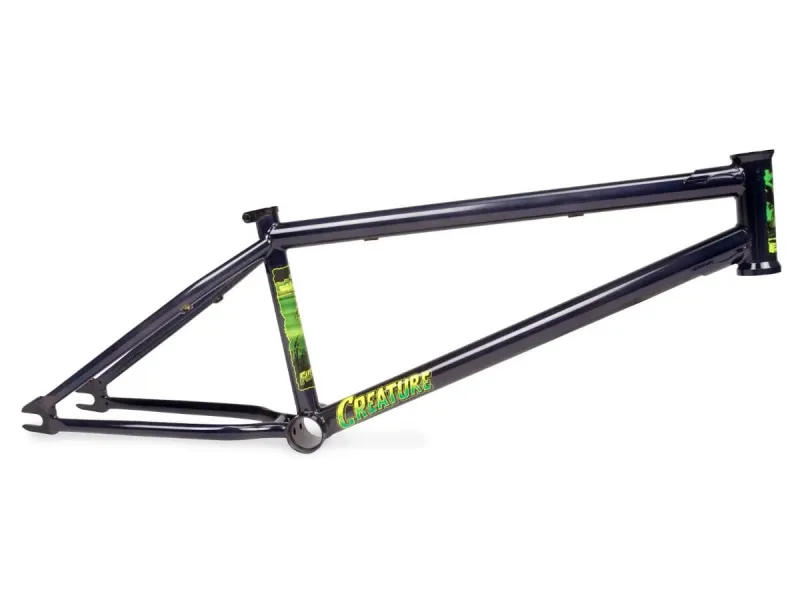

Fiction BMX "Creature" BMX Frame
-
Weight : 2.3kg / 5.07lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 26982
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The
Fiction BMX "Creature" BMX Frame
is a real all-round frame and is suitable for both street and park riding. The head tube, bottom bracket and dropouts of the
Fiction BMX "Creature" BMX Frame
are all hand-welded, using CNC-machined and heat-treated 4130 CrMo. A very durable construction and for sure a big riding fun.
Facts: Fiction BMX "Creature" BMX Frame
- Wheel Size: 20"
- Material: Heat treated 4130 CrMo, tapered chainstays, integrated headset
- Geometry:
- Top Tube (TT): 20.75" or 21.0"
- Chain Stay (CS): 13.4" (34.04cm)
- Head Tube Angle (HA): 75°
- Seat Tube Angle (SA): 71°
- Standover Height (SO): 9.5" (24.13cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: 5mm thick, 14mm slots
- Chain Tensioners: without
- Brakemounts: with (screwable, M6)
- not included with delivery
- Brake Type: U-Brake
